Thorens

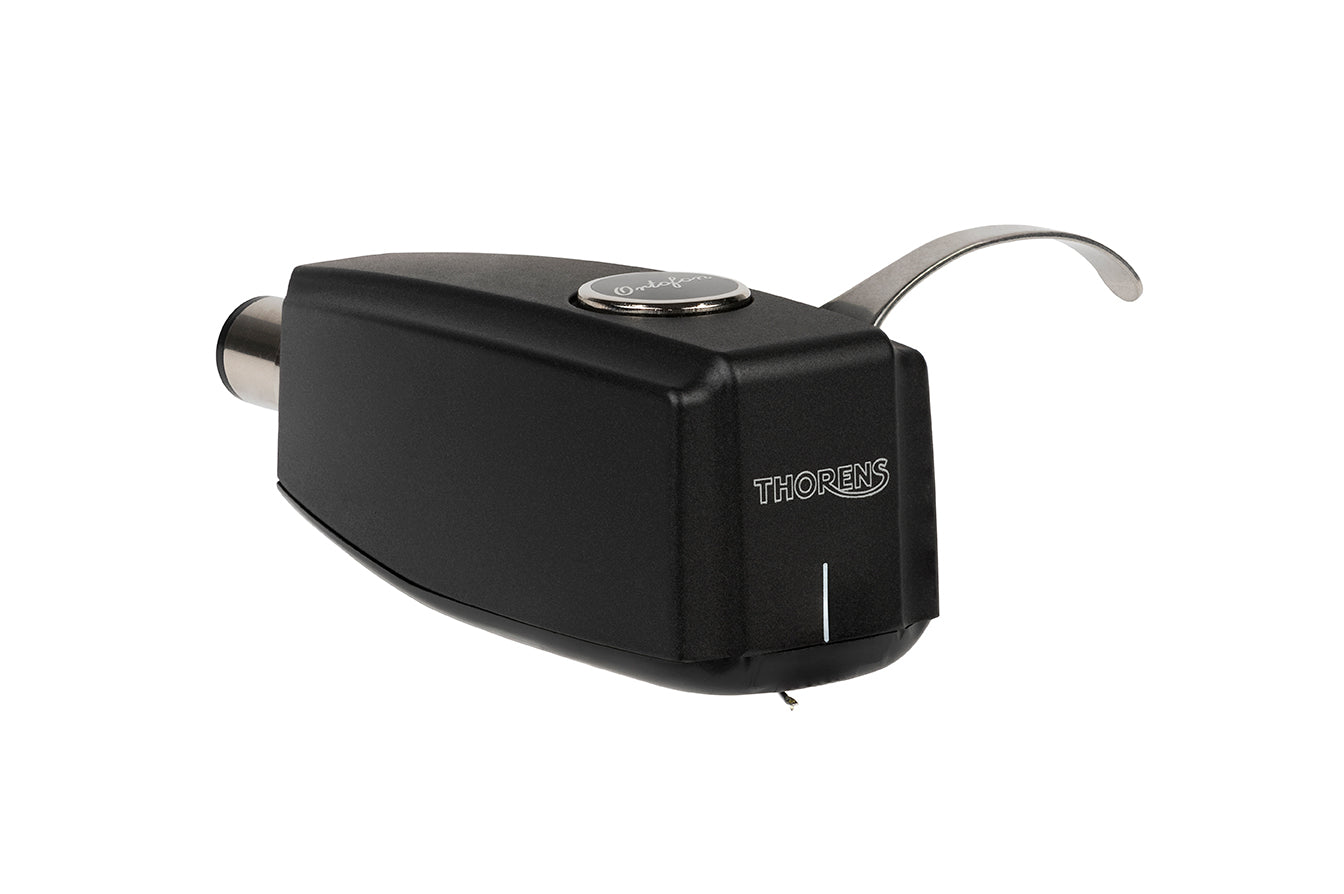

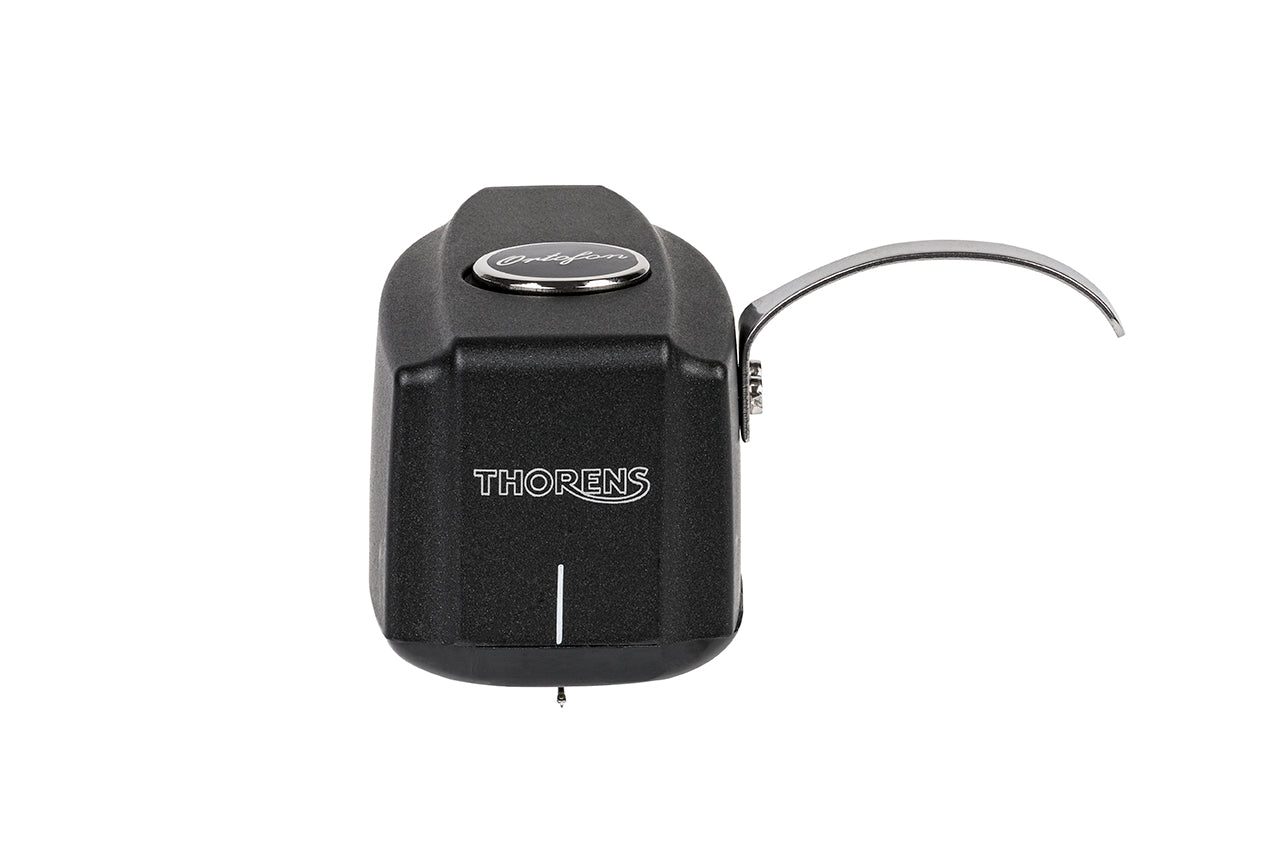

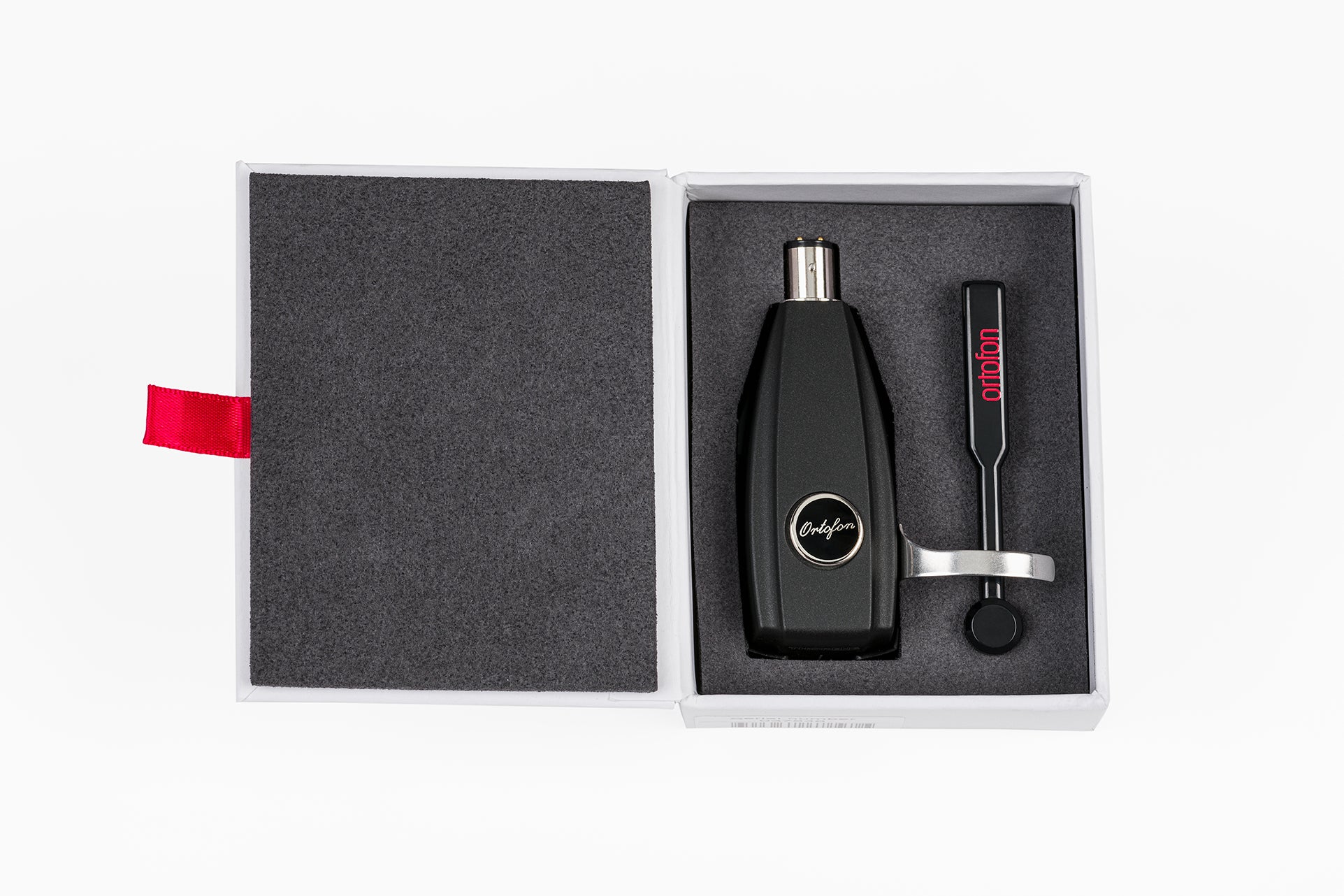

Thorens SPU TD 124, cartridge

The SPU 124 modernizes the classic SPU design and performs several optimizations for optimal compatibility with the new Thorens TD 124 DD.
€1,990.00 EUR

Thorens SPU TD 124, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

  • Frequency range - 20-20,000 Hz ± 2 dB.
  • Tracking ability at 315 Hz and recommended tracking force *) > 70 µm.
  • Compliance, dynamic, lateral - 8 µm/mN.
  • The sensor is elliptical.
  • The radius of the sensor tip - r/R 8/18 µm.
  • Tracking force range - 2.5-3.5 g.

DESCRIPTION

The SPU 124 modernizes the classic SPU design with several optimizations designed for optimum compatibility to the new Thorens TD 124 DD.

The SPU 124 features a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.

While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.

TECHNICAL DATA

SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.5 mV
  • Channel balance at 1 kHz < 1.5 dB
  • Channel separation at 1 kHz > 23 dB
  • Channel separation at 15 kHz > 15 dB
  • Frequency response - 20-20,000 Hz ± 2 dB
  • Tracking ability at 315Hz at recommended tracking force *) > 70 µm
  • Compliance, dynamic, lateral - 8 µm/mN
  • Stylus type - Nude elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 2.5-3.5g
  • Tracking force, recommended - 3.0g
  • Tracking angle - 20°

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
