Network AV receiver Marantz NR1508 5.2 with HEOS

INFORMACIJA

This allows you to enjoy music throughout your home and control the system with a single app on your smart device. The NR1508 also has integrated Bluetooth and Airplay support, enabling direct wireless music streaming from external devices. The receiver is equipped with a 32-bit DSP processor and supports all the latest surround sound formats, such as Dolby TrueHD and DTS-HD Master Audio. The amplifier section consists of separate transistor amplifiers for each of the five channels, which are compatible with low-impedance 4ohm speakers.

• Power: 5x85W
• Supports apps: AirPlay, Internet Radio, Spotify, Pandora, SiriusXM, Napster, Amazon Music, TIDAL, Deezer and more..
• Wi-Fi, Bluetooth
• Dolby TrueHD and DTS-HD Master Audio support
• 6 HDMI inputs (1 front) with HDCP 2.2 support
• Marantz 2016 AVR Remote app
• Smart ECO mode with off/on/auto settings
• Dimensions: 440 x 376 x 105 mm / Weight: 8.20 kg

DESCRIPTION

Designed to deliver thrilling sound moments, the new NR1508 AV receiver now features integrated HEOS multiroom system support. This allows you to enjoy music throughout your home and control the system with a single app on your smart device. The NR1508 also has integrated Bluetooth and Airplay support, enabling direct wireless music streaming from external devices. The receiver is equipped with a 32-bit DSP processor and supports all the latest surround sound formats, such as Dolby TrueHD and DTS-HD Master Audio. The amplifier section consists of separate transistor amplifiers for each of the five channels, which are compatible with low-impedance 4ohm speakers.

The video section has 6 HDMI inputs (1 front) and supports the latest 4K Ultra HD video format with 60Hz frequency, 4:4:4 Pure Color, BT.2020, HDR and Dolby Vision. All inputs also support the HDCP 2.2 protocol, which is required to play 4K copy-protected video recordings.

Powerful 5-channel discrete amplifier, ECO mode

The NR1508's amplifier section features discrete high-current output amplifiers for dynamic sound in both music and movie playback. Identical 85W power in each channel, low-impedance speaker support, and excellent sound control. Meanwhile, Eco mode allows you to save energy without losing dynamism.

Latest HDMI connections, HDR, Dolby Vision, HLG, and HDCP 2.2

6 HDMI inputs, one of which is on the front, create an advanced video processing system for the NR1508. The HDMI connections support the latest formats and protocols, such as 4K Ultra HD 60Hz video resolution, 4:4:4 Pure Color, BT.2020, and HDR. Dolby Vision support is also included.

Dolby Atmos

Experience three-dimensional sound with Dolby Atmos. With this new audio format, you can connect two additional overhead speakers and feel like you're in the middle of the action.

DTS:X

The DTS:X audio format precisely distributes sounds in three-dimensional space, creating incredibly realistic surround sound at home. The increased sense of realism simply draws viewers into the movie.

Integrated Bluetooth, Wi-Fi, and AirPlay

The NR1508 is equipped with two antennas for stable Bluetooth and Wi-Fi connectivity even in densely populated areas. Apple Airplay allows you to enjoy wireless music listening from iOS devices.

HEOS, Your perfect wireless audio solution

With integrated HEOS support, the NR1508 becomes the main home music center and part of a wireless multiroom system. You can easily and quickly connect wireless HEOS speakers into one common system and enjoy music anywhere and anytime, controlling the entire system with a smart device using an application.

You can use online music sources such as Spotify, TuneIn, Sound Cloud, Tidal, Napster, Deezer, as well as play music from a USB drive or devices on your local network.

Marantz 2016 AVR application

The Marantz 2016 AVR remote control application for iOS and Android devices provides full control of the receiver with a smart device.

Hi-Res Audio (High-resolution sound)

The NR1508 will allow you to discover the quality of high-resolution music recordings. You can listen to such recordings via the front USB connection or from devices on your network. The receiver supports formats such as ALAC, FLAC, and WAV, as well as DSD 2.8MHz and 5.6MHz files.

Audyssey MultEQ for easy setup

Using the included microphone, Audyssey MultEQ helps calibrate the speakers to your room. The precise DSP processor applies acoustic correction filters and provides the most natural and accurate sound.

Audyssey MultEQ Editor application

The NR1508 supports the new Audyssey MultEQ Editor application, which allows you to monitor and professionally calibrate your speakers, further adapting the entire system to your room or personal sound preferences.

The Audyssey MultEQ Editor application is available in the Apple Store or Google Play stores.

Two subwoofer connections

One subwoofer requires precise placement for optimal bass reproduction. However, by connecting two subwoofers in different parts of the room, low frequencies are distributed more evenly, providing accurate bass reproduction anywhere in the room.

Smart TV Connectivity

With HDMI CEC functionality, which is available on modern TVs, you can control the receiver with your TV remote.

Simple Smart Select functions

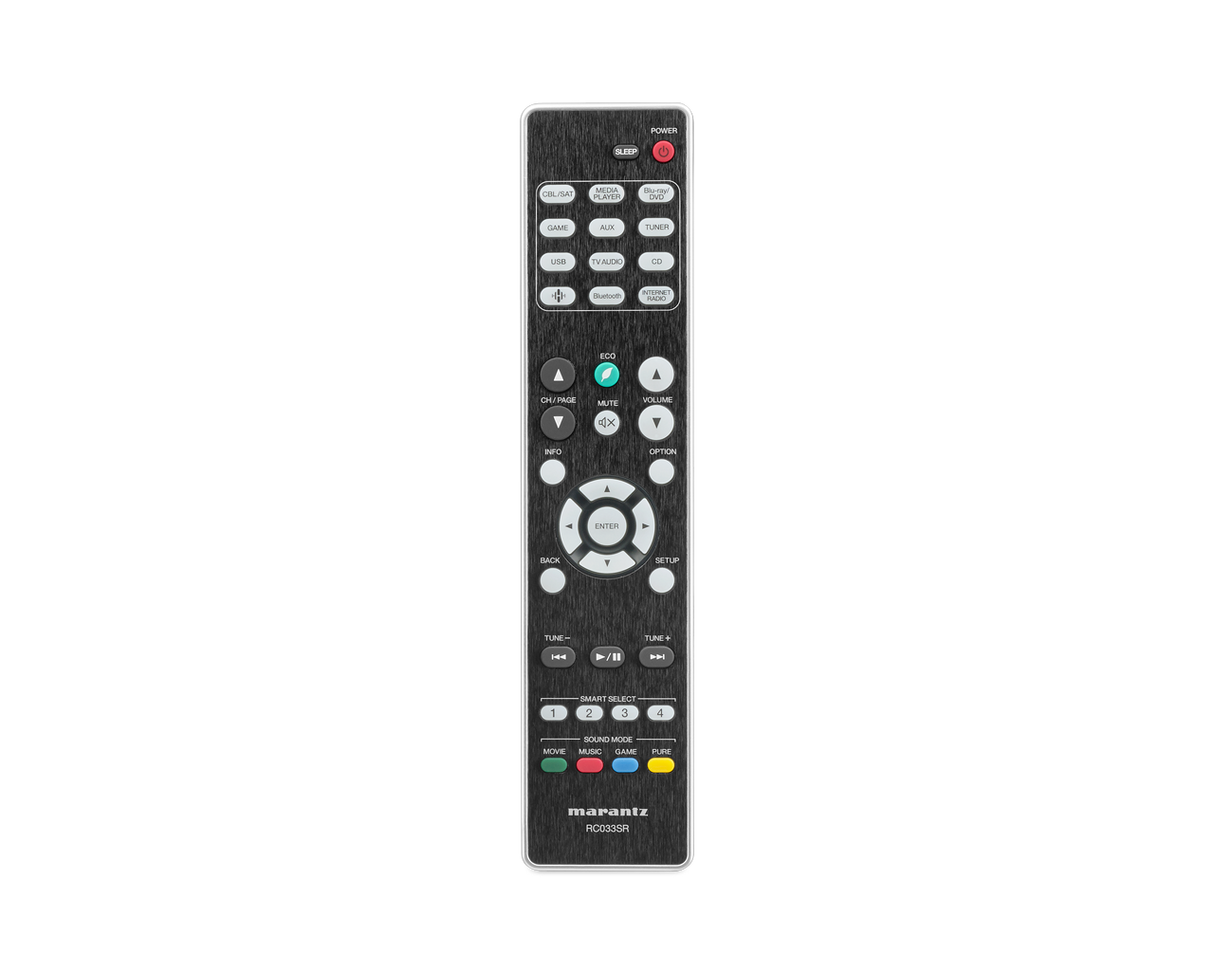

4 Smart Select buttons on the remote control allow you to quickly and conveniently save your chosen sources, volume level, etc. With one press of a button, you will return to the selected position.

Easy to connect and configure

The NR1508 has conveniently located speaker connections, and the on-screen graphical display with a setup wizard makes it easy to connect and adjust the receiver.

FEATURES

• 5-channel discrete amplifier, 85W per channel Enough power to fill medium-sized rooms with significant Marantz sound
• 4K/60 Hz full-rate video format support, 4:4:4 color resolution, HDR and BT.2020. Also Dolby Vision support and Hybrid Log Gamma (HLG; with upcoming update) Latest HDMI standards
• 6 HDMI inputs (1 front) with HDCP 2.2 support Enough inputs for all your devices (Blu-ray players, game consoles, etc.)
• Dolby TrueHD and DTS-HD Master Audio support Latest home theater audio formats
• Integrated Wi-Fi with 2.4GHz/5GHz dual band support More stable wireless connection in heavily congested areas
• HEOS wireless multiroom system integration Connect the receiver with other HEOS devices and enjoy one sound system throughout the house and control it with one app
• AirPlay, Bluetooth, Internet Radio, Spotify Connect, Tidal, Deezer, Network Audio Streaming Access to virtually all online music sources
• DSD (2.8/5.6MHz), FLAC, ALAC and WAV support High-resolution music playback for Hi-Fi enthusiasts
• Audyssey MultEQ, Dynamic Volume and Dynamic EQ Perfect speaker calibration in your room
• Audyssey MultEQ Editor application support (available for EUR 20 in Appstores) Professional system calibration
• Colored speaker terminals for easy connection, Setup Assistant, Graphical User Interface, Marantz 2016 AVR Remote app Easy connection, configuration and use
• Smart ECO mode with off/on/auto settings Save power without losing dynamic sound

TECHNICAL SPECIFICATIONS

• Audyssey MultEQ
• DSD Audio Streaming up to DSD5.6
• Compatible with Remote APP for Smart Phones Android / iOS
  Compatible with Remote APP for Tablets Android / iOS/Amazon Kindle
• Internet Radio TuneIn
• HDMI inputs back / front 5 / 1
• Automatic speaker setup using microphone Audyssey MultEQ
  FL Display 1 line
  Graphic User Interface - GUI Hybrid GUI
• FM Tuner with RDS
• Rated power (8 ohms, 20 Hz - 20 kHz, 0.08% 2-channel mode) 50 W
  Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -
  Rated power (6 ohms, 20 Hz - 20 kHz, 0.08% 2-channel mode) 60 W
  Power Output (6 ohm, 1 kHz, 1% 1ch Drive) 85 W
• Power consumption, W 180
  Power consumption No-Sound (ECO on / off) in W 25 W / 35 W
  Power consumption in standby mode, W 0.2
  CEC Standby Consumption in W 0.5
  Network Control On Consumption in W 3.7

DOCUMENTS

User Manual (EN)
