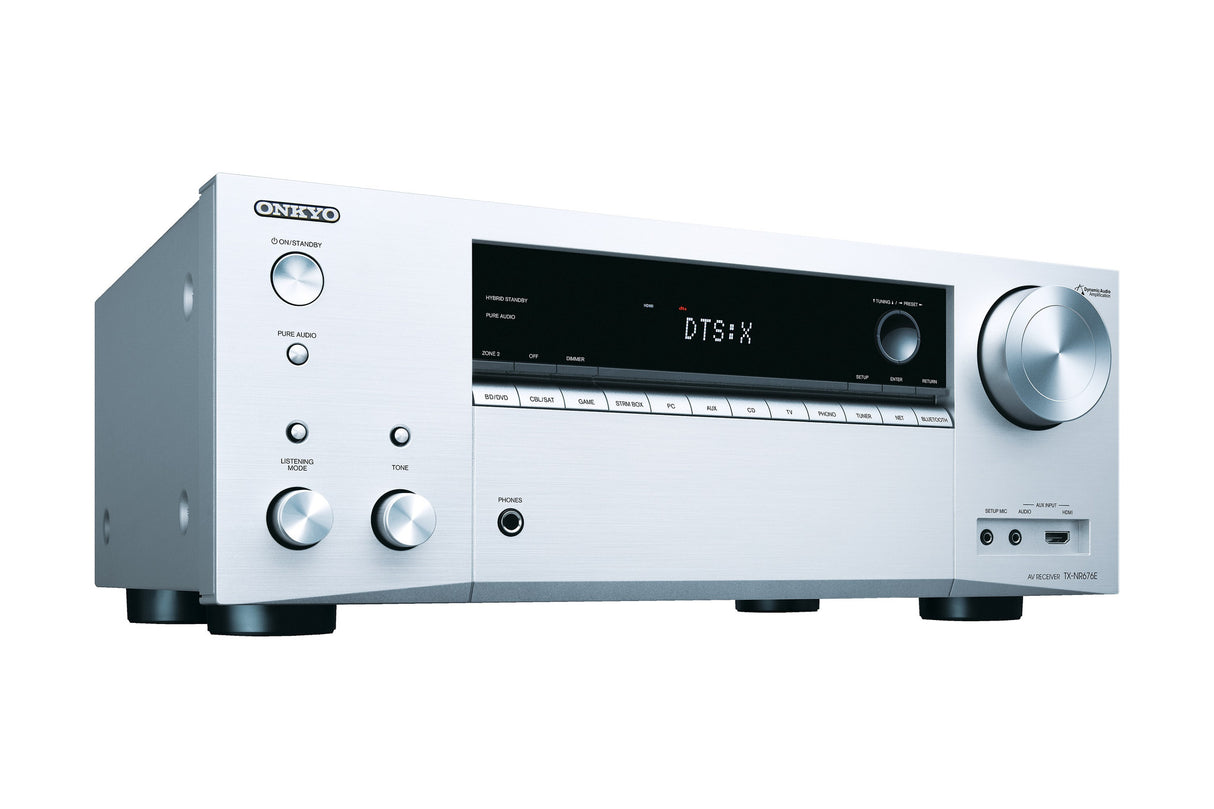

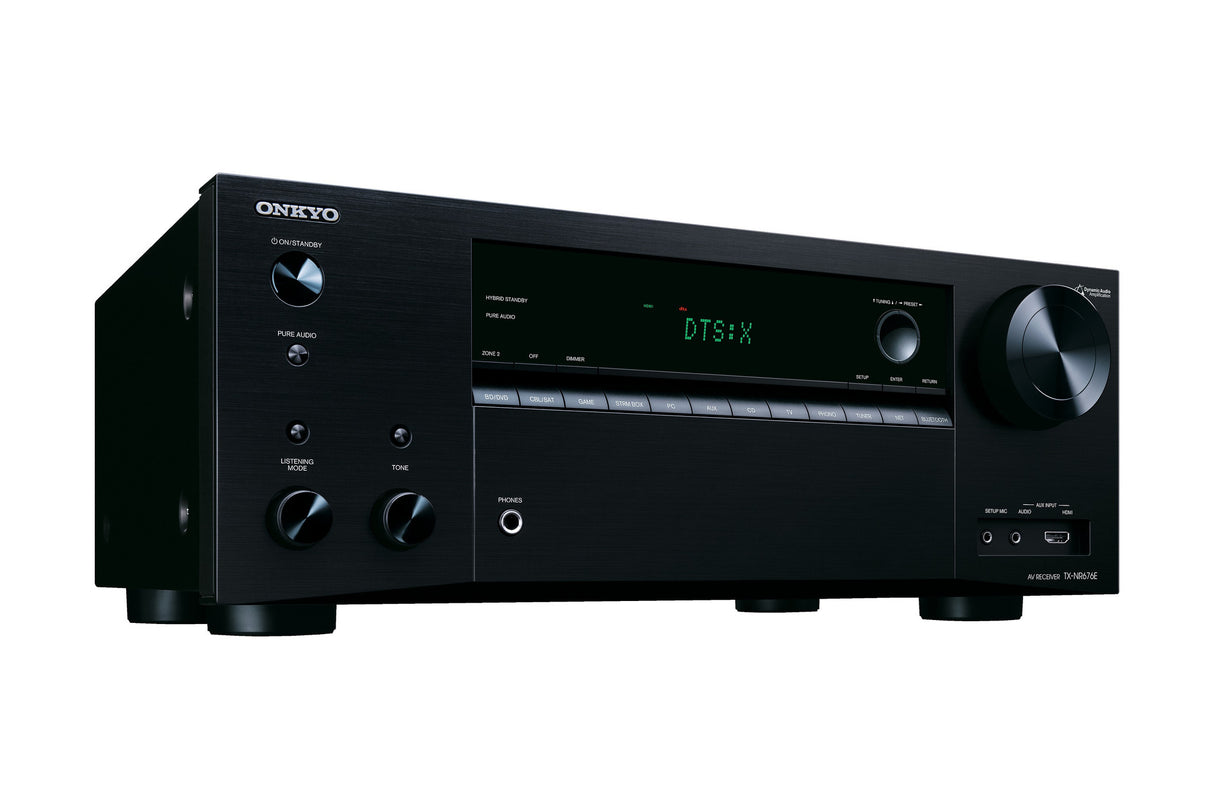

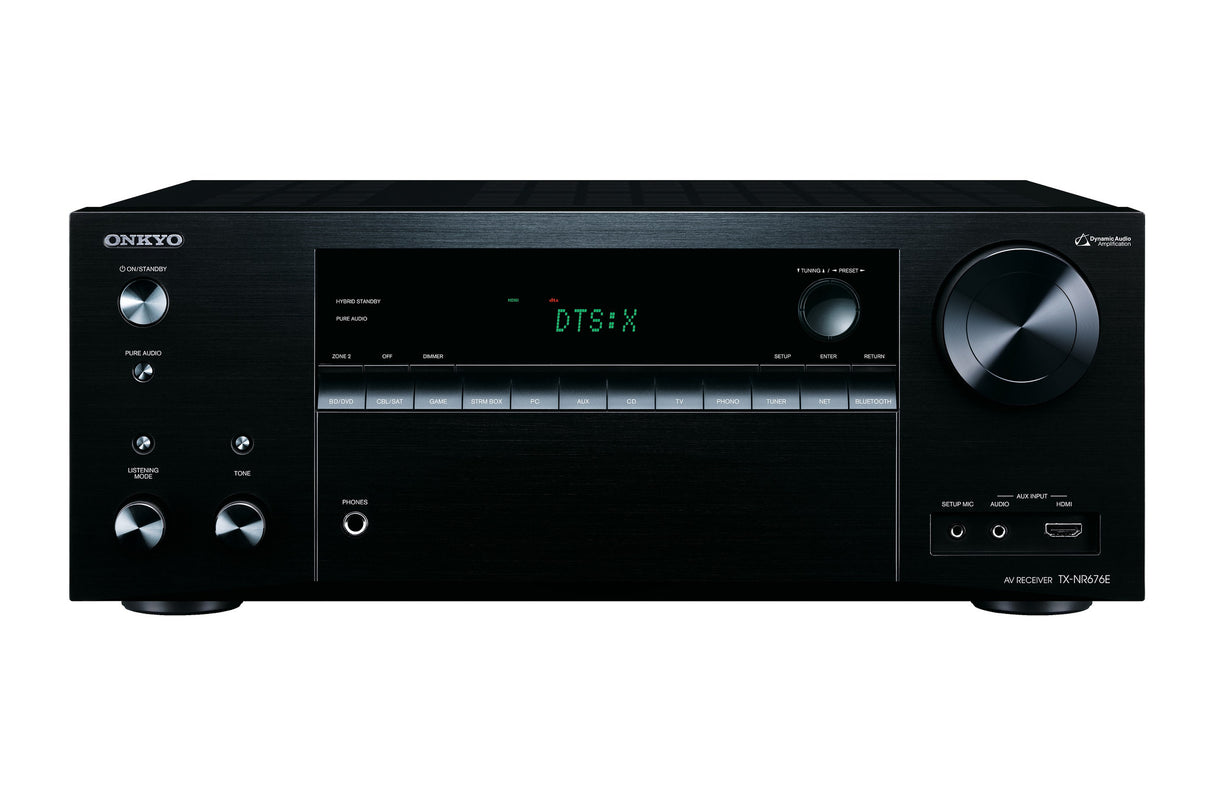

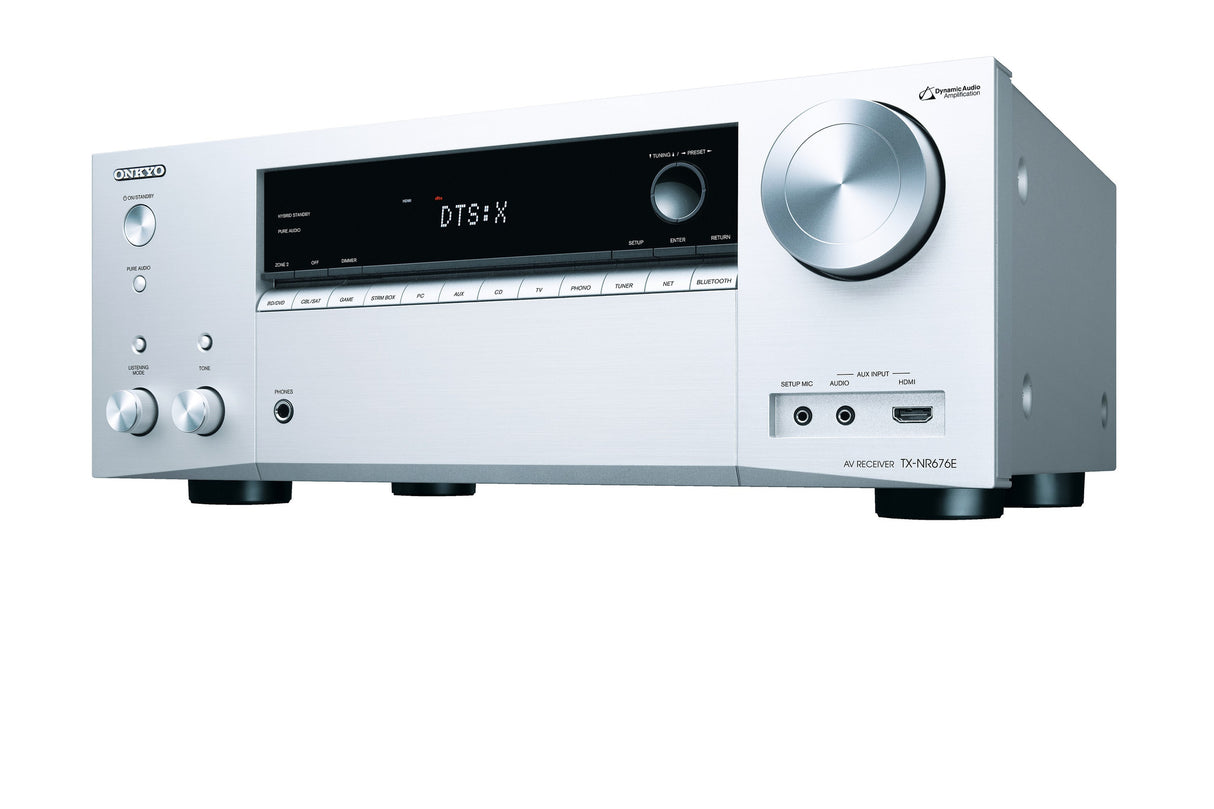

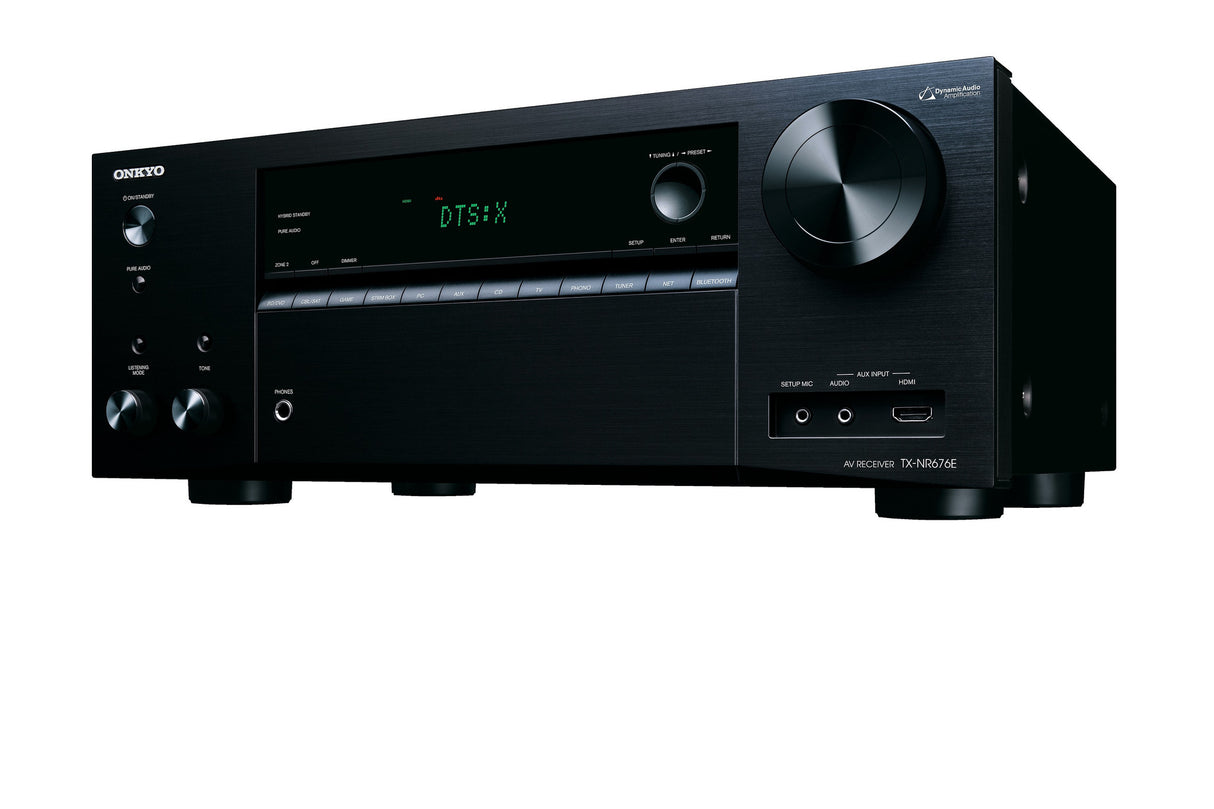

Network AV receiver Onkyo TX-NR676E 7.2 x 165W, 2 zones, convenient control

INFORMACIJA

It will facilitate access to all music, On-Demand-TV, games and other streams that can be listened to and watched with apps. If you connect your 4K TV and up to seven additional devices via HDMI®, the TX-NR676E handles the most commonly used Hi-Res and Audio-Codecs, while the dynamic audio amplifier reproduces breathtaking sound, whether from a mobile device or a PC via Wi-Fi -Fi® network. The TX-NR676E is one of the best in its class on the market.

• Power: 165W per channel (6 Ω, 1 kHz, 1% THD)
• Supports applications: AirPlay, Spotify, Tidal, Deezer, TuneIn
• Resistance: 6 - 16 ohms
• Dolby Atmos® and DTS:X™ playback
• Integrated FireConnect (multi-room) and Chromecast technologies
• Wi-Fi and Bluetooth interfaces
• Controlled with the Onkyo app from Apple and Android smart devices
• Two zone control
• Dimensions: 435 x 173.5 x 378 mm / Weight: 10 kg

DESCRIPTION

Drive a full-scale surround system with effortless clarity. This thoroughbred A/V receiver streamlines access to app-based music, on-demand TV, games, and more. Linking your 4KTV and up to seven media players over HDMI®, the TX-NR676E processes all the popular Hi-Res and object-based audio codecs while Dynamic Audio Amplification boosts sound flawlessly for an adrenalin-pumping cinema experience. Future-focused, the receiver plays almost any audio accessible to your mobile or PC over dual-band Wi-Fi®, and comes with Chromecast built-in* and DTS Play-Fi®*, which make mirroring music a one-tap operation . You can share network content, analog audio from your Blu-ray Disc player, turntable, and more to supported network multi-room speakers at home over FireConnect™ powered by Blackfire. It's a receiver with the lot, and one of the best sounding amps available.

FUNCTIONS

• Supports 5.2.2-Channel Dolby Atmos® and DTS:X™ Playback
• 165 W per Channel
• HDMI 7 In (1 Front*1) / Main Out, and Sub Out*2 Supporting 4K/60 Hz, HDR10, Dolby Vision™, BT.2020, and HDCP 2.2 Pass-through
• Dynamic Audio Amplification with 4-Ohm Speaker-driving Capability
• 384 kHz/32-bit DAC and VLSC™ Filtering for Superior Clarity
• Ready for Chromecast built-in*3 and DTS Play-Fi*3
• Dual-band Wi-Fi, AirPlay, Spotify®, TIDAL, Deezer, Pandora®, TuneIn*4
• FireConnect™*5 Wireless Multi-room Audio

• HDMI Terminals Supporting HDR10, Dolby Vision™, BT.2020, and 4K/60 Hz Pass-through and HDCP 2.2
• Supports 5.2.2-Channel Dolby Atmos Playback and Dolby Surround Upmixing
• DTS:X Object-based Audio Reproduction and DTS Neural:X™ 3D Upmixing
• Dolby Surround 3D Upmixing Solution for Multichannel Surround Formats
• AccuEQ Room Acoustic Calibration with AccuReflex Phase Alignment for Dolby Atmos-enabled Speakers
• Ready for Onkyo Controller App Integrated Multi-room Intuitive Operation*6
• Stable Dual-band 5 GHz/2.4 GHz Wi-Fi® Connectivity
• Features Chromecast built-in Wireless Audio Streaming Technology
• DTS Play-Fi Shares Music from Apps to Receivers and Wireless Speakers
• AirPlay Audio Streaming from iTunes and iPad, iPhone, and iPod touch
• Supports Hi-Res Audio Including DSD 5.6 MHz/2.8 MHz*7, 192 kHz/24-bit FLAC, WAV, AIFF, and ALAC, and Dolby® TrueHD*8
• Supports Spotify, TIDAL, TuneIn, Pandora, and Deezer Services
• FireConnect™ Multi-room Distribution of Network and Analog Audio Sources*9 to Compatible Wireless Speakers
• Powered Zone 2 Speaker Outputs and Zone 2 Line Output with Dedicated DAC Supporting Digital*10 and Analog Audio Playback
• Bluetooth® Wireless Technology for Mobiles, Laptops, and PCs (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)
• Advanced Music Optimizer Improves Compressed Digital Audio Quality, Including Bluetooth Audio
• Supports for Front L/R Channel Bi-Amping in 5.2-Ch Speaker Layout
• 480i De-interlacing (480i to 480p) via HDMI for Legacy Video Formats

• 165 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
• Dynamic Audio Amplification System Delivers Thrilling Stereo and Multichannel Performance
• High-current Power to Drive Large Speakers with 4-Ohm Resistance
• HCPS (High Current Power Supply) Transformer
• VLSC (Vector Linear Shaping Circuitry) High-frequency Noise Removal (Front L/R Channels)
• Non-Phase-Shift Amplification Circuitry for Clarity and Detail
• Discrete Output Stage Circuitry for Low Distortion

• Dolby Atmos and DTS:X Reproduction (5.2.2 Channels)
• HDMI Support for 4K/60 Hz, HDR10, Dolby Vision, 3D, Audio Return Channel, DeepColor™, xvColor™, LipSync, Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio™, DSD, DVD-Audio, Super Audio CD (SACD), Multichannel PCM, and CEC
• High-grade AKM (AK4458) 384 kHz/32-bit Multichannel DAC
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
• 32-bit Digital Signal Processing
• DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• Enjoy Pristine Reproduction of Audio-only Sources in Pure Audio Mode
• Direct Mode for Audio Reproduction Close to Original Source Quality
• Tone Controls (Bass/Treble) for Front L/R Channels

• 7 HDMI Inputs (1 Front) and 2 Outputs (1 Main Out, 1 Sub Out)
• Powered USB Port (5 V, 1 A) for Audio Playback
• 2 Composite Video Inputs
• 2 Component Video Inputs
• 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
• 6 Analog Audio Inputs (6 Coaxial), 1 Stereo Analog Input (3.5 mm, Front)
• Phono Input (MM) and Equalizer for Turntable
• 2 Subwoofer Pre-Outs
• Headphone Jack (6.35 mm, Front)
• Speaker Posts with Screw Knobs
• Speaker Setup Mic Input (Front)

• Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
• Graphical User Interface with Overlaid On-Screen Display (OSD) via HDMI
• Quick Setup Guide via GUI and Easy Connection Diagram on Rear Panel
• Large Input Selector Buttons
• Economical HDMI Pass-through and Network Standby Functions
• IP Control via LAN for Home Automation Systems
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• 40 FM/AM Random Presets

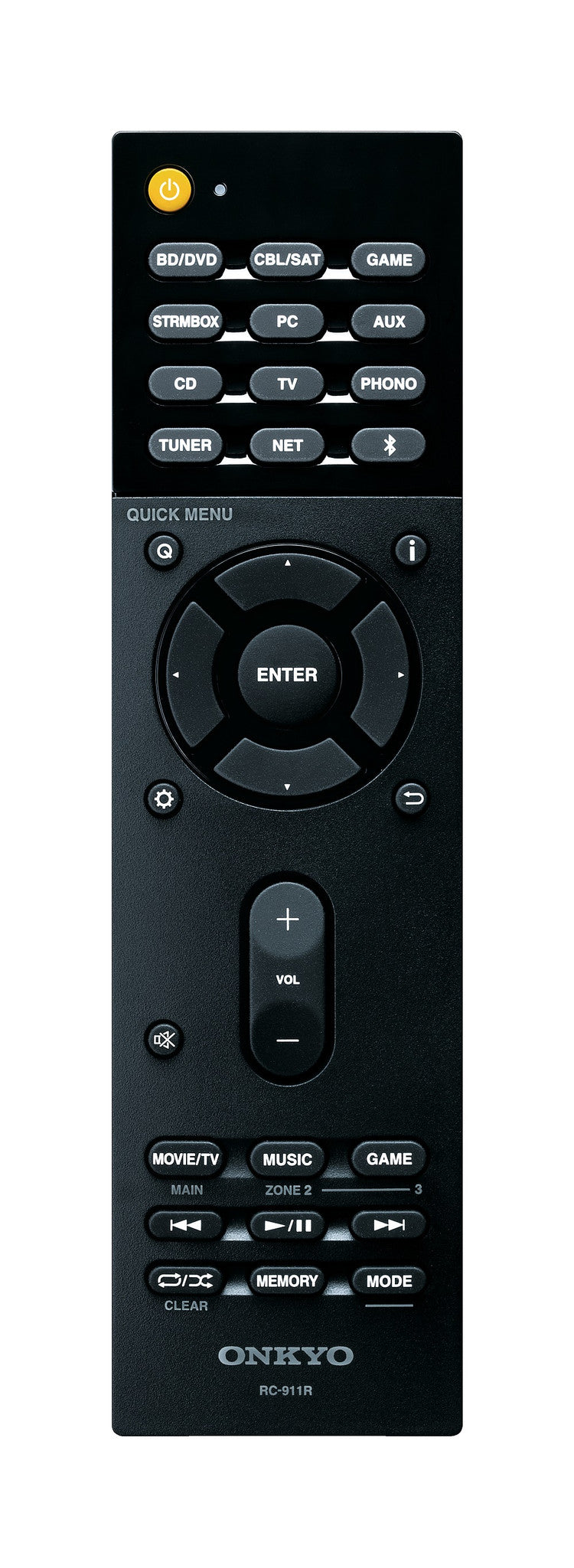

• Full-sized Simple Remote Control

TECHNICAL DATA

• Power Output All Channels 165 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
• Dynamic Power:
  240 W (3 Ω, Front)
  210 W (4 Ω, Front)
  120 W (8 Ω, Front)
• THD+N (Total Harmonic Distortion + Noise)0.08% (20 Hz–20 kHz, Half Power)
• Damping Factor Less than 54 (Front, 1 kHz, 8 Ω)
• Input Sensitivity and Impedance 200 mV/47 kΩ (Line) 3.5 mV/47 kΩ (Phono)
• Rated RCA Output Level and Impedance 1 V/470 Ω (Subwoofer Pre Out) 200 mV/2.3 kΩ (Zone Line Out)
• Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone Control ±10 dB, 90 Hz (Bass) ±10 dB, 7.5 kHz (Treble)
• Signal-to-Noise Ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
• Speaker Impedance 4 Ω–16 Ω

• Videos:
  1.0 Vp–p/75 Ω (Component Y)
  0.7 Vp–p/75 Ω (Component PB/CB, PR/CR)
  1.0 Vp–p/75 Ω (Composite)

• FM 87.5 MHz - 108 MHz
• AM 522 kHz to 1.611 kHz
• 530 kHz to 1.710 kHz
• FM/AM Preset Memory 40 Stations

• Power Supply AC 220-240 V~, 50/60 Hz
• Power Consumption 570 W
• No-Sound Power Consumption 60 W
• Standby Power Consumption 0.15 W
• Dimensions (W x H x D) 435 x 173.5 x 378 mm
• Weight 10.0 kg
