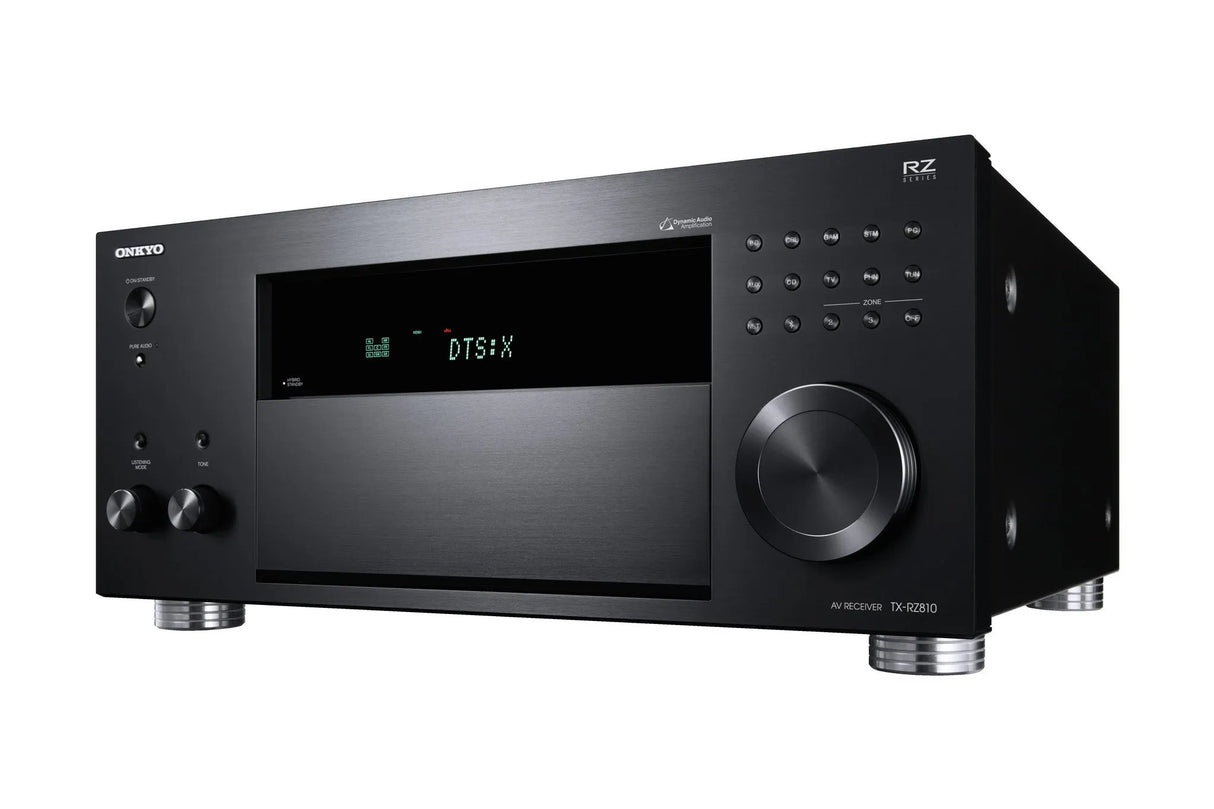

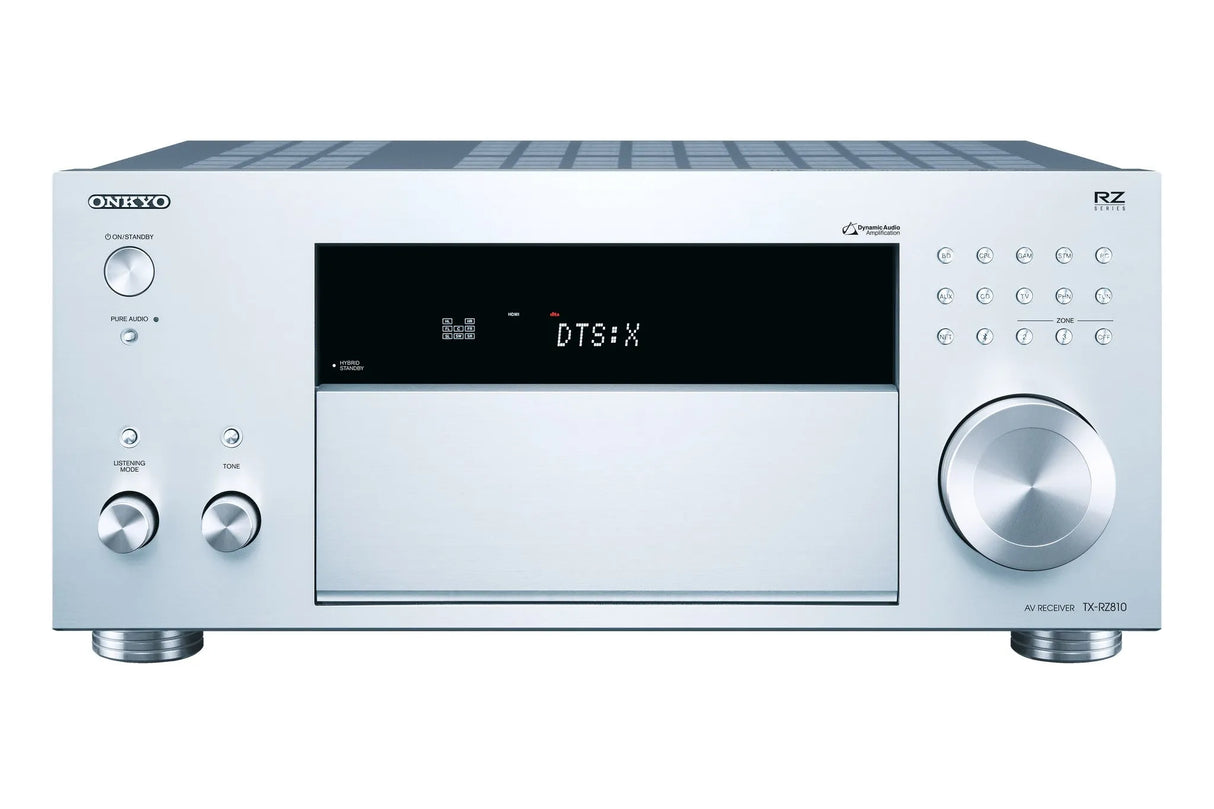

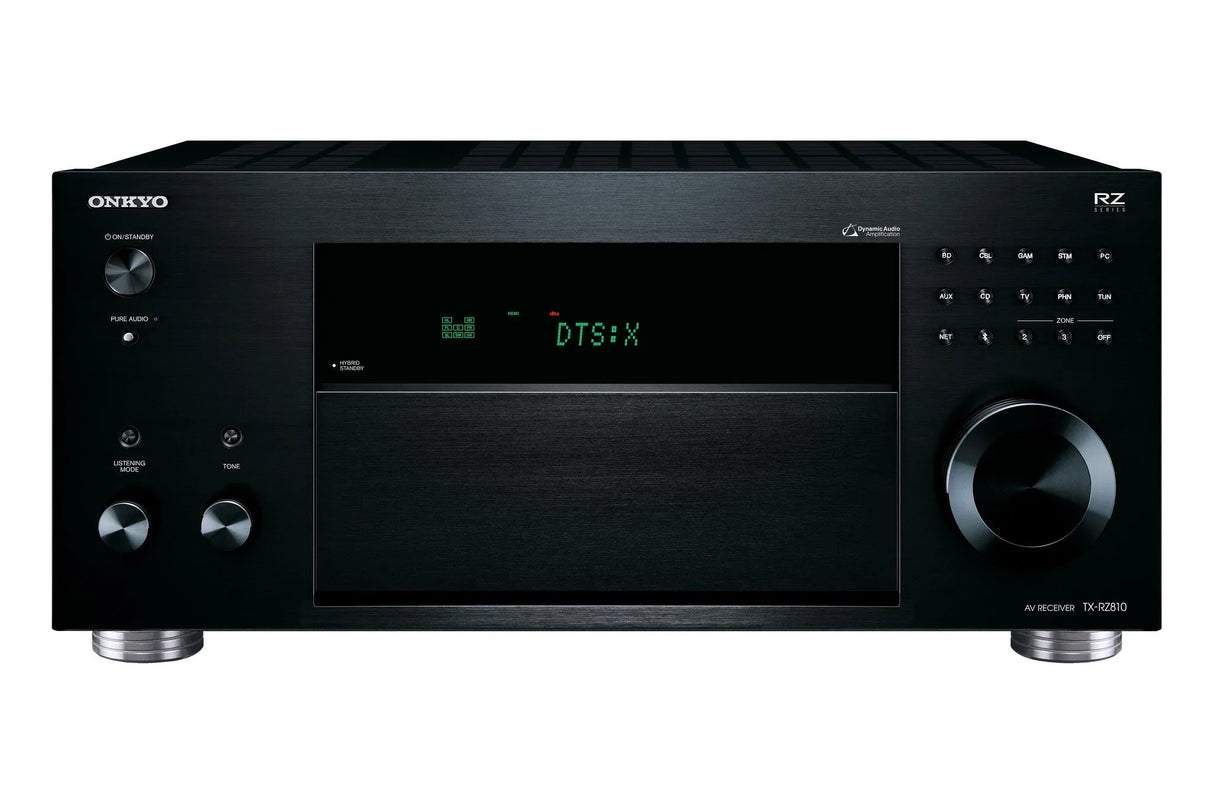

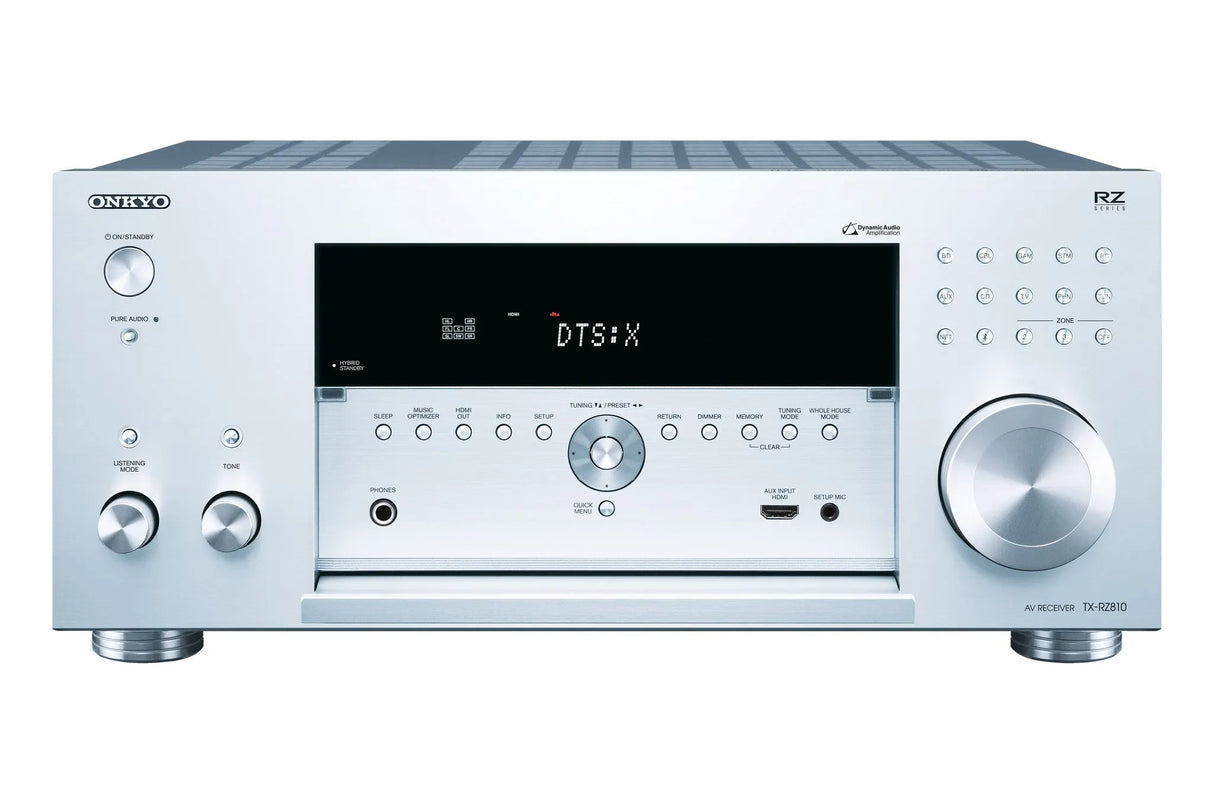

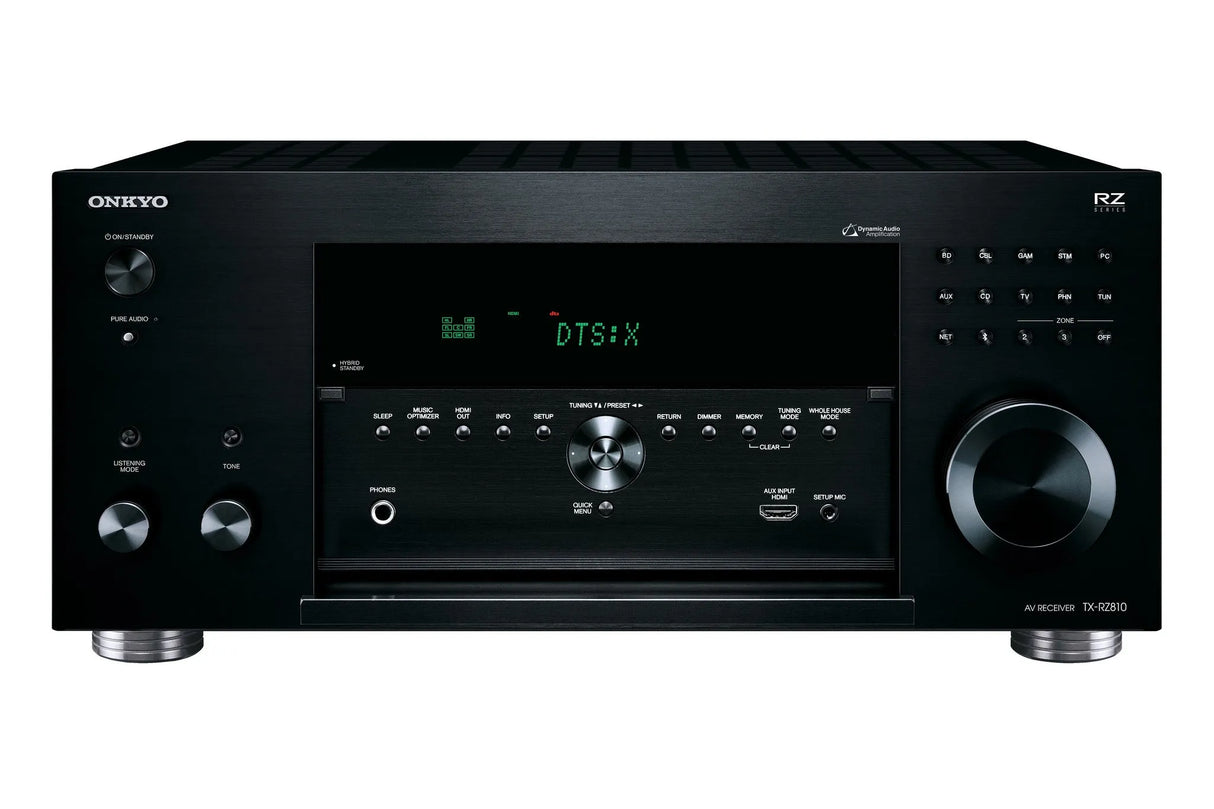

Network AV receiver Onkyo TX-RZ810 7.2, 710W

Receiver TX-RZ810 reproduces incredibly powerful and precise THX cinema hall-like Reference class sound.

€1,299.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. By supporting apps like Google Cast, AirPlay, Spotify, TuneIn. Integrated FireConnect Multi-room technology.

  • Power: 710W
  • Frequency range: 5 Hz - 100 kHz
  • Resistance: 6-16 ohms
  • Supports applications: Spotify, GoogleCast, AirPlay, TuneIn and others..
  • FireConnect Multi-room technology
  • Dimensions: 435 x 201.5 x 395 mm / Weight: 14 kg

VIDEO

DESCRIPTION

Dreaming of a high-end device, but their prices are higher than you can afford? We have a solution: the TX-RZ810 reproduces incredibly powerful and precise THX® cinema-grade Reference class sound, and at the same time shines with support for streaming music such as Google Cast™*, AirPlay, Wi-Fi® or Bluetooth. By connecting additional speakers in another room, you can listen to audio recordings via FireConnect™ technology* from your home theater system in another room**. Through the Zone-2-output and Zone-3-Line output, you can listen to different sources in different rooms and control them with the help of the Onkyo application (App) on your smart device. Zone-2-HDMI® allows 6G-Video to be viewed on a second screen. This makes the TX-RZ810 receiver the entertainment center of a breathtaking home theater system in your home.

FUNCTIONS

HIGHLIGHTS
  • THX® Select2™ Cinema Reference Certification
  • Custom RZ Grade Amplification System with Upgraded Parts
  • Dynamic Audio Amplification for Realistic Sound
  • DTS:X™* and Dolby Atmos® up to 5.1.2 Channels
  • AccuEQ Room Calibration with AccuReflex Technology
  • FireConnect™ Multi-Room Wireless Technology*
  • HDMI® 8 In (1 Front) with Main / Zone 2 Out (HDCP 2.2 / HDR*1)
  • Wireless Audio Streaming with Google Cast, AirPlay, Wi-Fi®, and Bluetooth
  • * Firmware update required
ADVANCED FEATURES
  • THX® Select2™ Cinema Reference Certification
  • DTS:X™ and Dolby Atmos® Object-based Sound Decoding
  • 4K/60 Hz-Capable 4:4:4 HDMI® Terminals with HDCP 2.2 and HDR for Next-Generation UltraHD and Full HD Video Content*1
  • Google Cast, AirPlay, Wi-Fi®, and Bluetooth Specification Version 4.1
  • (Compatible Profile: A2DP v1.2, AVRCP v1.3) with Advanced Music Optimizer
  • Powered Zone 2 and Zone 3 Pre/Line Out
  • Zone 2 HDMI Output for 4K/60 Hz Video in Another Room
  • Supports TuneIn Radio, Pandora®, Spotify, TIDAL, and Deezer*2
  • MP3, WMA, WMA Lossless, FLAC, WAV, AAC, and Apple Lossless Playback Over Network and USB
  • Network Hi-Res Audio (DSD 5.6 MHz, 192/24 PCM, Dolby® TrueHD)
  • Wireless Digital and Analog Audio Transmission to Optional Wireless Speaker via FireConnect™ Technology
  • AccuEQ Room Calibration Featuring AccuReflex Technology for Seamless Object-based Sound from Compatible Speakers (Mic Included)
  • Supports Free Onkyo Remote Control & Streaming Apps for iPod touch/iPhone*3 and Android™ Devices*4
  • *1 6G video and HDCP 2.2 are supported on HDMI inputs 1/2/3, Main Out, and Sub Out. *2 Availability of services depends on region. Some services may require a paid subscription and firmware update. Availability of third-party services advertised here is accurate at the time of publication, but may be subject to change without notice. *3 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later. *4 Requires Android 2.1 or later.
AMPLIFIER FEATURES
  • 180 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC); 215 W/Ch (6 Ω, 1 kHz, 10% THD, 1 Channel Driven, JEITA)
  • Dynamic Audio Amplification with Non-Phase-Shift Amps and Discrete Power Transistors
  • Massive Transformer and Custom 15,000 μF Audio Capacitors for Instantaneous High-Current Power
  • Copper Bus Bars and Rigid Insulators to Reduce Signal Interference
  • VLSC™ (Vector Linear Shaping Circuitry) for High-Fidelity Analog Signal
  • PLL (Phase Locked Loop) Jitter-Cleaning Circuitry for S/PDIF Audio
PROCESSING FEATURES
  • HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, xvColor™, LipSync, Dolby Atmos®, Dolby® TrueHD, DTS:X™, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
  • Dolby® TrueHD and DTS-HD Master Audio™ Decoding
  • AK4458 384 kHz/32-bit DAC (8 Channels x 1)
  • 32-bit Digital Signal Processing Engines
  • 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
  • Theater-Dimensional Virtual Surround Function
  • Direct Mode and Pure Audio Mode

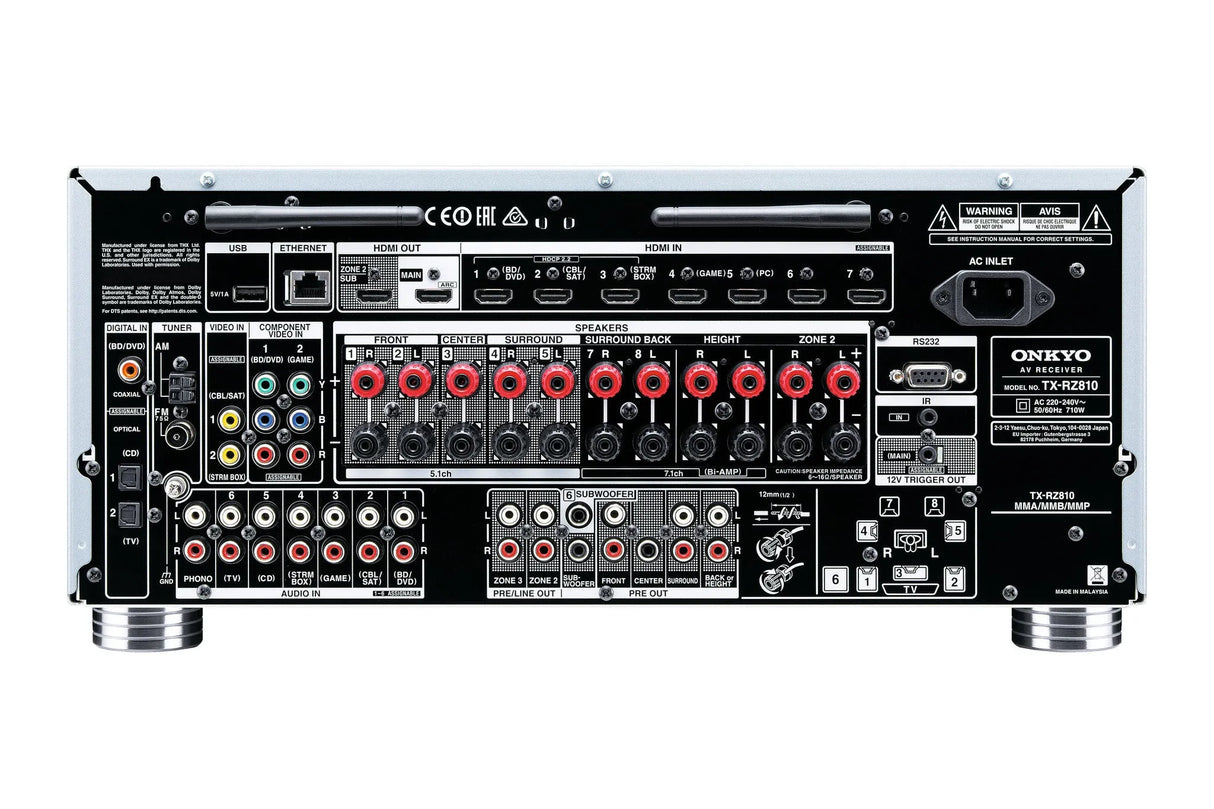

CONNECTION FEATURES
  • 8 HDMI Inputs (1 Front/7 Rear), Main, and Zone 2 Outputs
  • Mass Storage Class USB Memory Playback Capability
  • 7.2 Multichannel Pre-Outs
  • Component Video Switching (2 Inputs) and 2 Composite Video Inputs
  • 3 Digital Audio Inputs (2 Optical and 1 Coaxial) and 7 Analog Audio Inputs
  • Phono Input (MM) for Turntable Connection
  • 2 Parallel Subwoofer Pre-Outs
  • 12 V Trigger Out (Assignable) with IR Input, Supports IP and RS232
OTHER FEATURES
  • Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
  • A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
  • New Graphical Overlaid On-Screen Display (OSD) via HDMI
  • Hybrid Standby Function with HDMI Passthrough
  • 40 FM/AM and 40 Internet Radio Station Presets
  • Certified with DLNA Version 1.5
  • RIHD (Remote Interactive Over HDMI) for System Control
  • Aluminum Front Panel and Volume Control Knob

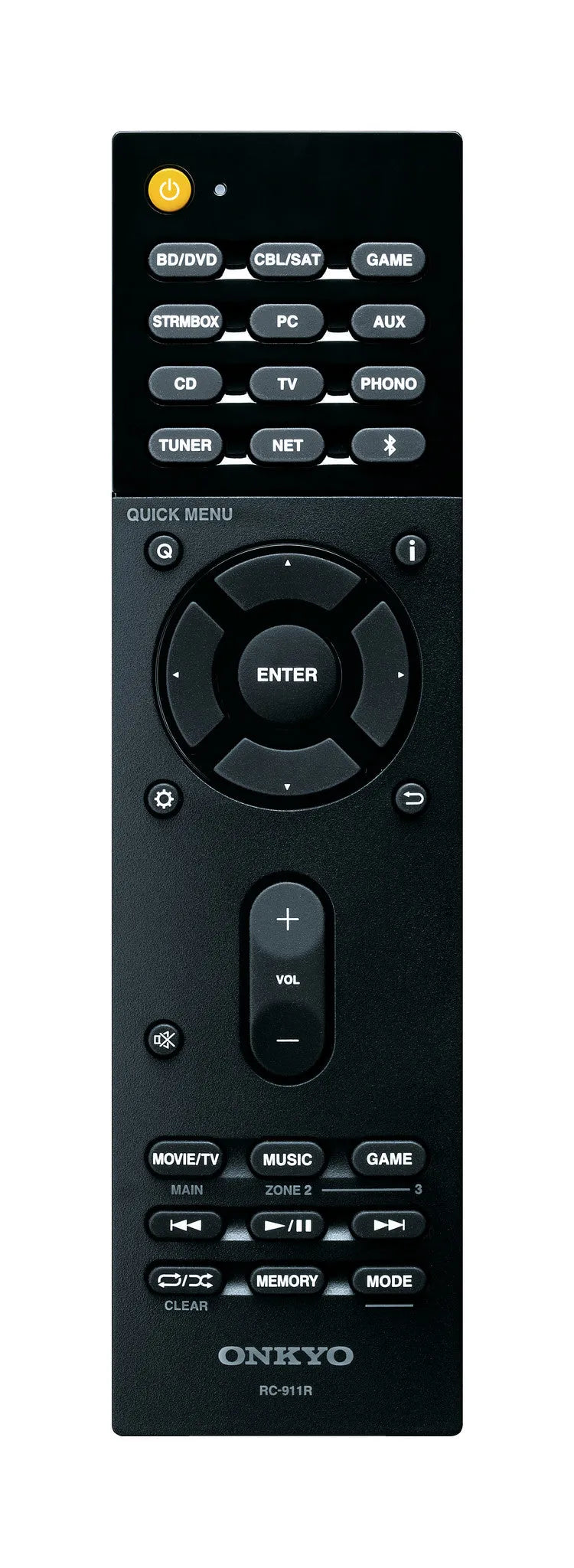

  • Preprogrammed RI (Remote Interactive) Simple Remote Control

TECHNICAL DATA

  • Power Output All Channels:
    180 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
    215 W/Ch (6 Ω, 1 kHz, 10% THD, 1 Channel Driven, JEITA)
  • Dynamic Power:
    300 W (3 Ω, Front)
    250 W (4 Ω, Front)
    150 W (8 Ω, Front)
  • THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, Half Power)
  • Input Sensitivity and Impedance:
    200 mV/47 kΩ (Line)
    3.5 mV/47 kΩ (Phono MM)
  • Rated RCA Output Level and Impedance:
    1.0 V/470 Ω (Pre-Out)
    1.0 V/470 Ω (Subwoofer Pre Out)
    200 mV/2.3 kΩ (Zone Out)
    2.0 V/2.3 kΩ (Zone Pre Out)
  • Phono Overload 70 mV (MM, 1 kHz, 0.5%)
  • Frequency Response 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
  • Tone Control:
    ±10 dB, 90 Hz (Bass)
    ±10 dB, 7.5 kHz (Treble)
  • Signal-to-Noise Ratio:
    106 dB (Line, IHF-A)
    80dB (Phono MM, IHF-A)
  • Speaker Impedance 6 Ω–16 Ω

    DOCUMENTS

    User manual (EN)
