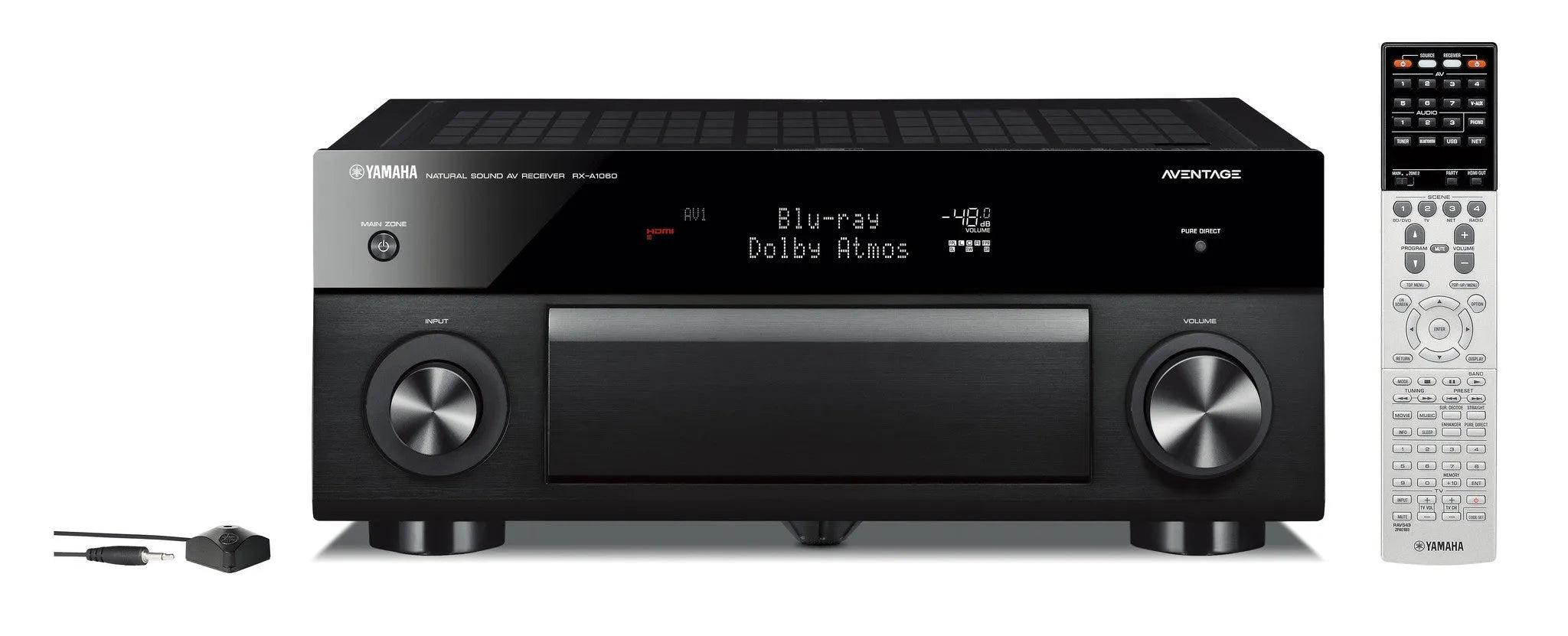

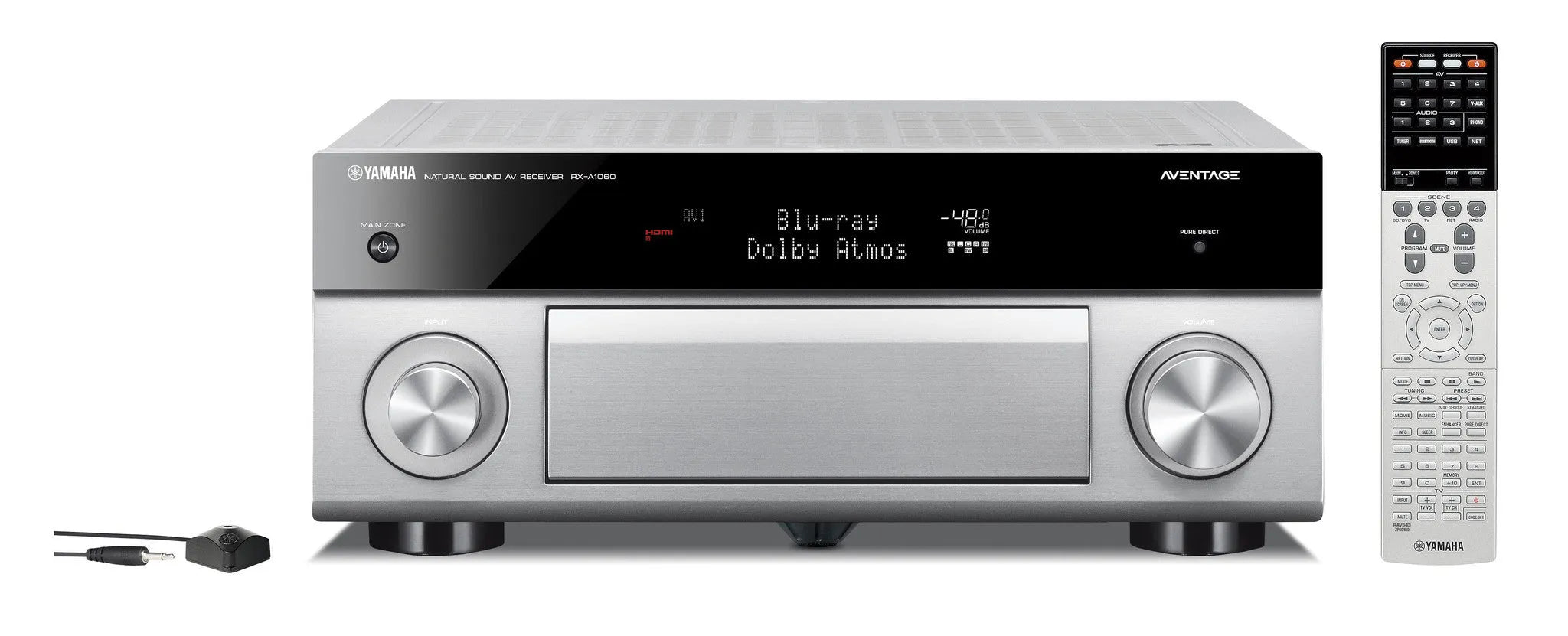

Network AV receiver Yamaha AVENTAGE RX-A1060 7.2 MusicCast

• Dolby Atmos® and DTS:X™ support
• AVENTAGE AV receivers: Designed to deliver the highest levels of audio performance
• Aluminum front panel offers visual and aural benefits
• Anti Resonance Technology (ART) Wedge helps to ensure that vibrations do not affect sound quality
• Professional quality digital audio by ESS DAC
• 7-Channel powerful surround sound
• --- 110 W per channel (8 ohms, 20 Hz-20 kHz, 0.06 % THD, 2-ch driven)
• --- 165 W per channel (8 ohms, 1 kHz, 10% THD, 1-ch driven)
• --- 170 W per channel (4 ohms, 1 kHz, 0.9 % THD, 1-ch driven [European Model])
• MusicCast for audio enjoyment in every room
• Wi-Fi Built-in and Wireless Direct compatible for easy networking

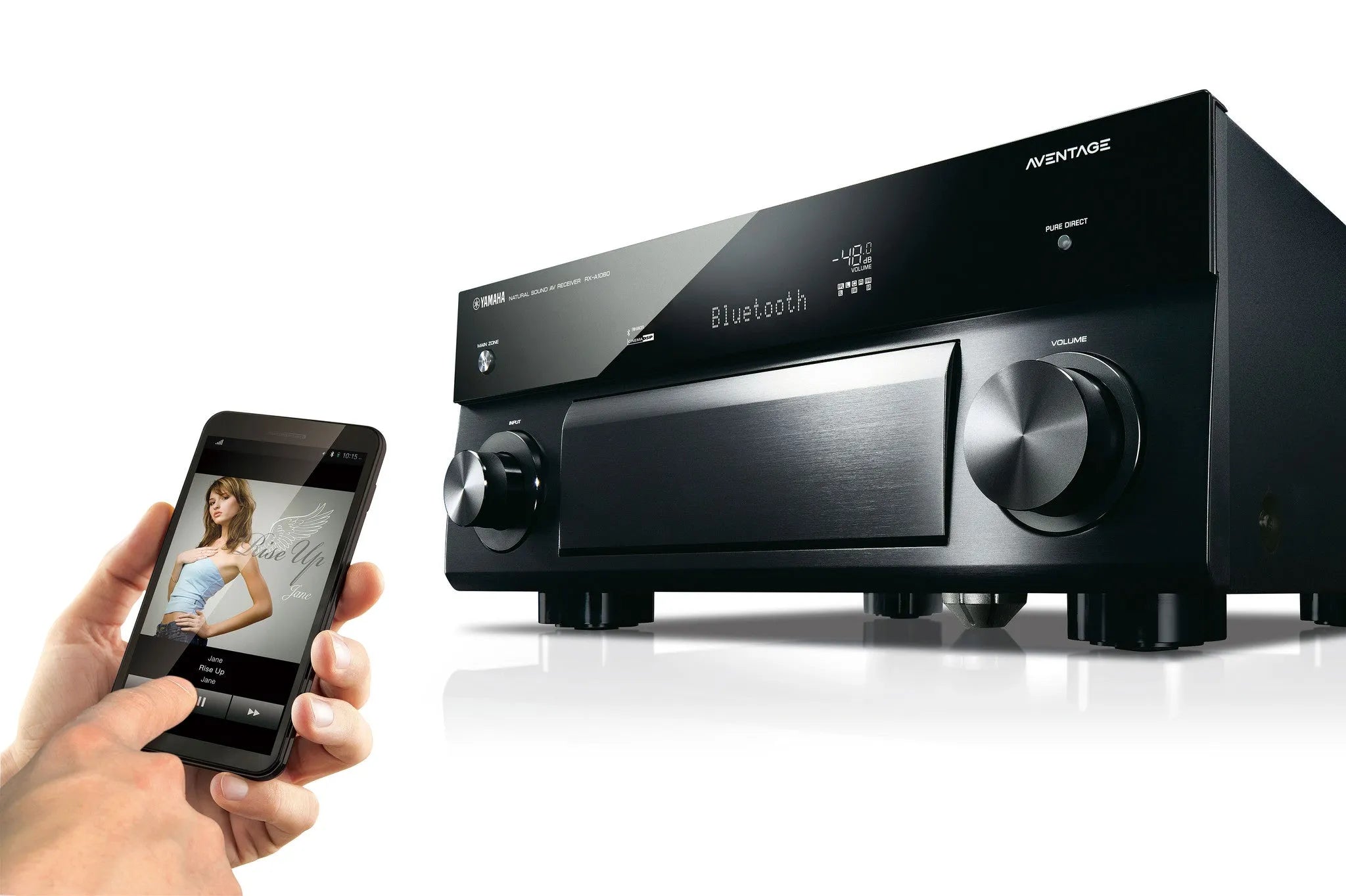

• Bluetooth® for wireless music streaming and Compressed Music Enhancer for Bluetooth
• AirPlay®, Napster®*, Spotify*, Pandora®*, JUKE* music streaming service and AV Controller App
• *Music service availability varies by region
• DSD 2.8 MHz / 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple® Lossless 96 kHz / 24-bit playback
• Gapless playback compatibility allows play without interruption
• HDMI® (8 in / 2 out) 4K Ultra HD Full Support with 4K/60p, 4:4:4, HDCP2.2 (7 in / 2 out), HDR Video and BT.2020 pass-through
• YPAO™ RSC (Reflected Sound Control) sound optimization with multi-point measurement
• YPAO Volume to ensure natural sounds even at low volume
• Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system
• HDMI Zone Switching allows different HD audio / video sources playback in different rooms
• Zone Extra Bass for more powerful bass sound in another room (Zone 2)
• Zone Volume Equalizer for optimum sound balance in another room (Zone 2)
• Detachable AC power cord for easier installation
• ECO mode operation for about 20% less power consumption (Reflected Sound Control) sound optimization with multi-point measurement

TECHNICAL DATA

• Channel 7.2
• Rated Output Power (1kHz, 1ch driven) 170 W (4 ohms, 0.9% THD [European Model])
• Rated Output Power (20Hz-20kHz, 2ch driven) 110 W (8 ohms, 0.06% THD)
• Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 165 W (8 ohms, 10% THD)
• Dynamic Power per Channel (8/6/4/2 ohms) 135 / 165 / 210 / 280 W

• CINEMA DSP Yes (3D)
• DSP Programs 23
• Dialog Level Adjustment Yes
• Virtual Presence Speaker Yes
• Virtual Surround Back Speaker Yes
• Dialogue Lift Yes (no presence speakers required)
• SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
• Dolby Atmos Yes
• Dolby TrueHD Yes
• Dolby Digital Plus Yes
• Dolby Pro Logic IIx Yes
• DTS: X Yes
• DTS-HD Master Audio Yes

• Pure Direct Yes (with video on mode)
• Compressed Music Enhancer Yes
• High-resolution Music Enhancer Yes
• YPAO multi-point measurement Yes (RSC)
• YPAO Volume Yes
• Adaptive DRC (Dynamic Range Control) Yes
• Initial Volume & Maximum Volume Setting Yes
• ART Wedge Yes
• Bi-amp capability Yes
• Audio Delay Yes (0-500 ms)
• 192kHz/24-bit DACs for all channels Yes (ESS)

• 4K Ultra HD Pass-through and upscaling Yes (4K/60p, 4:4:4)
• HDMI 3D passthrough Yes
• HDMI Audio Return Channel Yes
• HDMI upscaling Yes (Analogue to HDMI / HDMI to HDMI)
• Deep Color/xvColor/24Hz Refresh Rate/Auto Lip-Sync Yes

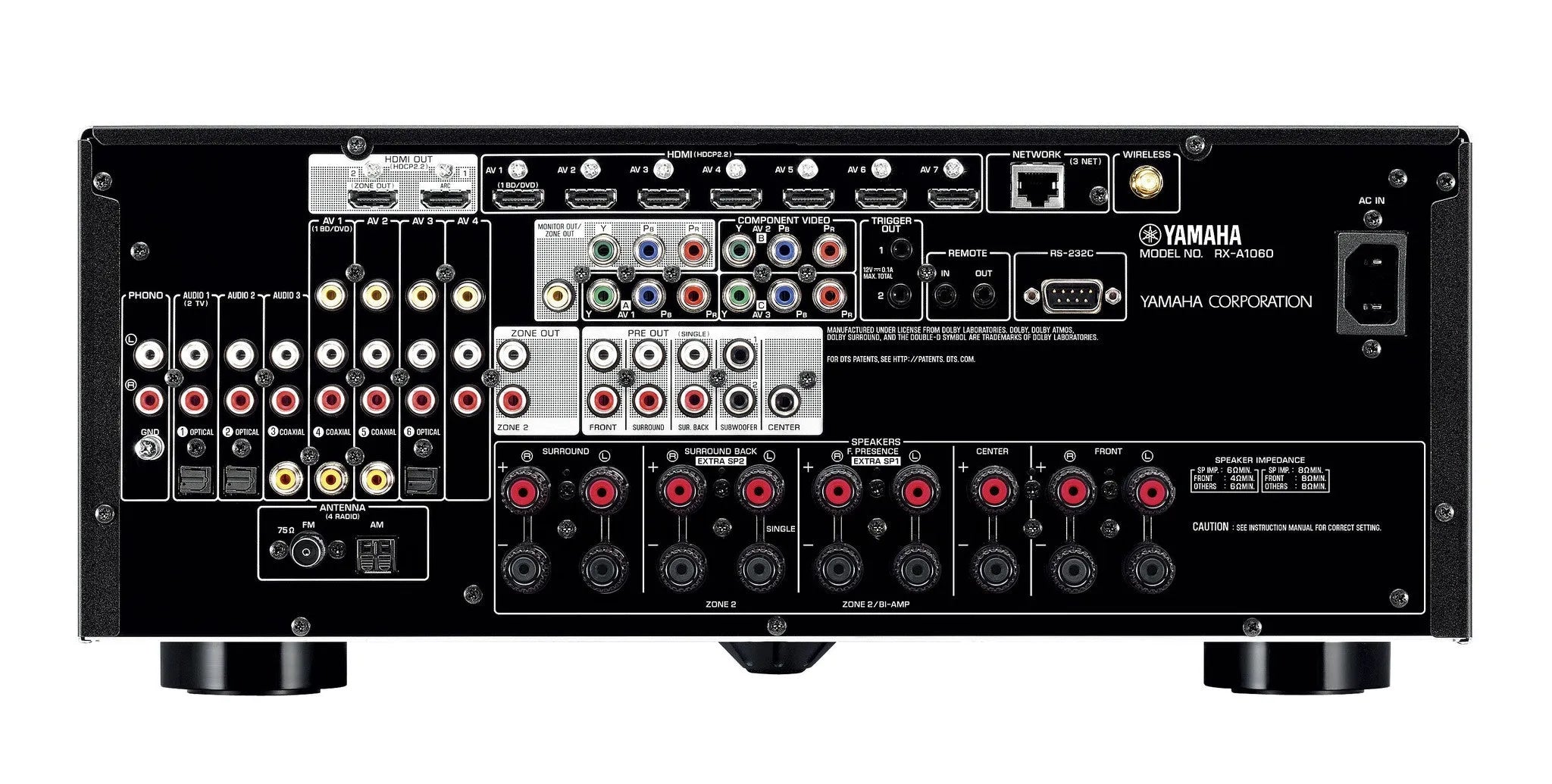

• HDMI Input/Output 8 (HDMI1-7: HDCP2.2 compatible) / 2 (HDCP2.2 compatible)
• HDMI CEC Yes (SCENE, Device Control)
• USB Input USB Memory, Portable Audio Player
• Network Port Yes
• Wi-Fi Yes (with Wireless Direct)
• AirPlay Yes
• Bluetooth Yes (SBC / AAC)

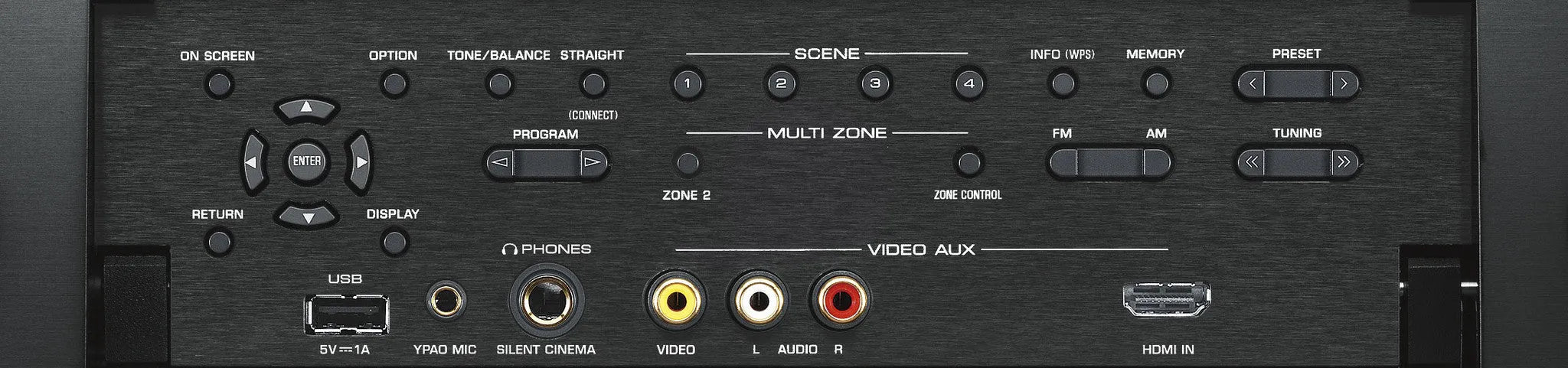

• Front AV Input HDMI / USB / Analogue Audio / Composite
• Digital Audio Input/Output: Optical 3 / 0
• Digital Audio Input/Output: Coaxial 3 / 0
• Analog Audio Input/Output 9 (front 1) / 0
• Phono Input Yes
• Component Video Input/Output 3 / 1
• Composite Video Input/Output 5 (front 1) / 1
• Preout 7.2-ch
• Headphone Output 1

• FM/AM Tuner Yes

• On-screen display Graphical User Interface
• SCENE SCENE PLUS (12 sets)
• App Control Yes (iPhone / iPad / Android phone / tablet)
• Web Browser Control Yes
• Remote Control Unit Yes (Preset)

• Zone 2 Audio Output Preout / HDMI
• Powered Zone Zone 2
• Zone Video Output HDMI / Component / Composite
• Zone HDMI Yes (HDMI Zone Switching)
• Zone B Output HDMI
• RS-232C Interface Yes
• +12V Trigger Output 2
• Remote (IR) Input/Output 1 / 1
• Party Mode Yes

• Standby Power Consumption (IR only) ≤0.1W
• Auto Power Standby Yes
• ECO mode Yes
• Dimensions (W x H x D) 435 x 182 x 439 mm (with antenna up: 435 x 247 x 439 mm); 17-1/8” x 7-1/8” x 17-1/4” (with antenna up: 17-1/8” x 9-3/4” x 17-1/4”)
• Weight 14.9 kg; 32.8 lbs.
