Network stereo receiver Onkyo TX-8150 2.1, 2x135W

INFORMACIJA

Supports Spotify, AirPlay, TuneIn and Deezer apps. AK4452 384 kHz/32-bit D/A converter. Power 135W/channel, at 6 Ω, 1 kHz, 1% THD. Variable output for active subwoofer. Easy control with the Onkyo app for smart devices.

• Power: 135W per channel at (6 Ω, 1 kHz)
• Supports Audio formats: MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM
• Resistance: 4 - 16 ohms
• Frequency range: 10 Hz - 100 kHz
• Processing 384K/32 Bit Hi-Grade DACs
• Supports Spotify, AirPlay, TuneIn and Deezer apps
• Integrated: Wi-Fi, Bluetooth
• Onkyo app for iOS and Android phones and tablets
• Dimensions: 435 x 149.5 x 328mm / Weight: 8.6 kg

VIDEO

DESCRIPTION

With 135 W/Ch of pure high-current analog power courtesy of a discrete low-impedance amplification system, your speakers are driven with depth and clarity no matter what audio source you select. And there are so many options: TV sound via digital inputs, music streaming from Spotify over Wi-Fi®, iTunes via AirPlay, MP3s from USB drives, audio from mobile apps via Bluetooth technology, and both FM and DAB+ radio. There's also a phono equalizer for your turntable and other players can be connected using the four digital and six analog inputs. BGM Preset stores four of your best FM, DAB+, and internet radio stations, so entertainment is only a button push away. Don't settle for second best: with almost 70 years' experience building premium Hi-Fi gear, nothing else performs like an Onkyo.

FUNCTIONS

• 135 W per Channel
• Built-in Wi-Fi® for Wireless Audio
• Bluetooth Audio Support for Wireless Audio Playback
• Spotify Connect and AirPlay
• Phono Input
• Hi-Current Amp Design
• 384 kHz/32-bit Hi-Grade DAC
• 4 Quick-Access BGM Presets

• 135 W/Ch (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC);
• 140 W/Ch (6 Ω, 1 kHz, 2 Channels Driven, JEITA)
• Non-Phase-Shift Amp Design for Realistic Sound Imaging
• Discrete Amplifier Design with Massive EI Transformer
• Two Custom-Made 8,200 µF Hi-Current Capacitors
• AKM AK4452 384 kHz/32-bit Hi-Grade DAC
• Plays Music from Mass-Storage-Class USB Memory Devices
• Supports Onkyo Remote App for Control of Receiver via iPod touch/iPhone and Android™ Devices*1
• Plays Compressed, Lossless, and Hi-Res Audio via Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, and LPCM)
• Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Spotify, and Deezer)*2
• Certified with Windows® 8 and DLNA Version 1.5
• Pure Audio Mode
• Direct Mode

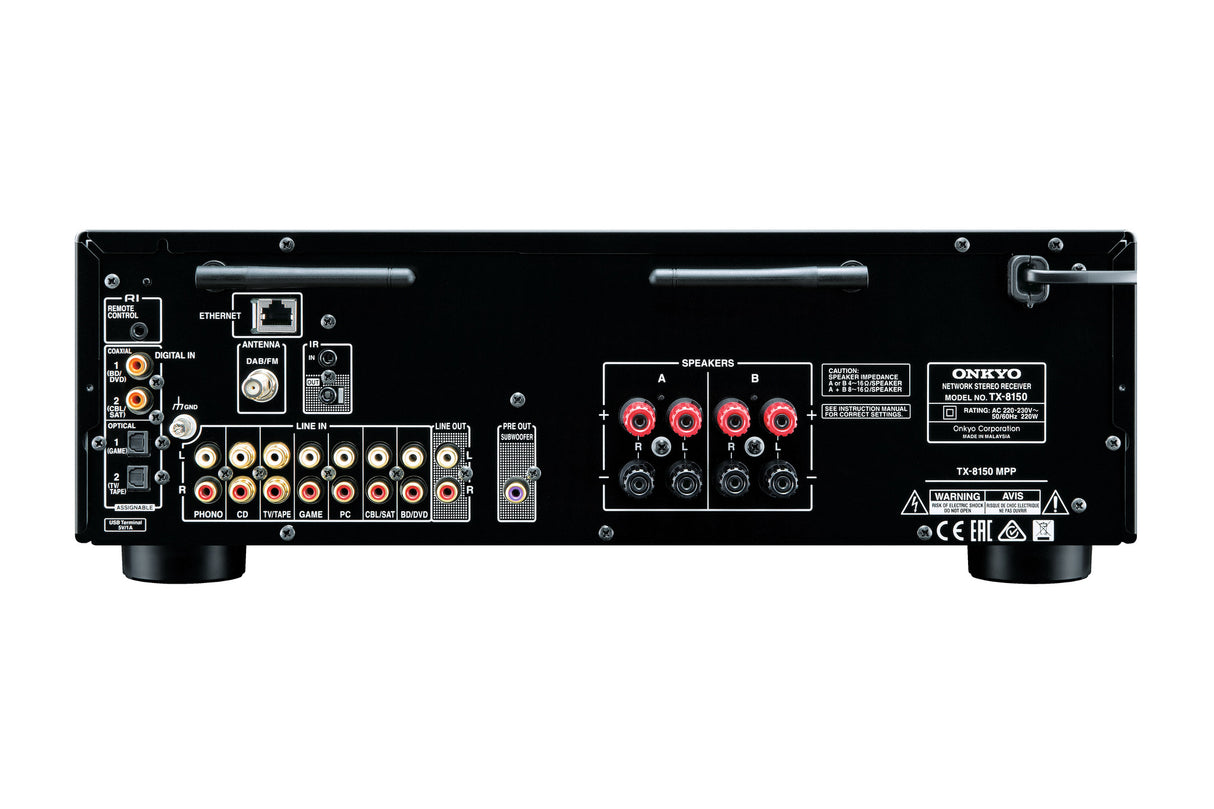

• 4 Digital Audio Inputs (2 Optical and 2 Coaxial)
• 6 Analog Audio Inputs (Excluding Phono Input) and 1 Output
• MM Phono Input
• Subwoofer Pre-Out
• Speaker A/B Drive
• IR Input and Output
• Gold-Plated Headphone Jack
• *1 Compatible models: iPod touch 3rd generation or later, iPhone 3GS or later running iOS 4.2 or later; Android 2.1 or later. *2 Availability of services depends on region.

• FM/DAB/DAB+ Tuner with 40 Station Presets
• Preset Station Naming (Up to 10 Characters)

• Anti-Vibration Oval Chassis
• Gold-Plated Audio Terminals
• Banana Plug-Compatible Speaker Posts
• Front USB Port for WAV 96 kHz, DSD 2.8 MHz, and MP3 Playback
• Auto Power On via Optical When Signal is Detected
• Independent Bass, Treble, and Balance Controls
• Network Standby Capability
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• Sleep Timer
• Battery-free Memory Back-up
• Compatible with RI (Remote Interactive) Dock for iPod/iPhone

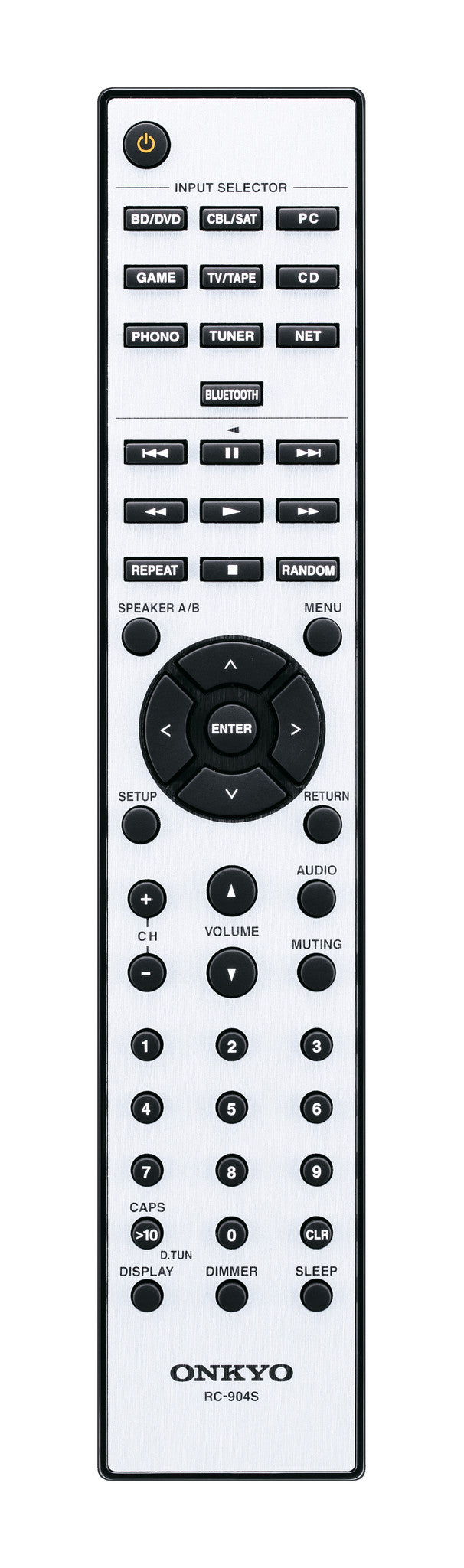

• Full-Function RI Remote Control

TECHNICAL DATA

• 7 analog inputs, input for MM type vinyl record player
• Variable output for active subwoofer
• 40 FM/AM radio station memories
• Power output:
  135 W/Ch (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
  140 W/Ch (6 Ω, 1 kHz, 2 Channels Driven, JEITA)
• Dynamic Power:
  190 W (3 Ω)
  170 W (4 Ω)
  110 W (8 Ω)
• THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, Half Power)
• Input Sensitivity and Impedance:
  200 mV/47 kΩ (Line)
  3.5 mV/47 kΩ (Phono MM)
• Rated RCA Output Level and Impedance: 1 V/680 Ω (Subwoofer Pre Out)
• Phono Overload 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio Mode)
• Tone Control:
  ±10 dB, 100 Hz (Bass)
  ±10 dB, 10 kHz (Treble)
• Signal-to-Noise Ratio:
  106 dB (IHF-A, Line In, Speaker Out)
  80 dB (IHF-A, Phono In, Speaker Out)
• Speaker Impedance 4 Ω–16 Ω
• Headphone Output Impedance 390 Ω
• Headphone Rated Output 200 mW (32 Ω, 1 kHz, 10%)
