Ubiquiti UniFi 5G Max Outdoor, lauko 5G maršrutizatorius su PoE ir Dual SIM

Išsiskiria itin dideliu 5G greičiu (iki 3,4 Gbps), „Dual SIM“ su eSIM ir sklandžiu ryšio perjungimu. Tvirtas IPX6/IP67 korpusas, PoE maitinimas ir aukštos raiškos integruotos antenos užtikrina stabilų veikimą lauko aplinkoje.

SIM palaikymas: Nano-SIM + eSIM;
Tinklo jungtis: 1 × 2.5 GbE RJ45, maitinimas per PoE (iki 14,5 W).

€460.00 EUR 480.00 €

Ubiquiti UniFi 5G Max Outdoor, lauko 5G maršrutizatorius su PoE ir Dual SIM - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

Peržiūrėti visą LTE ir 5G tinklo įrangą.

INFORMACIJA

Ubiquiti UniFi 5G Max Outdoor - pilno našumo 5G (iki 3,4 Gb/s) modemas, skirtas UniFi sistemoms ir Cloud Gateway įrenginiams, sukurtas naudoti lauke su kryptinėmis antenomis, nuotoline SIM* (*nuotolinė SIM bus pridėta būsimame programinės įrangos atnaujinime) ir dviguba SIM sklandžiam ryšio persijungimui.

5G ryšio greitis: iki 3,4 Gb/s (5G NSA), iki 1,8 Gb/s (5G SA)
SIM palaikymas: Nano-SIM + eSIM
Tinklo jungtis: 1 × 2.5 GbE RJ45, maitinimas per PoE (iki 14,5 W)
Atsparumas aplinkai: IPX6, IP67 (su kabelio sandarinimo rinkiniu), skirta lauko naudojimui
Antenos: 6 integruotos mobiliojo ryšio antenos, iki 9 dBi stiprinimas

APRAŠYMAS

A full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, designed for outdoor use with directional antennas, remote SIM*, and dual SIM for seamless failover.

TECHNINIAI DUOMENYS

Overview
Dimensions
Device: 220 x 165 x 66.9 mm
(8.7 x 6.5 x 2.6")
With mount: 220 x 165 x 122 mm
(8.7 x 6.5 x 4.8")
Networking Interface
(1) 2.5 GbE RJ45 port
5G NR and LTE radio
SIM
(1) Nano SIM
(1) Nano-SIM or eSIM
PoE Interface
(1) PoE input
Mounting
Pole mount, wall mount (Included)

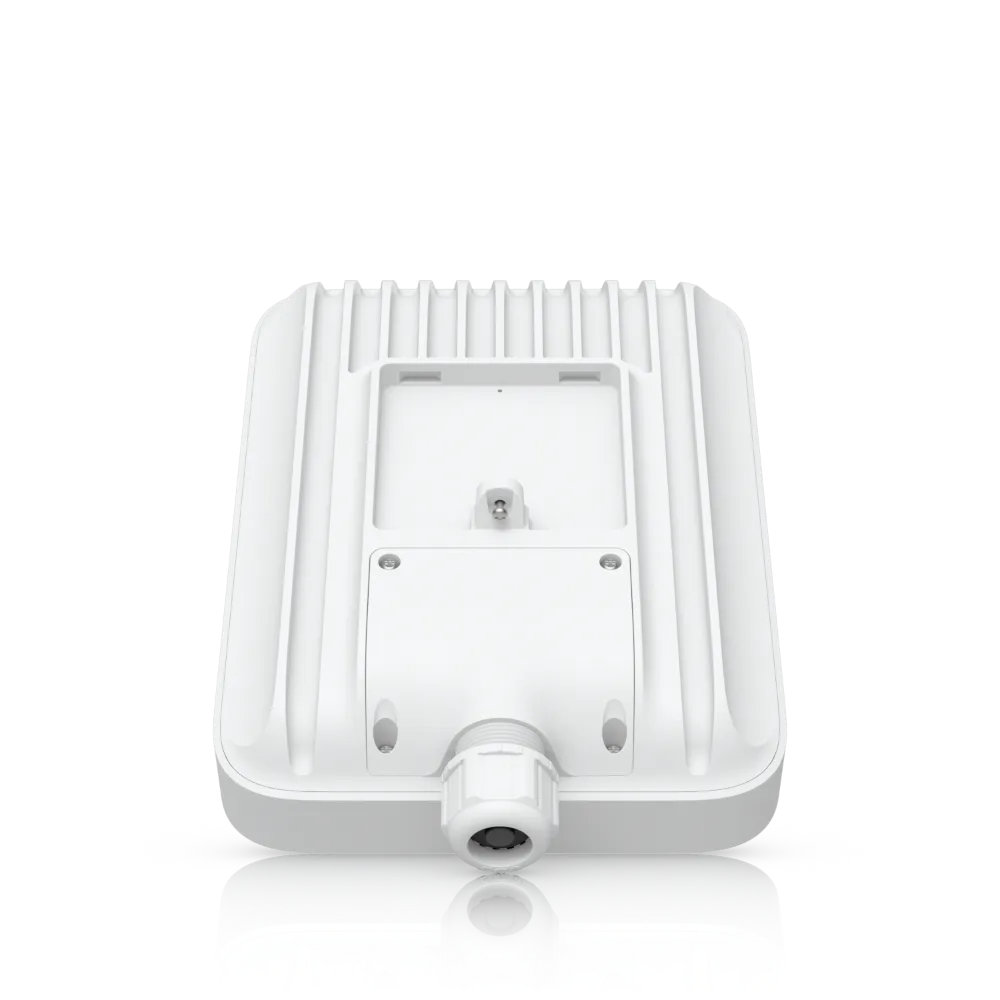

Weatherproofing
IPX6
IP67 (With cable-gland door kit)

Mechanical
Weight
Device: 1.2 kg (2.6 lb)
Mount: 130 g (4.6 oz)
Enclosure Material
Aluminum-alloy, UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate
Pole Mount Diameter
1–2.5" (25–63.5 mm) on pipe outer diameter
Wind Loading
91N at 200 km/h (20.45 lbf at 125 mph)

Hardware
Management
Ethernet
5G NR
Category
5G NR
Frequency Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Max. TX Power
HPUE power class 2: 26 dBm
4G LTE
Frequency Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power
HPUE power class 2: 25 dBm
3G UMTS
Frequency Bands
B1, B2, B4, B5, B8, B19
Peak Data Speed
5G NSA
Downlink 3.4 Gbps
Uplink 560 Mbps
5G SA
Downlink 1.8 Gbps
Uplink 650 Mbps
4G LTE
Downlink 1.6 Gbps
Uplink 210 Mbps
Antennas
Type
(6) Embedded cellular antennas, including
(2) high-gain for downlink: peak 9 dBi, 85°x85°
Max. Power Consumption
14.5W
Power Method
PoE
Buttons
(1) Factory-reset
LEDs
✓
Ambient Operating Temperature
-40 to 65 °C (-40 to 149 °F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile, Verizon
