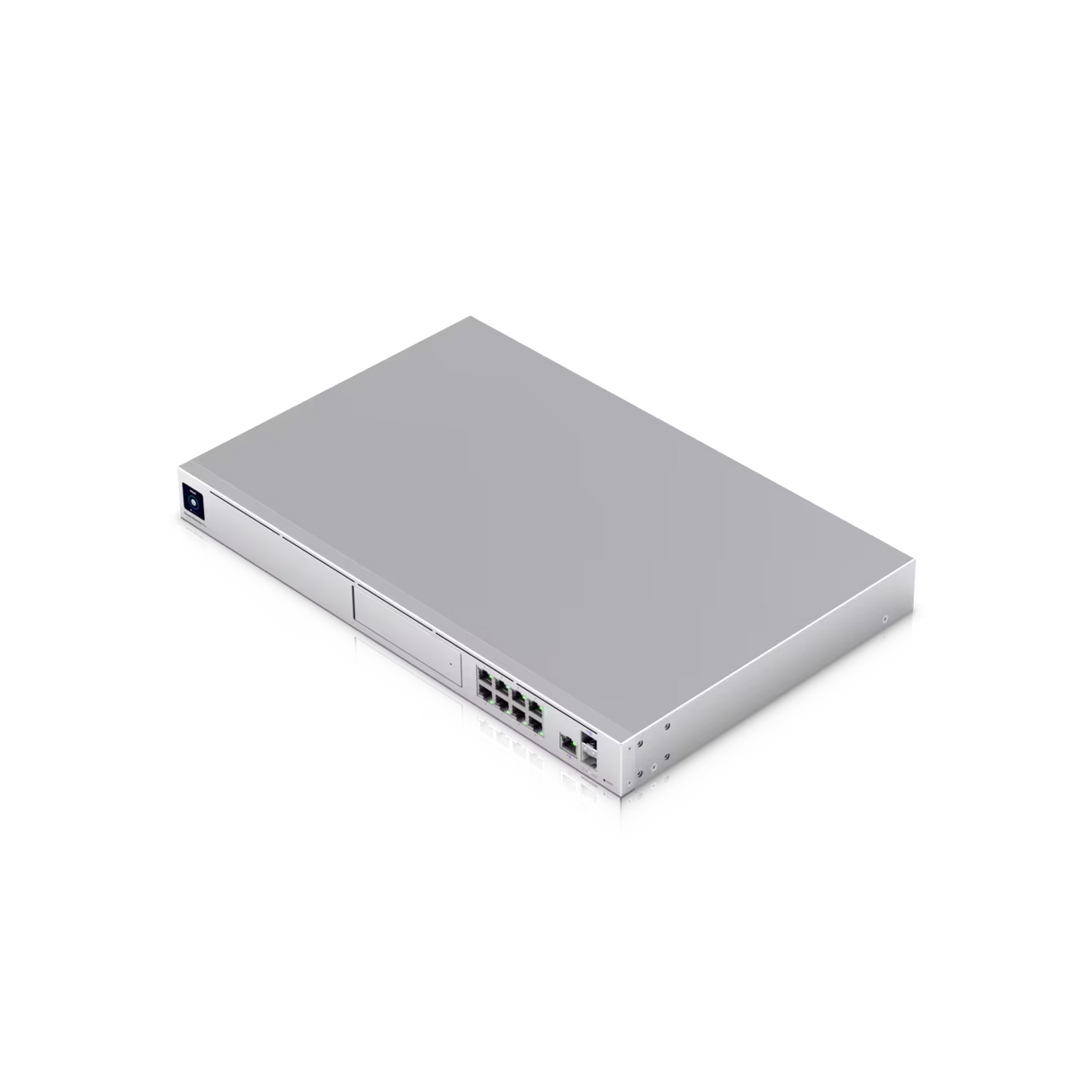

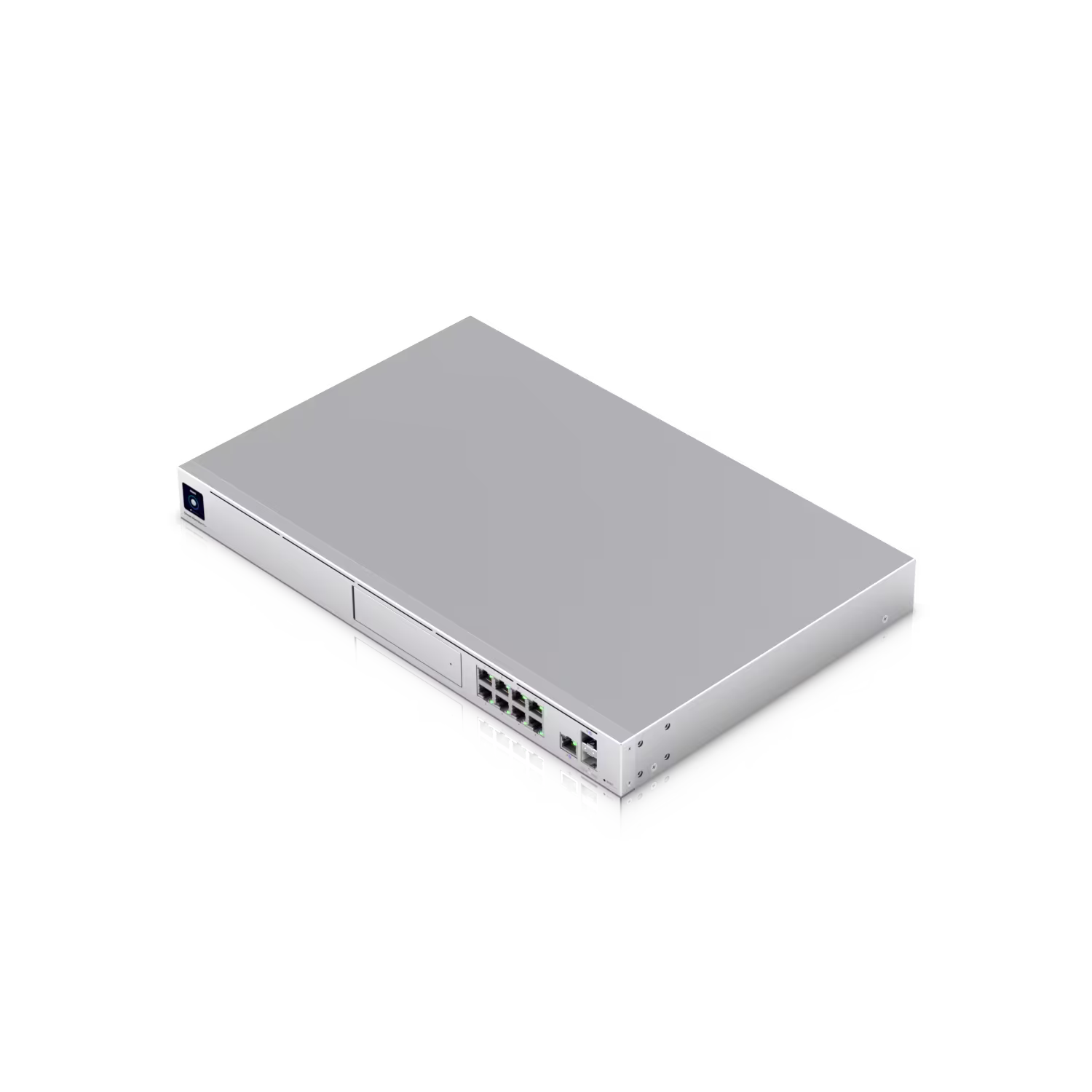

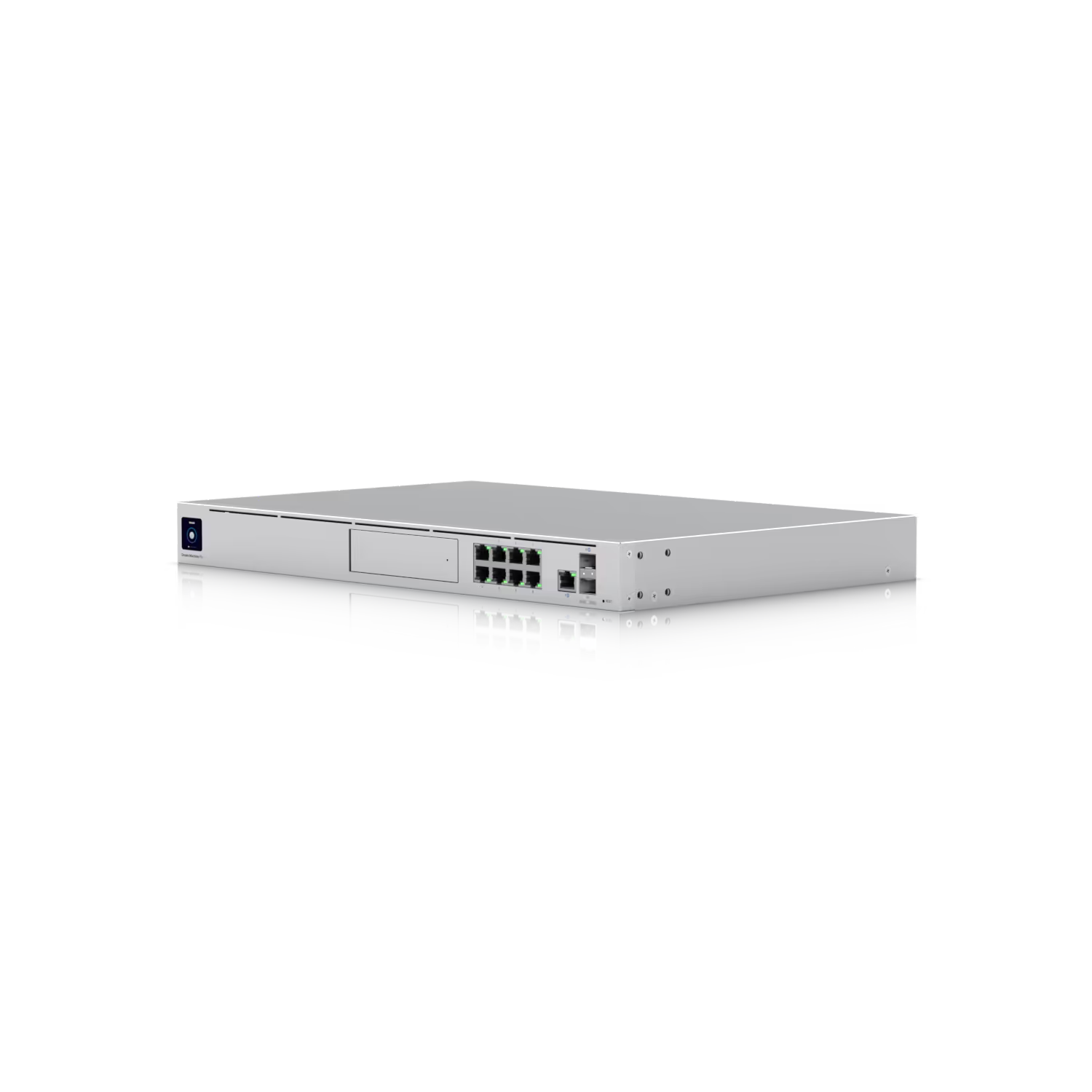

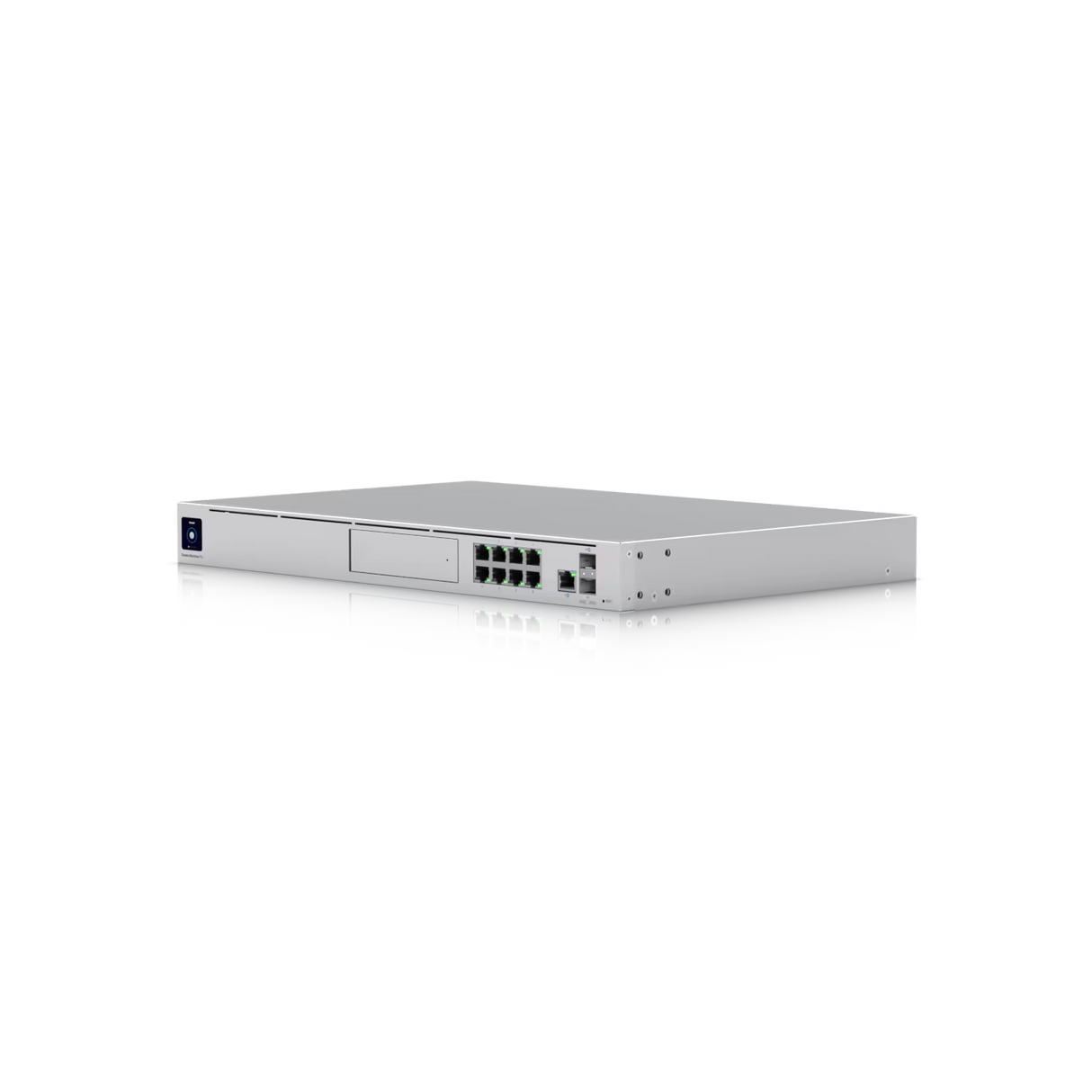

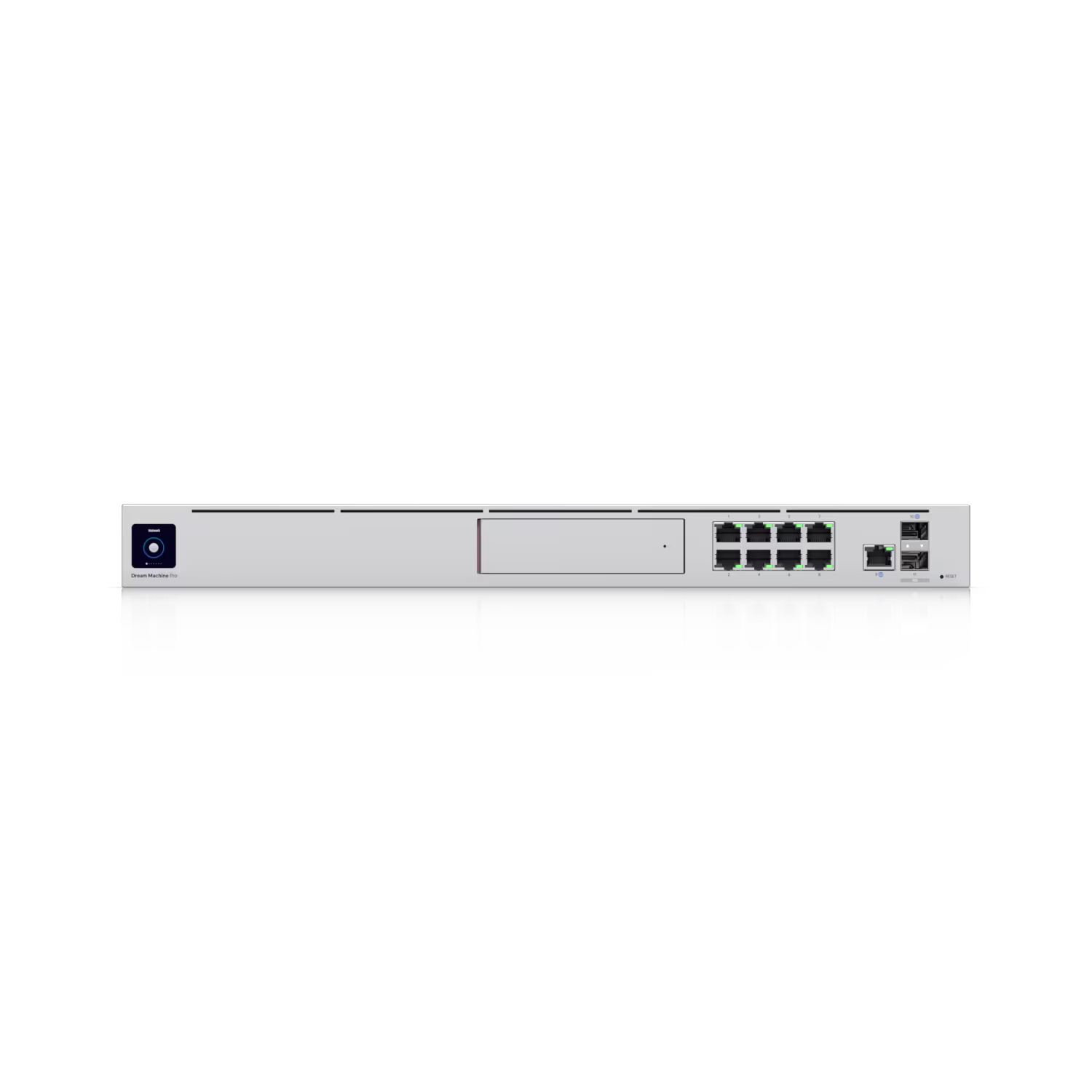

Ubiquiti UniFI Dream Machine Pro UDM-Pro, smart network management center

INFORMACIJA

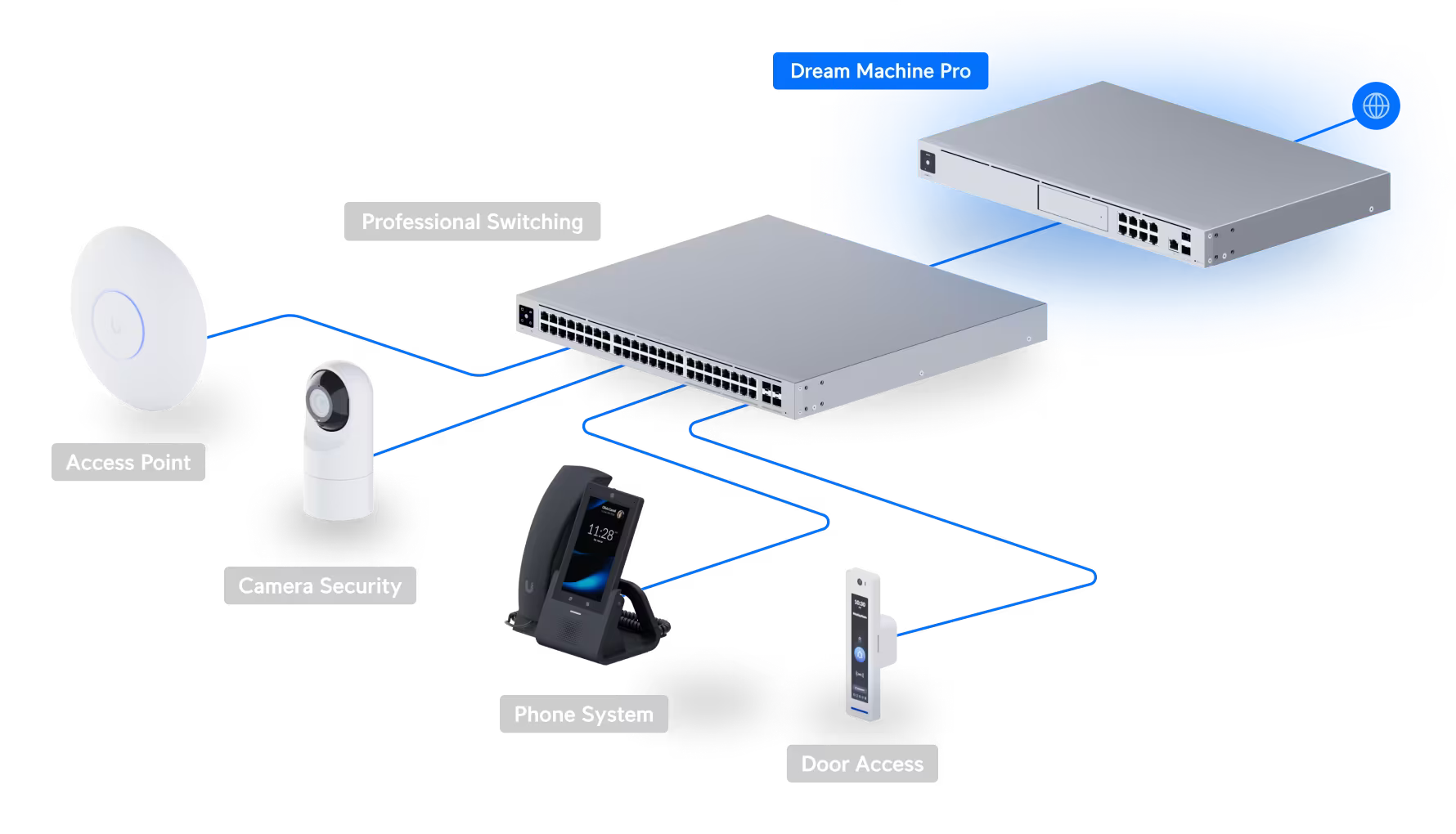

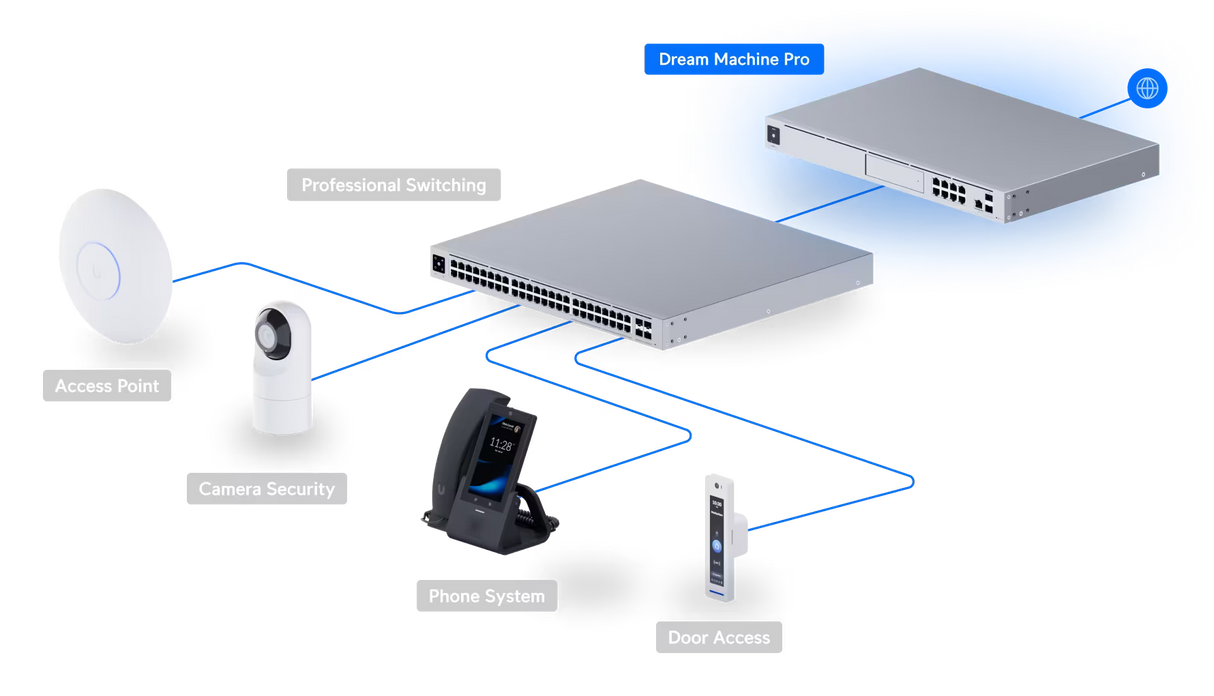

Ubiquiti UniFI Dream Machine Pro UDM-Pro is a powerful network management solution for businesses and demanding users, providing seamless management of the network, surveillance cameras, access control, VoIP and other UniFi ecosystem services in a single device. The device supports management of more than 100 UniFi devices, up to 24 HD cameras, ensures the service of more than 1,000 simultaneously connected users, has advanced security features with more than 55,000 IDS/IPS signatures, integrated VPN, SD-WAN, content filtering and ad blocking.

Processor: 4-core ARM Cortex-A57 1.7 GHz, 4 GB RAM
Throughput: IDS/IPS up to 3.5 Gbps, supports 1,000+ concurrent users
Network connections: 1 x 10G SFP+, 1 x 1G RJ45 WAN, 8 WAN ports, VRRP high availability
Dimensions: 442.4 x 43.7 x 285.6 mm, weight 3.9 kg.

TECHNICAL DATA

Overview

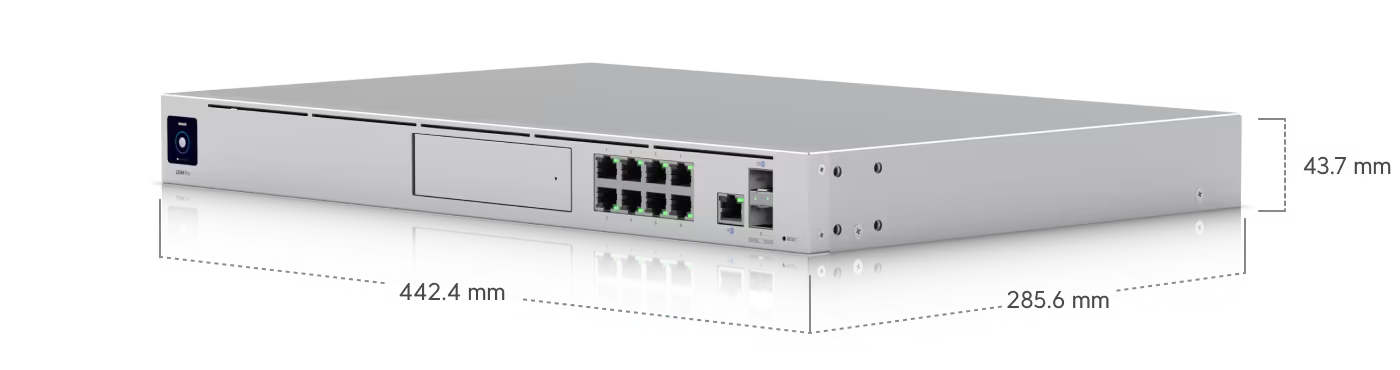

Dimensions
442.4 x 43.7 x 285.6 mm
(17.4 x 1.7 x 11.2")
UniFi Application Suite
Network
✓
Protect
✓
Access
✓
Talk
✓
Connect
✓
Managed UniFi Devices
100+
Managed Cameras
(24) HD
(14) 2K
(8) 4K
Simultaneous Users Connected
1,000+
Max. WAN Port Count
8
Default WAN Ports
(1) 10G SFP+
(1) GbE RJ45

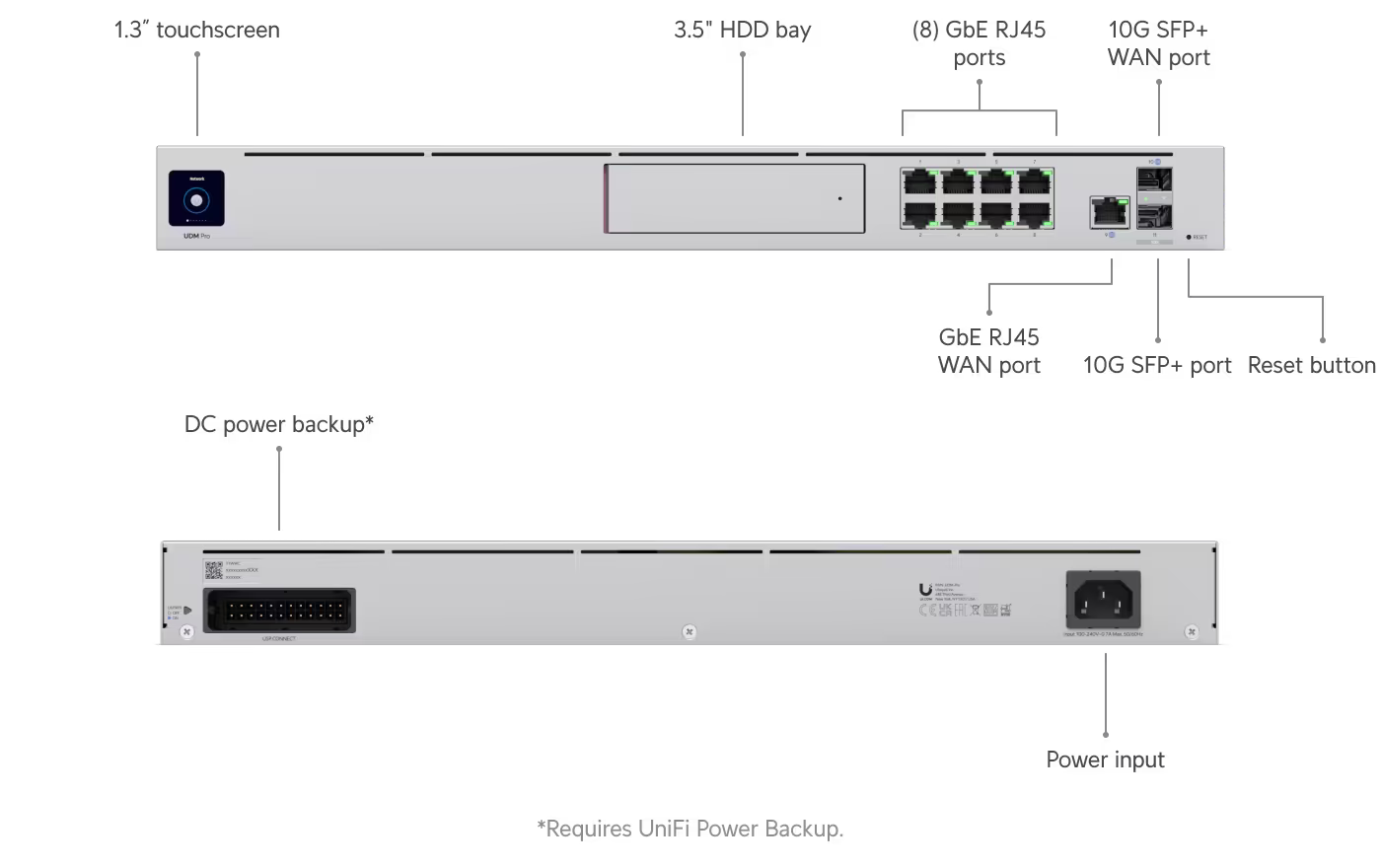

Port Layout
1GbE RJ45
9
(1G/100M/10M)
10G SFP+
2
(10G/1G)
IDS/IPS Throughput
3.5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover
DC Power Backup

Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+
with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓

Networking
Multi-WAN Load Balancing
✓
Shadow Mode (VRRP) High Availability
✓
Dynamic Routing
OSPF
✓
BGP
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓

Hardware
NVR Storage
(1) 3.5" NVR HDD bay
Max. Power Consumption
33W
Power Method
(1) Universal AC input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power Supply
AC/DC, internal, 50W
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory
4GB
On-board Storage
16GB
Weight
3.9 kg (8.6 lb)
Enclosure Material
Aluminum CNC, SGCC steel
Mounting Material
SGCC steel
LCD Display
1.3" touchscreen
Management
Ethernet
Bluetooth
LEDs
Ethernet
✓
SFP+
✓
RPS
✓
PSU
✓
HDD
✓
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature
-10 to 40°C (14 to 104°F)
Ambient Operating Humidity
5 to 95% non-condensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel, SRRC
