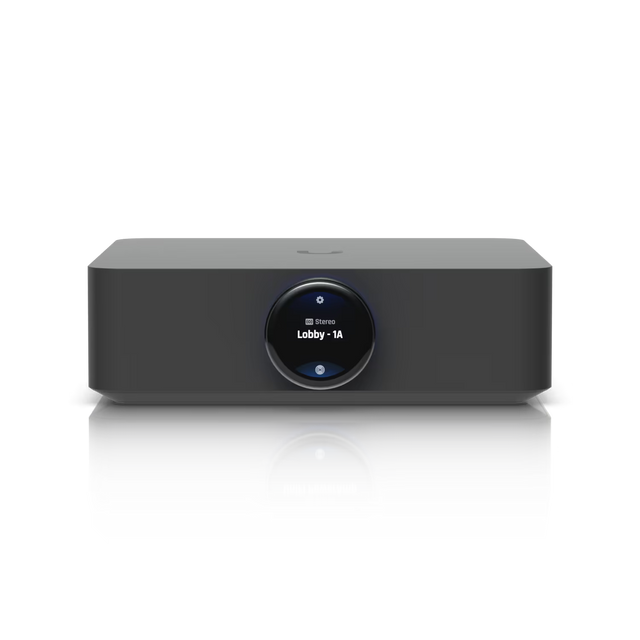

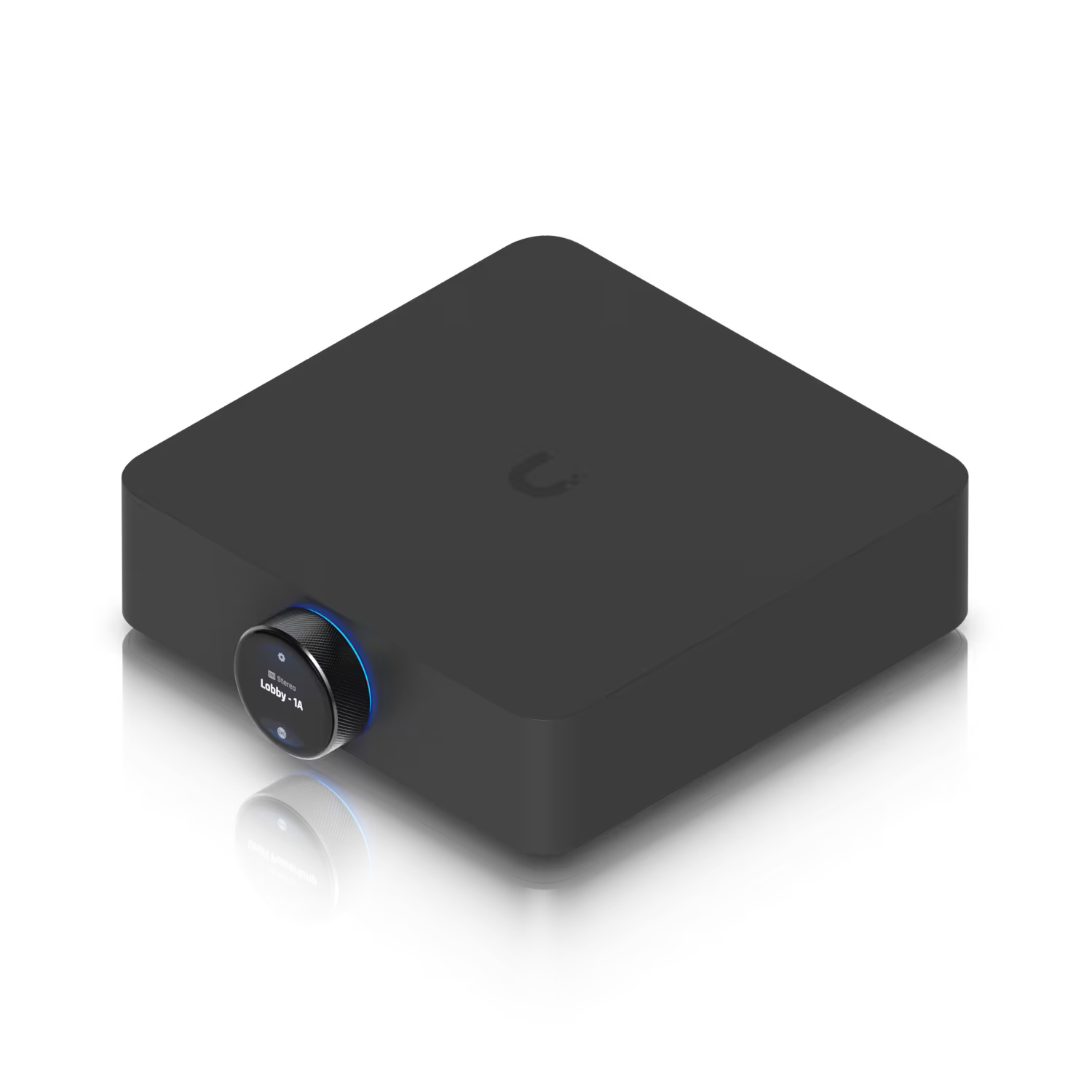

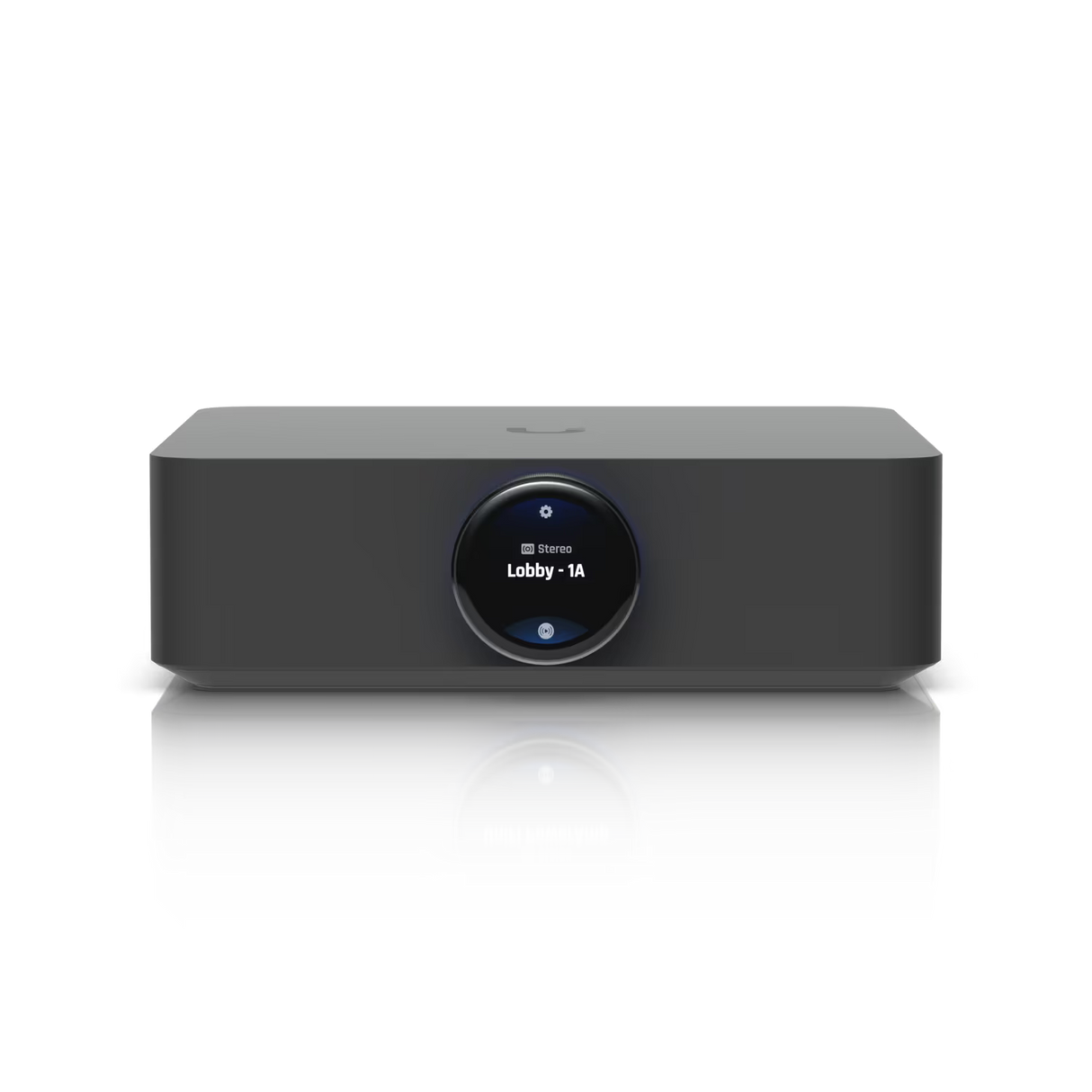

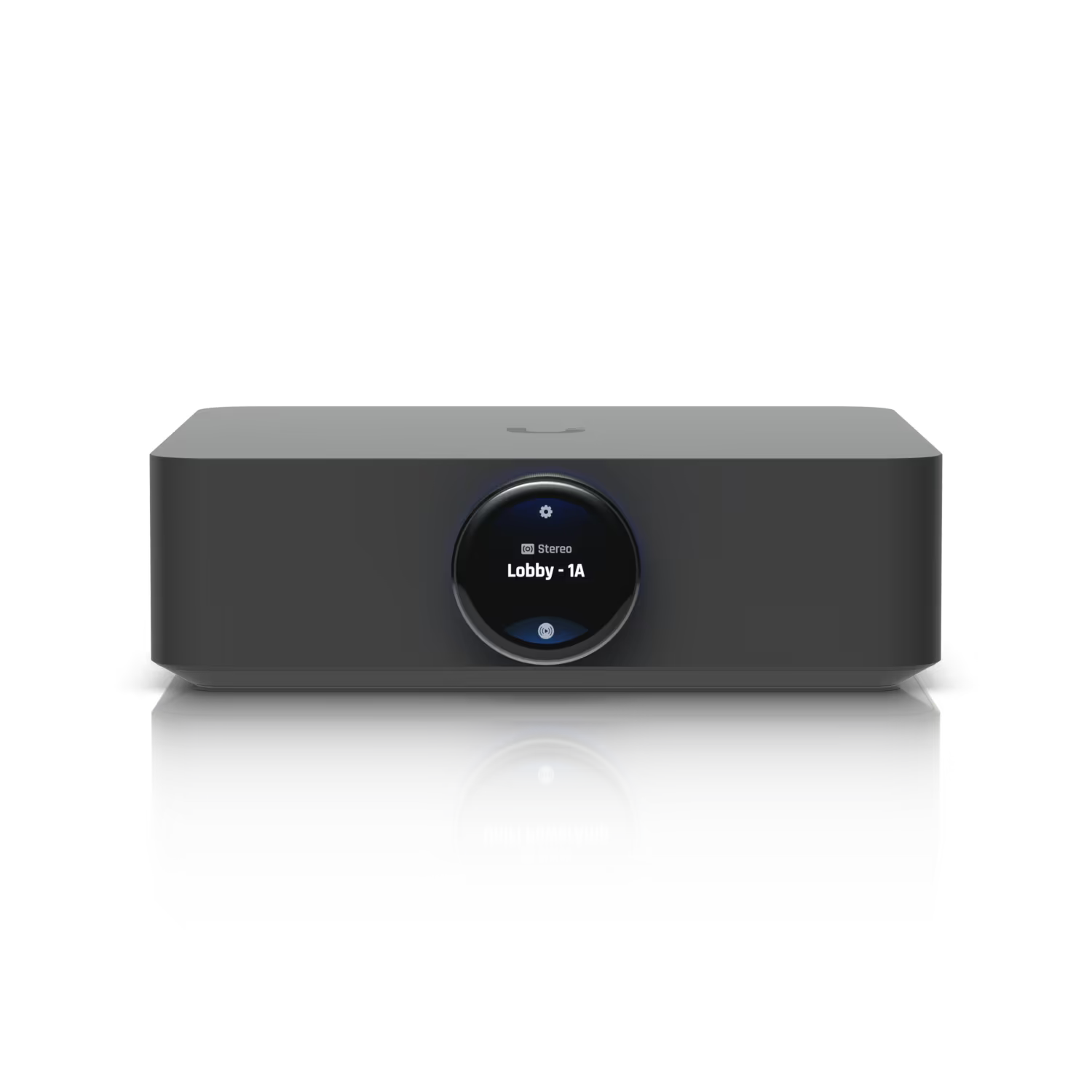

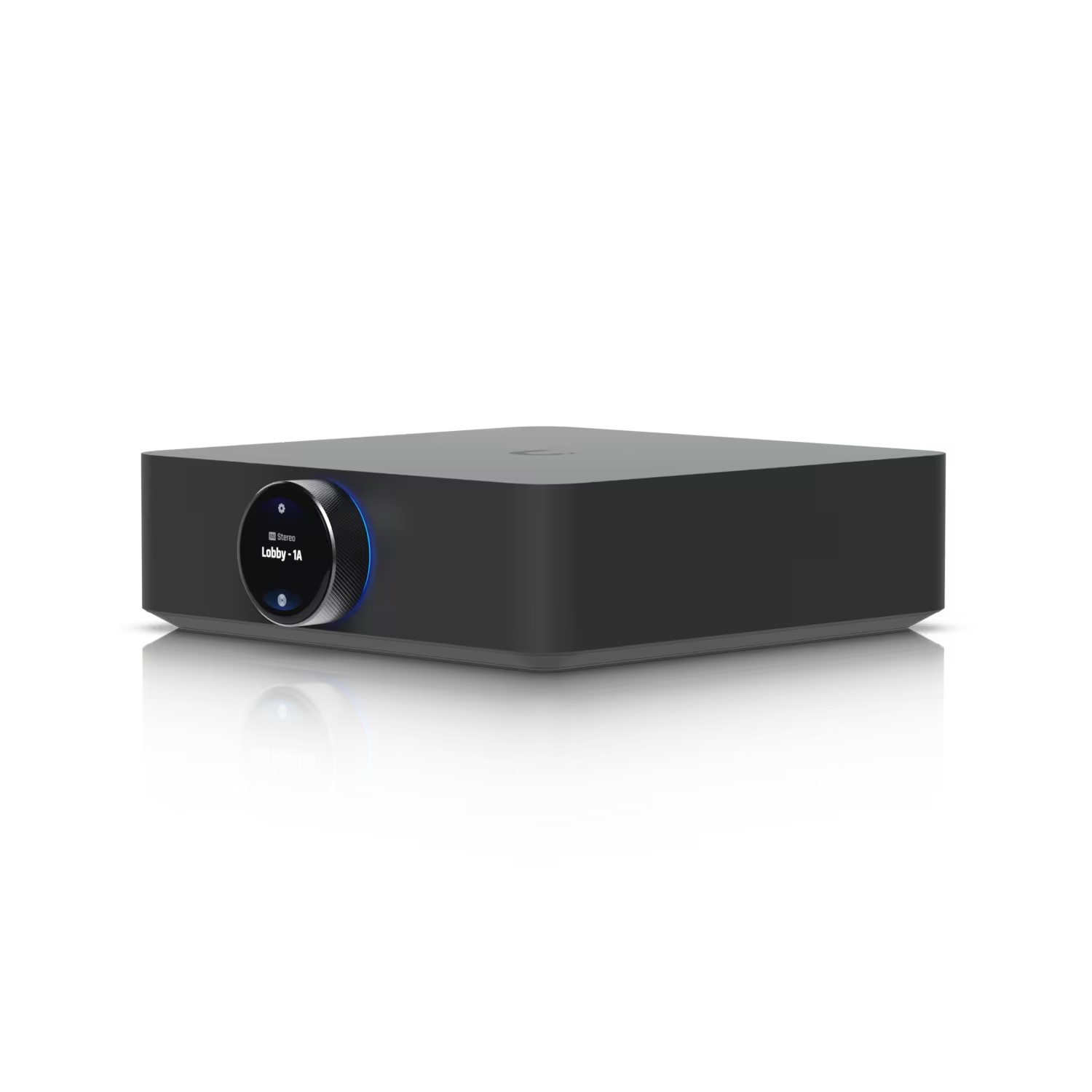

UBIQUITI UniFi UPL-Amp, network power amplifier with HDMI eARC

€874.00 EUR 893.00 €

UBIQUITI UniFi UPL-Amp, network power amplifier with HDMI eARC - Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The UBIQUITI UniFi UPL-Amp is a compact yet powerful network audio amplifier with HDMI eARC that delivers high-quality audio to your home or business space. With 130W of power per channel into 8Ω, WiFi 5, and AirPlay and Spotify Connect support, this device allows you to conveniently stream music or connect your TV and other devices, ensuring clean, dynamic sound and easy control via the UniFi Play app.

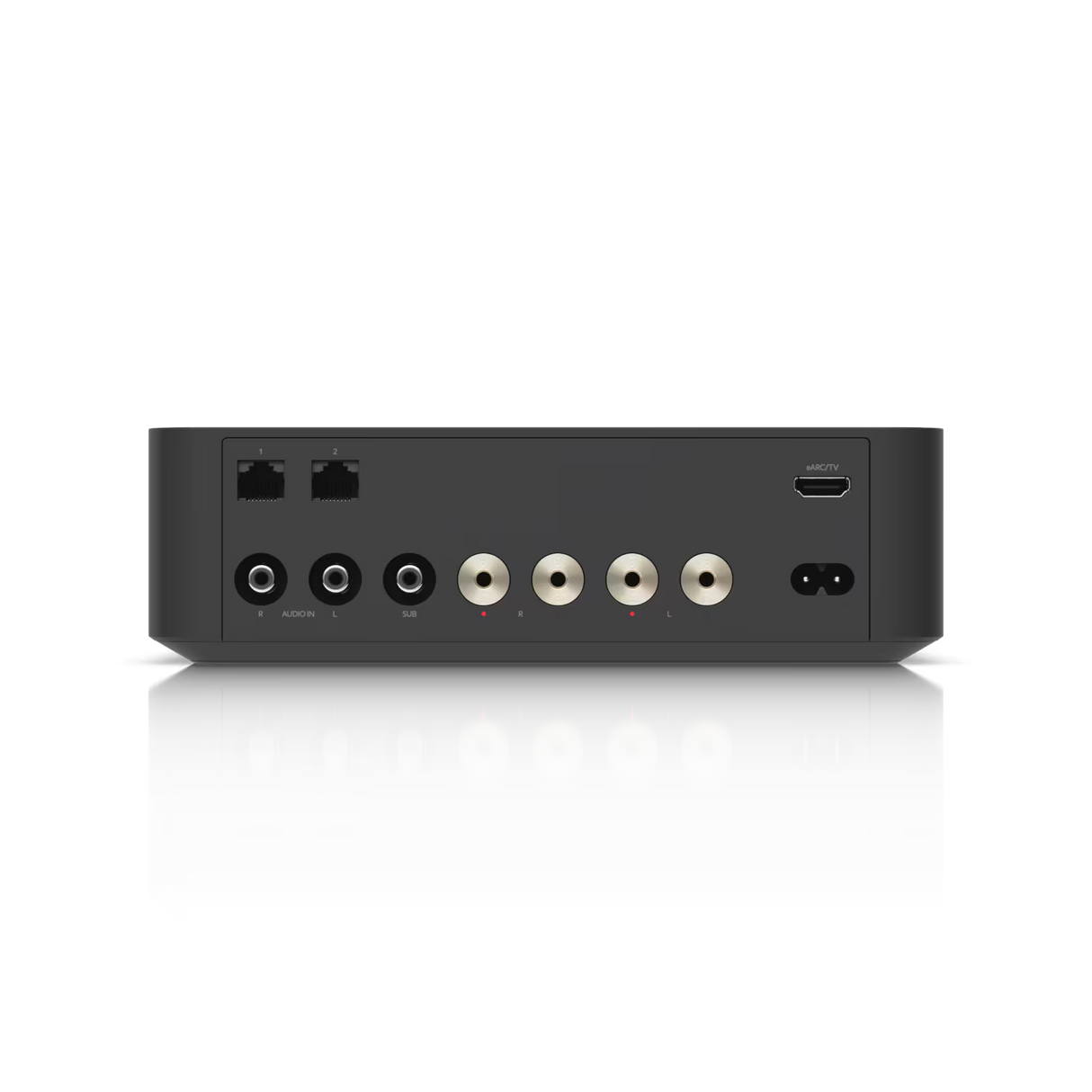

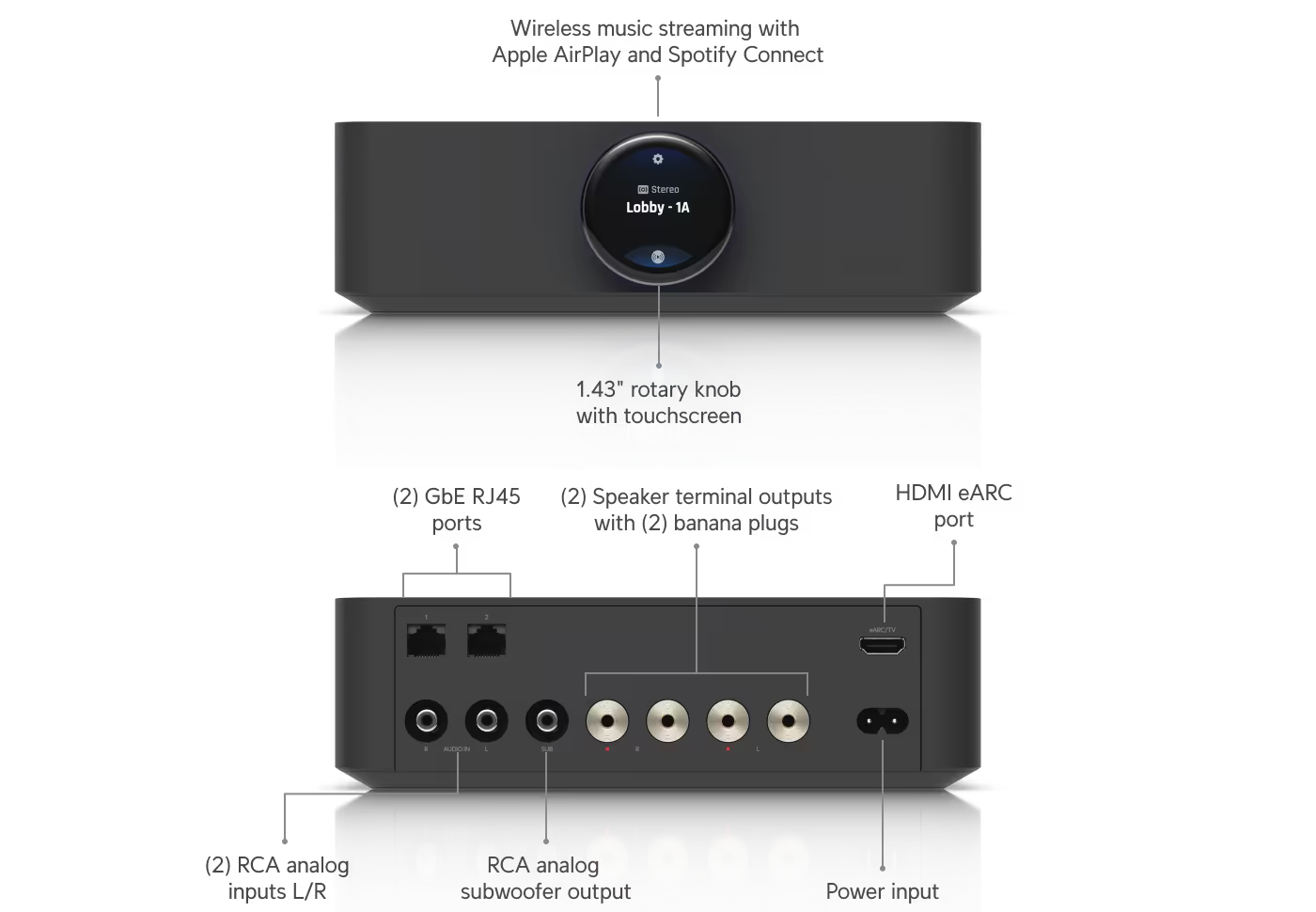

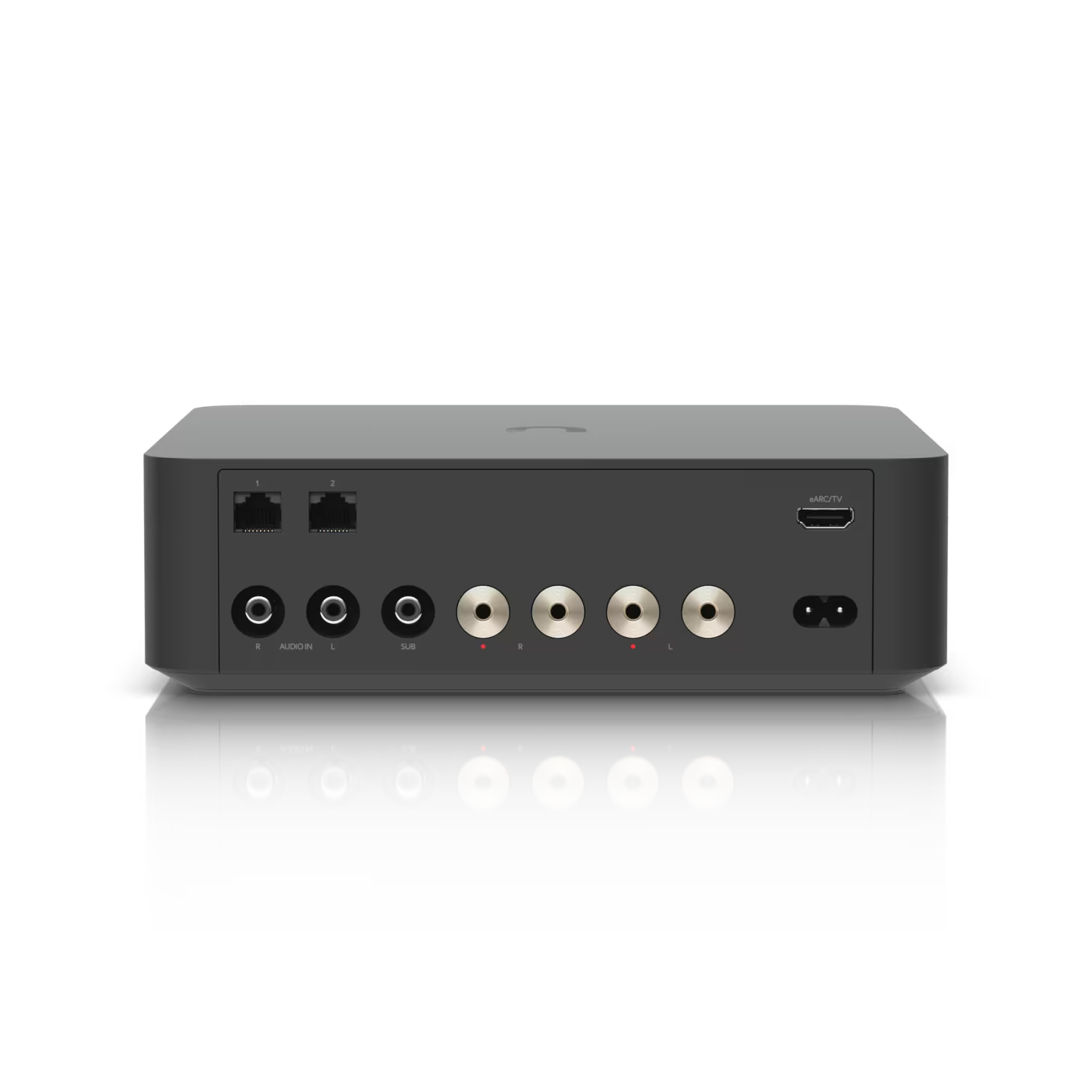

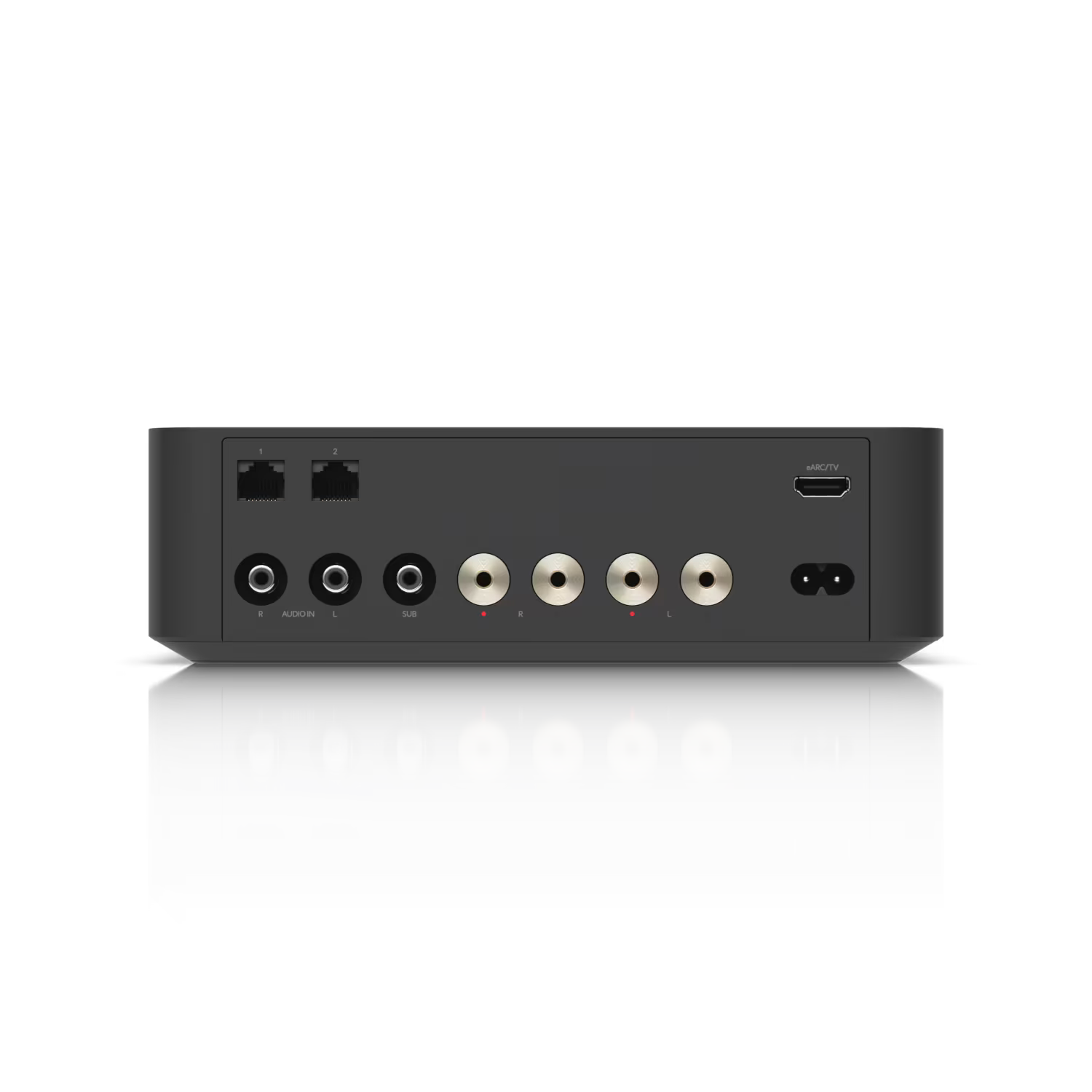

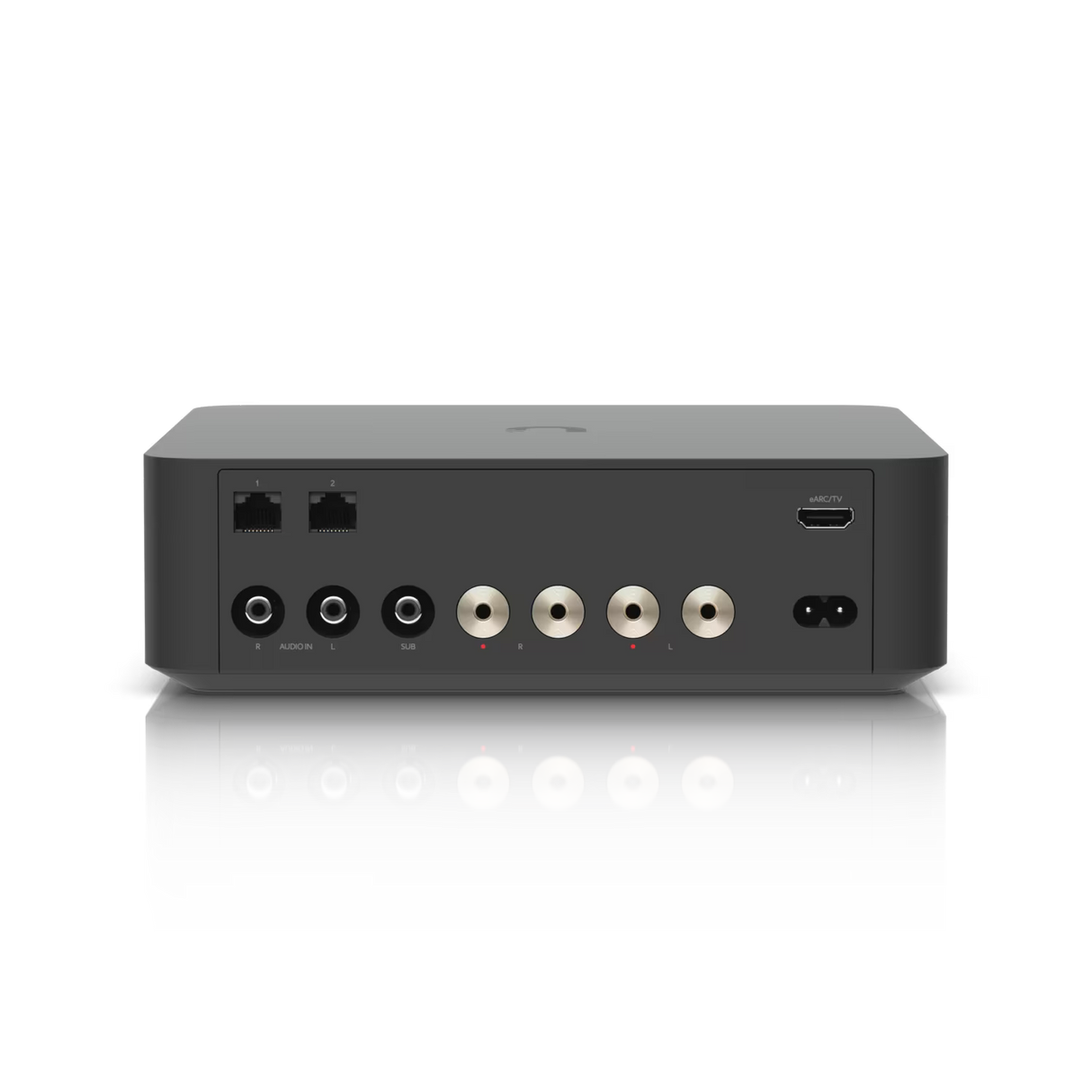

Connections: 2x GbE RJ45, 1x RCA sub, 2x RCA left/right, 1x HDMI eARC
Wireless connection: WiFi 802.11a/b/g/n/ac
Power supply: AC input 100-240V AC
Power: 17W, 2.5A
Speaker power: 130 W @ 8 ohm

TECHNICAL DATA


Mechanical

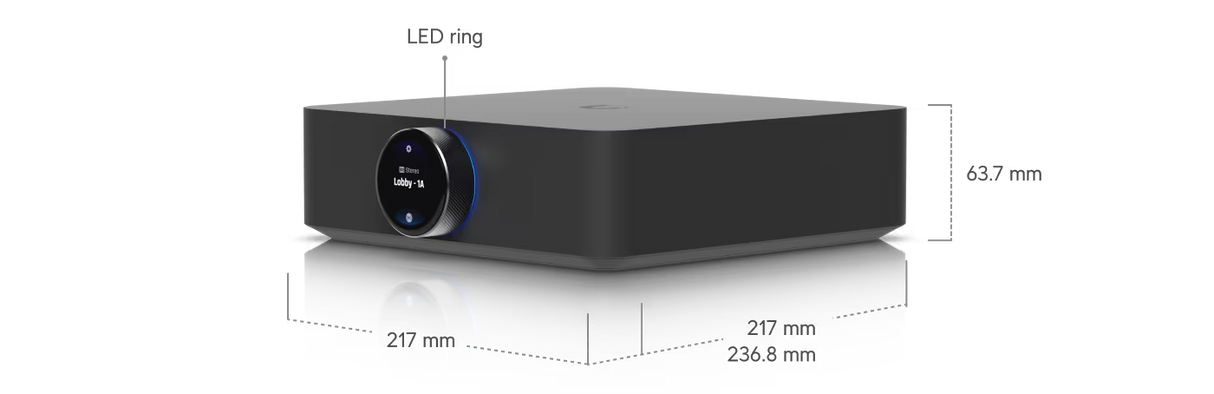

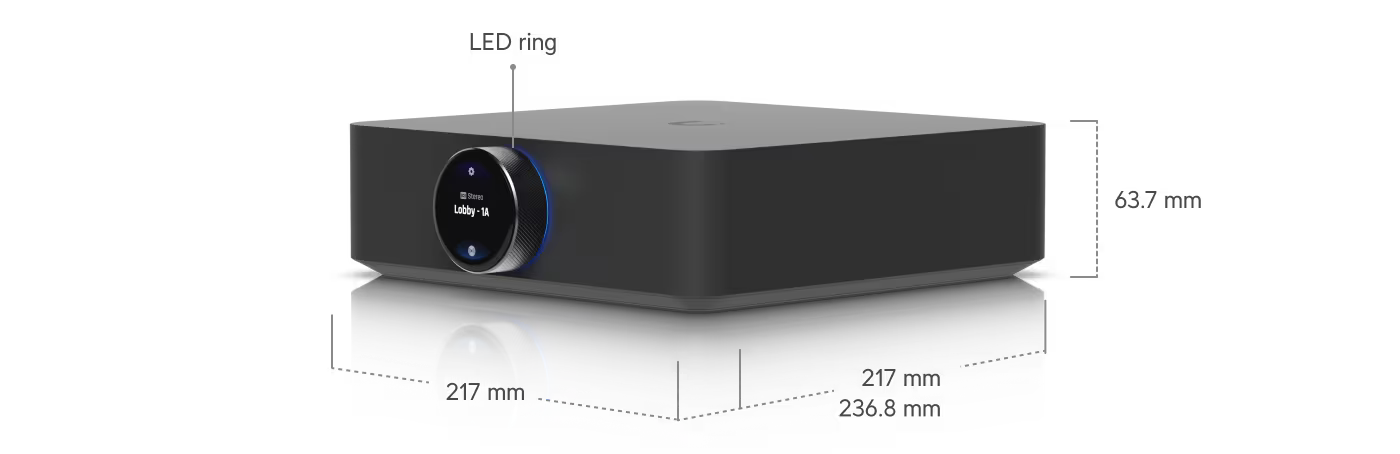

Dimensions
With knob:
217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5")
Without knob:
217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5")
Weight
2.4 kg (5.3 lb)
Enclosure Material
Chassis: Polycarbonate
Knob: Aluminum
Mounting
Compact Desktop

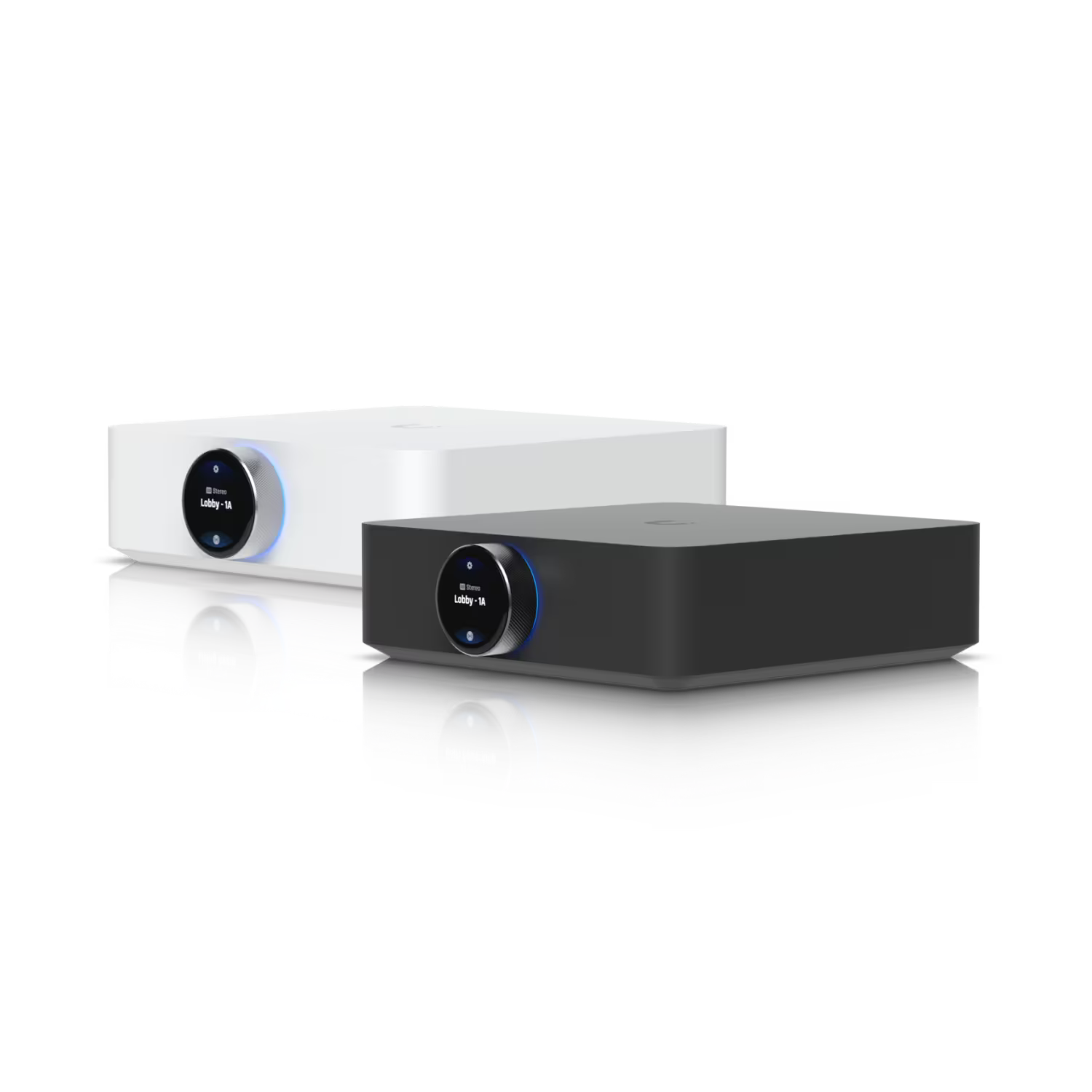

Available Colors
Black
White

Audio
Per Channel Power (Continuous power)
130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A)
260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A)
Amplifier Class
Class D
Output
Mono / Stereo sound
Surround Format
Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM
Zone

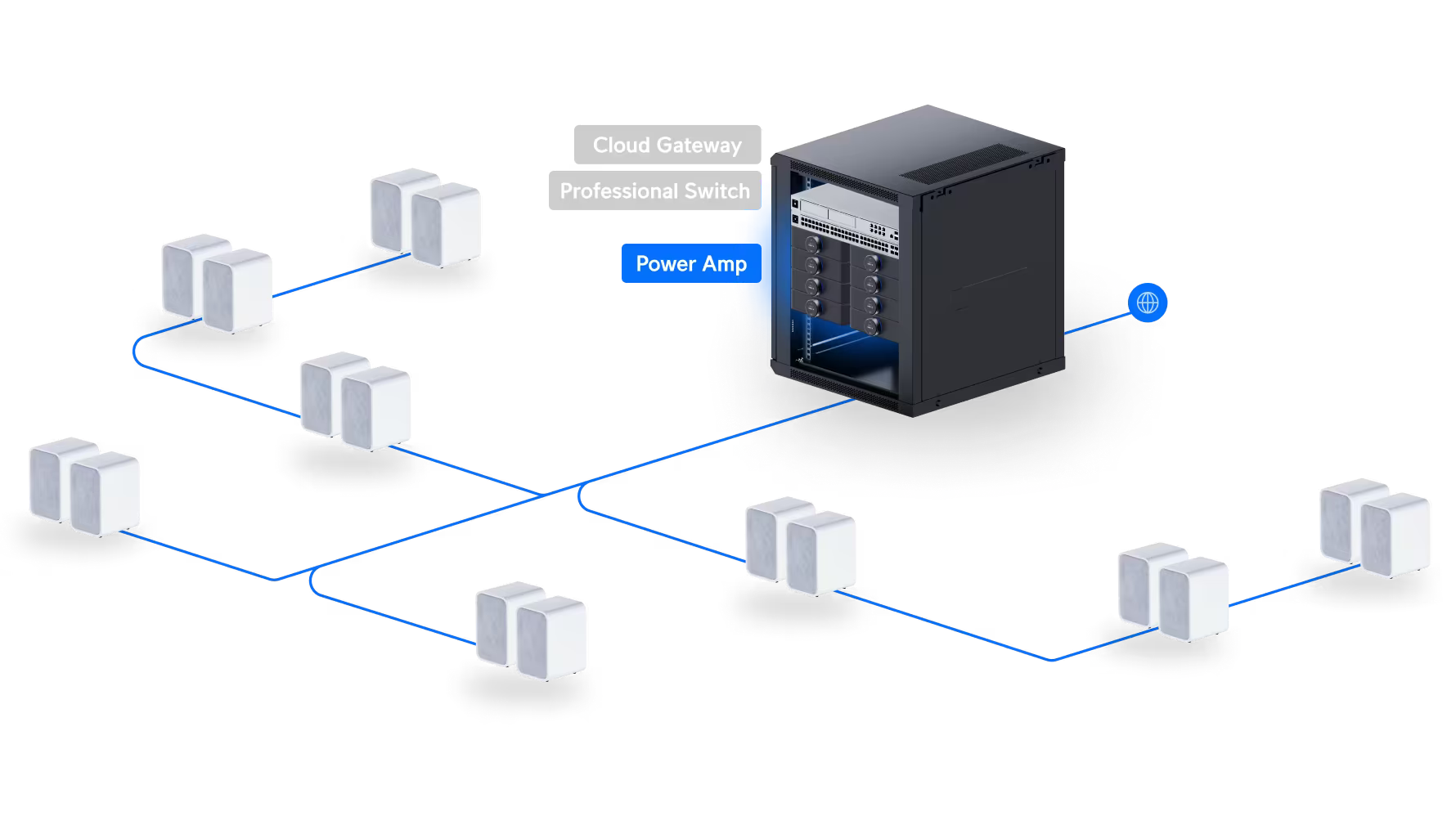

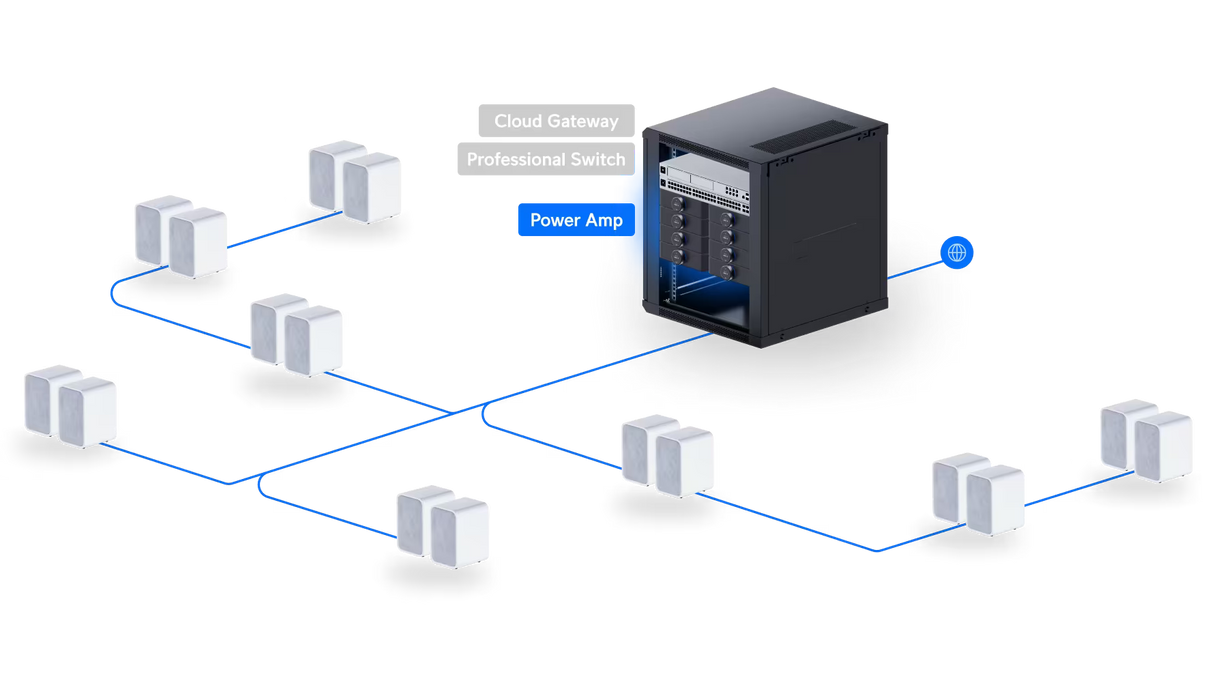

Up to 32 PowerAmps
Audio Input
(1) HDMI eARC input
(2) RCA analog inputs L/R
Audio Output
(1) RCA analog subwoofer output
(2) Speaker terminal outputs with (2) banana plugs
Streaming
AirPlay, Spotify Connect, Soundtrack Your Brand

Hardware
Network Interface
(2) GbE RJ45 ports
WiFi Standards
802.11 a/b/g/n/ac
Connectivity
WiFi 5G, BW 20/40/80 MHz
WiFi 2.4G, BW 20/40 MHz
Power Method
(1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz
Max. Power Consumption
17W
LCD Display

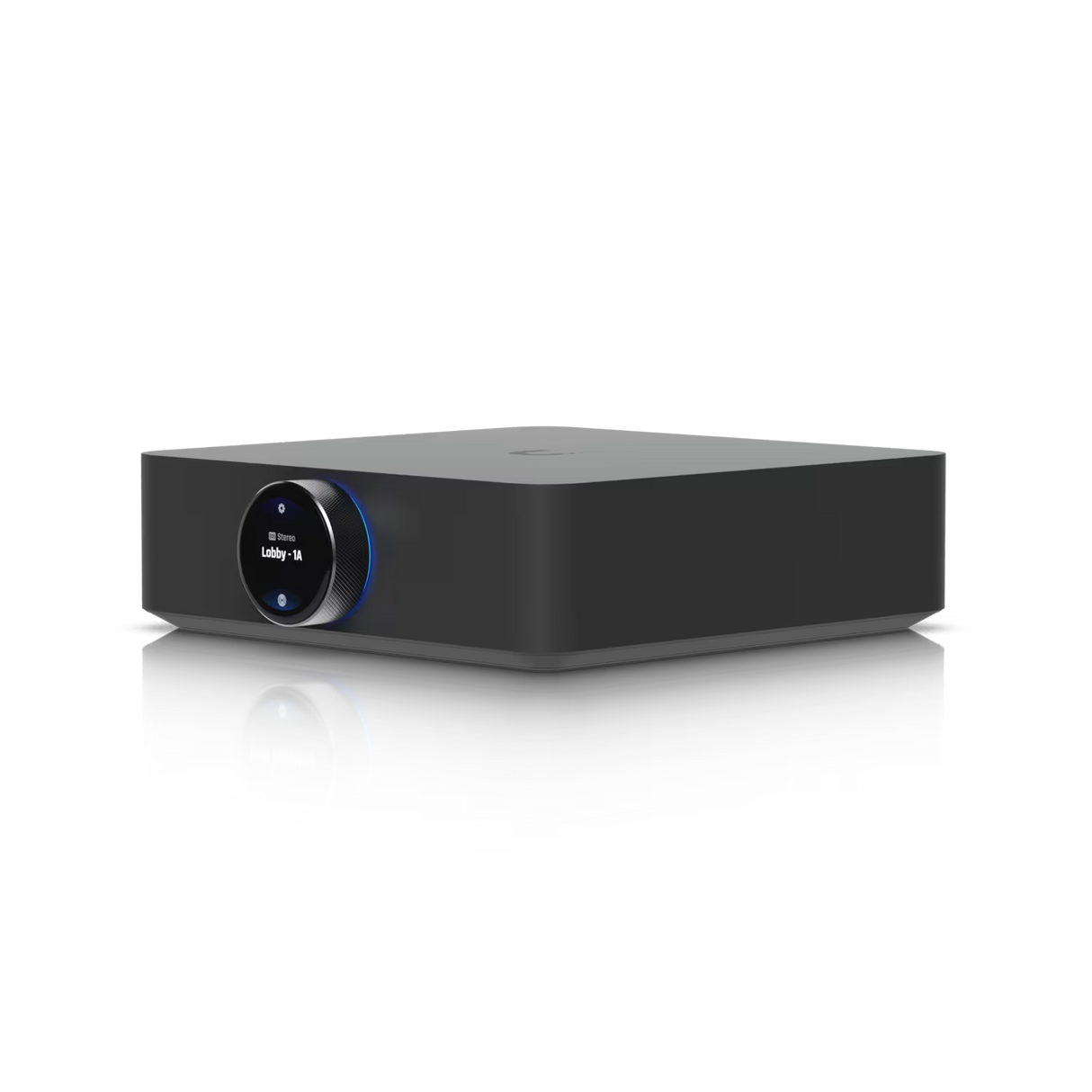

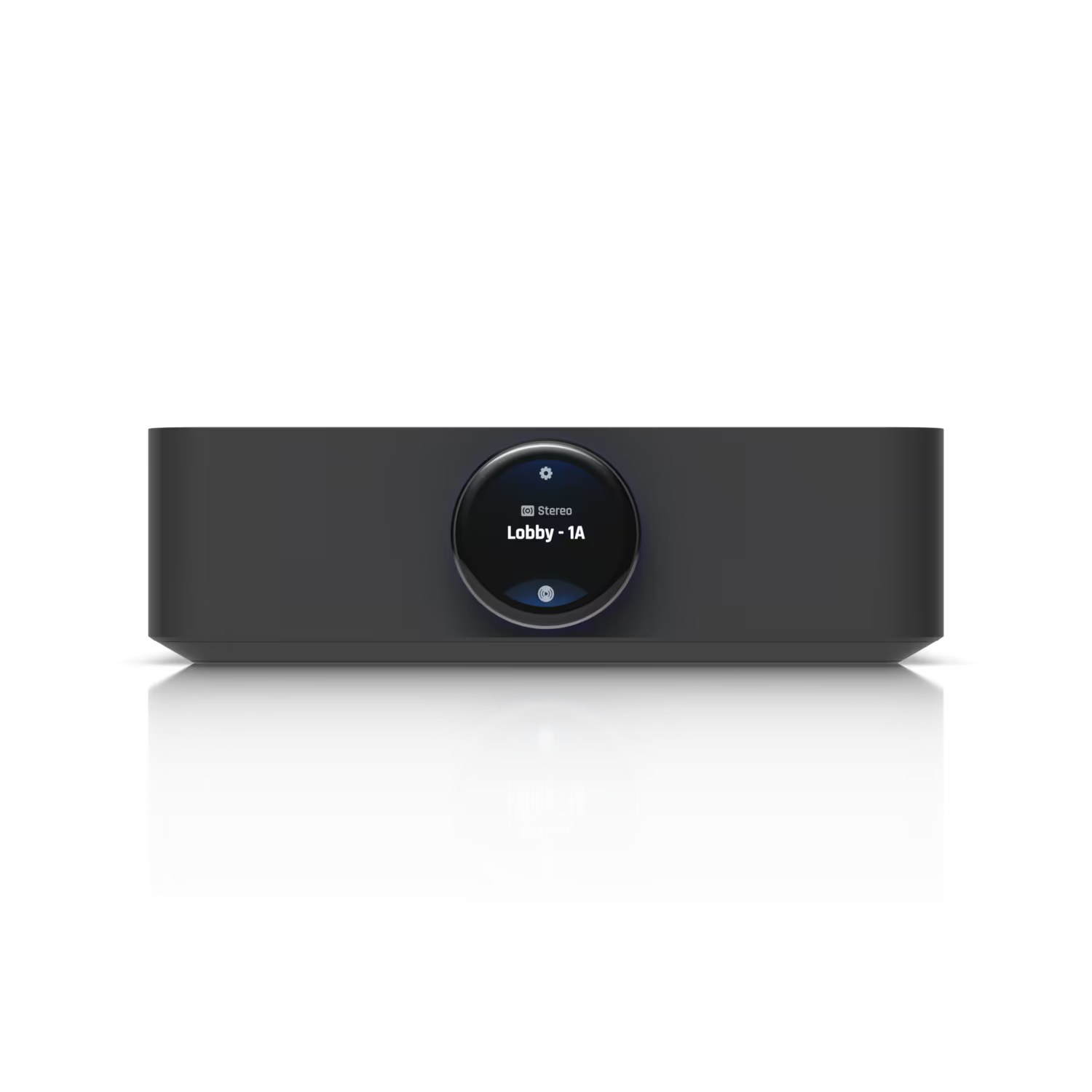

1.43" rotary knob with touchscreen
Button
Factory reset
Ambient Operating Temperature
-5 to 40°C (23 to 104°F)
Ambient Operating Humidity
5 to 90% non-condensing
NDAA Compliant
✓
Certifications
FCC, IC, CE

Software
UniFi Application Suite
Play
UniFi Play iOS™ and Android™: Version 1.0.0 and later
