UBIQUITI  |  Bar code: 817882029698

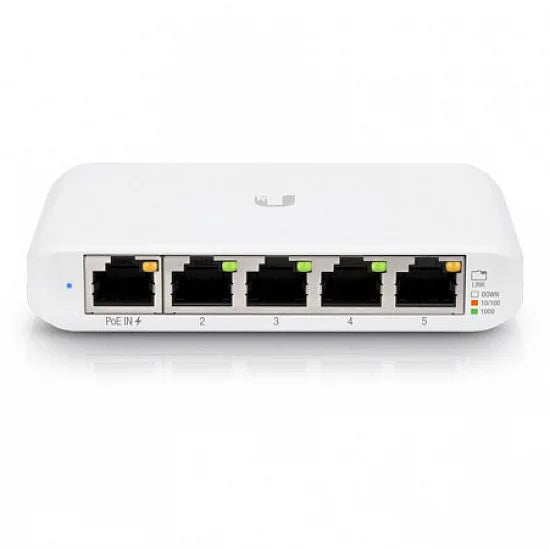

Ubiquiti UniFi USW-Flex-Mini-EU, 5-port switch

Ubiquiti UniFi USW-Flex-Mini-EU is a smart, managed 5-port switch designed for network expansion and optimization.
€38.00 EUR 44.00 €

Ubiquiti UniFi USW-Flex-Mini-EU, 5-port switch - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

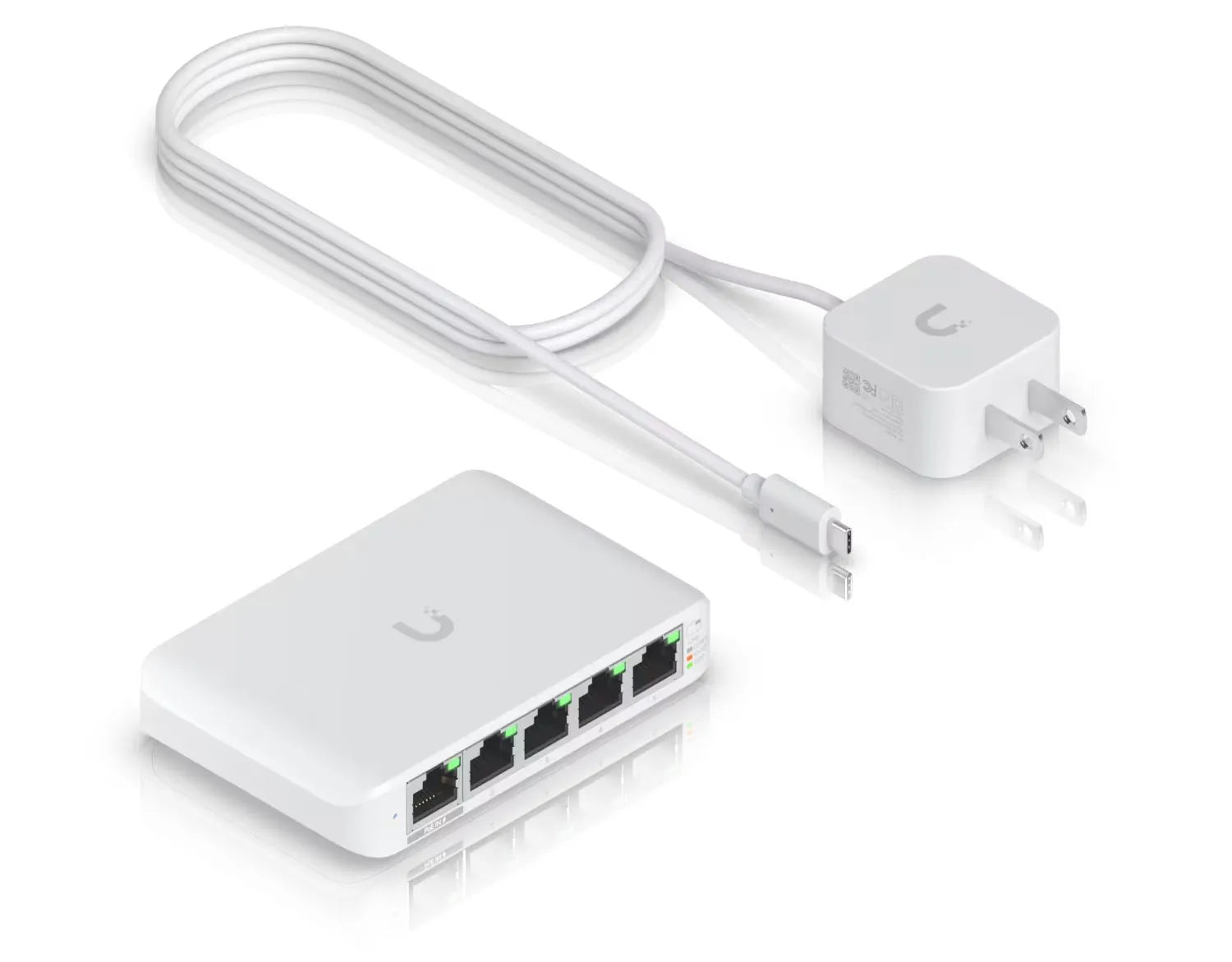

Ubiquiti UniFi USW-Flex-Mini-EU is a smart, managed 5-port switch designed for network expansion and optimization. It provides reliable 1 Gbps connectivity via RJ45 Ethernet ports and can be powered by a USB-C adapter (included) or an 802.3af PoE connection. The switch is fully compatible with UniFi Network Controller (version 5.12.5 or newer), ensuring easy management and integration with other UniFi Enterprise system devices. Its compact design allows for easy installation in both home and business environments.

DESCRIPTION

Ubiquiti UniFi USW-Flex-Mini-EU, 5-port switchType: Switch
Model: UBIQUITI USW-Flex-Mini-EU
Ports: 5 Gigabit LAN
Throughput: 10 Gbps
Switching Capacity: 7.44 Mpps
Switching Level: L2
Surge Protection: ±16 kV
Power Supply: USB Type-C, 5V; PoE/PoE+, 44-57V DC, 0.05-0.04A
Operating Temperature: -5°C to +45°C

TECHNICAL DATAUbiquiti UniFi USW-Flex-Mini-EU, 5-port switch

Dimensions
107 x 70 x 21 mm
(4.2 x 2.8 x 0.8")

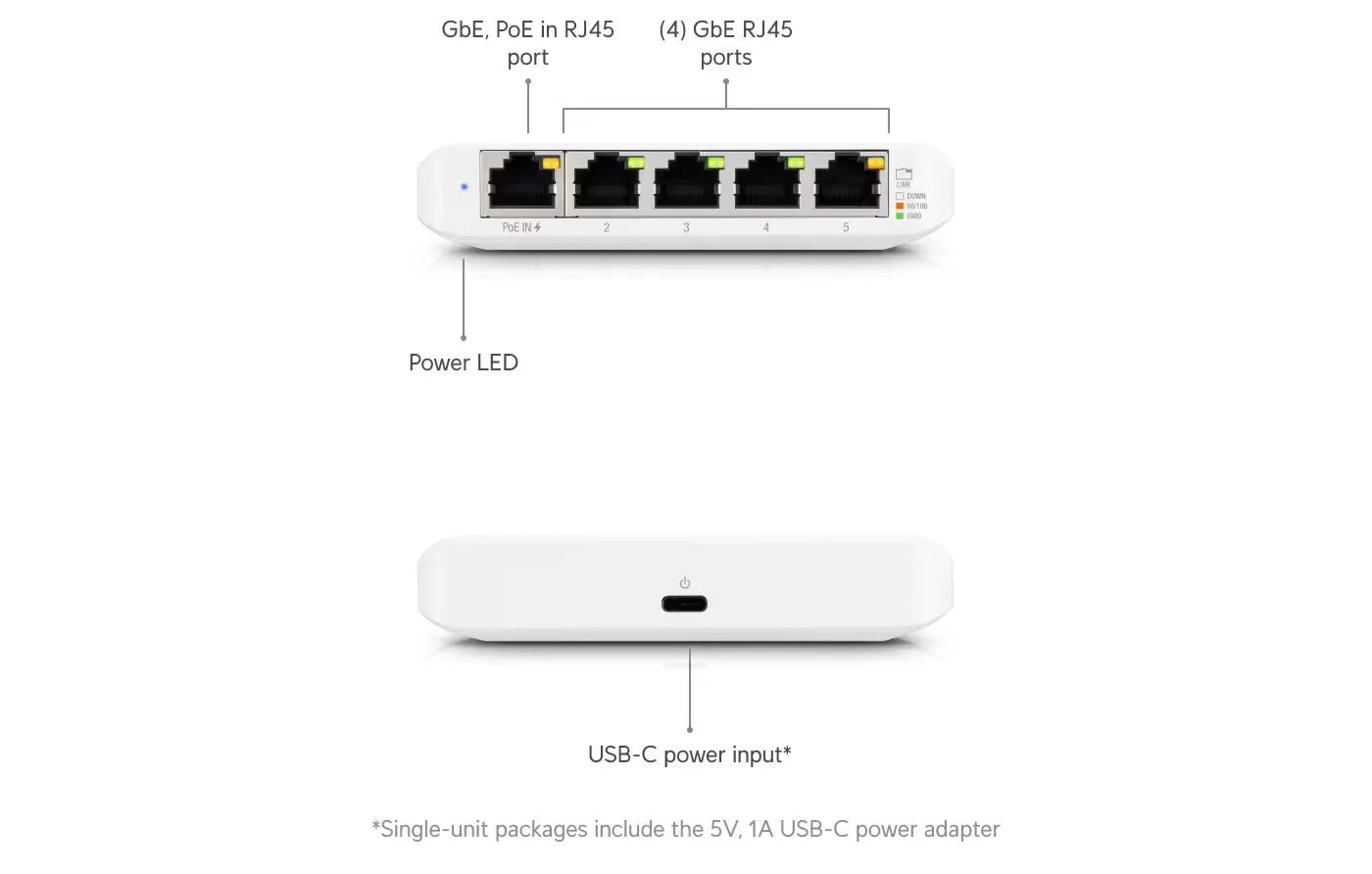

Port Layout
1 GbE RJ45
5
Form Factor
Compact desktop
Performance
Switching Capacity
10 Gbps
Total Non-Blocking Throughput
5 Gbps
Forwarding Rate
7 Mpps
Supported VLANs
1,000
MAC Address Table Size
2,000
Layer 2 Features
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
Hardware
Max. Power Consumption
2.5W
Power Method
(1) USB Type-C, 5V DC, 1A
(1) PoE
Power Input Method
USB Input
PoE
Power Supply
AC/DC, external, 5W
Supported Voltage Range
4.8—5.2V DC/USB
44V—57V PoE
Management
Ethernet
Heat Dissipation (Excluding PoE Output)
6.824 BTU/hr
Weight
150 g (5.3 oz)
Enclosure Material
Polycarbonate
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
ESD/EMP Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
