Yamaha  |  Bar code: 4957812653350

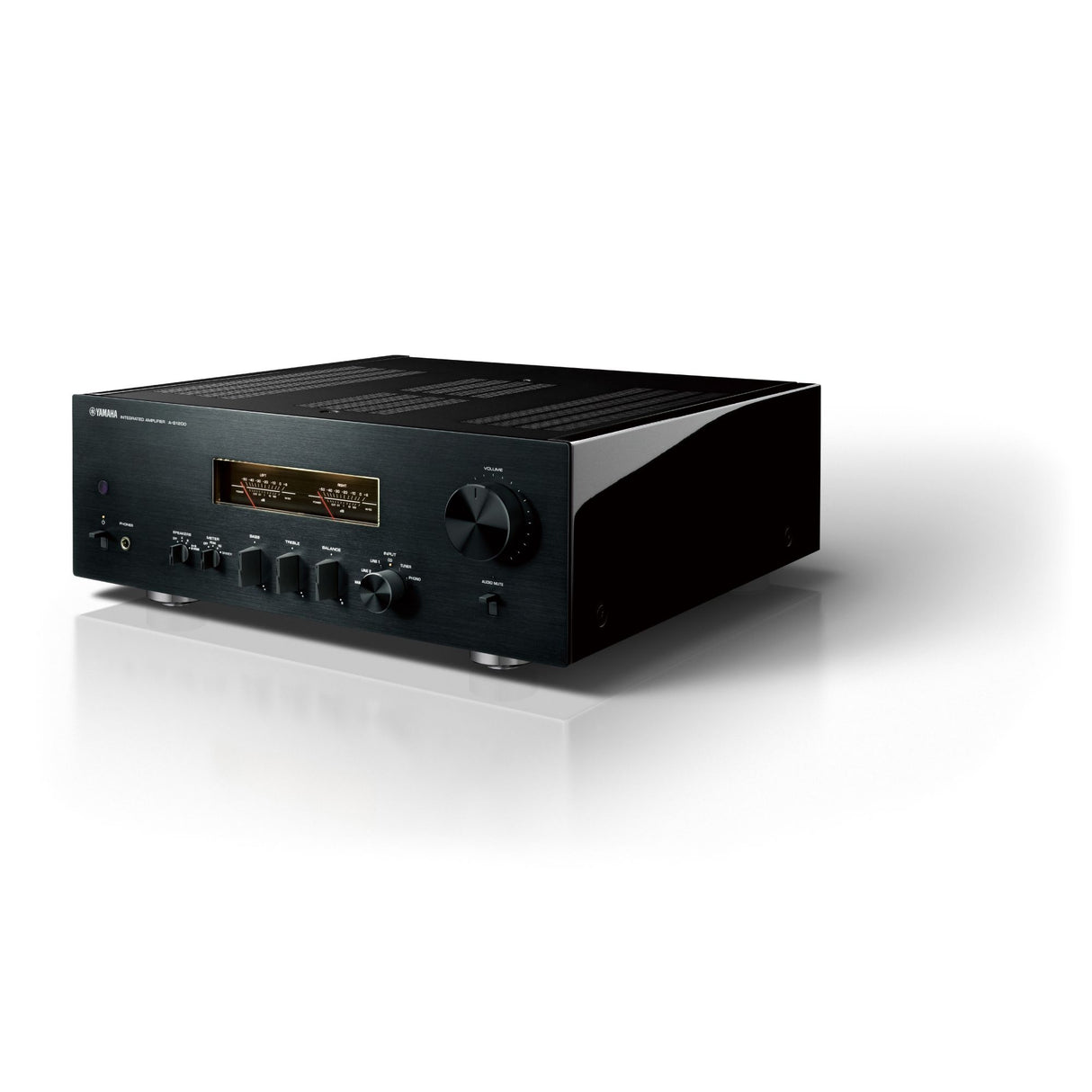

Yamaha A-S1200 Amplifier (Black)

Acknowledging the golden age of Hi-Fi with level meters and beautiful design, the A-S1200 features an impressive array of the latest technology to accurately convey emotional, pure musical sound.
€2,699.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrininkų St. 1, Kaunas
Working hours: Monday-Friday 9:00-18:00

INFORMACIJA

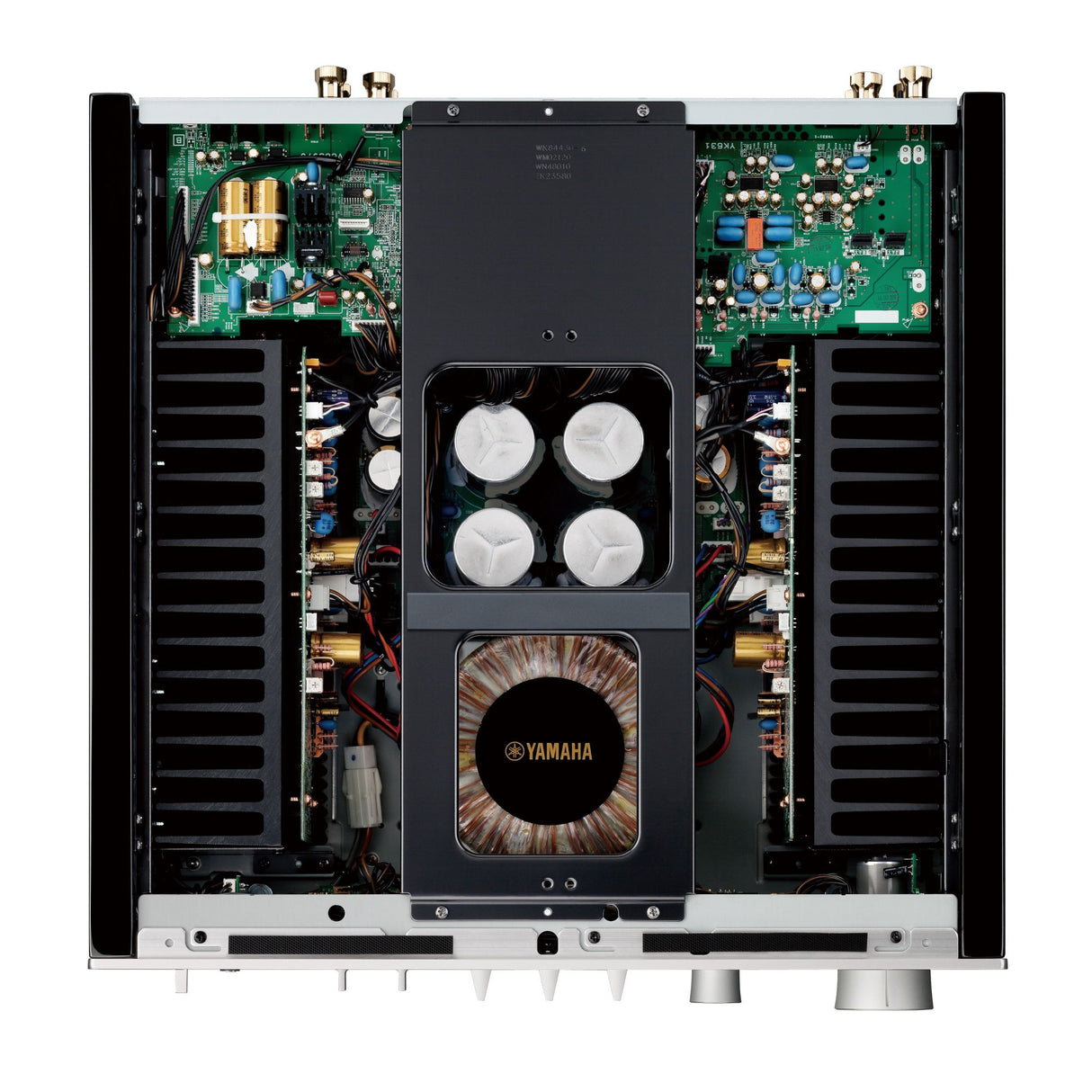

High-quality components ensure exceptional musical expressiveness. Toroidal power transformer with massive energy for pure musical sound. Gorgeous level meters convey the dynamics and pulse of the music, reminiscent of the nostalgic Hi-Fi era. Floating and balanced power amplifier. Mechanical ground concept maximizes rigidity for expressive and rhythmic bass reproduction.

Technical Specifications

Rated Output Power[20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)

Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)160 W + 160 W

High Dynamic Power/Channel (8/6/4/2 ohms)105/135/190/220 W

Damping Factor≧ 250 (1 kHz, 8 ohms)

Frequency Response+0 / -3 dB (5Hz-100kHz) , ＋0 / -0.3 dB(20 Hz-20 kHz)

RIAA Equalization Deviation＋/-0.5 dB (PHONO (MM/MC))

Dimensions (W x H x D)435×157×463 mm 17-1/8″ x 6-1/8″ x 18-1/4″

Weight22.0 kg 48.5 lbs

Receiver / Integrated Amplifier

Total Harmonic Distortion (20Hz to 20kHz)[Input 0.5 V] PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.→SP OUT: 0.035% (50 W/8 ohms）

Signal-to-Noise RatioPHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB

Input Sensitivity[1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms

Transformer625VA (Toroidal).
