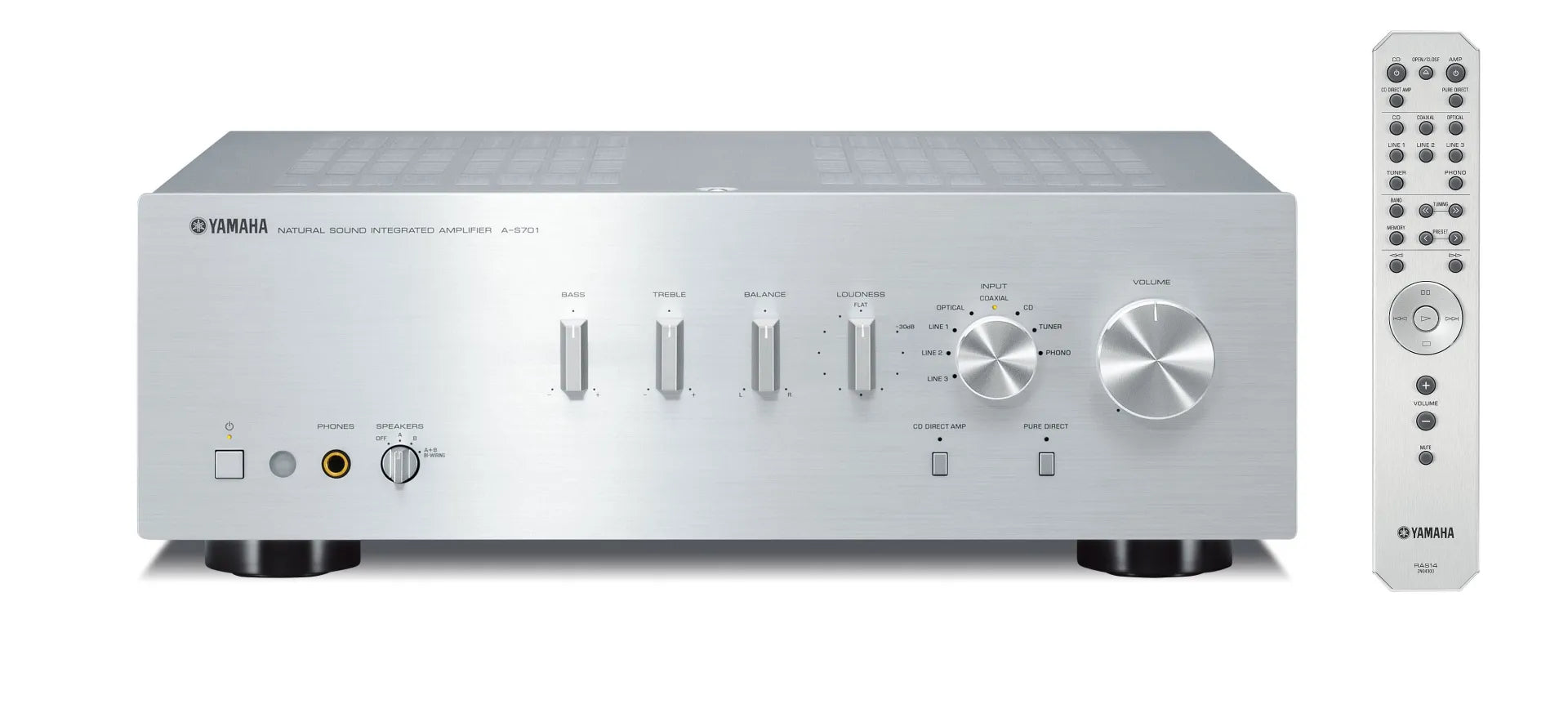

Yamaha A-S701 Integrated Amplifier (silver)

INFORMACIJA

ToP-ART (Total Purity Audio Reproduction Technology) Concept ToP-ART design and ART base ensure optimal sound. When the audio signal is processed and transmitted simply and directly, the likelihood of noise and distortion is reduced. Yamaha's amplifier design technology, called ToP-ART, includes an I/O (input to output) direct symmetrical construction where the left and right channels are organized straight and symmetrically, ensuring the highest signal purity. In addition, the ART (Anti-Resonance and Tough) base bottom chassis and rigid central bar provide high rigidity and vibration damping. These Yamaha design innovations contribute to this amplifier's rich sound reproduction with abundant musicality. High-quality parts for exceptional sound performance. A specially custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, a one-point ground system, aluminum extrusion heat sinks, and other top-quality parts easily handle demanding audio signal conditions. The quality of each individual part, as well as how they work together, fundamentally determines the sound quality of any component. Yamaha uses only very high-quality parts, carefully selected and tested. Built on Yamaha's rich experience and tradition and high technological expertise. With over 125 years of history as a musical instrument manufacturer, Yamaha also has a high reputation for HiFi components. The A-S701 is built on this rich experience and high technological expertise. Based on the "Natural Sound" concept to reproduce all music as it actually sounds, and meticulously crafted from circuit design to basic sound production, although it is an entry model, it reproduces high sound quality and musical sound. CD direct amplification and pure direct mode for greater sound purity. A direct connection to the CD input, CD direct amplification maximizes the S/N ratio of the CD source. In addition, by activating the pure direct mode,

Specifications

Maximum capacity (4 ohm, 1 kHz, 0.7% THD, for Europe)
160 W + 160 W
High dynamic power / channel (8/6/4/2 ohm) 140/170/220/290 W
Damping factor 240
Frequency range 10 Hz-100 kHz +/- 1.0 dB
Dimensions (w x h x d) 435 x 151 x 387 mm
Weight 11.2 kg

Integrated amplifier with extremely pure noise and a lot of power. The digital inputs are an extra benefit.

- ToP-ART (Total Purity Audio Reproduction Technology) and High Quality Parts
- I / O (Input to Output) Direct Symmetrical Design
- ART (Anti-Resonance and Tough) Base
- Custom-Made Power Transformer / 12,000UF Block -------- Capacitors / Aluminum-Extruded Heat Sinks
- 160W x 2 (max), 100w x 2 (RMS) High Power Output
- CD Direct Amplification and Pure Direct
- Continuous Variable Loudness Control
- Gold-plated speaker Terminals and RCA terminals
- Digital audio Inputs for TV or Blu-ray Player
- Connection for YBA-11 Bluetooth Wireless Adapter
- Simple Yet Sophisticated Design (Aluminum Front Panel and Knobs)
- Auto Power Standby.
