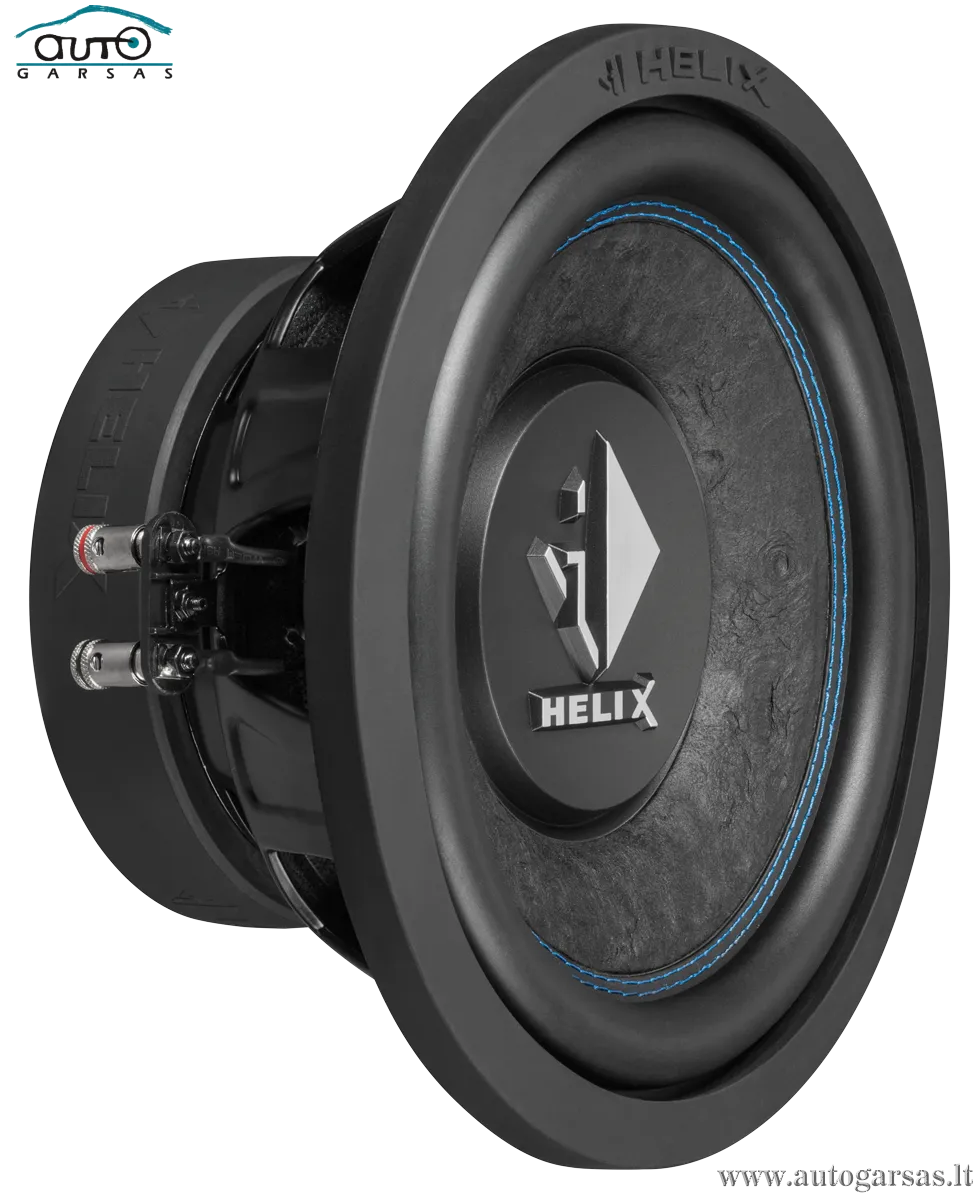

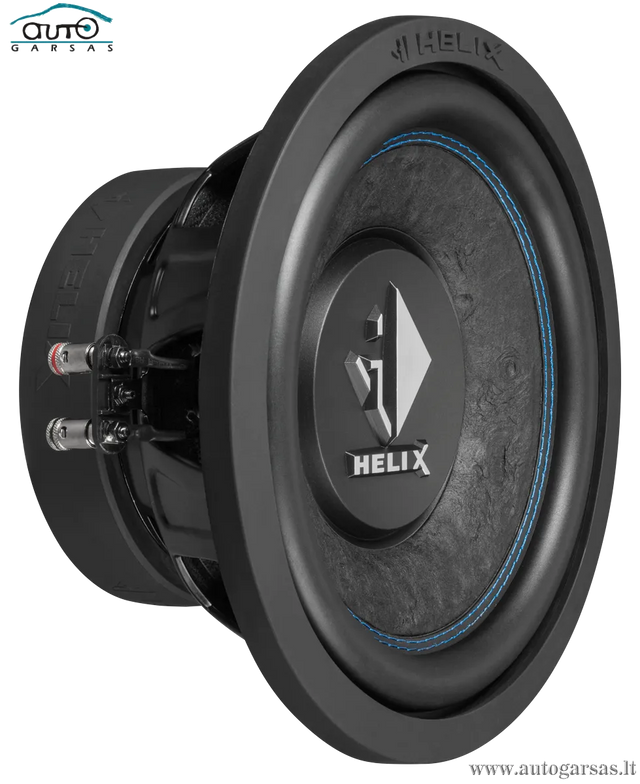

- Žemų dažnių garsiakalbis Helix K10W, 600W, 25cm
Loading ...
Sold out
Subwoofer Helix K10W, 600W, 25cm
Power: RMS 300W / MAX 600W
Resistance: 2 x 2 Ohms
Sensitivity: 88 dB
Installation depth: 126 mm
Installation diameter: 232 mm
Voice coil diameter: 50.
Regular price
€159.00 EUR
Unit price
/
Unattainable
Subwoofer Helix K10W, 600W, 25cm - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
- Power: RMS 300W / MAX 600W
- Resistance: 2 x 2 Ohms
- Sensitivity: 88 dB
- Installation depth: 126 mm
- Installation diameter: 232 mm
- Voice coil diameter: 50.8 mm
PROPERTIES
- Extremely stiff, hand-scooped paper cone
- Double ventilated voice coil for minimum compression effects and high power handling
- Long-excursion rubber surround for highest mechanical rating
- Very long linear excursion
- 2 x 2 Ohms dual voice coil for flexible system configuration
- Solid push terminals
- Powerful magnet system for compact vented enclosures
- Rugged magnet cover with HELIX lettering for perfect magnet protection
- Grille and gasket included in delivery
TECHNICAL DATA
| Power RMS / max. | Mr | 300 / 600 Watts |
| Impedance | Z | 2 x 2 Ω |
| DC resistance | Re | 2 x 1.6 Ω |
| Resonance frequency | Fs | 36 Hz |
| Mechanical Q factor | Qms | 4.50 |
| Electrical Q factor | Qes | 0.43 |
| Total Q factor | Qts | 0.39 |
| Compliance | Cms | 218 μm/N |
| Equivalent air volume | February | 34 L |
| Force factor | B*I | 12.3 Vol |
| Efficiency 1 W / 1 m | SPL | 88.0 dB |
| Cone area | Sd | 333 cm² |
| Moving mass | Mmm | 91 g |
| Cone material | Hand-scooped paper cone | |
| Mechanical resistance | Rs | 4.56 kg/s |
| Voice coil diameter | ø | 50.8 mm |
| Voice coil winding height | 24 mm | |
| Max. linear excursion | Xmax | +/- 8.0 mm |
| Outer diameter | ø | 262mm / 10.31" |
| Installation diameter | ø | 232mm / 9.13" |
| Installation depth | 126mm / 4.96" | |
| Recommended enclosure volumes | ||
| Sealed box | ||
| Even in volume | 12 L | |
| Lower limiting frequency (-3dB) | 53 Hz | |
| Vented box | ||
| Even in volume | 19 L | |
| Port diameter | ø | 70mm / 2.76" |
| Port area | 38 cm² | |
| Port length | 22cm / 8.66" | |
| Port tuning frequency | 43 Hz | |
| Lower limiting frequency (-3dB) | 43 Hz | |
