Helix  |  Bar code: 4057204330712

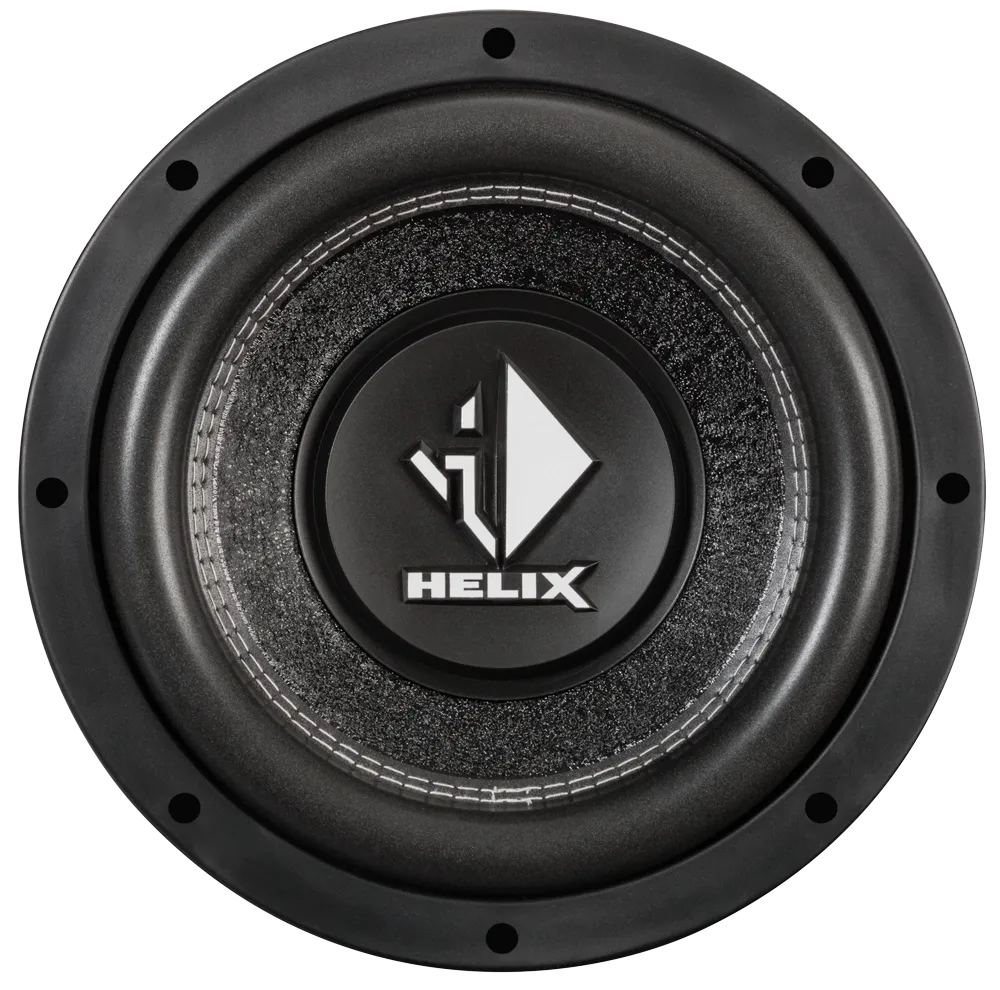

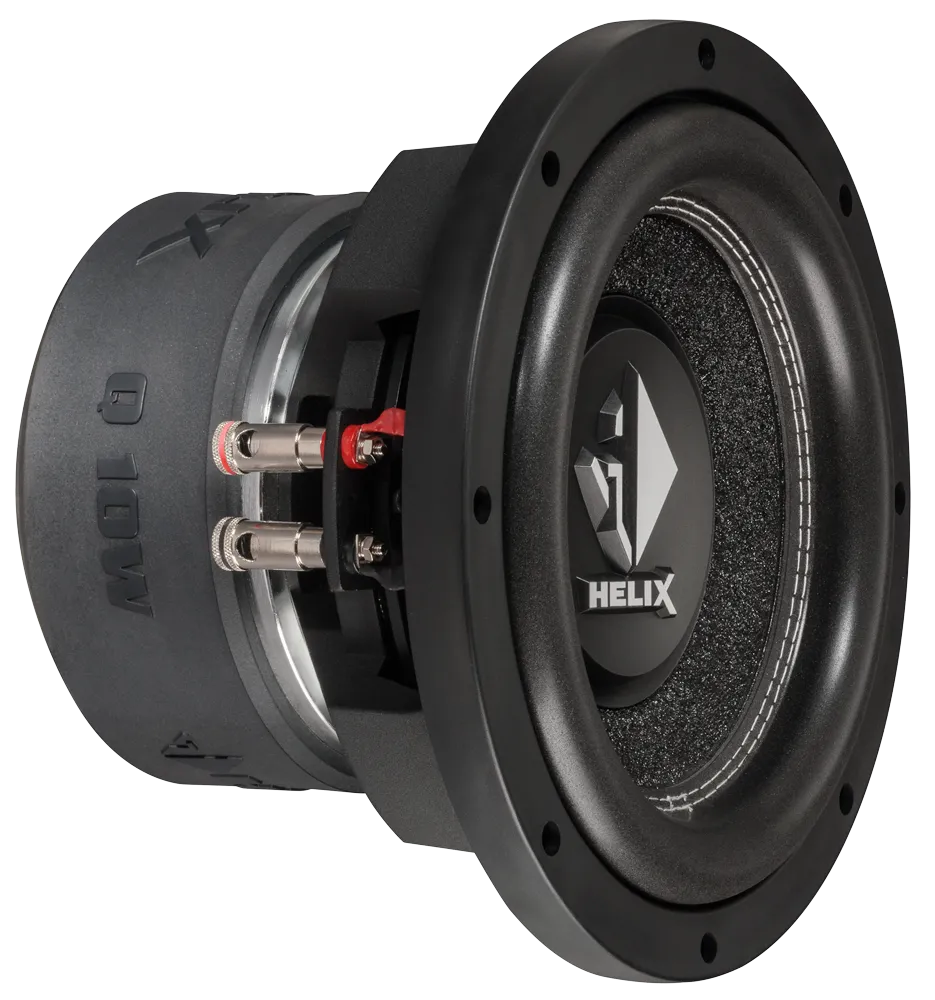

Subwoofer Helix Q 10W, 1500W, 25cm

Power: RMS 750W / MAX 1500W Resistance: 2 x 2 Ohms Sensitivity: 85 dB Installation depth: 163 mm Installation diameter: 234 mm Voice coil diameter: 63.
€319.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

  • Power: RMS 750W / MAX 1500W
  • Resistance: 2 x 2 Ohms
  • Sensitivity: 85 dB
  • Installation depth: 163 mm
  • Installation diameter: 234 mm
  • Voice coil diameter: 63.5 mm

PROPERTIES

  • Extremely rigid non-pressed paper cone for maximum stiffness
  • Wide low-loss foam surround for maximum cone excursions
  • Concave PP dustcap with embossed HELIX logo
  • 2 x 2 Ohms impedance allows the most flexible configuration
  • High-temperature dual voice coil with enormous winding height for outstanding linear excursion
  • Rock-solid diecast basket with diamond cut
  • Removable rubber gasket
  • Rugged butyl magnet cover with HELIX lettering for perfect magnet protection
  • Solid push terminals for large wire gauge
  • Extremely powerful and massive triple ferrite magnet system

TECHNICAL DATA

  • Diffuser material: paper
  • Suspension material: foamed polyurethane
  • Diameter of voice coil, mm: 63.5
  • Fs, Hz: 35
  • Qes: 0.41
  • Qms: 4.17
  • Qts: 0.38
  • Mms, g: 220
  • February, l: 13.8
  • Xmax, mm: ± 14
