ZENEC  |  Bar code: 7612309402480

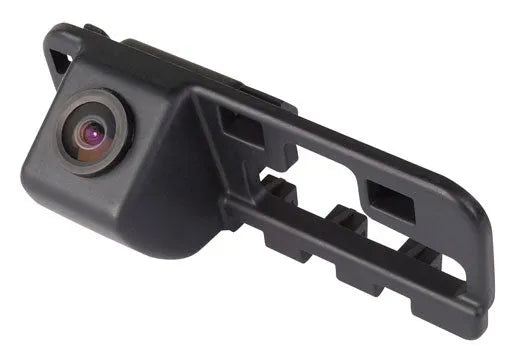

ZENEC, ZE-RCE4002 Reversing Camera HONDA Civic (VIII)

Multimedia specialists, ZENEC, have over 20 rearview cameras in their range of multimedia accessories, designed for many European-made cars.
€73.85 EUR 103.97 €

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The camera can be installed in minutes, by replacing the factory license plate light housing. No cutting or drilling is required for installation – simply remove the license plate light housing, replace it with the light housing with the camera, route the cable to the multimedia/navigation system, and the installation is complete – it simply couldn't be easier! The car retains its original appearance, and the changes made are completely unnoticeable. It must be admitted that rearview camera installation in a car simply cannot be faster and simpler than the aforementioned method.

ZENEC cameras can be connected to all multimedia and navigation systems and monitors that have a rearview camera input. These integrated cameras ensure a clear and high-resolution image, even in the most unfavorable environmental conditions, thus providing the driver with excellent visibility at the rear of the car at all times. When reverse gear is engaged, the camera automatically turns on and transmits the image directly to the multimedia or navigation system screen. This is especially helpful in poor and limited visibility conditions at the rear of the car. ZENEC uses only the highest quality components when assembling these cameras, for example, a top-quality MPEG chip, which guarantees excellent processing of the transmitted signal – the displayed image is transmitted quickly and without additional video signal "noise" even in low light conditions.

Despite signal processing, the quality of the transmitted image largely depends on the characteristics of the camera's image sensor. All ZENEC cameras use CMOS image sensors, which are less "noisy" than CCD sensors in low light conditions. In addition, the operating temperature range of CMOS technology image sensors is significantly wider, which is why they were chosen for car cameras. Sharp CMOS image sensors, used in ZENEC products, not only ensure an excellent image but also operate even at extreme cold, reaching up to -20° C.

Due to their high sensitivity to light, reaching 0.3 lux, ZENEC cameras guarantee an optimal transmitted image signal at all times – even in low light conditions or at night. Thanks to the high resolution, a signal-to-noise ratio greater than 45 dB, and a wide viewing angle of 170°, you can always be sure of the visible image at the rear of the car.

Technical data:
• Camera: 6.4 mm/1/4" CMOS sensor
• Resolution: 510 x 496 pixels
• TV system: NTSC
• Viewing angle: horizontal 170°
• Video output resolution: 420 TV lines
• Minimum illumination: 0.3 lux
• White balance: automatic
• IP protection class: IP66
• Video output: 1.0 Vp-p, 75 Ohm
• Power source: DC 12V ± 1V
• Operating temperature: -10° C – +50°C
• Current consumption: max. 80 mA
• Relative humidity: 95% max.

Suitable for these cars:

Model/Type Year of Manufacture
Honda Civic VIII 2009 >


Manufacturer: ZENEC, Switzerland.
