ZENEC  |  Bar code: 7612309402503

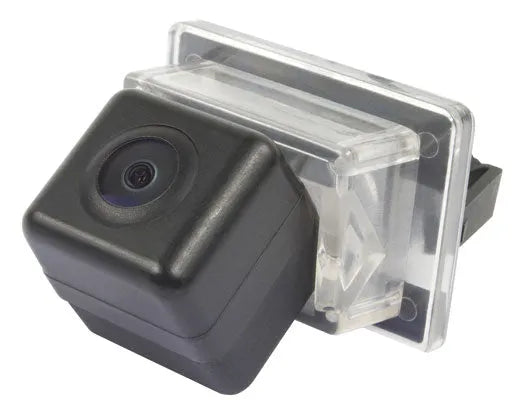

ZENEC, ZE-RCE4601 Rear View Camera MERCEDES C(W204)/E(W212)

Multimedia specialists, the company ZENEC, have more than 20 rear-view cameras in their range of multimedia accessories, designed for many cars manufactured in Europe.
€90.36 EUR 126.56 €

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The camera is installed in a few minutes, by replacing the factory license plate light housing. No cutting or drilling is required during installation - simply remove the license plate light housing, replace it with the light housing with the camera, run the cable to the multimedia/navigation system, and the installation is complete - it simply couldn't be simpler! The car retains its original appearance, and the changes made are completely unnoticeable. It must be admitted that installing a rear-view camera in a car simply cannot be faster and simpler than the mentioned option.

ZENEC cameras can be connected to all multimedia and navigation systems and monitors that have a rear-view camera input. These integrated cameras ensure a clear and high-resolution image, even in the most unfavorable environmental conditions, thus providing the driver with excellent visibility at the rear of the car at all times. When reverse gear is engaged, the camera turns on automatically and transmits the image directly to the multimedia or navigation system screen. This is especially helpful in situations with poor and limited visibility at the rear of the car. ZENEC company uses only the highest quality components when assembling these cameras, for example, a top-quality MPEG chip, guaranteeing excellent processing of the transmitted signal - the displayed image is transmitted quickly and without additional video signal "noise" even in poor lighting conditions.

Despite signal processing, the quality of the transmitted image largely depends on the characteristics of the camera's image sensor. All ZENEC cameras use CMOS image sensors, which are less "noisy" than CCD sensors in low light. In addition, the operating temperature range of CMOS technology image sensors is significantly wider, which is why they were chosen for car cameras. Sharp CMOS image sensors used in ZENEC products not only ensure excellent image but also work even in severe frosts, reaching up to -20° C.

Due to high light sensitivity, reaching 0.3 lux, ZENEC cameras guarantee an optimal transmitted video signal at all times - even in low light conditions or at night. Due to the high resolution, signal-to-noise ratio greater than 45 dB, and a wide viewing angle reaching 170°, you can always be sure of the image seen at the rear of the car.

Technical data:
• Camera: 6.4 mm/1/4" CMOS sensor
• Resolution: 510 x 496 pixels
• TV system: NTSC
• Viewing angle: horizontal 170°
• Video output resolution: 420 TV lines
• Minimum illumination: 0.3 lux
• White balance: automatic
• IP protection class: IP66
• Video output: 1.0 Vp-p, 75 Ohms
• Power source: DC 12V ± 1V
• Operating temperature: -10° C – +50°C
• Current consumption: max. 80 mA
• Relative humidity: 95% max.

Suitable for these cars:

Model/Type Year of manufacture
Mercedes C-Class (W204) 2007 - 2009
Mercedes E-Class (W212) 2009


Manufacturer: ZENEC, Switzerland.
