2 kanalų garso stiprintuvas su skaitmeninio signalo įvestimi Helix P TWO

INFORMACIJA

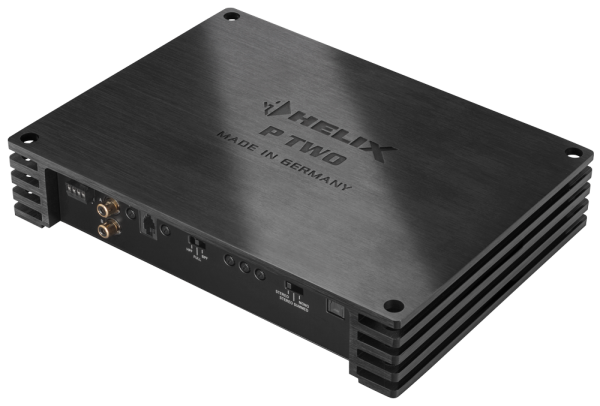

Helix P TWO 2 - kanalų garso stiprintuvas sujungia galią ir jautrumą absoliučiai unikaliu būdu. Dėl savo 490 vatų RMS išėjimo galios į du omus, šis kompaktiškas stiprintuvas sugeba maksimaliai išjudinti net galingus dviejų balso ričių žemųjų dažnių garsiakalbius, tokius kaip Helix Q serija. Nepaisant didžiulės jėgos, tai jokiu būdu nėra grynas žemų dažnių garsiakalbio stiprintuvas. Ultra HD Class D koncepcija suderina aukščiausios klasės AB klasės garso kokybę su D klasės stiprintuvų pranašumais. Rezultatas - ilgesnis nei 40 kHz dažnio atsakas, turintis aukštą slopinimo koeficientą, minimalų iškraipymą ir puikų signalo ir triukšmo santykį.

APRAŠYMAS

Plenty of power and sensitivity – the new P TWO combines two talents in an absolutely unique way. Due to its RMS output power of 2 x 490 Watts into two Ohms, this compact amplifier is able to drive even powerful subwoofers to the max. The technical design is literally predestinated for all woofers with 2 x 2 Ohms dual voice coil like the new HELIX Q subwoofers.

But despite its sheer force the P TWO is by no means a pure subwoofer amplifier. On the contrary, the Ultra HD Class D concept combines an extended frequency response above 40 kHz with high damping factor, minimal distortion and excellent signal-to-noise ratio. Therefore, this amplifier is likewise a perfect buddy for heavy-duty front speakers in audiophile system concepts.

Features

• “Ultra HD Class D” concept which combines the high-end sound quality of Class AB technology with the benefits of Class D amplifiers

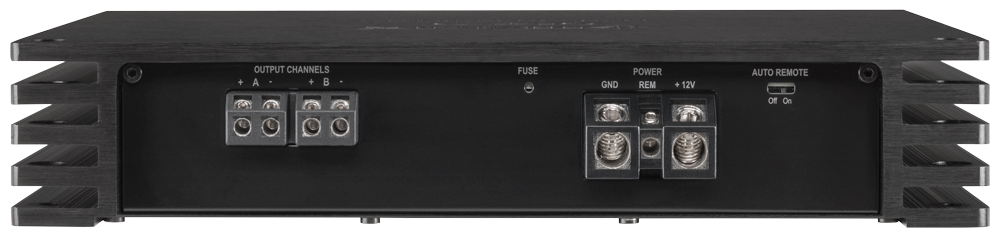

• Two speaker outputs with 490 Watts RMS each at 2 Ohms

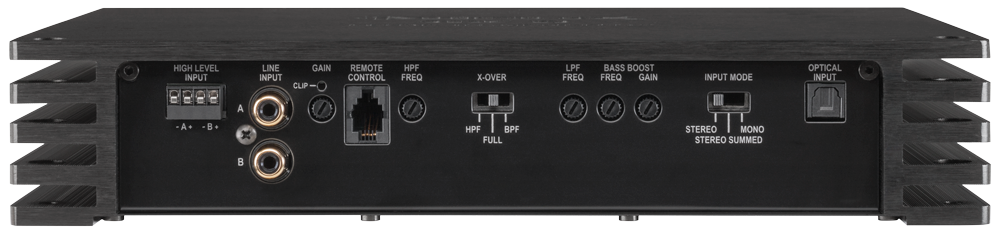

• Digital, optical signal input in SPDIF format including SPDIF Direct In switch for routing the digital input signal directly to the power stage
• BurrBrown DA signal converter of the latest generation with a resolution of 32 Bit
• Integrated, active crossover with highpass, lowpass, bandpass and configurable bass boost
• Smart highlevel input with ADEP circuit
• Cable remote control for volume adjustment
• Compact design with low heat dissipation thanks to extraordinary efficiency

Special features:

Ultra HD Class D amplifier technology
Compared to conventional Class D amps, this concept achieves an extended frequency response to more than 40 kHz in combination with reduced distortion thanks to an advanced integrated feedback design. Ultra HD Class D achieves outstanding, “Class AB-like” sound quality combined with the efficiency of a Class D amplifier.

Signal converters with a native resolution of 32 Bit
The HELIX P TWO uses for the optical input a highclass DA signal converter of the latest generation with a native resolution of 32 Bit instead of the common 24 Bit. The result is an unprecedented precision in signal conversion that especially optimizes the sound quality at lower signal levels.

Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appears - but not with the P TWO. The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.

Start-Stop capability
The switched power supply of the HELIX P TWO assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.

TECHNINIAI DUOMENYS
