Aktyvi garso sistema LD Systems CURV 500 AVS

Aktyvi garso sistema LD Systems CURV 500 AVS

Puikiai tinkanti garso sistema mokykloms.

• Galia: Subwooferio: 300W RMS  /  1200W Peak, Kolonėlių: 2 x 160W RMS  /  2 x 640W Peak
• Dažnių diapazonas: 47 Hz - 20 kHz
• Matmenys:
  Subwooferio: 325 x 383 x 491 mm  /  Svoris: 16.5 kg
  Kolonėlės: 122 x 122 x 122 mm  /  Svoris: 1.7 kg

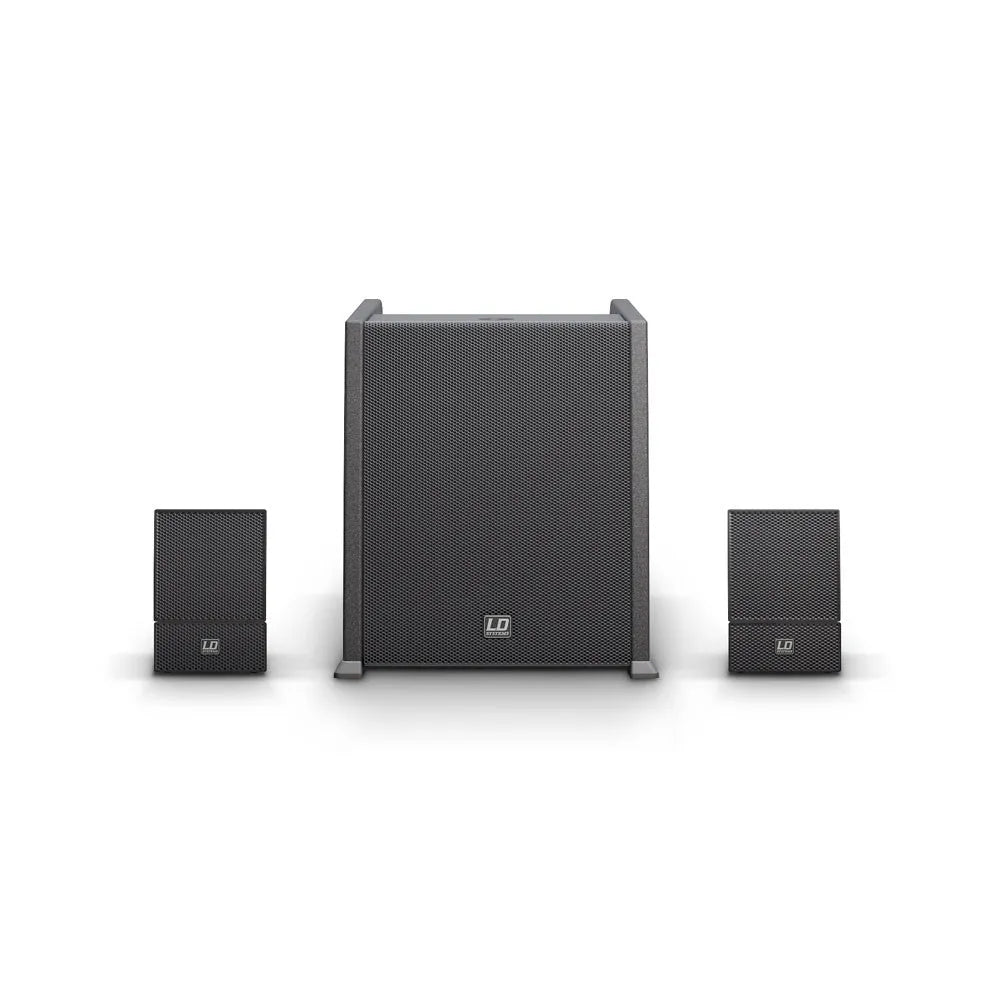

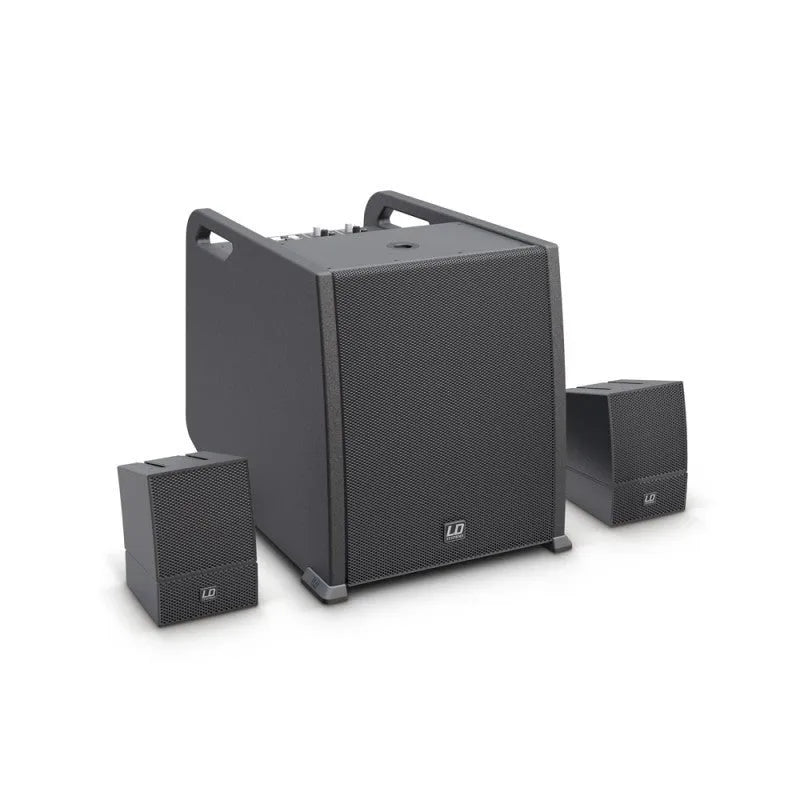

The first truly portable array, the compact CURV 500 is fully scalable with up to four interlocking aluminium unibody satellites operating on a SmartLink® plug and play adapter. Measuring 12 x 12 cm only, the array elements feature LD Systems' WaveAhead® technology with single 4" and triple 1" drivers each for high definition audio with powerful punch and superb balance.

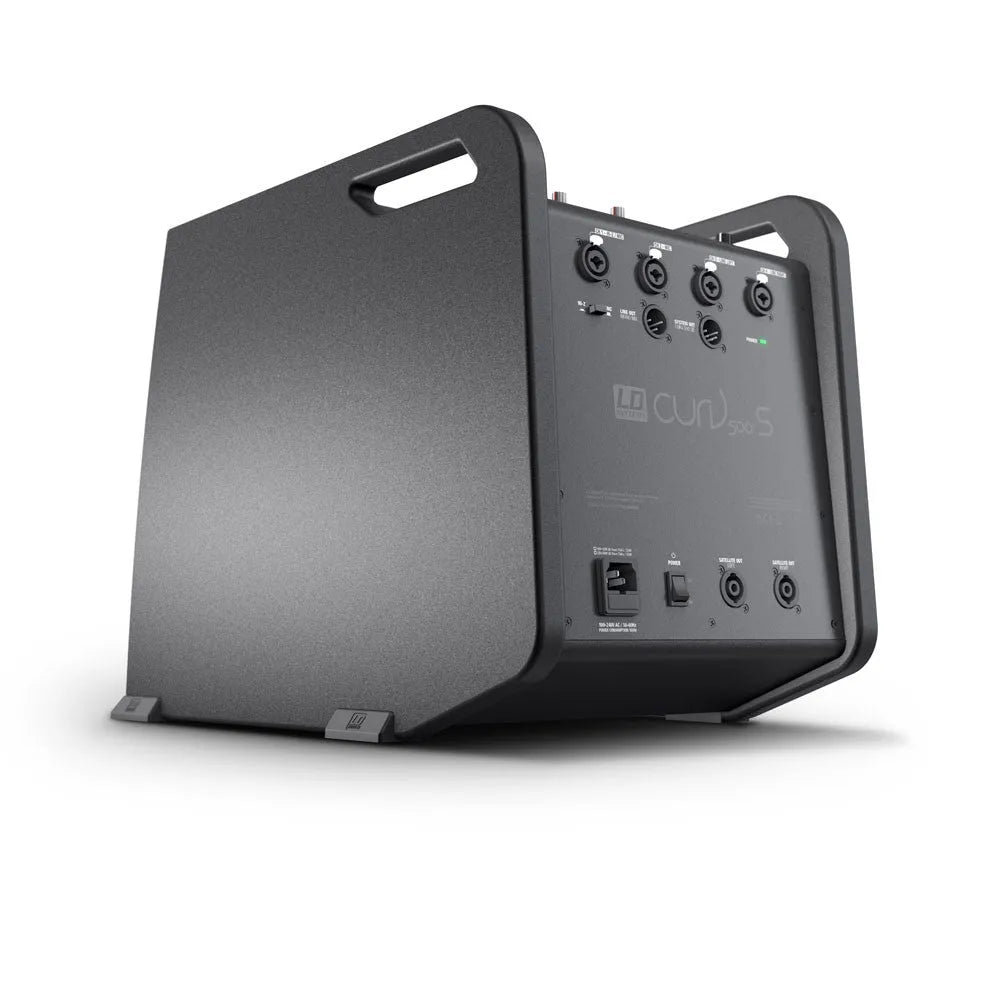

The ported 10" subwoofer base includes the CURV 500's class D amplification with limiter, short circuit, thermal and overcurrent protection and a 4-channel mixer with 16 digital effect presets and Bluetooth® technology. It sports comprehensive connectivity on combo and speakON compatible connectors, 4 digital system presets, an M20 pole mount and 3 ergonomic handles for easy portability. Available in 3 sets for both live and installed sound applications LD Systems' lightweight CURV 500 provides extended vertical and horizontal coverage and impressive all-in-one convenience.

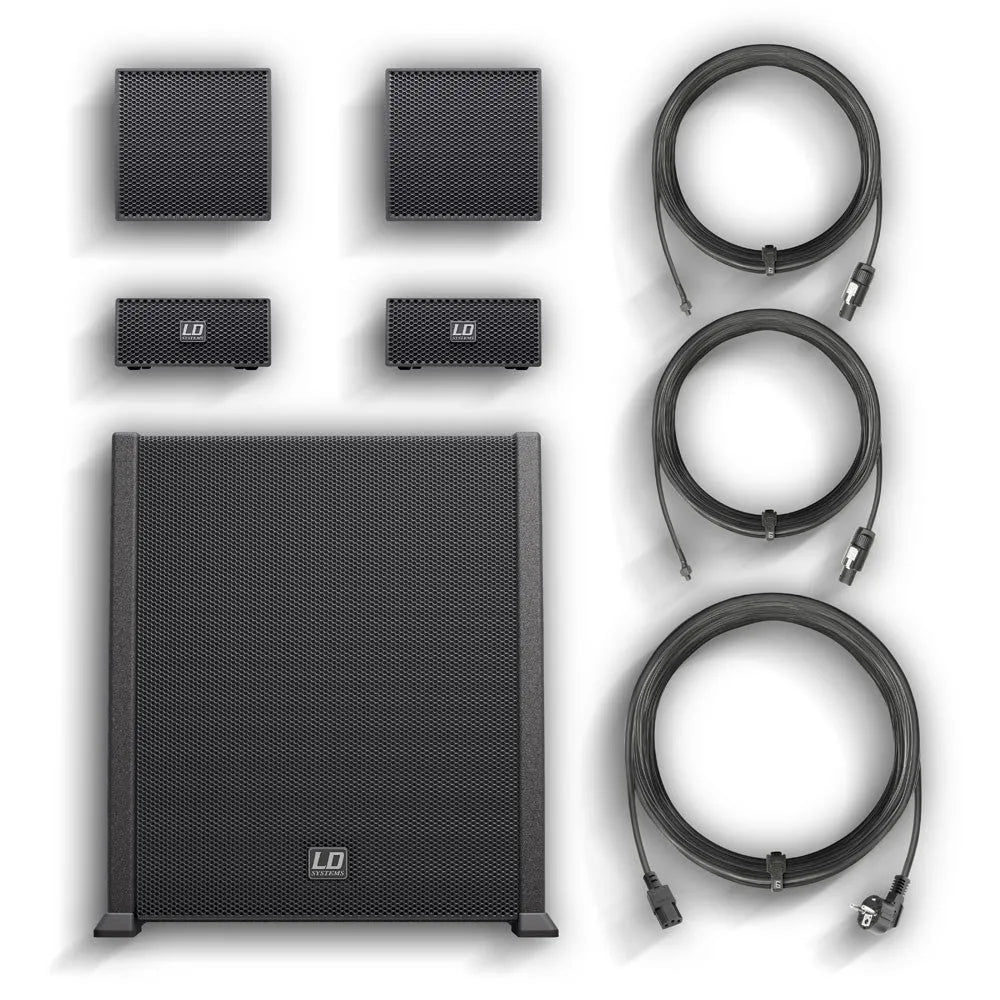

Delivering 380 watts RMS and a peak SPL of 122 dB the CURV 500 AV Set includes 2 SmartLink® adapters plus 2 loudspeaker cables.

• Type: Portable Array System
• Rated System Power (RMS): 380 W
• Number of Array Satellites: 2
• Number of Smartlink® Adapters: 2
• Number of Subwoofers: 1
• Max. SPL (continuous): 116 dB
• Max. SPL (peak): 122 dB
• Subwoofer: 10" bass reflex

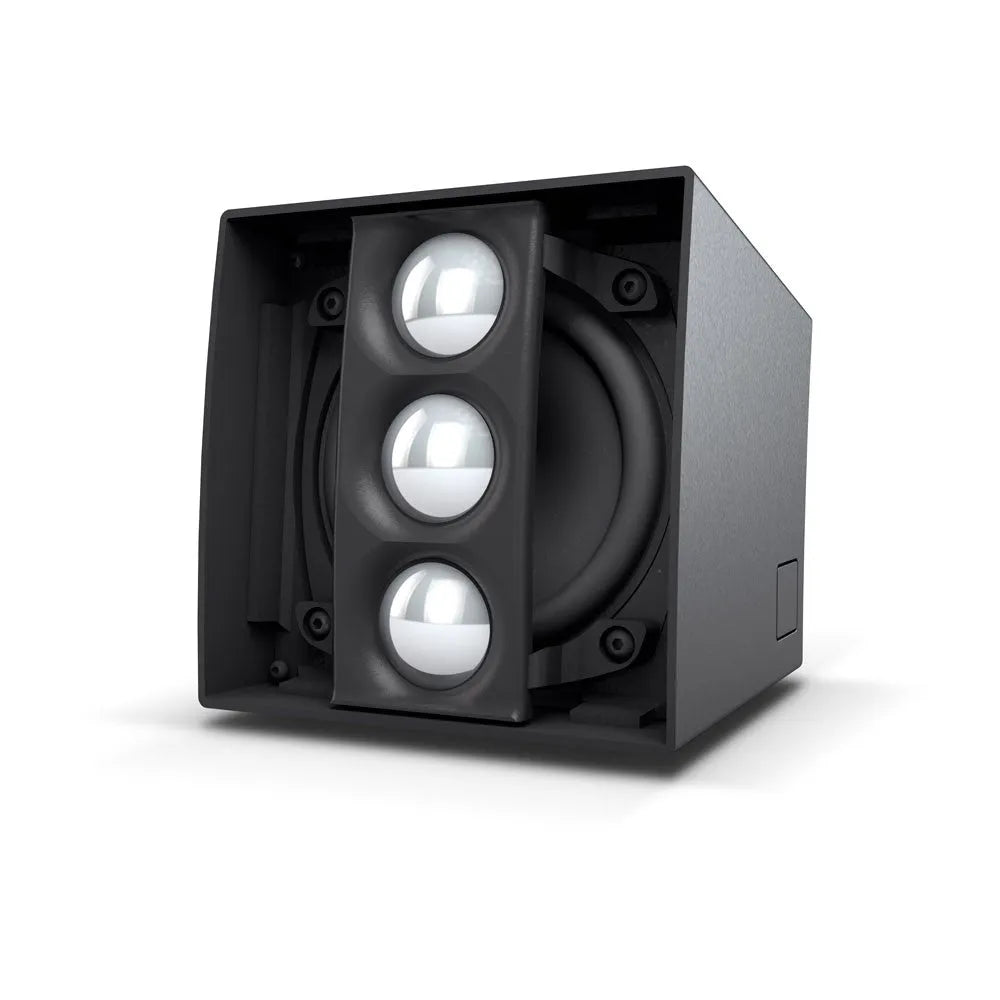

• Satellite: MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
• Frequency response: 47 Hz - 20 kHz
• Dispersion (H x V): 110° horizontal, 10° vertical per satellite
• Amplifi cation: Class D
• Power Output (RMS/Peak): Subwoofer: 300 W / 1200 W, Array Satellites: 2 x 160 W / 2 x 640 W
• Protection: DSP based multiband-limiter, Short Circuit, Overheating, Over-current
• Subwoofer Features: 4 channel mixer, Bluetooth®, 16 DFX Presets, 4 System DSP Presets, threaded M20 fl ange, 3 ergonomic handels

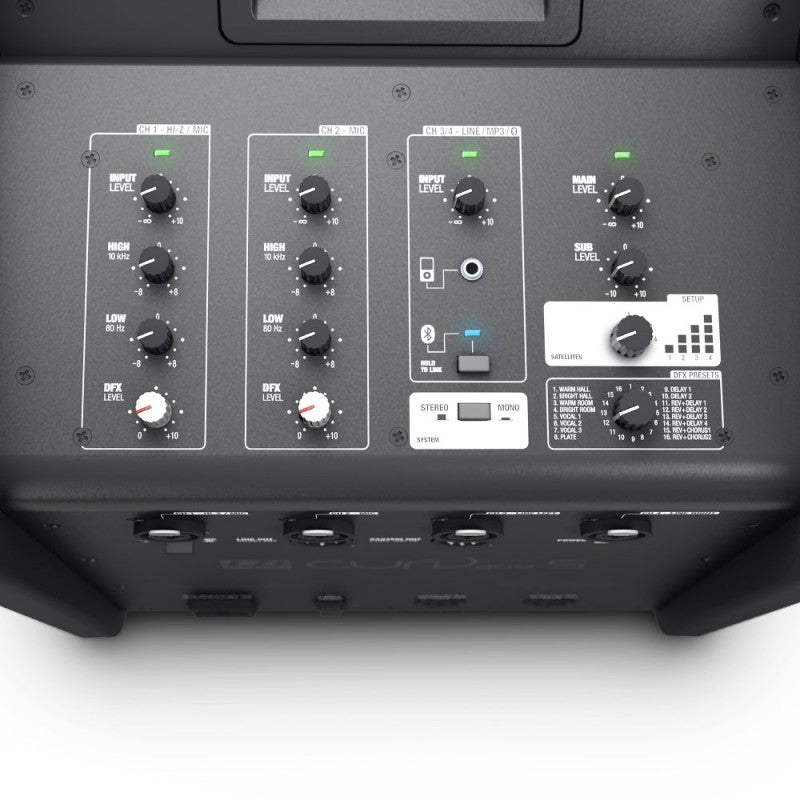

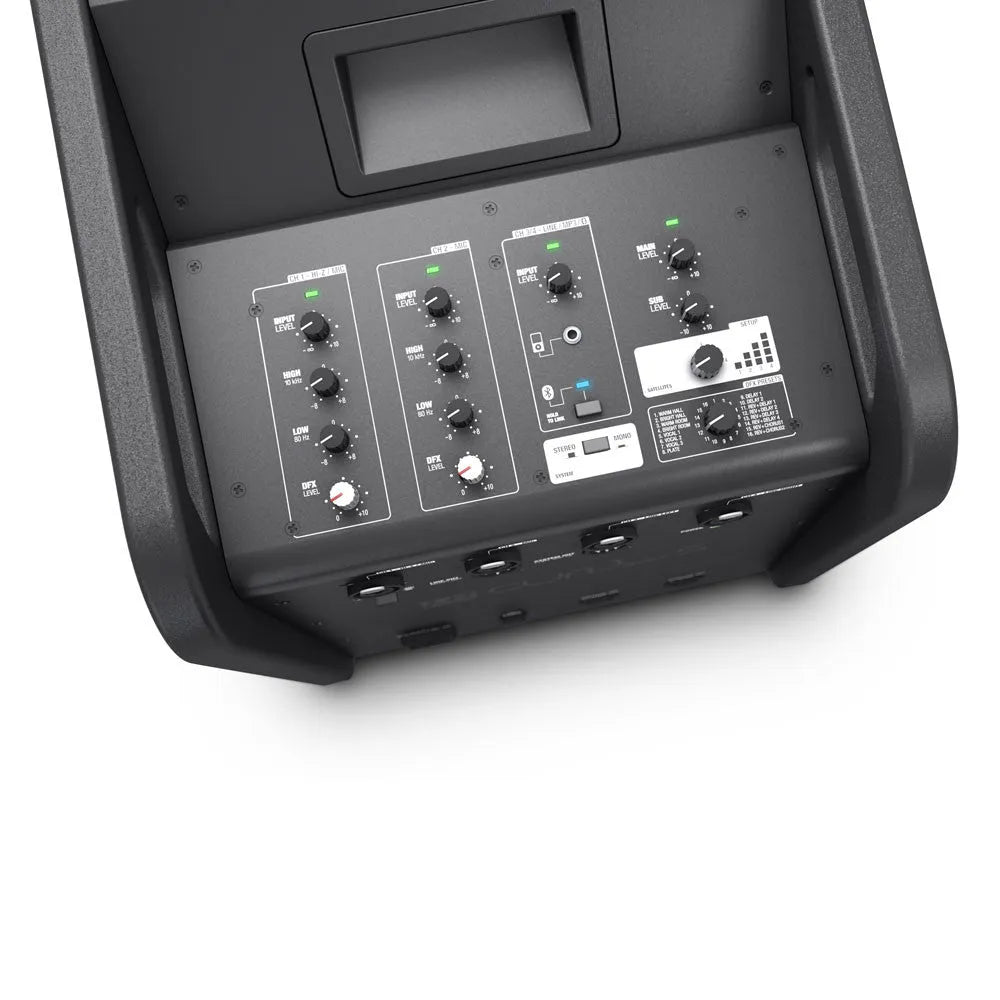

• Subwoofer Controls: Input Level (Ch1-4), Hi-Z, Hi/Low EQ (Ch1-2), DFX (Ch1-2), DFX Presets, DSP Presets, Blutetooth Link, Mono/Stereo, Sub Level, Main Level
• Subwoofer Indicators: Signal, Limit, Bluetooth®, Power

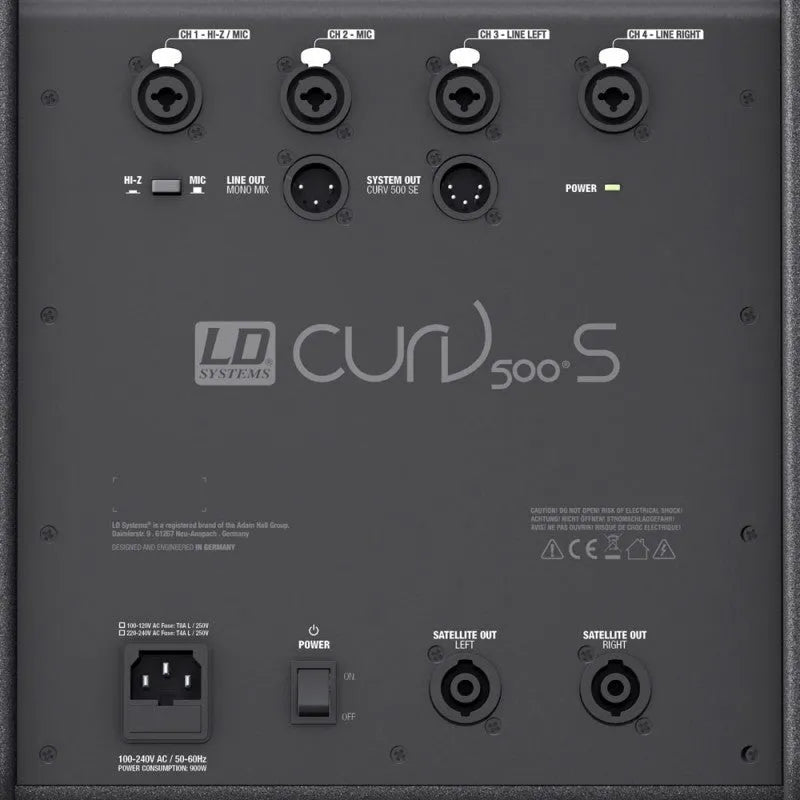

• Subwoofer Connectors: 1x Mic/Hi-Z (XLR/6,3mm Jack Combo), 1x Mic (XLR/6,3mm Jack Combo), 2x Line (XLR/6,3mm Jack Combo), 3,5mm Jack, 2 x Array Satellite Out (Speakon compatible), Line Out (XLR), System Out (5-pin XLR)
• Subwoofer Material: Plywood
• Subwoofer Surface: PA Painting

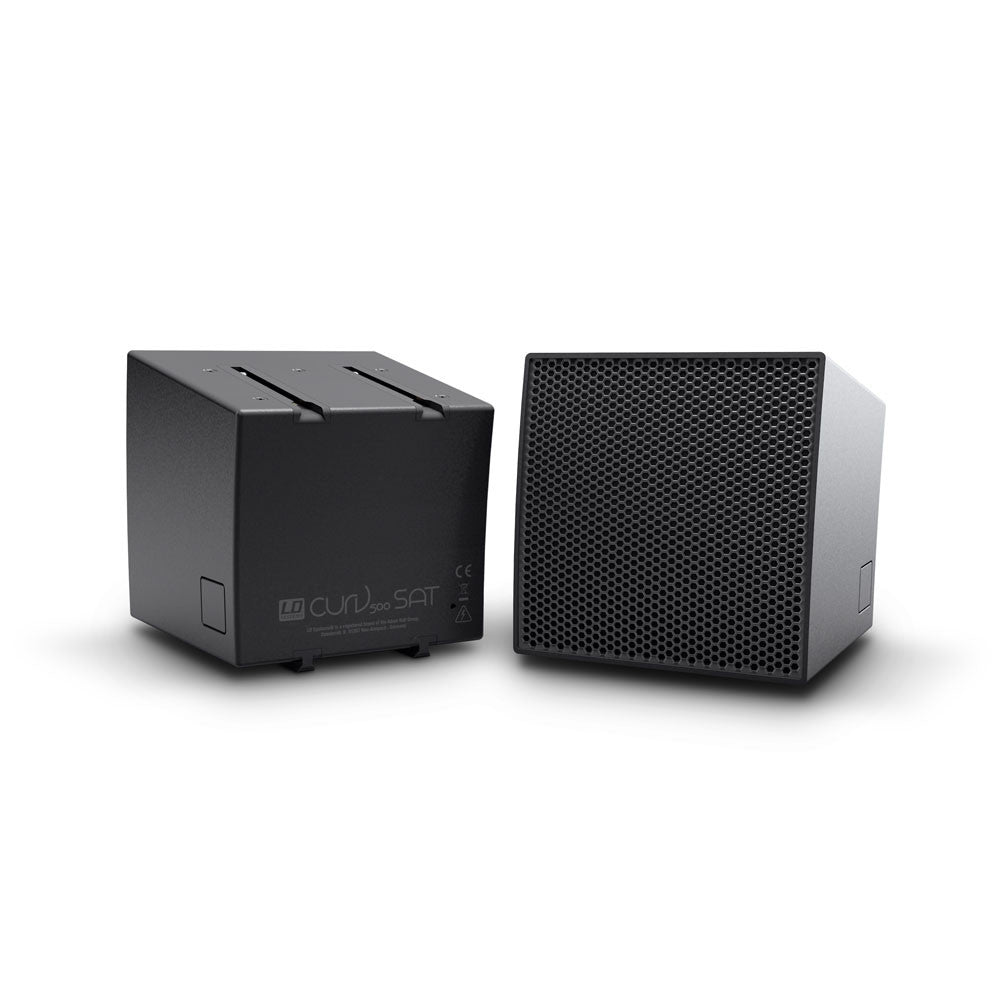

• Array Satellite Features: WaveAhead® Technology, internal crossover, metal grille
• Array Satellite Material: Diecast Aluminium
• Array Satellite Surface: Powder coating

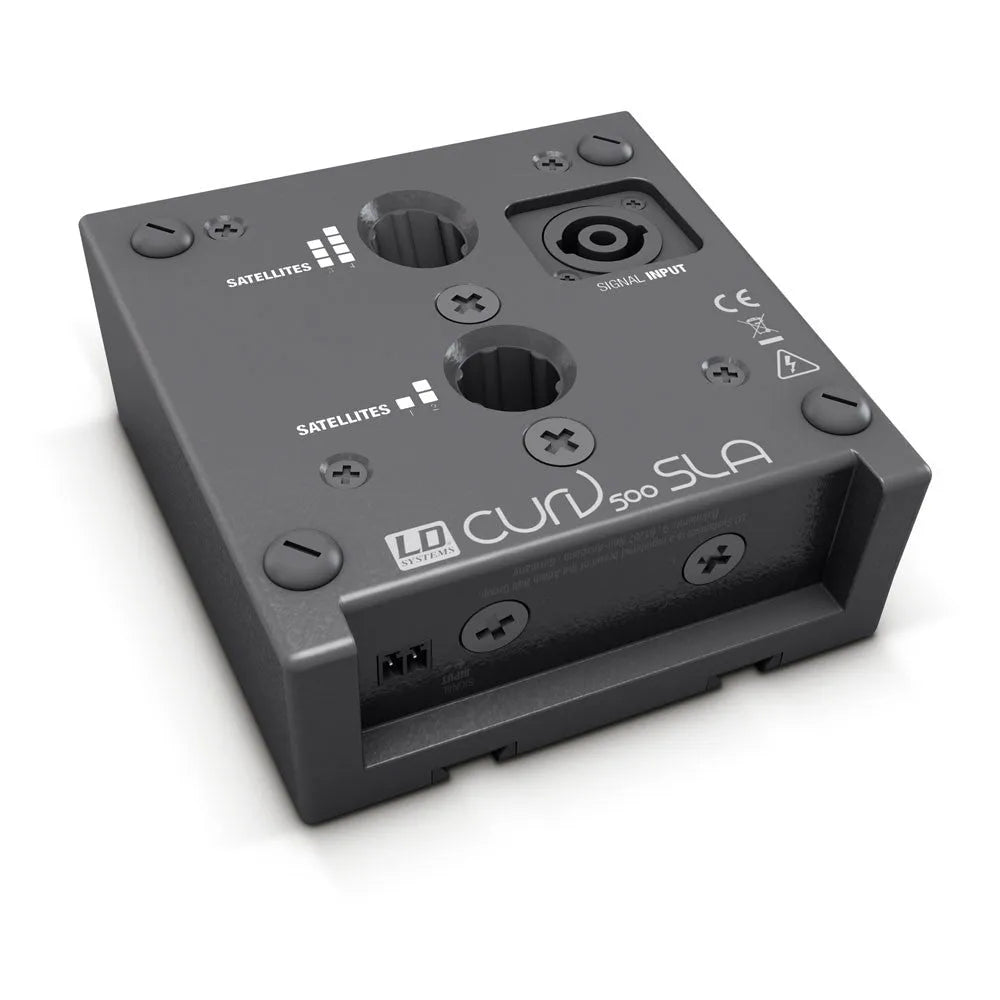

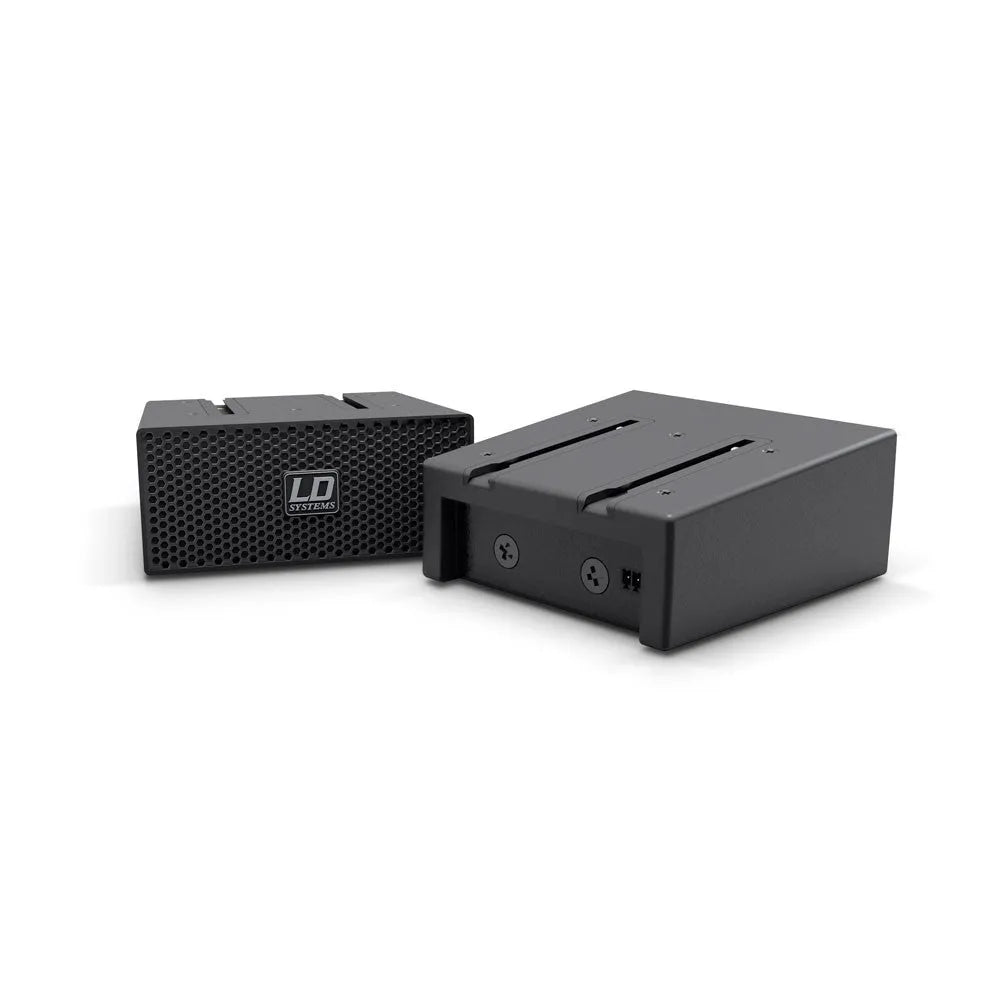

• Smartlink® Adapter Features: dual 16 mm fl ange, 2x M6 thread for optional wall mount
• Smartlink® Adapter Connectors: 1x Speakon compatible, 1x Phoenix
• Smartlink® Adapter Material: Diecast Aluminium
• Smartlink® Adapter Surface: Powder coating
• Subwoofer Dimensions (W x H x D): 325 x 383 x 491 mm
• Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm
• Smartlink® Adapter Dimensions (W x H x D): 122 x 57 x 122 mm
• Subwoofer Weight: 16.5 kg
• Array Satellite Weight: 1.7 kg
• Smartlink® Adapter Weight: 0.6 kg
