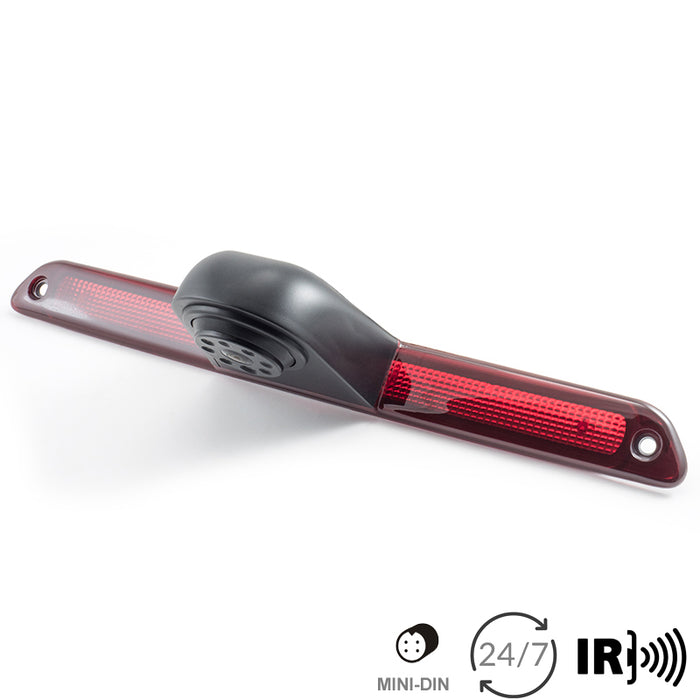

AMPIRE KV-SPRINTER-4G, galinis stabdžių žibintas su įmontuota kamera

AMPIRE KV-SPRINTER-4G, galinis stabdžių žibintas su įmontuota kamera

Galinio vaizdo kamera įmontuota stabdžių žibinte geras vaizdas bei ergonomiškas dizainas neapkraus automobilio galo bei puikiai atliks funkcija.

• Tinka: MB Sprinter, VW Crafter 1 automobiliams.
• Vaizdo sensorius: CMOS PC7070.
• Rezoliucija: 648x488 px.
• Galios suvartojimas: 150mA.

Vehicle-specific reversing camera for the Mercedes-Benz Sprinter (W906, W907, W910) or the identical Volkswagen Crafter Type 1 (until 2017). The KV-SPRINTER-4G is simply exchanged for the factory brake light glass. Infrared lighting is integrated into the camera housing, which ensures sufficient illumination even in the dark. In the second generation of this camera, an improved camera chip with a significantly higher resolution was used.

SPECIFIKACIJOS

- Mirrored image reproduction
- Auxiliary lines: switched on at the factory (can be switched off)
- Image sensor: "CMOS PC7070
- Resolution 648x488 pixels
- Viewing angle 170 ° diagonally
- Viewing angle 120 ° horizontally
- vertical adjustability of the camera 20 °
- Picture format: NTSC
- 580 lines of resolution
- IP68 waterproof
- Minimum lighting: 0 lux
- Integrated 6 LED infrared lighting
- Operating voltage: 9-16 volts DC
- Power consumption: max. 150mA
- Operating temperature: -30 ° to 70 ° C
- Color: Black
- Cable length: 10 meters
- E approval E9-10R-05.1652
- CE approval EN 55022: 2010; EN 61000-3-2: 2006 + A1: 2009 + A2: 2009; EN61000-3-3: 2008; EN 55024: 2010
- FCC approval ANSI C63.4-2003

INSTRUKCIJOS

User Manual (EN.)
