Ampire KV-TRANSIT-4G, Ford Transit galinio vaizdo kamera su stabdžių žibintu

Ampire KV-TRANSIT-4G, Ford Transit galinio vaizdo kamera su stabdžių žibintu

Galinio vaizdo kamera, palengvinanti automobilio parkavimą atbuline eiga. Tinkama visoms negamyklinėms multimedijos sistemoms, turinčioms linijinį vaizdo signalo įėjimą galinio vaizdo kamerai.

• Vaizdo jutiklis: CMOS PC7070.
• Raiška: 648x488 px.
• IP 68 atsparumo drėgmei standartas.
• Tinka Ford Transit modeliams (2014-2019).

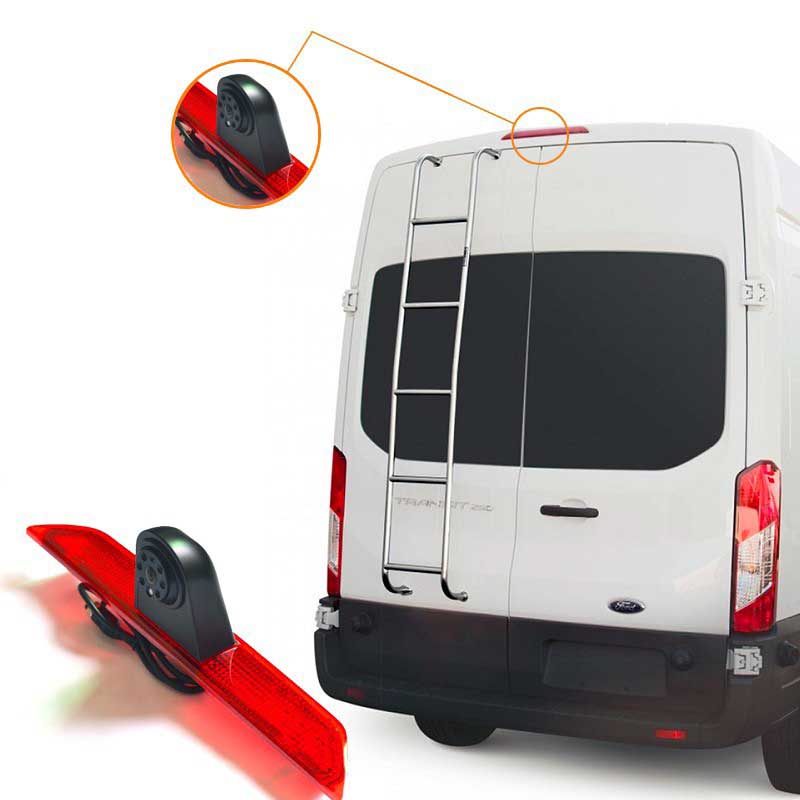

Vehicle-specific reversing camera for the FORD Transit Bus 7th generation (2014-2019) with medium-high roof H2. The KV-TRANSIT-4G is simply exchanged for the factory brake light glass. Infrared lighting is integrated into the camera housing, which ensures sufficient illumination even in the dark. In the fourth generation of this camera, an improved camera chip with significantly higher resolution and better white balance is used.

Tinkama šiems automobiliams:

• FORD Transit 2014 - 2019

SPECIFIKACIJOS

- Mirrored image reproduction
- Auxiliary lines: switched on at the factory (can be switched off by separating a cable loop)
- Image sensor: "CMOS PC7070
- Resolution 648x488 pixels
- Viewing angle 170 ° diagonally
- Viewing angle 120 ° horizontally
- vertical adjustability of the camera 20 °
- Picture format: NTSC
- 580 lines resolution
- IP68 waterproof
- Integrated infrared lighting
- Integrated microphone
- Operating voltage: 9-16 volts DC
- Power consumption: max. 150mA
- Operating temperature: -30 ° to 70 ° C
- Minimum lighting: 0 lux
- Color: red / black
- Cable length: 10 meters

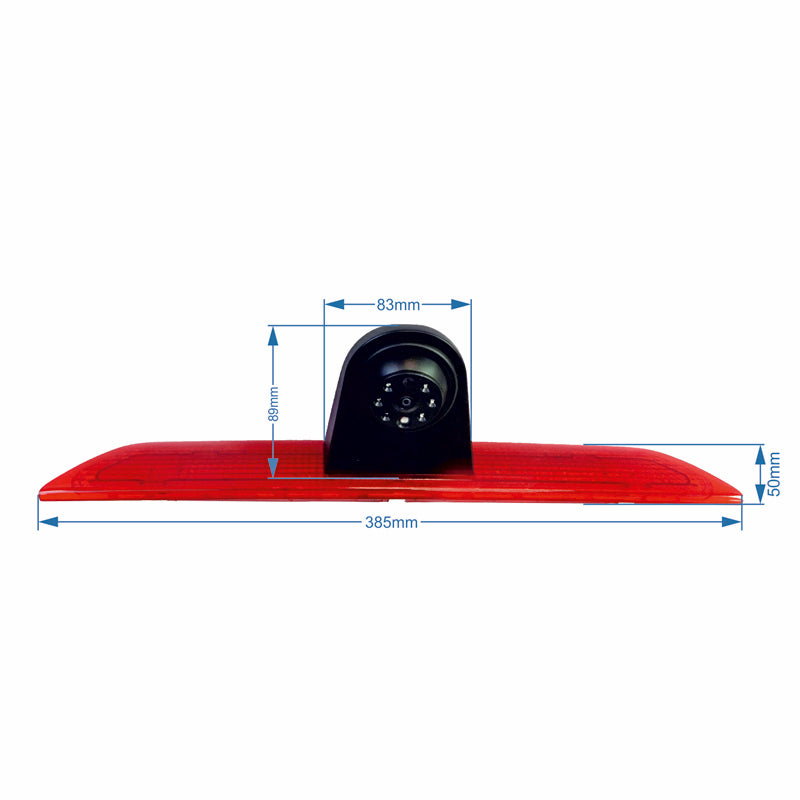

- Length of lamp glass 385mm
- Width of lamp glass 50mm
- E approval E9-10R-05.1652
- CE approval EN 55022: 2010; EN 61000-3-2: 2006 + A1: 2009 + A2: 2009; EN61000-3-3: 2008; EN 55024: 2010
- FCC approval ANSI C63.4-2003

INSTRUKCIJOS

User Manual (EN).
