AMPIRE KVA300, galinio vaizdo kamera

INFORMACIJA

AMPIRE KVA300 - aukštos raiškos AHD 1080P kamera, užtikrinanti itin ryškų ir detalų vaizdą net visiškoje tamsoje, dėka IR apšvietimo ir plataus 165° matymo kampo.
IP69K atspari konstrukcija ir 12/24 V palaikymas leidžia ją patikimai naudoti 24/7 net ekstremaliomis sąlygomis ar kaip kemperių dugno kamerą.

Vaizdo formatas:  AHD 1080P / 25 fps
Raiška: 1920 × 1080 px
Matymo kampas: 165° (125° H / 70° V)
Naktinis matymas: IR LED, 0,01 lux
Apsauga: IP69K
Maitinimas: 12 / 24 V DC

APRAŠYMAS

The Ampire KVA300 Professional AHD camera impresses with its very robust design, high-quality AHD sensor and 160° diagonal viewing angle. The camera is equipped with powerful infrared LEDs for a good view even in poor lighting conditions and especially in complete darkness (0 lux). The robust design enables permanent use in extreme conditions around the clock (24/7). The camera fulfils the highest IP69K protection class for water and dust protection. Operation is possible at temperatures from -30 to +70 °C.
It goes without saying that the Ampire camera also undergoes our comprehensive and strict quality assurance process with 100% routine testing in all key production steps.

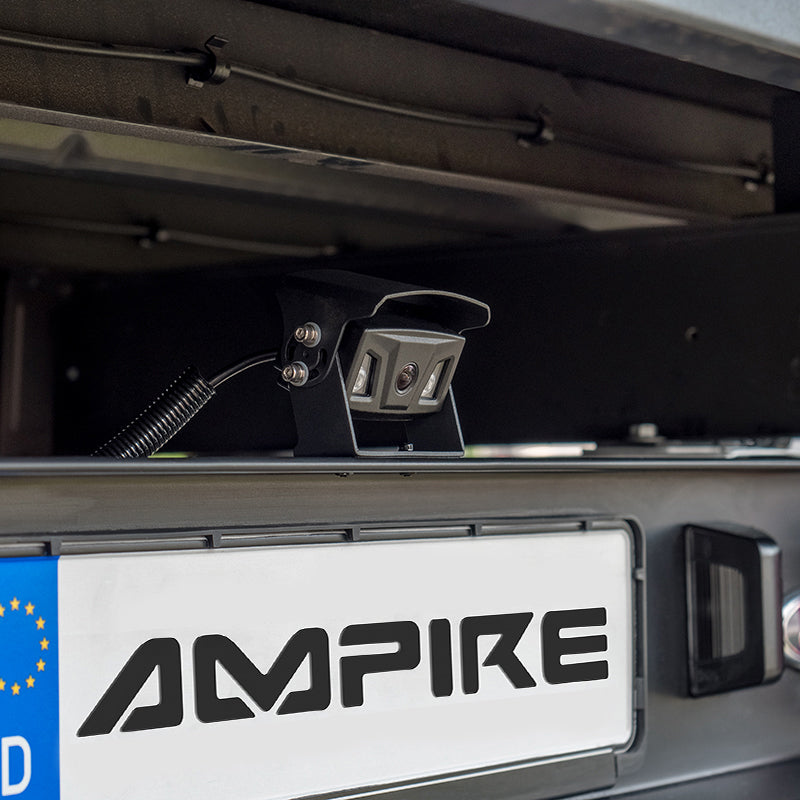

The KVA300 is also perfectly suited as an underbody camera for motorhomes in order to position the waste water drains precisely over a floor inlet.

TECHNINIAI DUOMENYS

- Video standard AHD 1080P 25F
- Image sensor: GC2053 (FH8536H)
- Image sensor size 1/2.9
- Resolution 1920x1080 pixels
- 3D noise reduction
- Sequential scanning
- Minimum illumination: 0.01 lux
- Infrared illumination for night vision
- Signal-to-noise ratio >43dB
- Automatic white balance
- Image reproduction horizontally mirrored
- Auxiliary lines: switched on (can be switched off by disconnecting cable loop)
- Horizontal viewing angle 125°
- Vertical viewing angle 70°
- Diagonal viewing angle 165°
- Protection class IP69K waterproof
- Operating voltage: 12/24 Volt DC
- Power consumption: max. 250mA
- Operating temperature: -20° to 70°C
- Colour: black
- Cable length: 10 metres with blue 4-pin MINI-DIN plugs
- E approval E9-10R-05.1652
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003

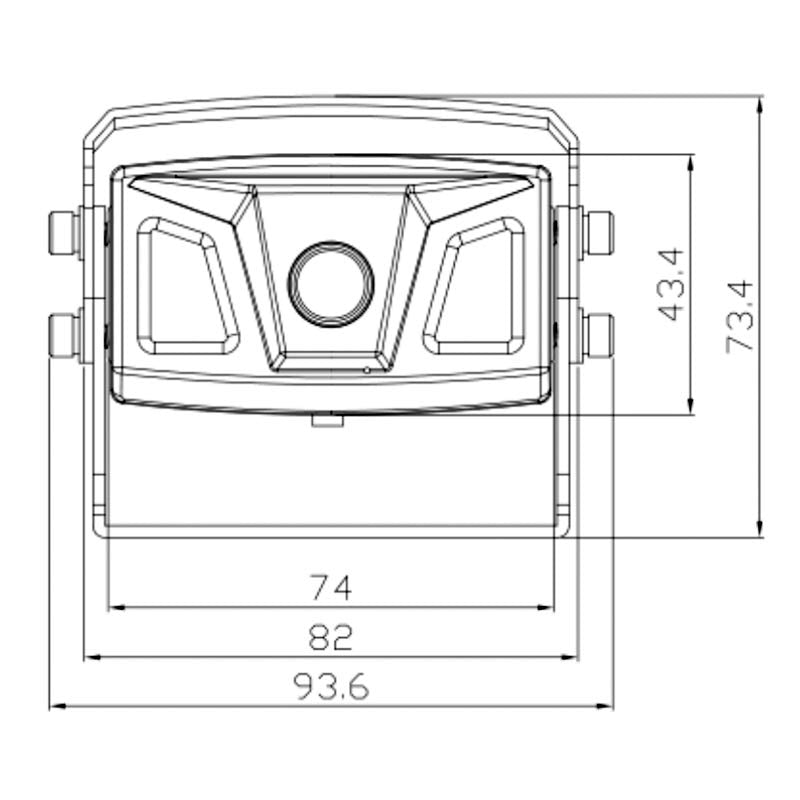

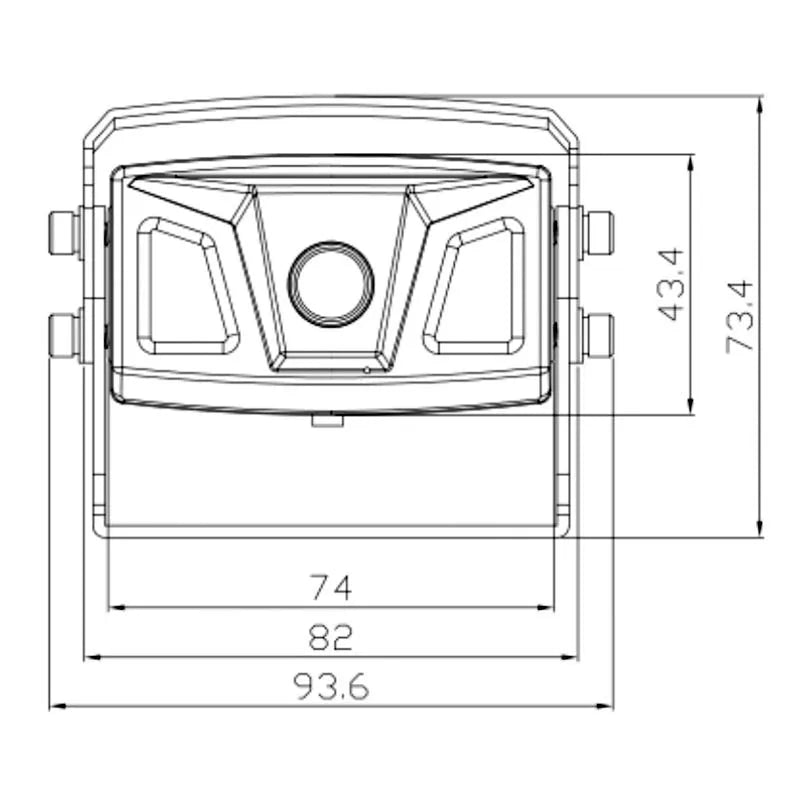

- Dimensions: 94x74x50mm

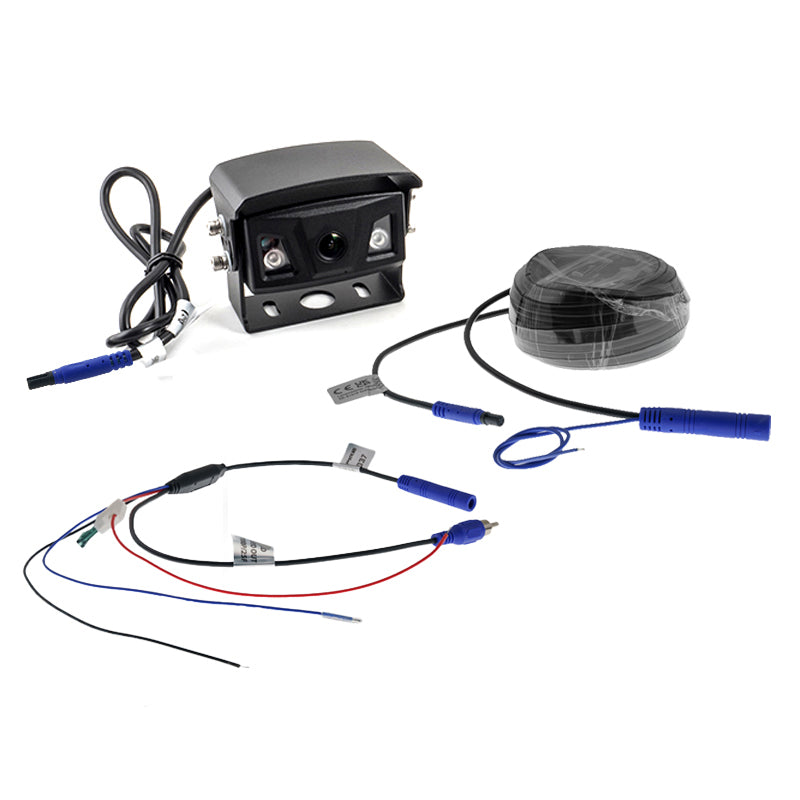

SCOPE OF DELIVERY
Rear view camera
AK1037 Power supply unit with blue connectors
AK1039 Mini-DIN extension cable 10m with blue connectors
