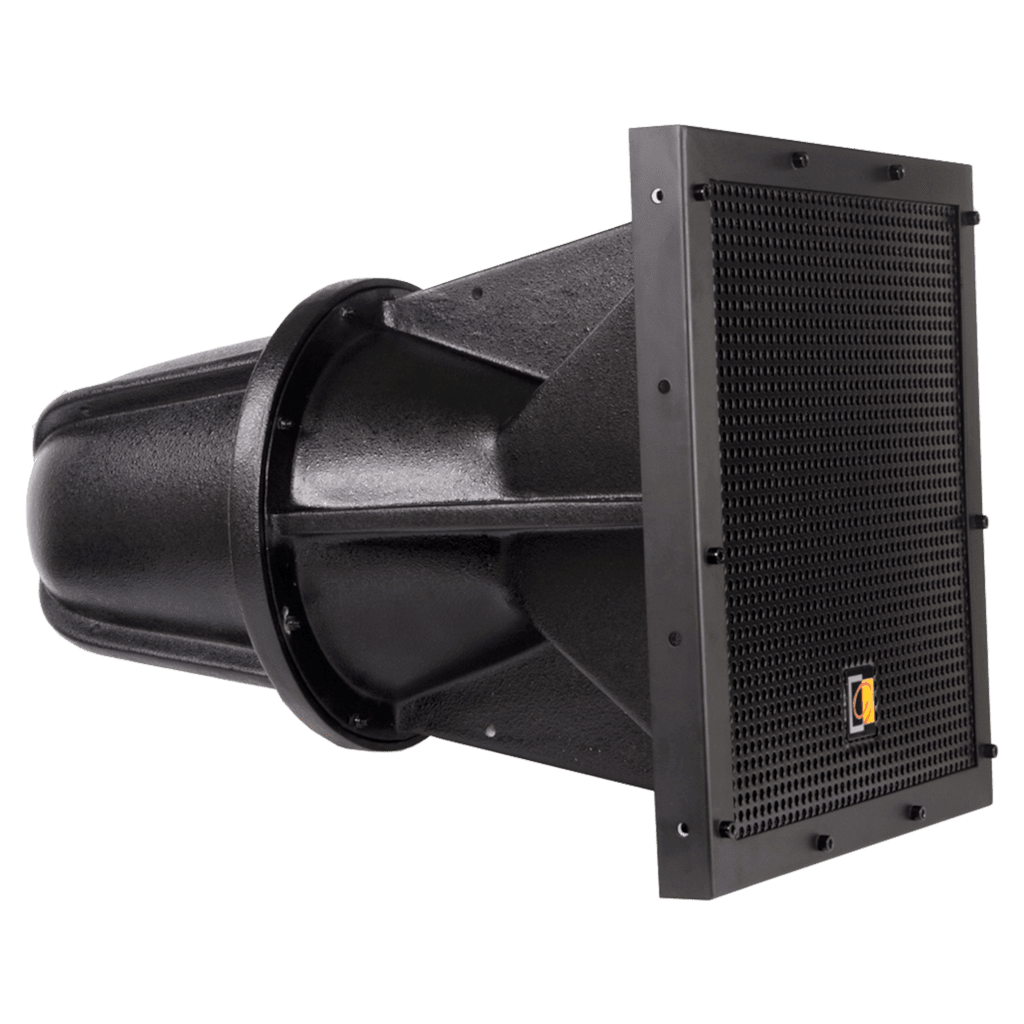

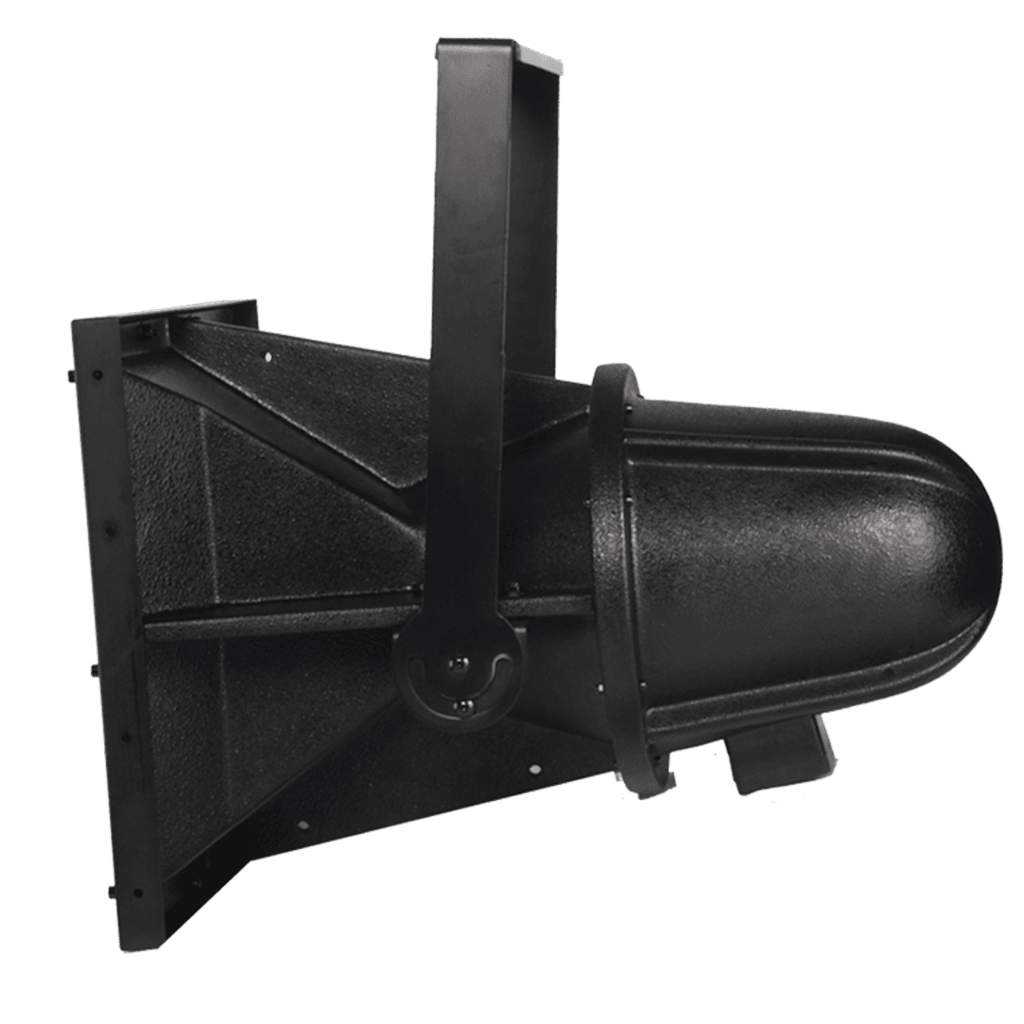

Audac HS212T, 12" montuojamas raginis garsiakalbis IP65

INFORMACIJA

. Puikiai tinka sporto stadionuose, arenose, pramoninėse zonose ir gamyklose, lauko renginiuose ir koncertuose, bei viešose erdvėse kur reikalingas didelis garso slėgis.

-Galia: 350W / 700W / 1400W MAX
-Varža: 8 Ω
-Transformatoriaus atšakos (100V linijai): 240 W / 42 Ω ; 120 W / 83 Ω ; 60 W / 167 Ω
-Jautrumas (1W/1m): 95 dB
-Maksimalus garso slėgis (W/1m): 125 dB
-Dažnių atsakas (±3 dB): 80 Hz – 18 kHz
-Dažnių diapazonas (-10 dB): 65 Hz – 20 kHz
-Kryžminis dažnis: 1.5 kHz
-Sklaida: Horizontali: 40°, Vertikali: 40°
-Įėjimo jungtis: 3 kontaktų Euro terminalo blokas (balansuotas)
-Korpuso medžiaga: Daugiasluoksnė stiklo kompozitinė medžiaga su tekstūruota EPDM juoda danga
-Apsaugos klasė: IP65
-Darbinė temperatūra: -20 - +50 °C / Svoris 34.5kg

APRAŠYMAS

The AUDAC HS212T is a full-range loudspeaker system engineered to provide long throw, full range sound projection in a variety of fixed in- and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The HS212T features a 1,8” HF driver with an 12” LF loudspeaker combination for the best sound reproduction and has a very special coverage pattern of 40° horizontally and vertically. The HS212T contains the possibility to choose from power tapping for: - 240 Watt, 120 Watt, 60 Watt @ 100V - 8 Ohm impedance. The construction of the HS212T is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there’s an acoustic foam assembled, which prevents rain coming into the speaker. Due to an Ingress Protection rating (IP) of 65, this speaker is suitable for any environment where humidity or moisture are present. At the rear, you’ll find cable clamps to select the line transformator as desired. The cable clamps are shielded to obstruct moisture and humidity. Mounting brackets: - MBK212Z (Stainless Steel)

TECHNINIAI DUOMENYS

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
