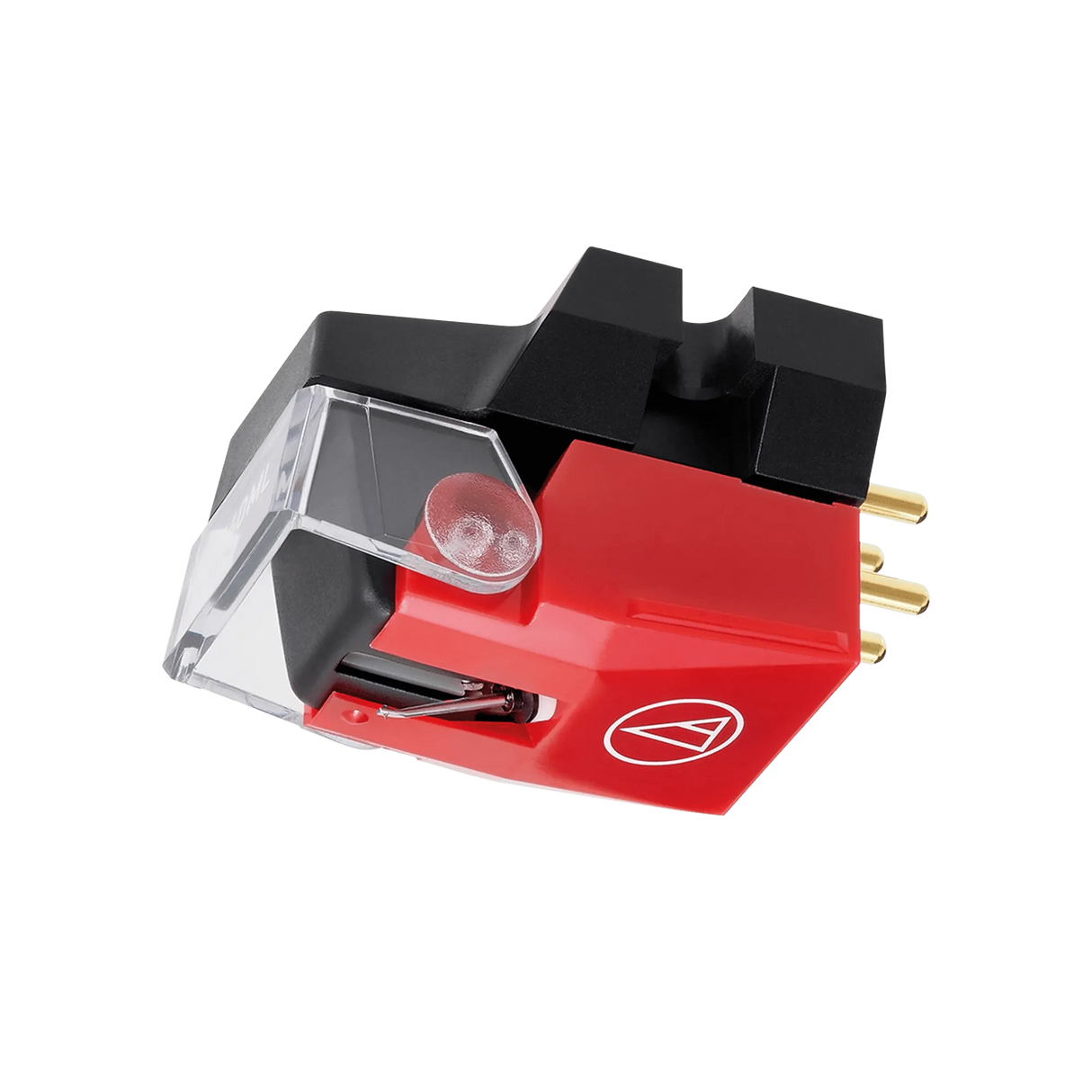

Audio-Technica VM540ML, kartridžas

€259.00 EUR

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Magnetinis Stereo Kartridžas su MicroLine® stiliumi.

  • Dažnių juosta: 20 - 27,000 Hz.
  • Kantileveris: Aliuminis.
  • Kanalų atskirtis: 28 dB (1 kHz).
  • VM tipo kartridžas.



The VM540ML MicroLine® stylus cartridge is the premier 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM540ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match. The stylus’s multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.

    SPECIFIKACIJOS

    Frequency Response 20-27,000 Hz
    Channel Separation 28 dB (1 kHz)
    Vertical Tracking Angle 23°
    Stylus Construction Nude square shank
    Recommended Load Impedance 47,000 ohms
    Coil Impedance 2,700 ohms (1 kHz)
    DC Resistance 800 ohms
    Coil Inductance 460 mH (1 kHz)
    Output Voltage 4.0 mV (at 1 kHz, 5 cm/sec)
    Output Channel Balance 1.0 dB (1 kHz)
    Stylus Shape 2.2 x 0.12 mil MicroLine®
    Cantilever Aluminum tapered pipe
    Static Compliance 40 x 10-6 cm/dyne
    Dynamic Compliance 10 x 10-6 cm/dyne (100 Hz)
    Mounting Half-inch
    Dimensions 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D
    Accessories Included Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set
    Mounting Feature Half-inch mount
    Recommended Load Capacitance 100-200 pF
    Replacement Stylus VMN40ML
    Stylus Size 0.12 x 2.2 mil
    Type VM Type
    Weight 6.4 g (0.2 oz)
