Audio-Technica

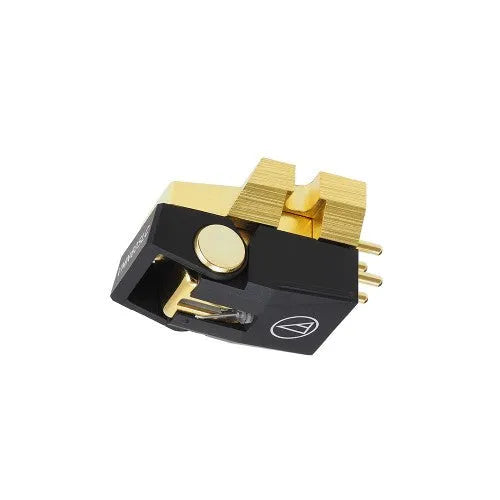

Audio-Technica VM760SLC, kartridžas

699.00 €

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Magnetinis Stereo Kartridžas su Special Line Contact stiliumi.

  • Dažnių juosta: 20 - 30,000 Hz.
  • Kantileveris: Aliuminis.
  • Kanalų atskirtis: 30 dB (1 kHz).
  • VM tipo kartridžas.



  • Special Line Contact diamond stylus
  • VM type dual magnet system
  • Para-toroidal coils improve generating efficiency
  • Aluminium tapered cantilever
  • Centre shield plate between stereo channels
  • Die-cast aluminium alloy housing reduces vibration

SPECIFIKACIJOS

Type VM Type
Mounting 1/2” centres
Frequency Response 20 - 30,000Hz
Channel Separation 30dB (1kHz)
Output Channel Balance 1.0dB (1kHz)
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle 23˚
Vertical Tracking Force Range 1.8 – 2.2g (2.0g standard)
Stylus Shape Special Line Contact
Stylus Size 0.28 x 1.5 mil
Stylus Construction Nude Rectangular Shank
Cantilever Aluminium Tapered Pipe
Coil Impedance 2,700Ω (1kHz)
Static Compliance 40 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance 47,000Ω
Recommended Load Capacitance 100 – 200pF
Weight 8.0g
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement Stylus VMN60SLC
Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1


Naudotojo instrukcija / User manual.
