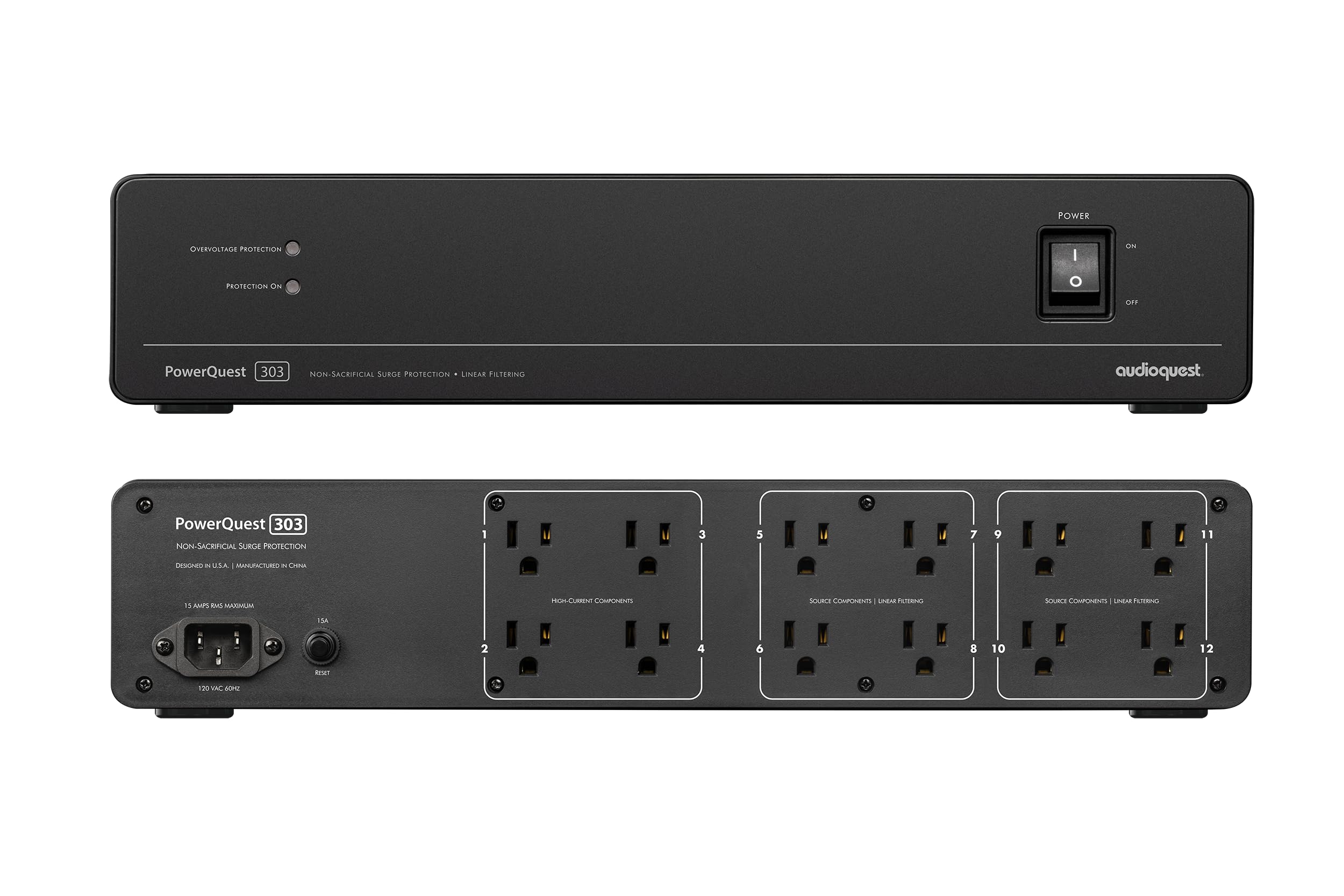

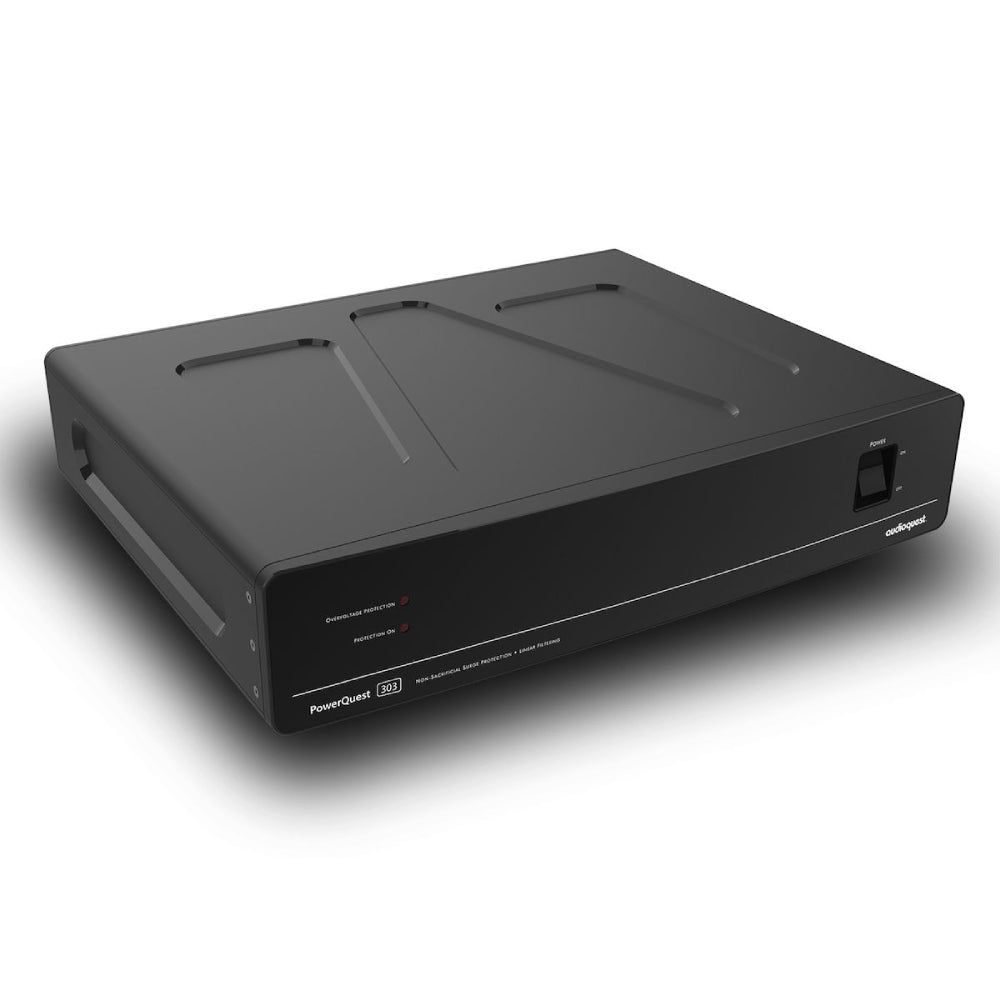

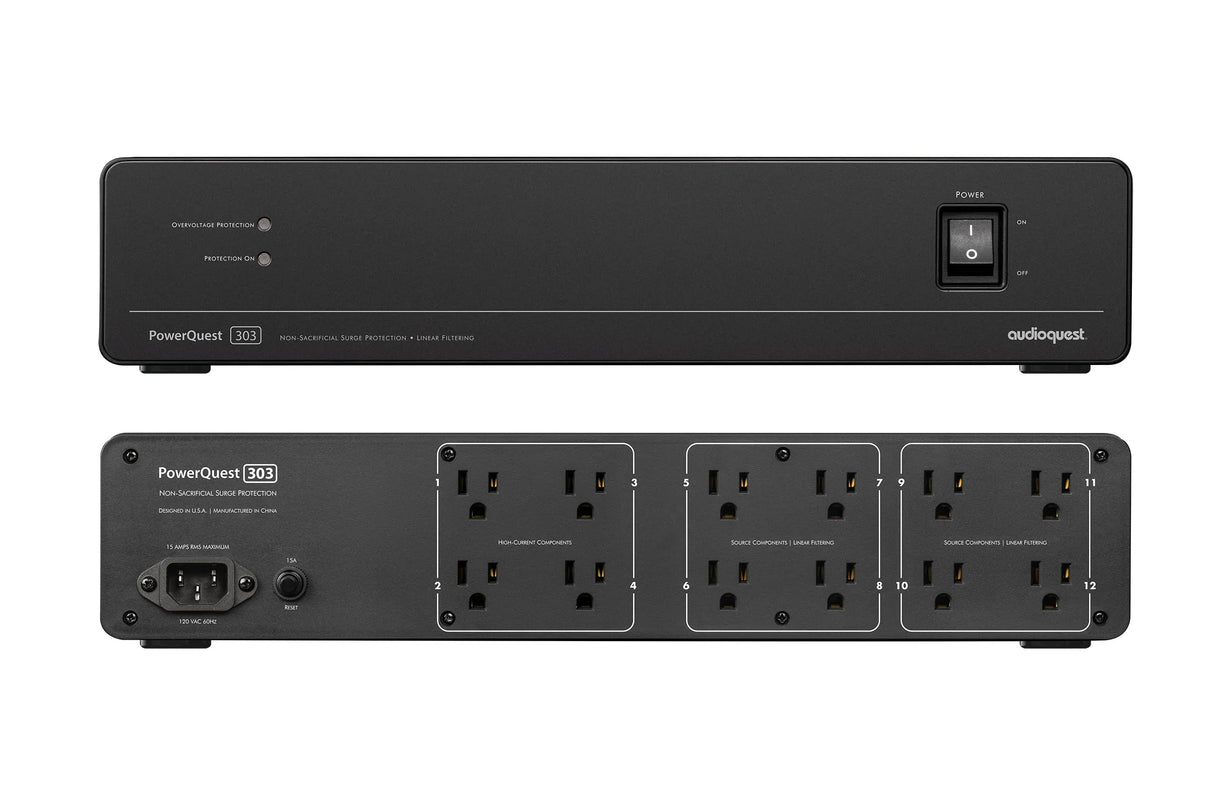

AudioQuest PowerQuest 303, maitinimo filtras

INFORMACIJA

Naujieji "PowerQuest 303, 505 ir 707" maitinimo kondicionieriai, pasižymintys išskirtinėmis "AudioQuest" charakteristikomis.

• RF triukšmą sklaidantis kabelis su pusiau kietais koncentriniais ilgagrandžio vario (LGC) laidininkais (2 m; 15 amperų @120 V)
• Apsauga nuo  viršįtampių.
• Diferencinis režimas: 30 kHz-1 GHz
• 140VAC: suaktyvins pagrindinės maitinimo grandinės relę, kad ji atsidarytų per mažiau nei 0,25 sekundės.

APRAŠYMAS

Matching outstanding AudioQuest performance with non-sacrificial surge protection, the new PowerQuest 303, 505, and 707 power conditioners create excellent foundations for stereo systems, multichannel home theaters, and custom installations.

Performance: All models take AudioQuest's comprehensive approach to AC power conditioning, addressing noise linearly to provide class-leading, wide-bandwidth noise reduction.

Protection: All models feature Non-Sacrificial Surge Protection and Extreme-Voltage Automatic Shutdown at 140VAC. Set and forget.

Power: All models provide 12 total AC outlets: 4 High-Current outlets for amplification devices and 8 Linear-Filtered outlets for source devices.

In addition, all models come with optional 2RU rack ears and a detachable 2m PowerQuest power cable with a flat-to-wall plug. For installers, this means each PowerQuest unit is ready to go from the box to the rack in just minutes.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

PQ-415 POWER CABLE WITH FLAT-TO-WALL PLUG

PQ-416: 2m RF-Noise Dissipating cable with Semi-Solid Concentric Conductors using Long-Grain Copper (10amps @240V)

LINEAR NOISE-DISSIPATION (MORE THAN -22DB)

Differential-Mode: 30kHz-1Ghz

NON-SACRIFICIAL SURGE PROTECTION

Nothing to damage with repeated 6000V/3000A input surge tests, which is the maximum that can survive a building’s AC electrical panel.

EXTREME VOLTAGE SHUTDOWN

140VAC: Will activate the main power circuit relay to open within less than 0.25 seconds; automatically resets once the incoming power is within a safe range.

OPTIMIZED OUTLETS

8x Linear-Filtered for Source / Constant-Current components (TVs, media streaming devices, etc.); 4x High-Current for Variable-Current components (amplifiers, powered speakers & subwoofers)

RACK-MOUNTABLE

2RU rack ears included

Dimensions: 43cm W x 34cm D x 8.6cm H (9cm w/ feet attached)

Weight: 10.2lbs , 4.65 kg
