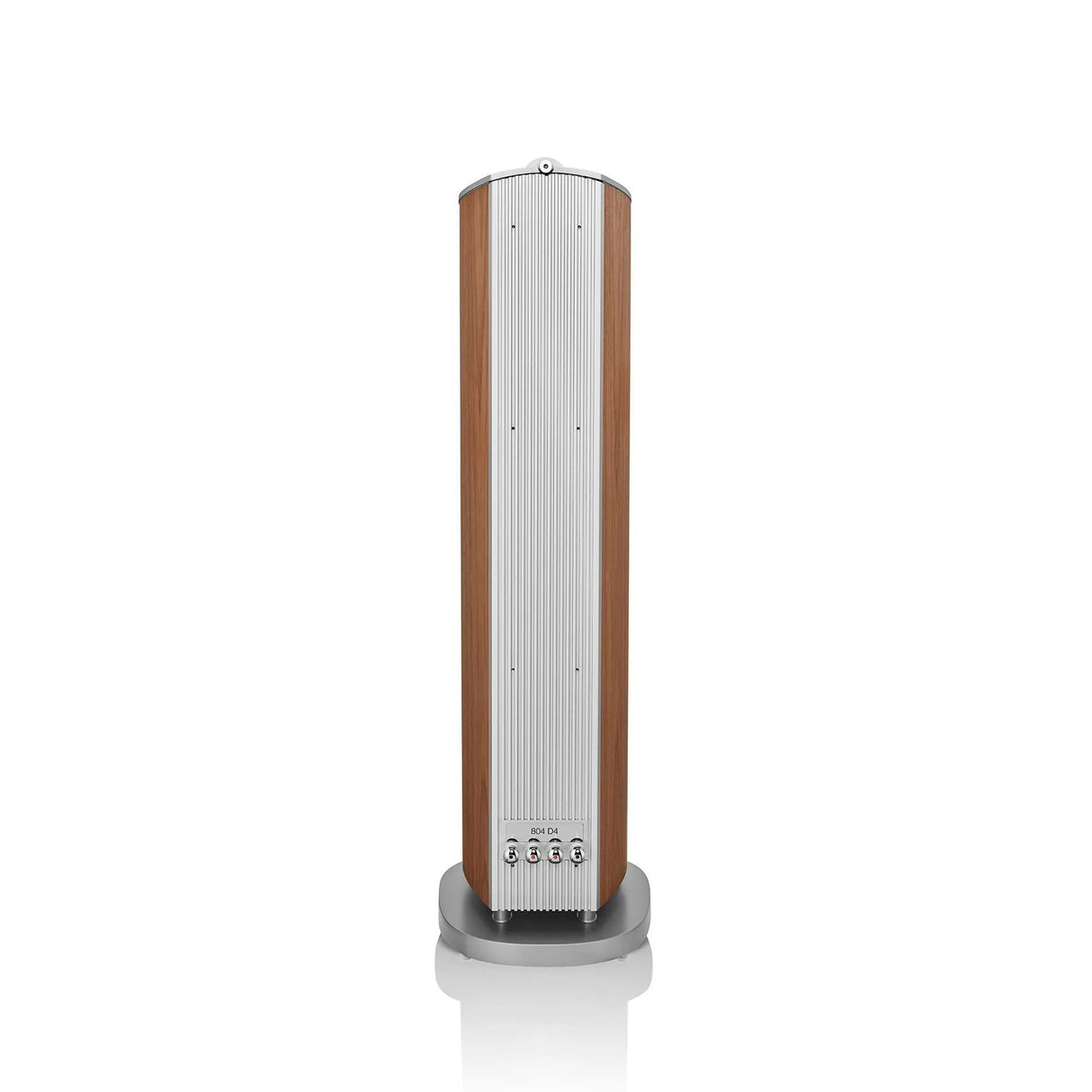

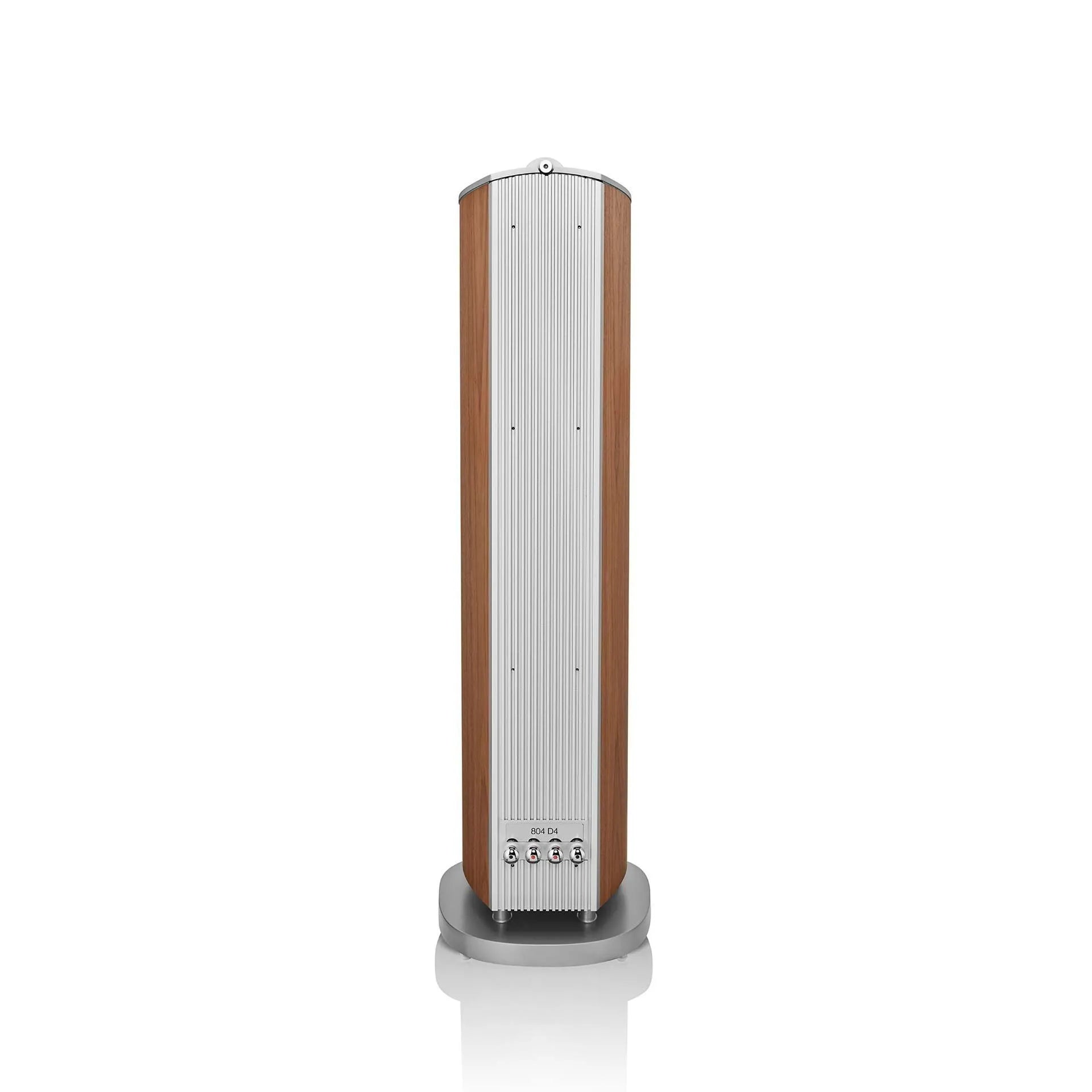

A great speaker needs a rock-solid foundation. The new 804 D4 uses a downwards-firing Flowport exiting on to a solid aluminium plinth complete with a steel constrained layer damping sheet, which controls unwanted resonance. It also has greatly upgraded spikes for maximum stability and durability.
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.
TECHNINIAI DUOMENYS
SPECIFIKACIJOS
Technical features
Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ cone bass units
Flowport
Description
3-way vented-box system
Drive units
1x ø25mm (1in) diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil cone bass units
Frequency range
20Hz to 35kHz
Frequency response
24Hz to 28kHz (+/-3dB from reference axis)
Sensitivity
89dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 90Hz – 20kHz
<0.3% 120Hz – 20kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 200W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
Height: 1071mm
Width: 306mm
Depth: 391mm
Net weight
36.85kg
Finishes
Cabinet:

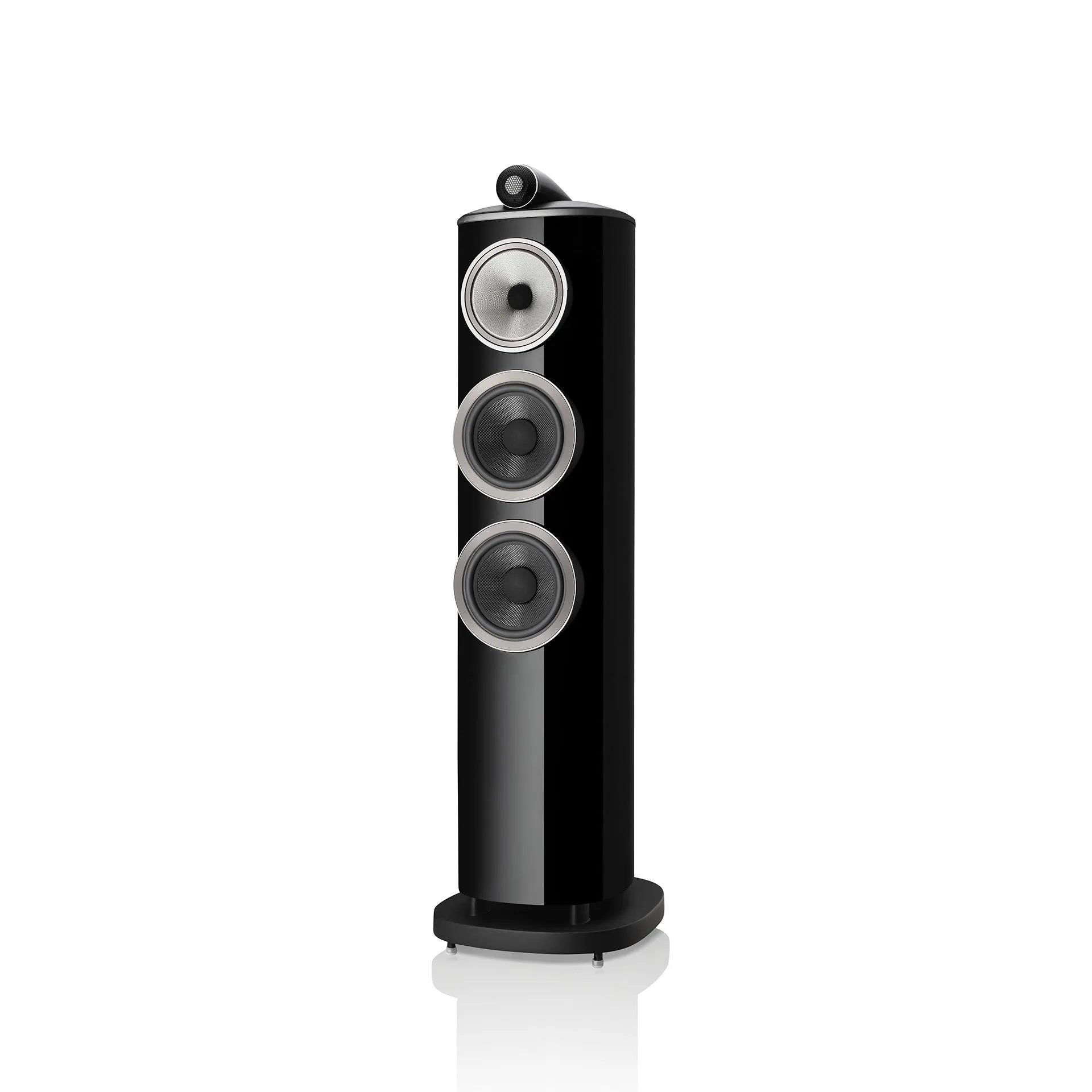

Gloss Black

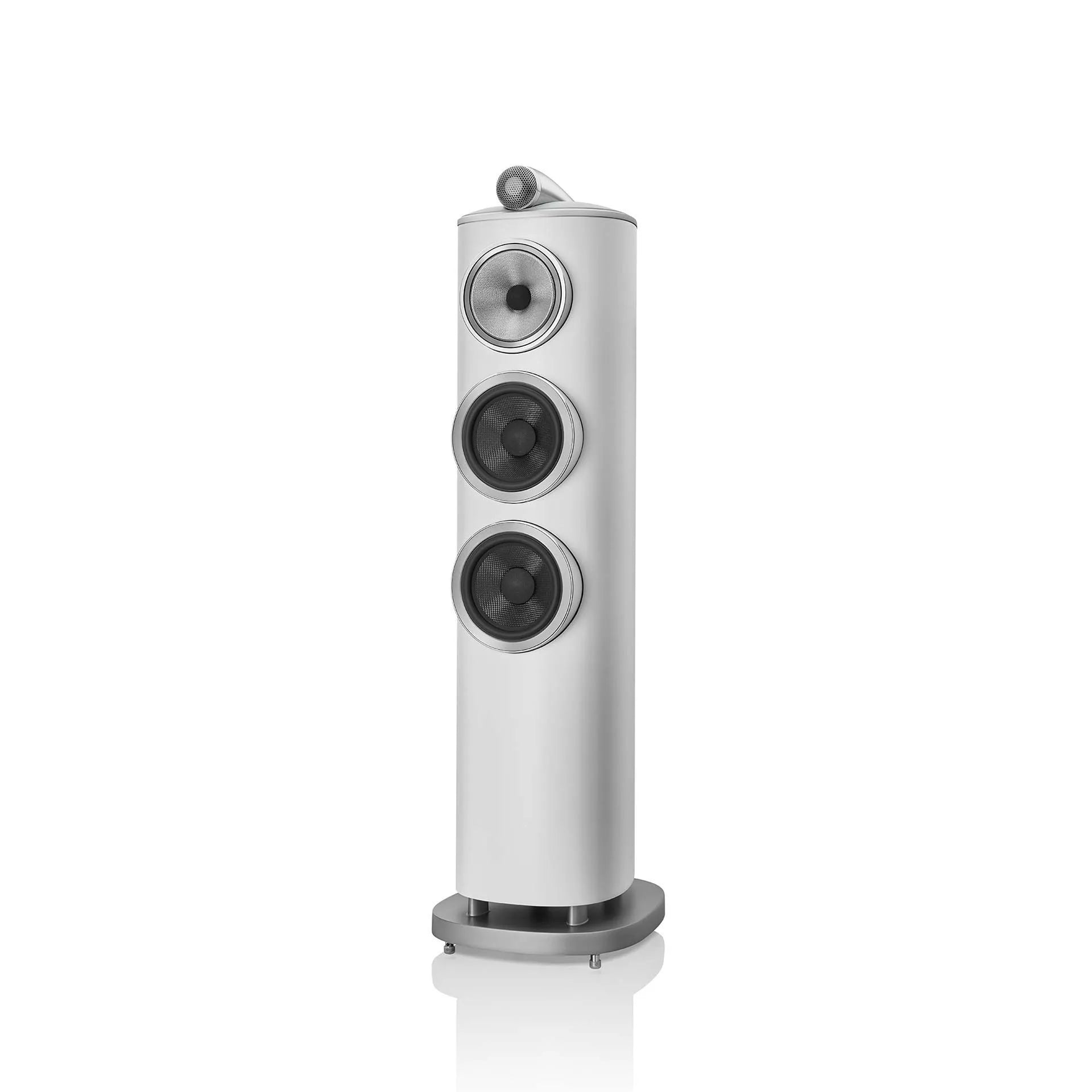

White

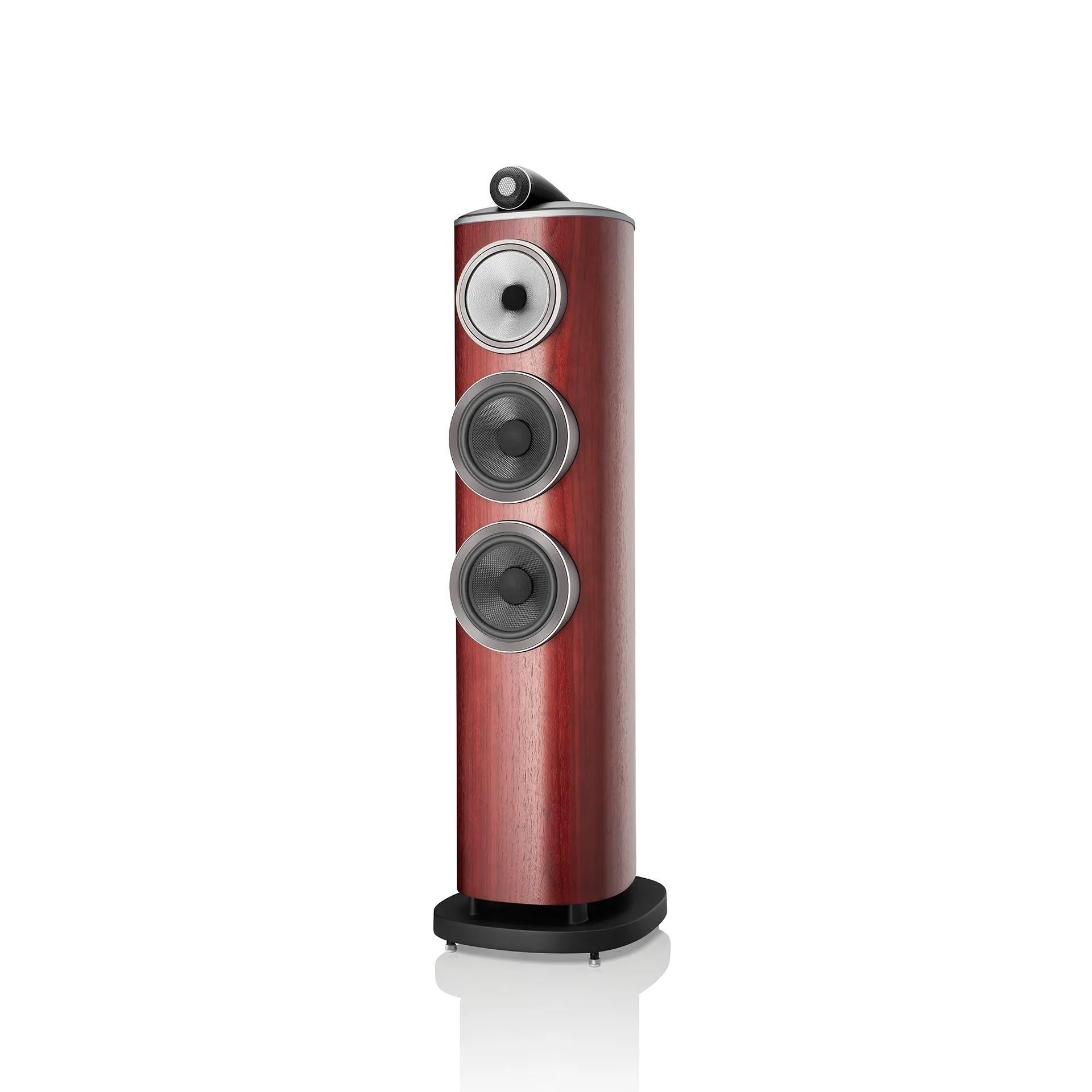

Satin Rosenut

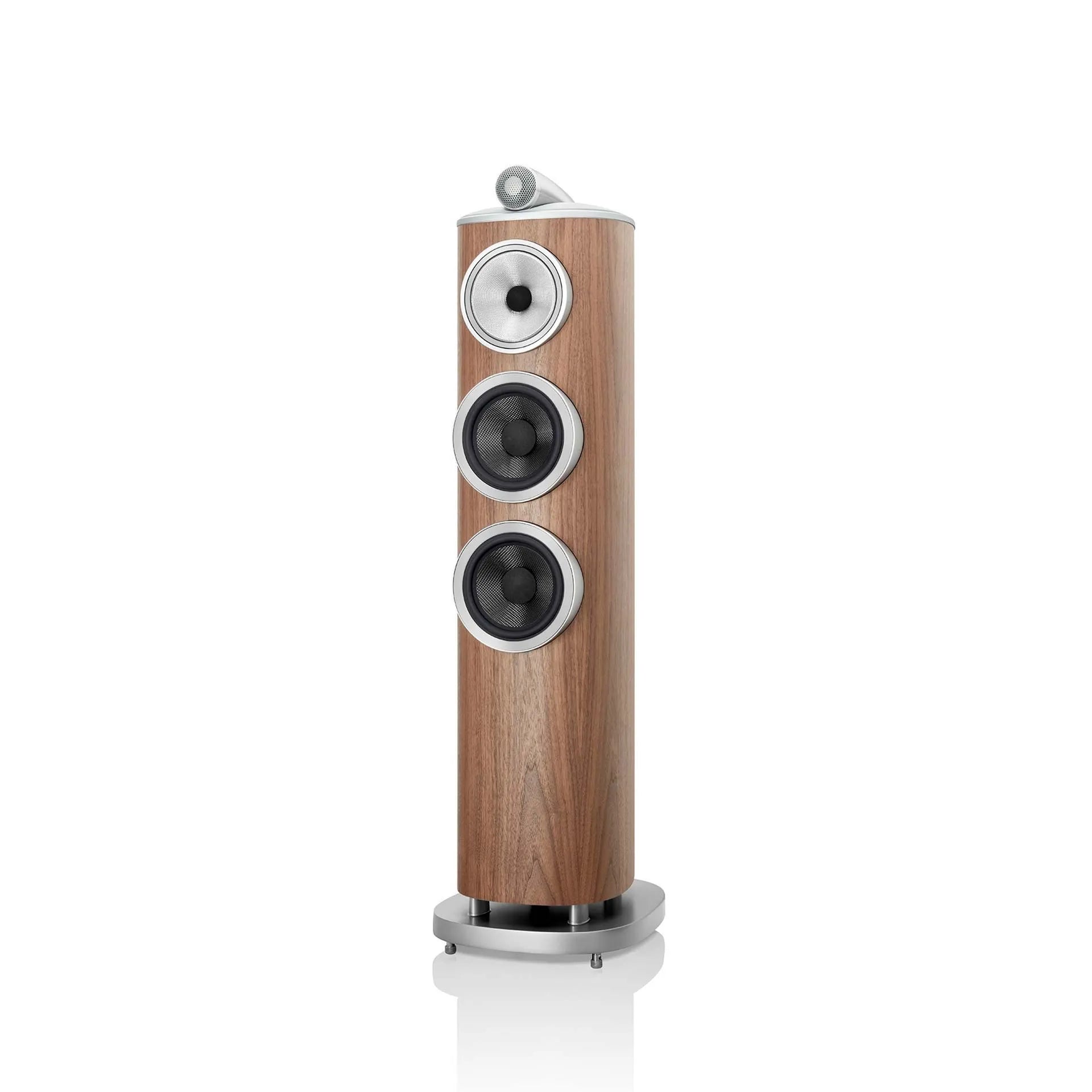

Satin Walnut
Grille:
Black
Grey
Black
Grey
DOKUMENTAI
INSTRUKCIJOS
User Manual (EN).
