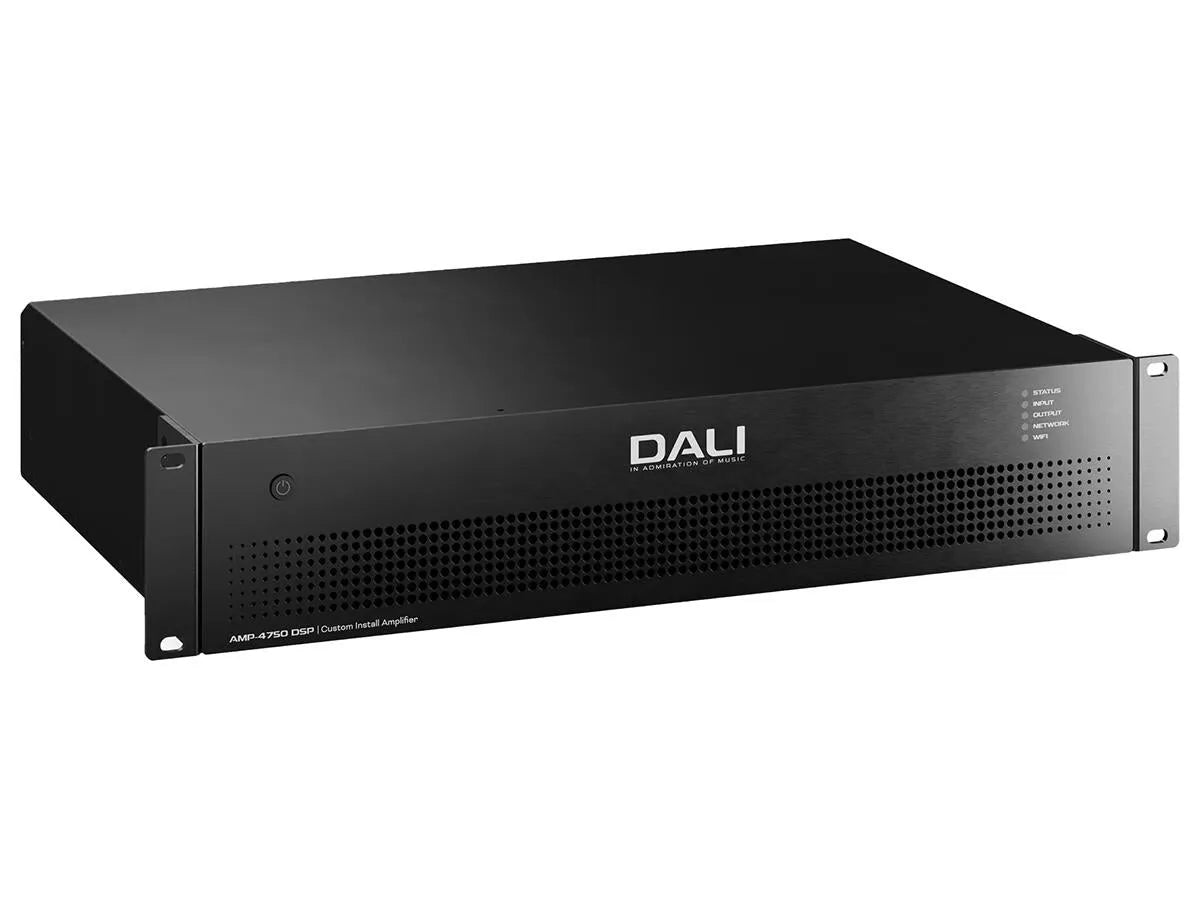

Dali PHANTOM CI AMP-4750 DSP, integruotas instaliacinis stiprintuvas

INFORMACIJA

Dali PHANTOM CI AMP-4750 DSP - galingas integruotas stiprintuvas, skirtas namų kino ir kelių patalpų garso sistemoms. Jis turi integruotą garso reguliavimo sistemą, kuri leidžia tiksliai pritaikyti garsą pagal patalpą ir prijungti garso kolonėles. Didelė 4 × 750 W galia leidžia valdyti kelias kolonėles ar žemų dažnių kolonėles net didesnėse erdvėse.

Galia: 4 × 750 W (4 Ω); 2 × 1500 W (bridge režimas)
Stiprintuvo klasė: D klasė
Dažnių diapazonas: 12 – 20 000 hz
Signalo ir triukšmo santykis: 106 db
Iškraipymai (thd+n): <0,05 %

APRAŠYMAS

The DALI PHANTOM CI AMP-4750 DSP is a powerful Class-D, rack-mountable, custom installation amplifier. Featuring advanced, integrated digital signal processing and speaker presets, this 4 x 750 watt powerhouse brings out the very best in any DALI PHANTOM home theatre or multi-room installation. And with Wi-Fi/LAN connectivity and a web-based configurator, even complex setups are made simple.

Tailored sound

With a collection of speaker-specific presets, the CI AMP-4750 DSP delivers the best possible sound.

Powerful Class-D amplification

4 x 750 watts of Class-D amplification let you drive amazing multi-speaker CI installations.

Fully featured DSP

Powerful DSP tools make for intuitive configuration and control of even highly complex CI setups.

A Wide Range of applications

The CI AMP 4750-DSP is the perfect match for high-performance home theatres and multi-room installations.

POWERFUL CUSTOM INSTALLATION

Control of up to four DALI PHANTOM speakers

The DALI PHANTOM CI AMP-4750 DSP is a powerful custom installation amplifier with advanced digital signal processing and speaker presets that get the very best from any DALI PHANTOM custom installation setup. Powered by 4 x 750 watts of ultra-low distortion, Class-D amplification, this rack-mountable powerhouse includes low-noise fan cooling, integrated protection circuits and a range of connectivity options, including Wi-Fi, LAN and GPIO. Using any Wi-Fi-enabled computer, tablet or smartphone, the web-based PHANTOM AMP CONFIGURATOR also provides intuitive configuration and control of up to four DALI PHANTOM speakers or eight subwoofers in any home cinema.

CLASS-D AMPLIFICATION

Unforgettable experiences await

With 4x 750 watts of Danish-developed Class-D amplification, the AMP-4750 DSP delivers effortless power, extremely high efficiency and ultra-low distortion. Designed for high-end CI audio and home theatre installations, this low-noise fan-cooled, rack-mountable powerhouse is the perfect match for speakers like our PHANTOM M and S-series speakers. And with so much headroom, it can power up to eight PHANTOM IW SUB S-100 in-wall subwoofers for epic movie experiences and can even be bridged into a 1,500 watt stereo amp to satisfy even the most demanding high-end enthusiast.

FULLY FEATURED DSP

DSP control at your fingertips

The intuitive web-based DALI PHANTOM AMP CONFIGURATOR helps you get the most out of even the most complex CI installation. With DSP tools like parametric equalisers, audio limiters and compressors, routing matrix, input/output settings, speaker delay and model-specific presets, the AMP CONFIGURATOR has the tools you need to get the very best sound from any installation.

WIDE RANGE OF APPLICATIONS

A versatile performer

Aimed primarily at high-performance home cinema installations based on PHANTOM M and S-series CI speakers and in-wall subwoofers, the multi-purpose AMP-4750 DSP amplifier can also power in-wall and in-ceiling speakers in a multi-room installation. And with 4 analogue, 2 digital inputs and 4 speaker outputs, this versatile amp is also a great power source for use in bars, restaurants, cafés, fitness centres and other retail environments.

TECHNINIAI DUOMENYS

Connection Input

4 x Analog unbalanced (RCA), 4 x Analog balanced (Euroblock connector), 1 x S/PDIF (RCA)

Frequency Range [+/- 0.5 dB, 8 Ω load, 3 dB below rated power) [Hz]

12 - 20,000

Outer Dimensions [HxWxD] [mm/inch]

88 x 440 x 320 / 3.46 x 17.32 x 12.60

Output Channels

4 x Lo-Z speaker (4 - 16 ohm), 2 x Hi-Z speaker (70 V / 100 V), 1x S/PDIF digital out (RCA)

Output Power [4 Ω]

4 x 750 W (SE), 2 x 1,500 W (BTL)

Signal To Noise-ratio (20 - 20 kHz, 8 Ω load) [dB]

>106 (A-weighted)

Standby Power Consumption [W]

< 0.5

THD+N (Typical) [20 - 20 kHz, 8 Ω load, 3dB Below Rated Power]

< 0.05 %

Weight [kg/lb]

7.22 / 15.91

DOKUMENTAI

Vartotojo vadovas (EN)

Greito paleidimo vadovas (EN)
