Focal ES 165 KX3E, 3-jų juostų, 16.5cm komponentiniai garsiakalbiai K2 POWER

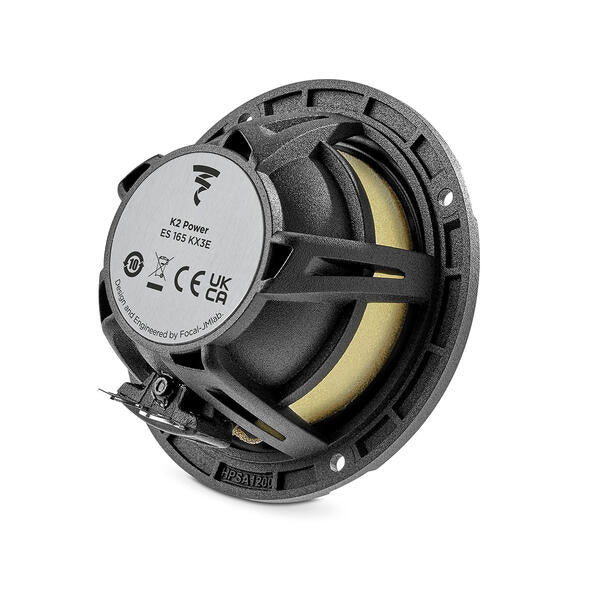

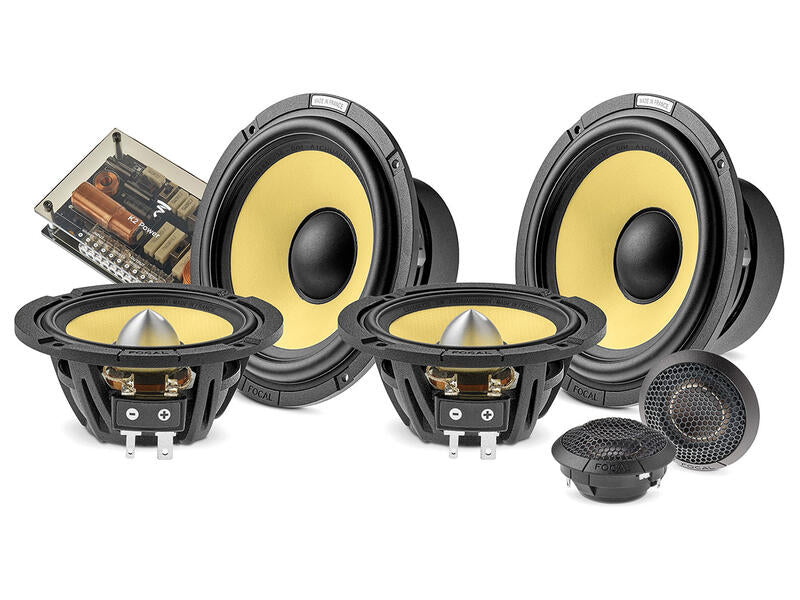

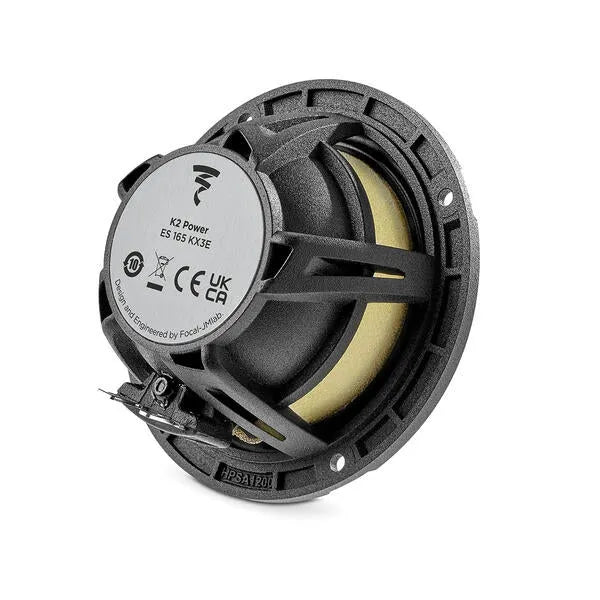

ES 165 KX3E is an in-car audio kit consisting of two 6½" (165 mm) woofers and two 3" (80 mm) midranges that cover a wide frequency spectrum, from a rich, dynamic midrange to deep, precise bass.

The speaker drivers are fitted with Focal’s iconic K2 cone in aramid fibre, an exclusive, performance-focussed cone for deep, powerful and perfectly defined sound.

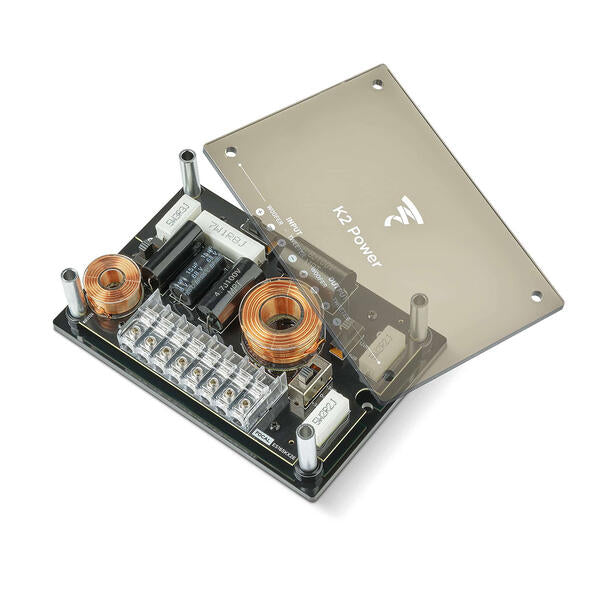

For perfect reproduction of the treble and midrange, the kit includes Focal’s FRAK tweeters, made from aluminium/magnesium and with an exclusive ‘M’-shaped profile. They deliver ultra-realistic, crystal-clear sound. Coupled with bi-amplifiable audiophile crossovers and angled brackets, the tweeters will fit seamlessly into the passenger compartment, for perfect in-car sound immersion.

• Type: 3-way component kit
• FRAK tweeter from the K2 Power M range
• Tweeter/midrange bracket
• Aluminium grilles included
• Quantity: 16.5 cm woofers: 2 pcs, 10 cm midrange speakers: 2 pcs, tweeters: 2 pcs.

SPECIFIKACIJOS

Woofer:

• Maximum power: 240 W
• Nominal power: 120 W RMS
• Sensitivity (2.83 V / 1 m): 93 dB
• Frequency response: 45 Hz - 32 kHz
• Impedance: 4 Ω
• Cone: K2 Sandwich
• Diameter: 6½" (165 mm)
• Voice coil diameter: 1⅝" (40 mm)
• Depth: 3" (76 mm)
• Magnet: Ferrite
• Surround: TMD®
• Tweeter: Aluminium, ‘M’-profile
• Crossover: 6-12 / 12 / 12 dB (3 / 4 / 500 / 3 / 5 kHz)

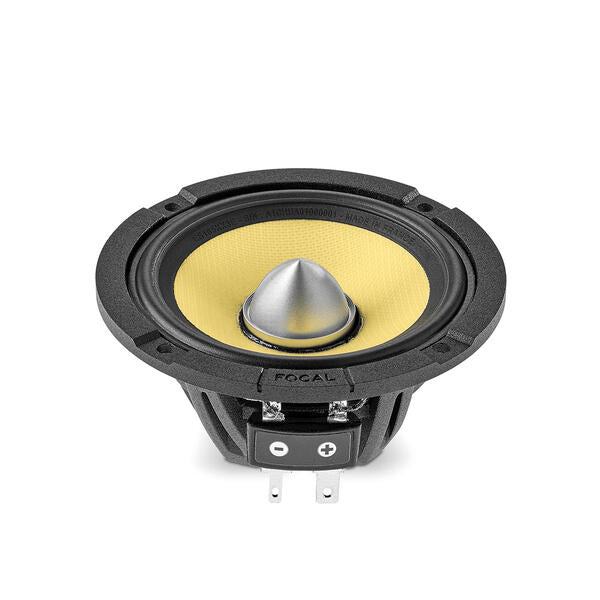

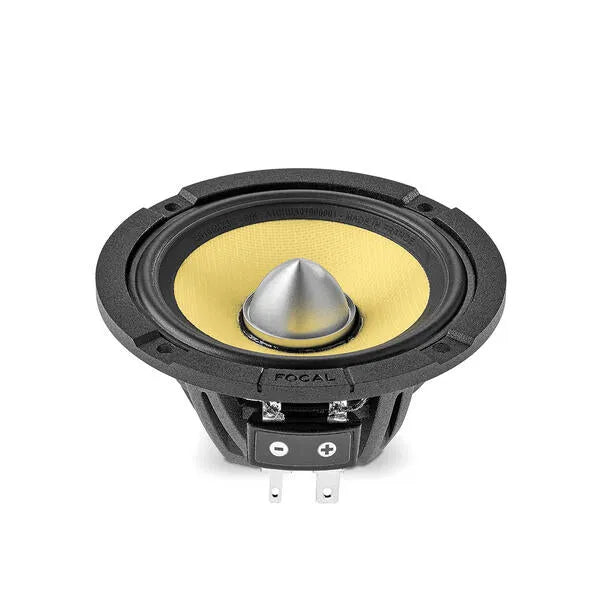

Midrange:

• Maximum power: 100 W
• Nominal power: 50 W RMS
• Sensitivity (2.83 V / 1 m): 88 dB
• Frequency response: 45 Hz - 32 kHz
• Impedance: 4 Ω
• Cone: K2 Sandwich
• Diameter: 4" (100 mm)
• Voice coil diameter: ¾" (20 mm)
• Depth: 1⅜" (33.5 mm)
• Magnet: Ferrite
• Surround: TMD®
• Tweeter: Aluminium, ‘M’-profile
• Crossover: 6-12 / 12 / 12 dB (3 / 4 / 500 / 3 / 5 kHz)

INSTRUKCIJOS

User Manual (EN).
