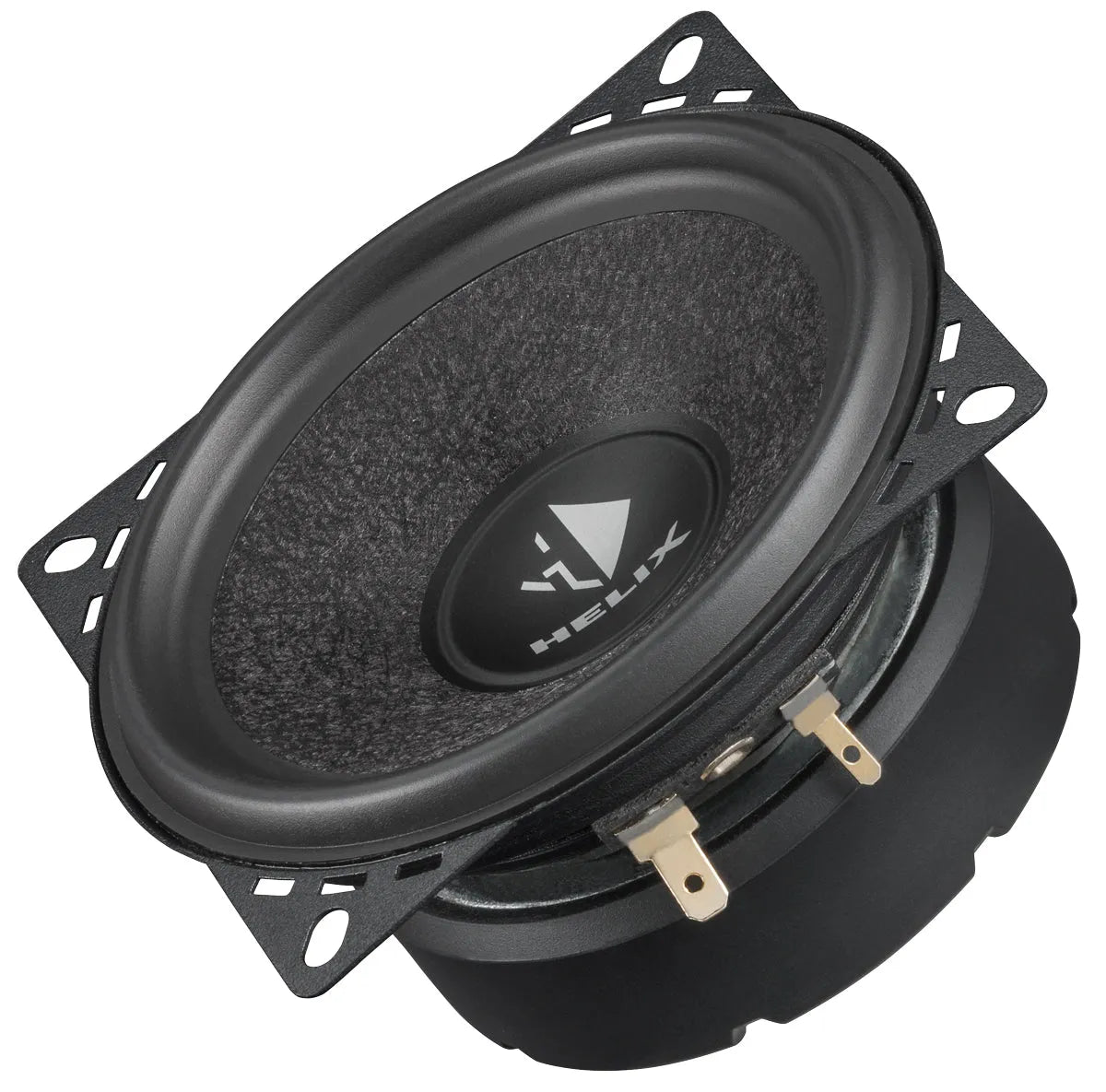

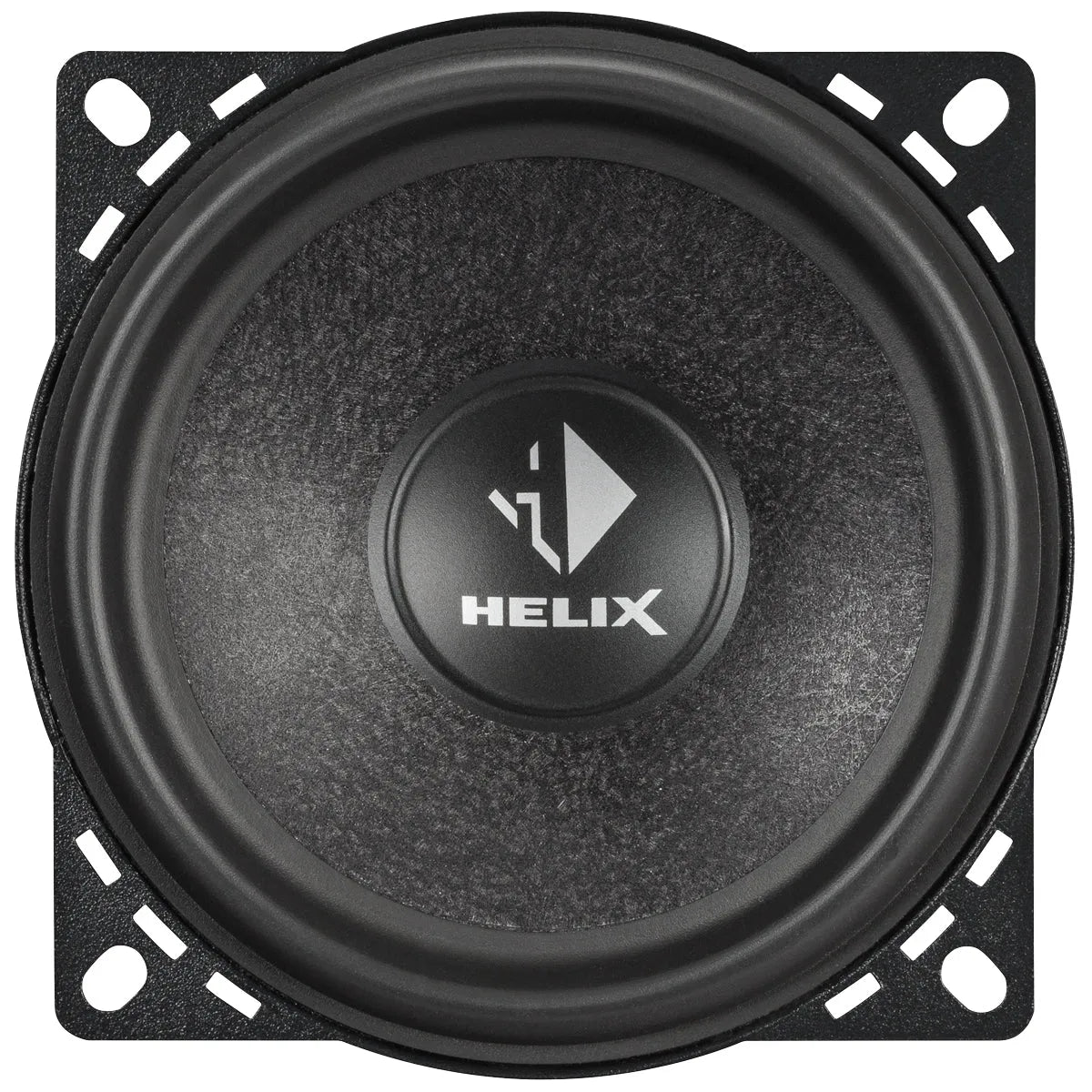

Garsiakalbiai Helix S 4B, 140W, vidutinių / žemų dažnių
Garsiakalbiai Helix S 4B, 140W, vidutinių / žemų dažnių yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.
Siuntimas ir pristatymas
Siuntimas ir pristatymas
Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.
- Galia: RMS 70W / MAX 140 W
- Dažnių diapazonas: 75 Hz - 6000 Hz
- Jautrumas: 89 dB 1W/1m
- Varža: 4 Omai
- Montavimo gylis: 46.5 mm
- Montavimo skersmuo: 92.3 mm
- Išorinis skersmuo: 102 mm
Komplekte 2 vnt.
APRAŠYMAS
Elegant designed mid-woofer trimmed for maximum sound quality.
The extremely rigid cone consists of a novel basalt-fiber-paper compound – the perfect combination to guarantee clear and straight sound even at high volume levels. Beside a powerful bass reproduction and peerlessly neutral mids, the S 4B impresses with exceptionally low distortion.
A dream team is the combination with the S 1T tweeter that ideally complements the frequency range. Together with an Audiotec Fischer power amplifier, the S loudspeakers strike up to top form and provide the perfect basis for absolute top sound systems!
SAVYBĖS
4” / 100 mm mid-woofer with novel basalt-fiber-paper compound cone – a perfect combination of lowest weight, high stiffness and inner damping
Specially shaped rubber surround for larger effective cone area and increased maximum excursion
Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
Rugged rubber magnet boot with HELIX-logo
Gold-plated terminals
TECHNINIAI DUOMENYS
Power RMS / max. | P | 70 / 140 Watts |
Impedance | Z | 4 Ω |
DC resistance | Re | 3.4 Ω |
Frequency response | 75 Hz - 6,000 Hz | |
Resonance frequency | Fs | 120 Hz |
Mechanical Q factor | Qms | 4.24 |
Electrical Q factor | Qes | 1.11 |
Total Q factor | Qts | 0.88 |
Compliance | Cms | 232 μm/N |
Equivalent air volume | Vas | 1.2 L |
Force factor | B*I | 4.1 Tm |
Efficiency 1 W / 1 m | SPL | 89 dB |
Cone area | Sd | 61 cm² |
Moving mass | Mms | 5.9 g |
Cone material | Basalt-fiber-paper compound | |
Mechanical resistance | Rms | 1.19 kg/s |
Voice coil diameter | ø | 25 mm |
Voice coil winding height | 12 mm | |
Max. linear excursion | Xmax | +/- 3 mm |
Outer diameter | ø | 102 mm / 4.01" |
Installation diameter | ø | 92.3 mm / 3.63" |
Installation depth | 46.5 mm / 1.83" | |
Recommended enclosure volumes | ||
Sealed box | ||
Net volume | 3 L | |
Lower limiting frequency (-3dB) | 100 Hz |
