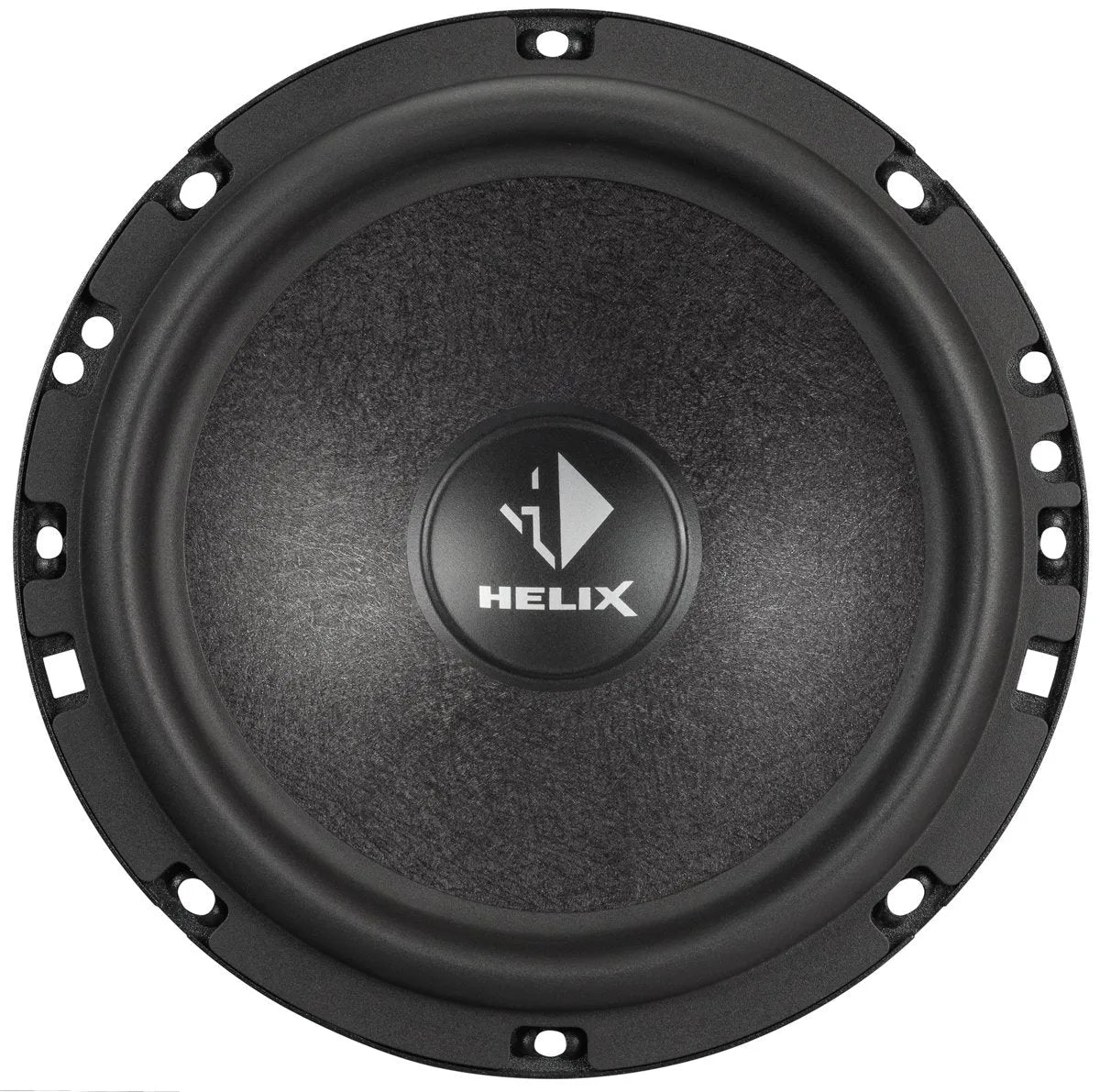

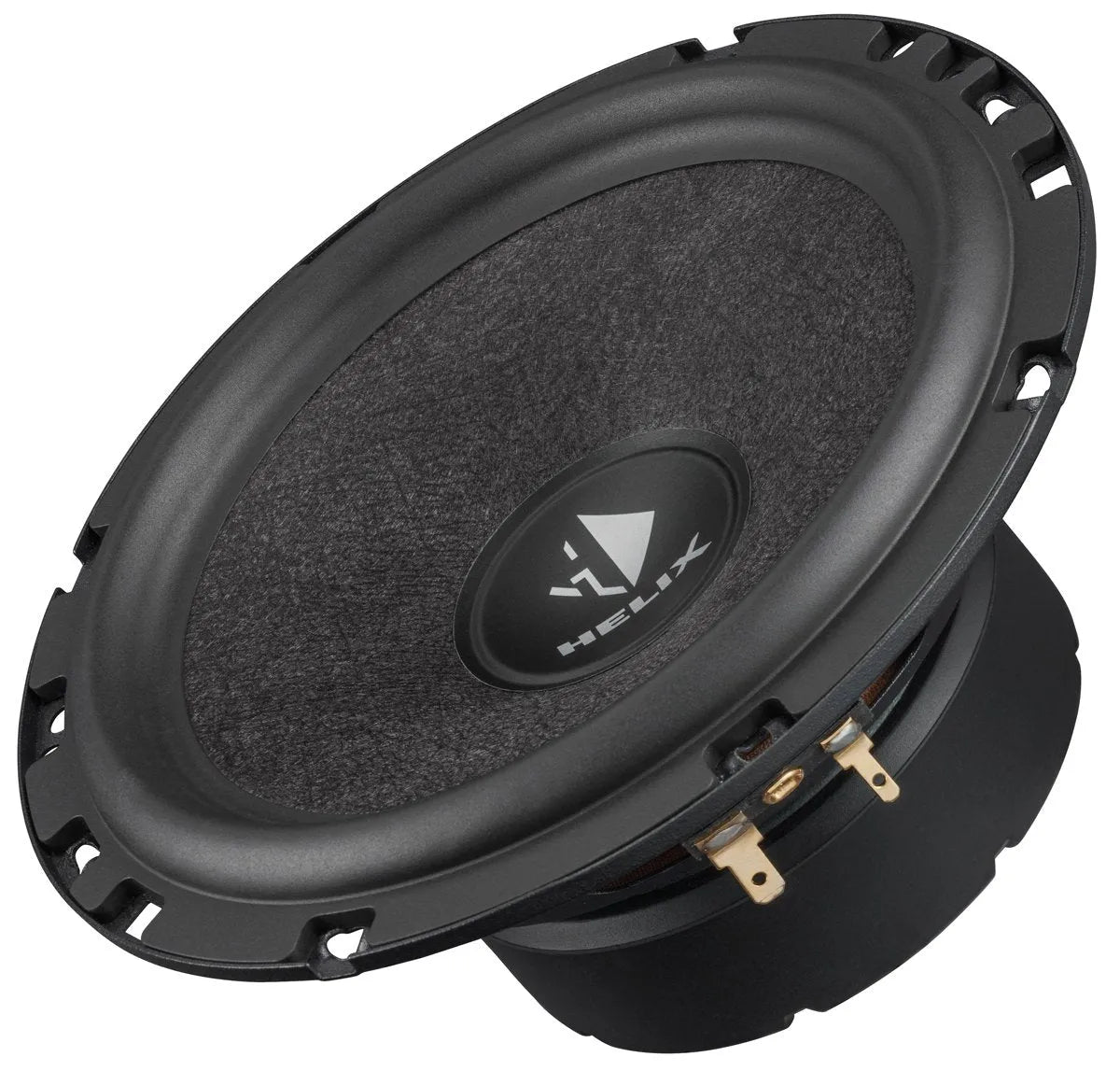

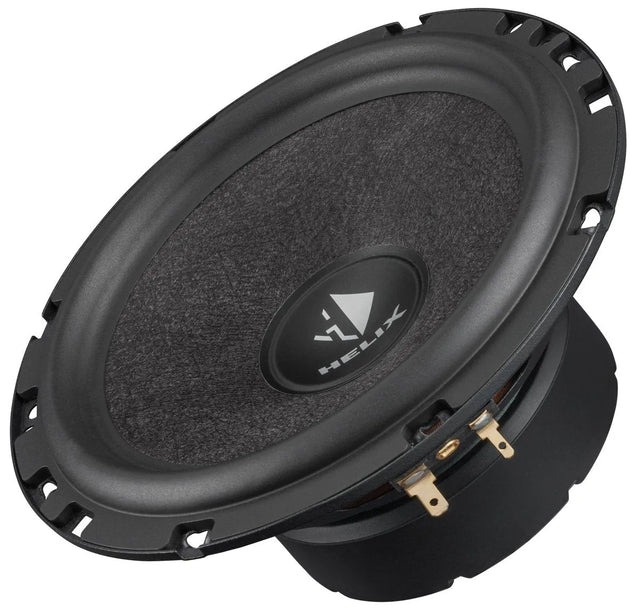

Garsiakalbiai Helix S 6B, 200W, vidutinių / žemų dažnių

149.00 €

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

  • Galia: RMS 100W / MAX 200 W
  • Dažnių diapazonas: 45 Hz - 4000 Hz
  • Jautrumas: 90 dB 1W/1m
  • Varža: 4 Omai
  • Montavimo gylis: 65 mm
  • Rezonansinis dažnis: 67 Hz
  • Montavimo skersmuo: 143 mm
  • Išorinis skersmuo: 165 mm

Komplekte 2 vnt.

Elegant designed mid-woofer trimmed for maximum sound quality.
The extremely rigid cone consists of a novel basalt-fiber-paper compound – the perfect combination to guarantee clear and straight sound even at high volume levels. Beside a powerful bass reproduction and peerlessly neutral mids, the S 6B impresses with exceptionally low distortion.

A dream team is the combination with the S 1T tweeter that ideally complements the frequency range. Together with an Audiotec Fischer power amplifier, the S loudspeakers strike up to top form and provide the perfect basis for absolute top sound systems!

  • 6.5” / 165 mm mid-woofer with novel basalt-fiber-paper compound cone – a perfect combination of lowest weight, high stiffness and inner damping
  • Specially shaped rubber surround for larger effective cone area and increased maximum excursion
  • Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
  • Rugged rubber magnet boot with HELIX-logo
  • Gold-plated terminals
Power RMS / max. P 100 / 200 Watts
Impedance  Z 4 Ω
DC resistance  Re 3.4 Ω
Frequency response   45 Hz - 4,000 Hz
Resonance frequency  Fs 67 Hz
Mechanical Q factor  Qms 3.87
Electrical Q factor  Qes 0.96
Total Q factor Qts 0.77
Compliance Cms 370 μm/N
Equivalent air volume Vas 10.3 L
Force factor  B*I 4.8 Tm
Efficiency 1 W / 1 m SPL 90 dB
Cone area  Sd 141 cm²
Moving mass  Mms 14.8 g
Cone material   Basalt-fiber-paper compound
Mechanical resistance  Rms 1.64 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height   12 mm
Max. linear excursion  Xmax +/- 3 mm
Outer diameter ø 165 mm / 6.50"
Installation diameter ø 143 mm /  5.63"
Installation depth   65 mm / 2.56"

Recommended enclosure volumes
Sealed box
Net volume   9 L
Lower limiting frequency (-3dB)   75 Hz

Pakuotėje

  • 2 x Mid-woofer HELIX S 6B
  • 1 x Mounting material
  • 1 x Data sheet
  • 1 x Mounting pattern
    Garsiakalbiai Helix S 6B, 200W, vidutinių / žemų dažnių Garsiakalbiai Helix AUTOGARSAS.LT
    Helix

    Garsiakalbiai Helix S 6B, 200W, vidutinių / žemų dažnių

    149.00 €

    Komplekte 2 vnt.

    APRAŠYMAS

    Elegant designed mid-woofer trimmed for maximum sound quality.
    The extremely rigid cone consists of a novel basalt-fiber-paper compound – the perfect combination to guarantee clear and straight sound even at high volume levels. Beside a powerful bass reproduction and peerlessly neutral mids, the S 6B impresses with exceptionally low distortion.

    A dream team is the combination with the S 1T tweeter that ideally complements the frequency range. Together with an Audiotec Fischer power amplifier, the S loudspeakers strike up to top form and provide the perfect basis for absolute top sound systems!

    SAVYBĖS

    TECHNINIAI DUOMENYS

    Power RMS / max. P 100 / 200 Watts
    Impedance  Z 4 Ω
    DC resistance  Re 3.4 Ω
    Frequency response   45 Hz - 4,000 Hz
    Resonance frequency  Fs 67 Hz
    Mechanical Q factor  Qms 3.87
    Electrical Q factor  Qes 0.96
    Total Q factor Qts 0.77
    Compliance Cms 370 μm/N
    Equivalent air volume Vas 10.3 L
    Force factor  B*I 4.8 Tm
    Efficiency 1 W / 1 m SPL 90 dB
    Cone area  Sd 141 cm²
    Moving mass  Mms 14.8 g
    Cone material   Basalt-fiber-paper compound
    Mechanical resistance  Rms 1.64 kg/s
    Voice coil diameter ø 25 mm
    Voice coil winding height   12 mm
    Max. linear excursion  Xmax +/- 3 mm
    Outer diameter ø 165 mm / 6.50"
    Installation diameter ø 143 mm /  5.63"
    Installation depth   65 mm / 2.56"

    Recommended enclosure volumes
    Sealed box
    Net volume   9 L
    Lower limiting frequency (-3dB)   75 Hz

    Pakuotėje

    Žiūrėti produktą
    • Galia: RMS 100W / MAX 200 W
    • Dažnių diapazonas: 45 Hz - 4000 Hz
    • Jautrumas: 90 dB 1W/1m
    • Varža: 4 Omai
    • Montavimo gylis: 65 mm
    • Rezonansinis dažnis: 67 Hz
    • Montavimo skersmuo: 143 mm
    • Išorinis skersmuo: 165 mm

    Komplekte 2 vnt.

    Elegant designed mid-woofer trimmed for maximum sound quality.
    The extremely rigid cone consists of a novel basalt-fiber-paper compound – the perfect combination to guarantee clear and straight sound even at high volume levels. Beside a powerful bass reproduction and peerlessly neutral mids, the S 6B impresses with exceptionally low distortion.

    A dream team is the combination with the S 1T tweeter that ideally complements the frequency range. Together with an Audiotec Fischer power amplifier, the S loudspeakers strike up to top form and provide the perfect basis for absolute top sound systems!

    • 6.5” / 165 mm mid-woofer with novel basalt-fiber-paper compound cone – a perfect combination of lowest weight, high stiffness and inner damping
    • Specially shaped rubber surround for larger effective cone area and increased maximum excursion
    • Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
    • Rugged rubber magnet boot with HELIX-logo
    • Gold-plated terminals
    Power RMS / max. P 100 / 200 Watts
    Impedance  Z 4 Ω
    DC resistance  Re 3.4 Ω
    Frequency response   45 Hz - 4,000 Hz
    Resonance frequency  Fs 67 Hz
    Mechanical Q factor  Qms 3.87
    Electrical Q factor  Qes 0.96
    Total Q factor Qts 0.77
    Compliance Cms 370 μm/N
    Equivalent air volume Vas 10.3 L
    Force factor  B*I 4.8 Tm
    Efficiency 1 W / 1 m SPL 90 dB
    Cone area  Sd 141 cm²
    Moving mass  Mms 14.8 g
    Cone material   Basalt-fiber-paper compound
    Mechanical resistance  Rms 1.64 kg/s
    Voice coil diameter ø 25 mm
    Voice coil winding height   12 mm
    Max. linear excursion  Xmax +/- 3 mm
    Outer diameter ø 165 mm / 6.50"
    Installation diameter ø 143 mm /  5.63"
    Installation depth   65 mm / 2.56"

    Recommended enclosure volumes
    Sealed box
    Net volume   9 L
    Lower limiting frequency (-3dB)   75 Hz

    Pakuotėje

    • 2 x Mid-woofer HELIX S 6B
    • 1 x Mounting material
    • 1 x Data sheet
    • 1 x Mounting pattern
