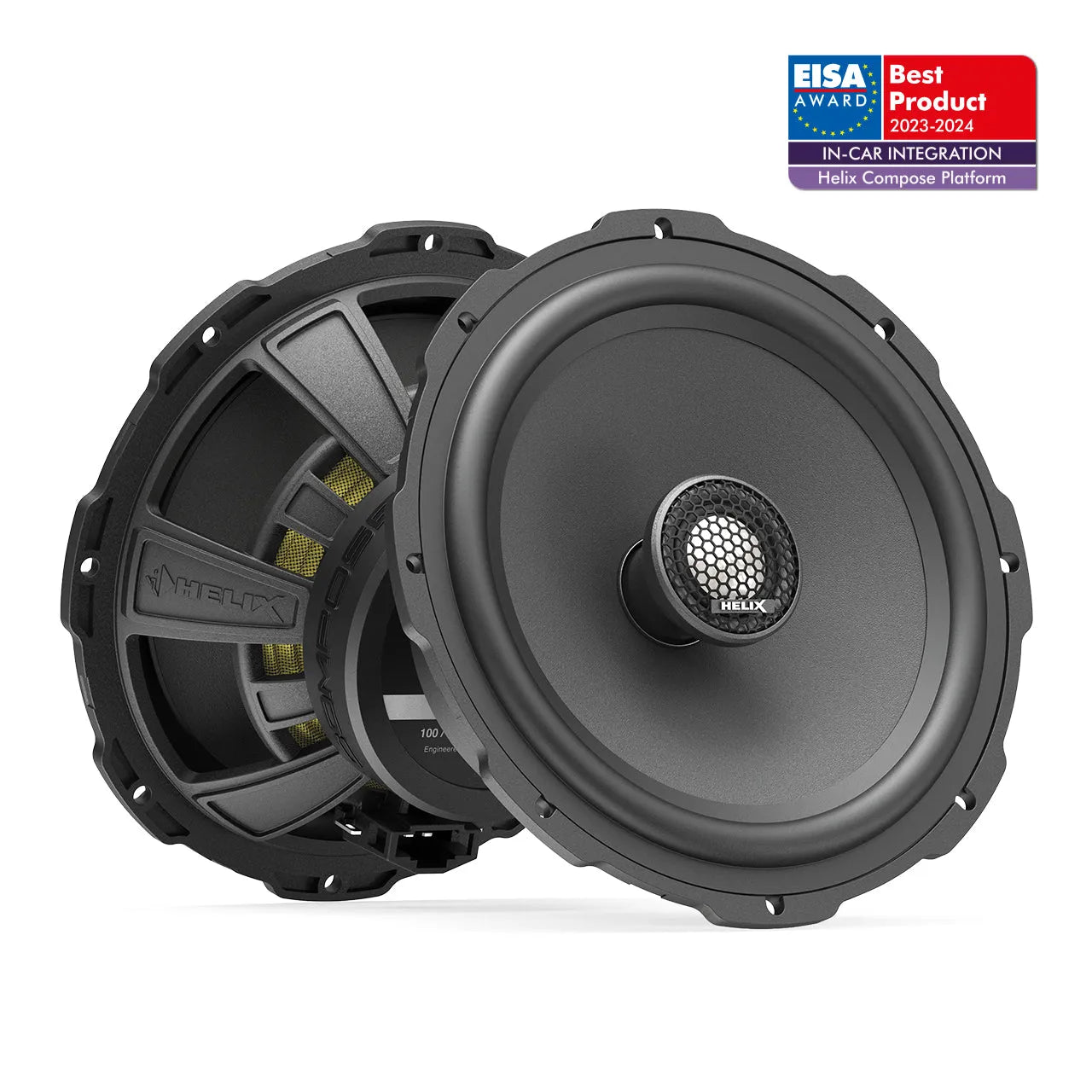

Helix Ci3 C165.2FM-S3, koaksialinis automobilinis garsiakalbis

HELIX COMPOSE i3 serija yra aukščiausios kokybės atskira serija, pasižyminti puikiu kainos ir kokybės santykiu.

• Rekomend. stiprintuvo galia: 100W (RMS).
• Dažnių juosta: 60 Hz - 25,000 Hz.
• Jautrumas SPL 92 dB @ 2.83V / 1m.
• Varža: 3 Omai.

APRAŠYMAS

The HELIX COMPOSE i3 series is a top-quality 2-way coaxial with an excellent price/quality ratio.

The ohmic rating of the Compose series speakers is optimised for Helix/Match DSP processors.

The Compose i3 series uses the highest quality materials:

- Titanium calotte tweeter with excellent sound quality.

- The midbass has a very lightweight, coated paper cone for accurate and detailed reproduction.

- The body of the midbass is made of a polymer composite, reinforced with glass beads to obtain a very rigid and non-tracking material.

- High-performance magnets.

- Integrated high quality split filter with 6dB overhead filter


One of the key elements of the Compose series is a patented mounting system called FlexMount, based on specially developed speaker adapters.
This technology allows you to mount i3 speakers on an almost infinite number of car models by simply changing the fitting ring to suit your car.

FlexMount adaptor rings are either supplied with the speaker or can be purchased separately ( be sure to check out our FlexMount range ).

The i3 series is compatible with all FlexMount, FlexConnect, ProConnect and WireKits adapters.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

Power handling RMS / Max. P 100 / 150 Watts
Frequency response 60 Hz - 25,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 92 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Outer diameter ø 165.0 mm / 6.50”
Installation diameter ø 142.0 mm / 5.59”
Installation depth 60.7 mm / 2.39”

Midbass
Impedance Z 3 Ω
DC resistance Re 3.1 Ω
Resonance frequency Fs 72 Hz
Mechanical Q factor Qms 4.02
Electrical Q factor Qes 1.04
Total Q factor Qts 0.82
Compliance Cms 466 μm/N
Equivalent air volume Vas 11.5 L
Force factor B*l 3.8 Tm
Cone area Sd 133 cm2
Moving mass Mms 10.4 g
Mechanical resistance Rms 1.17 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height

10.5 mm
Max. linear excursion Xmax +/- 3.2 mm

Tweeter
Voice coil diameter ø 20 mm

Features
Tweeter Titanium dome and neodymium magnet
Midbass
Paper with Cenosphere coating, ProConnect terminal
and FlexMount165

Crossover Integrated, 6 dB highpass

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
