Helix Compose Ci3 K165.2FM-S3 MK2, 150W, 16.5cm komponentiniai garsiakalbiai

INFORMACIJA

HELIX COMPOSE i3 serija yra aukščiausios kokybės atskira serija, pasižyminti puikiu kainos ir kokybės santykiu.

• Rekomend. stiprintuvo galia: 100W (RMS).
• Dažnių juosta: 60 Hz - 25,000 Hz.
• Jautrumas SPL 92 dB @ 2.83V / 1m.
• Varža: 3 Omai.

APRAŠYMAS

The HELIX COMPOSE i3 series is a top-quality standalone series with an excellent price/quality ratio.

Compose Series speakers are optimised for Helix/Match DSP processors.

The Compose i3 series are made of high quality materials:

- Titanium calotte tweeter with excellent sound quality.

- The midbass has a very lightweight, coated paper cone for accurate and detailed reproduction.

- The body of the midbass is made of a polymer composite, reinforced with glass beads to obtain a very rigid and non-tracking material.

- High-performance magnets.

- Separate high quality split filter with 6-step treble level control.


One of the key elements of the Compose series is a patented mounting system called FlexMount, based on specially developed speaker adapters.
This technology allows you to mount i3 speakers on an almost infinite number of car models by simply changing the fitting ring to suit your car.

FlexMount adaptor rings are either supplied with the speaker or can be purchased separately ( be sure to check out our FlexMount range ).

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

Power handling RMS / Max. P 100 / 150 Watts
Frequency response 60 Hz - 25,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 92 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Outer diameter ø
Tweeter: 32.0 mm / 1.26”
Midbass: 165.0 mm / 6.50”

Installation diameter ø
Tweeter: 32.0 mm / 1.26”
Midbass: 142.0 mm / 5.59”

Installation depth
Tweeter: 9.8 mm / 0.39”
Midbass: 60.7 mm / 2.39”

Dimensions crossover
103.3 x 50.4 x 25.0 mm /
4.07 x 1.98 x 0.98”


Midbass
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 70 Hz
Mechanical Q factor Qms 4.17
Electrical Q factor Qes 1.05
Total Q factor Qts 0.84
Compliance Cms 454 μm/N
Equivalent air volume Vas 11.2 L
Force factor B*l 4.0 Tm
Cone area Sd 133 cm2
Moving mass Mms 11.3 g
Mechanical resistance Rms 1.18 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height

10.5 mm
Max. linear excursion Xmax +/- 3.2 mm

Tweeter
Impedance Z 4 Ω
Resonance frequency Fs 1800 Hz
Voice coil diameter ø 20 mm

Features
Tweeter
Ultra compact, titanium dome, neodymium magnet and FlexMount20

Midbass
Paper with Cenosphere coating, ProConnect terminal and FlexMount165

Crossover
Tweeter: 12 dB highpass, protection and level adjustment
Midbass: 6 dB lowpass

Compatibility
FlexMount20
FlexMount165
WireKits

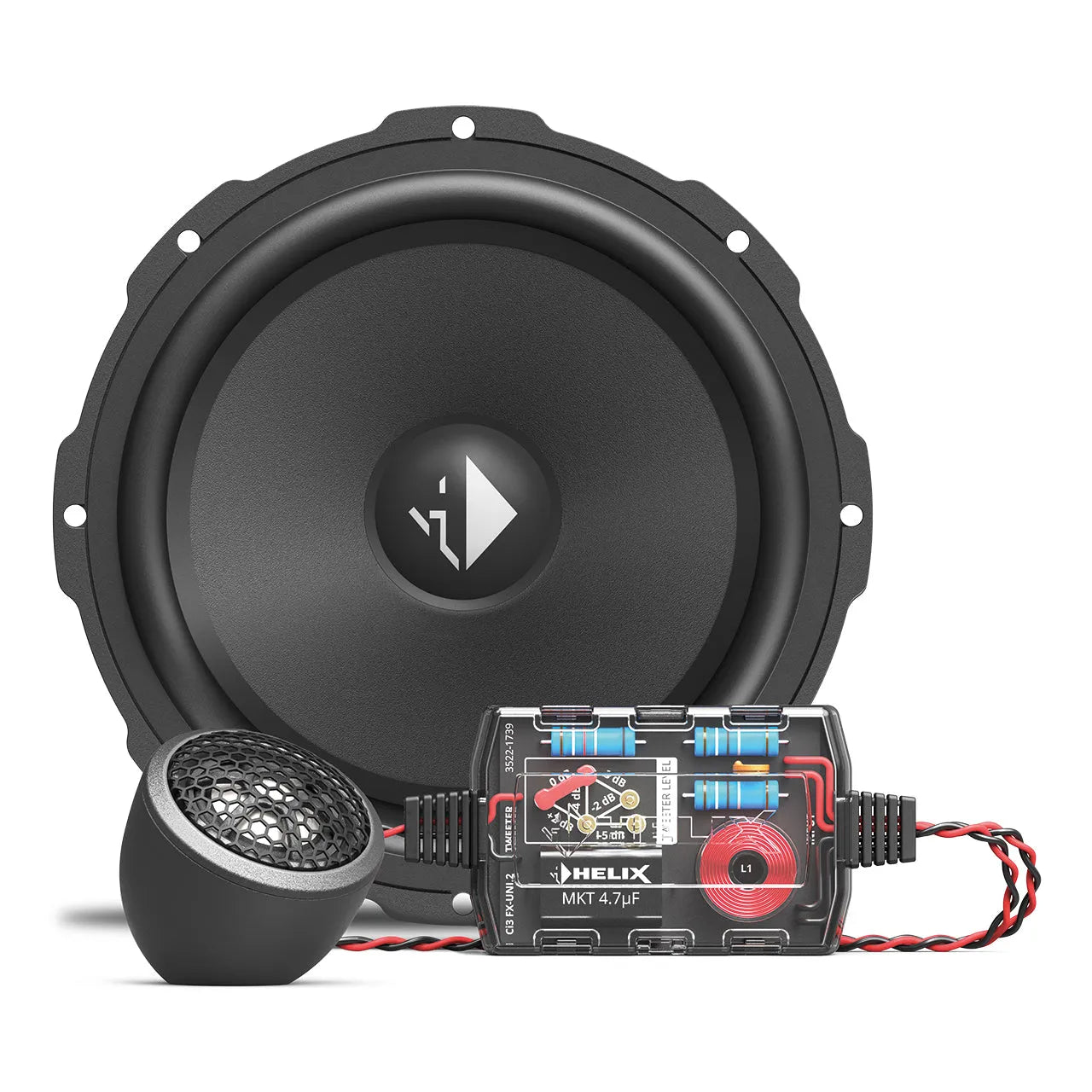

Scope of delivery
2 x Tweeter Ci3 T20FM-TI
2 x Midbass Ci3 W165FM-S3
2 x Crossover Ci3 FX-UNI.2
2 x Lowpass cable crossover Ci3 FX-WLP.2
2 x Tweeter mounting accessories
2 x COMPOSE Connect Kit
1 x Mounting material

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
