Helix Compose I7 - Ci7 T20FM-SC, aukštų dažnių automobilinis garsiakalbis

Helix Compose I7 - Ci7 T20FM-SC, aukštų dažnių automobilinis garsiakalbis

"Helix Compose" - tai geriausia "Helix" patirtis, preciziškas gamybos procesas ir aukščiausios kokybės garsas.

• Dažnių juosta: 1500 Hz - 30000 Hz.

• Jautrumas ( SPL ): 93 dB @ 2.83V / 1m, 90 dB @ 1W / 1m.
• Varža: 4 Omai.

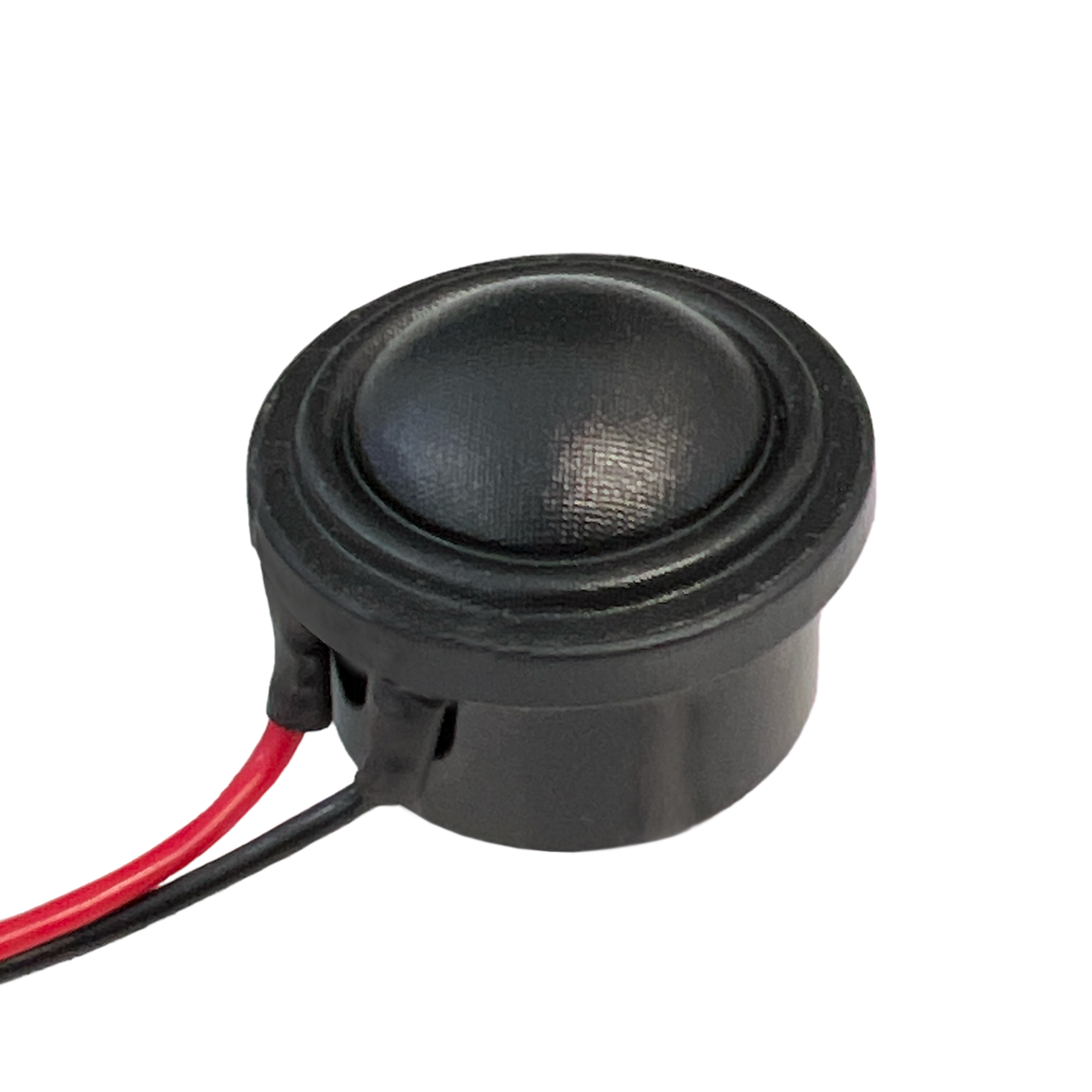

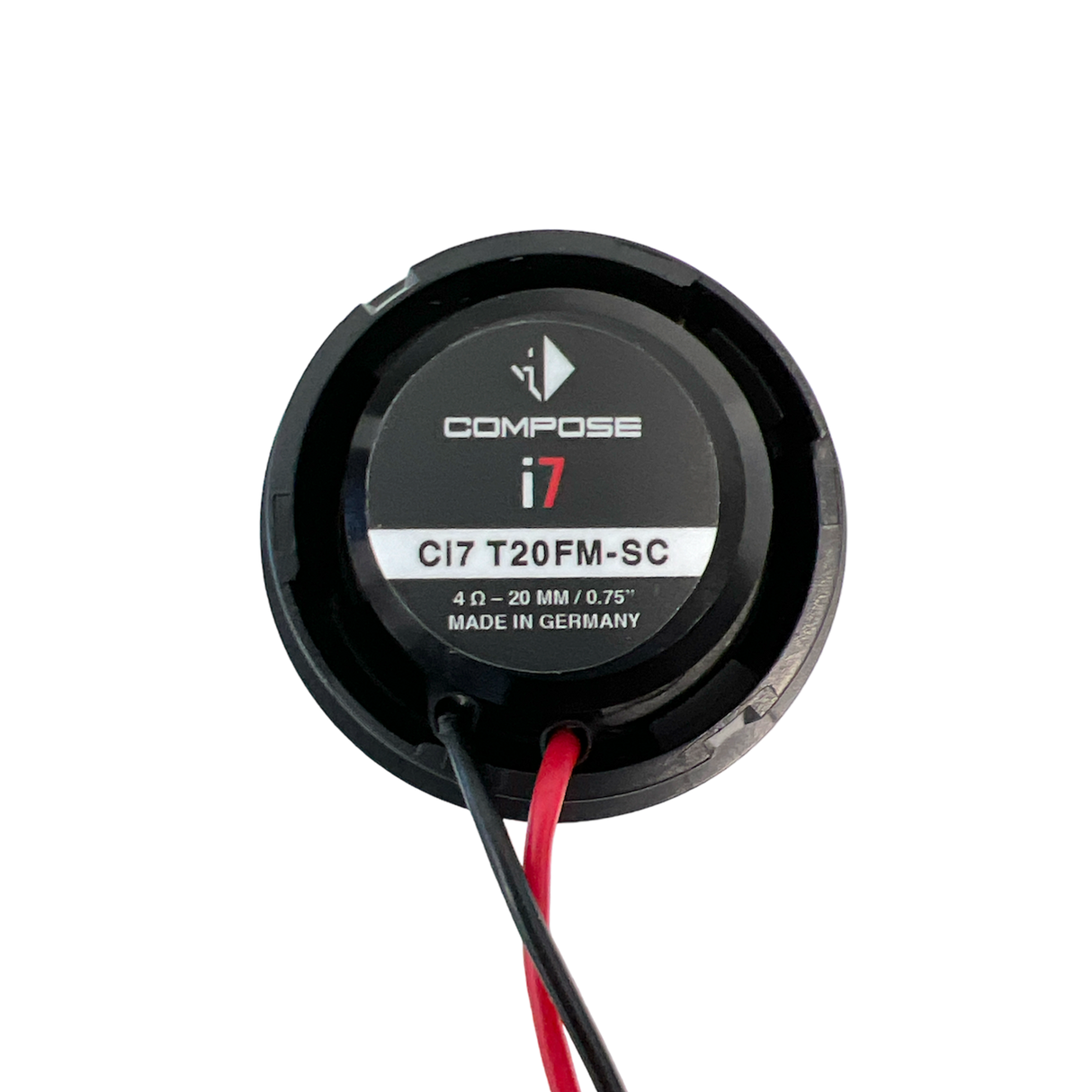

Helix Compose i7 High-end tweeter with hand-coated silk cone.

Compose Series speakers are optimised for Helix/Match DSP processors.

Helix Compose represents the best of Helix's expertise, precision manufacturing process and top-quality sound.

With over 30 years of experience, Helix Compose sets new standards in the car speaker market.

SPECIFIKACIJOS

Size without housing:
Tweeter outer Ø 32.00
Mounting Ø 27.2mm
Mounting depth: 19mm

Impedance: 4 Ohm
DC resistance: ( Re ) 3.4 Ohm
Frequency response: 1500 Hz - 30000 Hz
Sensitivity ( SPL ): 93 dB @ 2.83V / 1m, 90 dB @ 1W / 1m
Voice coil diameter: 20mm
Cone material: Silk dome with coupling volume

Recommended crossover frequencies for the highpass:

Slope 6dB/octave│minmum crossover frequency 4000Hz

Slope 12 dB /octave│minmum crossover frequency 3000Hz

Slope 24 dB /octave│minmum crossover frequency 2500Hz

Compatibility
FlexMount20

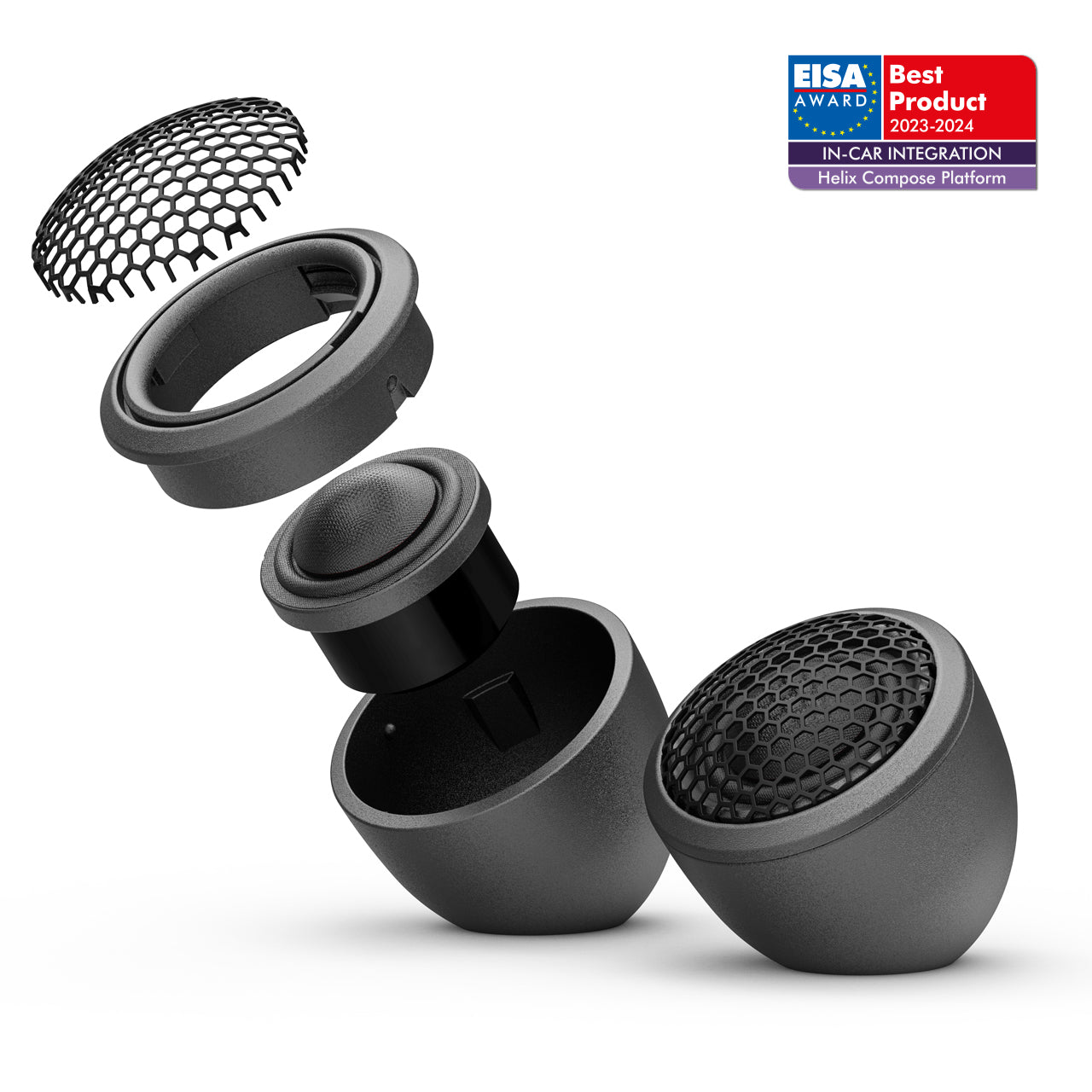

Scope of delivery
2 x Ci7 T20FM-SC
2 x Tweeter flush mount
2 x Tweeter pod
2 x Extension cable
2 x Mounting material

INSTRUKCIJOS

User Manual (EN).
