Helix

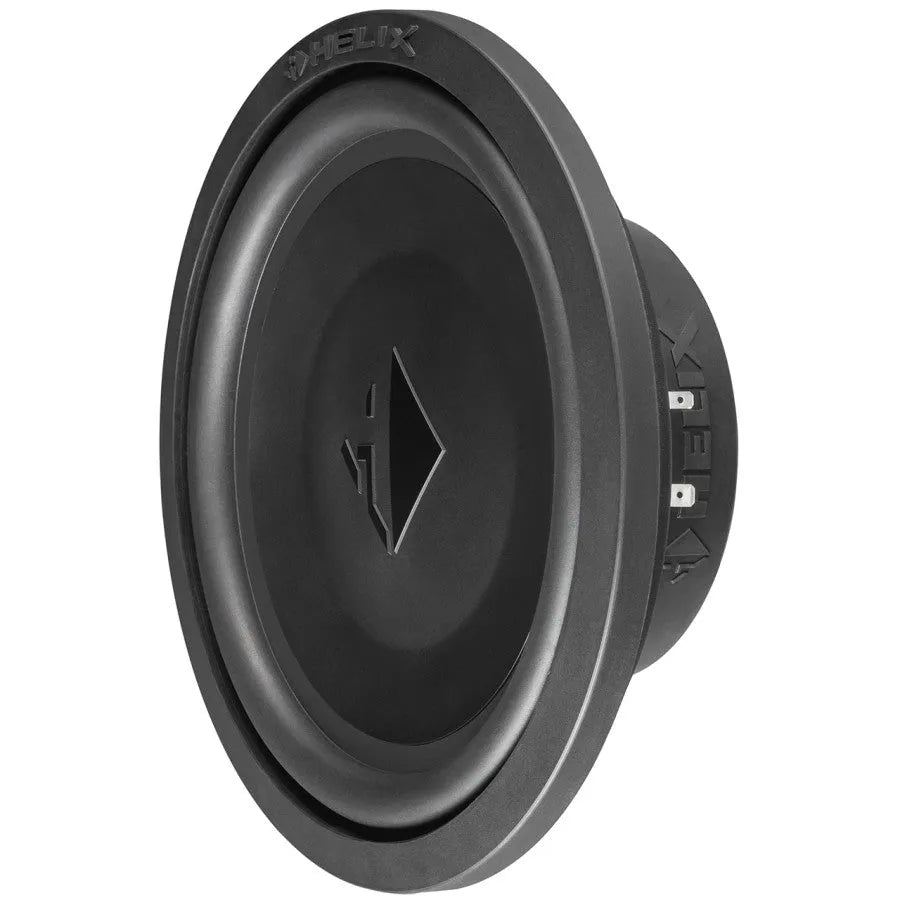

Helix IK S10-SVC2, žemų dažnių garsiakalbis

199.00 €

Helix IK S10-SVC2, žemų dažnių garsiakalbis yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

Naudojan „HELIX IK S“ žemųjų dažnių garsiakalbius pajusite tobulus žemus dažnius iš plokščio korpuso.

  • Rekomend. stiprintuvo galia; 300 / 600 W.
  • Jautrumas: 93.0 dB @ 2.83V / 1m.
  • Varža: 1 x 2 Ω.

HELIX IK S10

With the shallow HELIX IK S subwoofers, the realization of particularly flat and compact enclosure designs shouldn’t be a problem anymore. Its extremely low installation depth opens up new installation possibilities that do not require making any acoustic compromises at all. Additionally, thanks to the use of large voice coils and its low resonant frequency, the HELIX IK S series delivers an absolutely stunning bass performance, which is in no way inferior to larger dimensioned woofers.

The enormously stiff sandwich paper cone in conjunction with our heavy-duty drive system easily converts amplifier power into powerful sound pressure without any compression effects, while simultaneously demonstrating finesse when it comes to more subtle beats. A special highlight: the magnet system has a threaded hole on the back and thus allows the woofer to be fixed to the back panel of the enclosure. Since every millimeter of depth counts in flat constructions, enclosure vibrations are effectively reduced – even with thin walls.

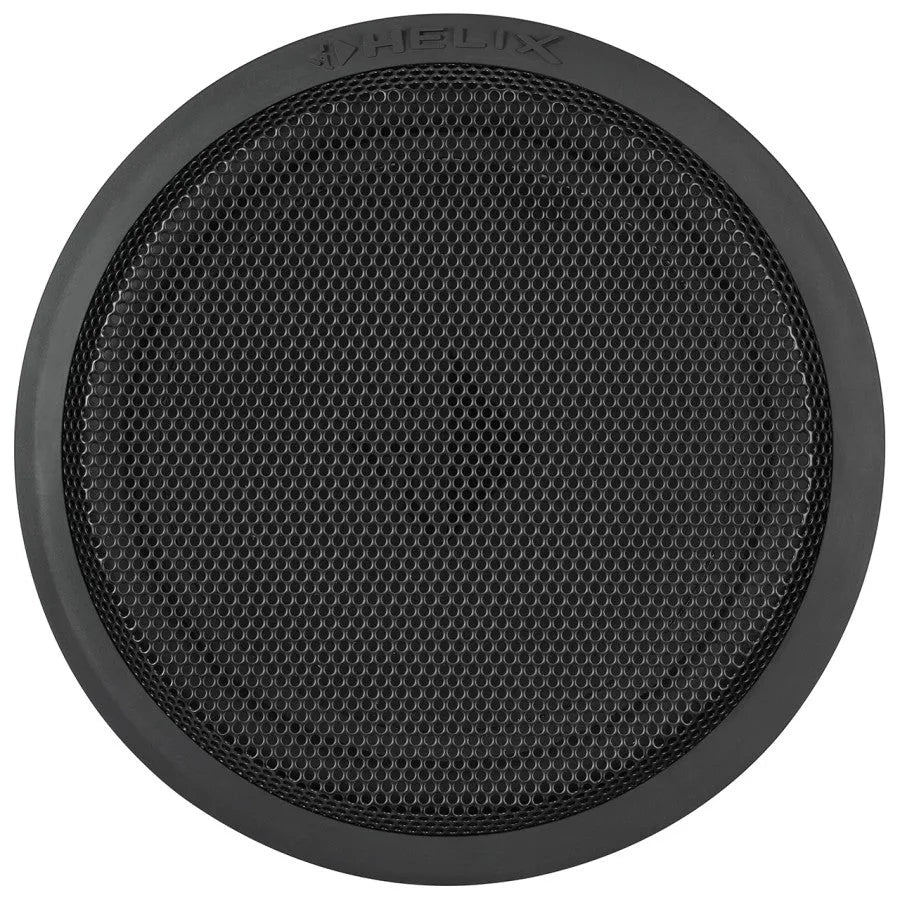

In addition to the high-quality connection terminal with gold-plated screw terminals, a solid protective grille and gasket are also included. For optimal bass performance in DIY installations you can find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency or DSP settings in our technical data sheet.

Features

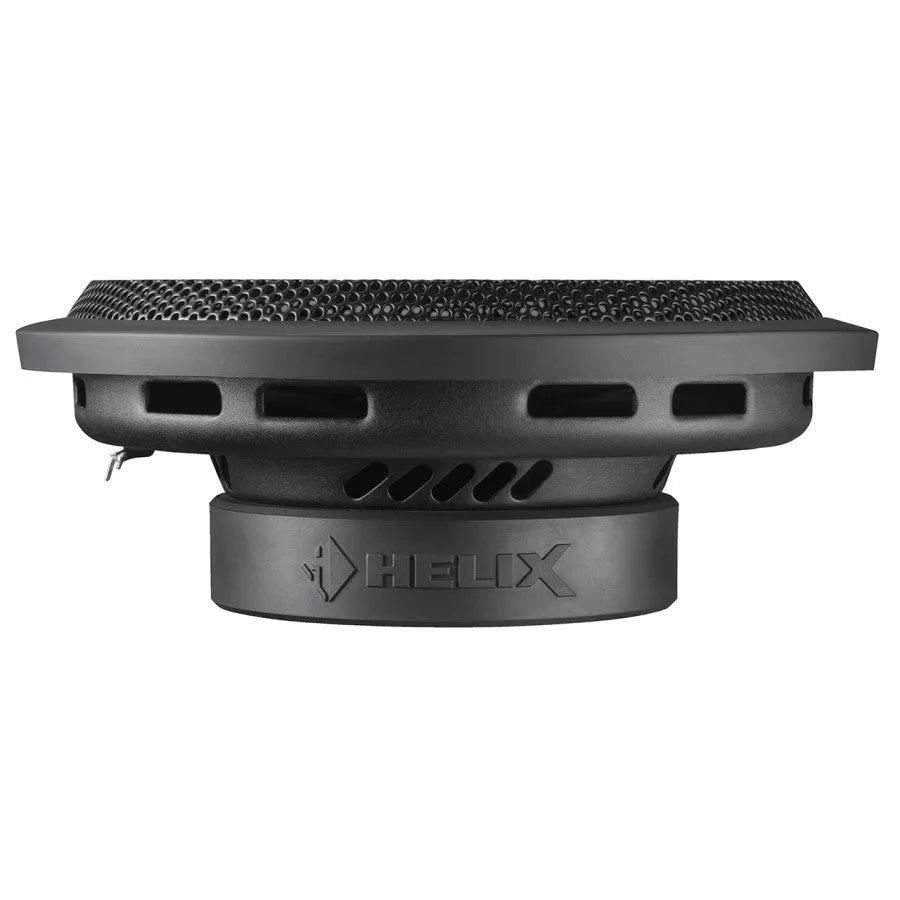

  • Chassis with particularly low installation depth – optimized for compact and shallow enclosure constructions
  • 1 x 2 Ohms single voice coil
  • Magnet system with threaded hole on the back – allows screwing to the back panel of the enclosure for stabilization and reduction of enclosure vibrations
  • Extremely stiff sandwich paper cone
  • Long-excursion rubber surround for highest mechanical rating
  • Rugged magnet cover with HELIX lettering for perfect magnet protection
  • Enclosure connection terminal, grille and gasket included in delivery

SPECIFIKACIJOS

Power handling RMS / max. P 300 / 600 Watts
Impedance  Z 1 x 2 Ω
DC resistance  Re 2.0 Ω
Resonance frequency  Fs 37 Hz
Mechanical Q factor  Qms 7.61
Electrical Q factor  Qes 0.54
Total Q factor Qts 0.51
Compliance Cms 150 μm/N
Equivalent air volume Vas 26 L
Force factor  B*I 10.1 Tm
Sensitivity  SPL 93.0 dB @ 2.83V / 1m
87.0 dB @ 1W / 1m
Cone area  Sd 353 cm²
Moving mass  Mms 119 g
Cone material   Sandwich paper cone
Mechanical resistance  Rms 3.7 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height   18 mm
Max. linear excursion  Xmax +/- 6.0 mm
Outer diameter ø 262 mm / 10.31"
Installation diameter ø 229 mm / 9.01"
Installation depth   84,5 mm / 3.33"

Recommended enclosure volumes
Sealed box
Net volume   14 L
Lower limiting frequency (-3dB)   46 Hz
Recommended DSP settings   Recommended "self-define" highpass filter with 45 Hz cut-off frequency and Q = 1.3;
additional EQ filter 100 Hz / Q = 1.0 / -3 dB

Vented box
Net volume   16 L
Port diameter ø 70 mm / 2.76"
Port area   38 cm²
Port length   38 cm / 14.96"
Port tuning frequency Fb 37 Hz
Lower limiting frequency (-3dB)   39 Hz
Recommended DSP settings   Recommended "self-define" highpass filter with 37 Hz cut-off frequency and Q = 1.2;
additional EQ filter 95 Hz / Q = 0.7 / -3 dB
