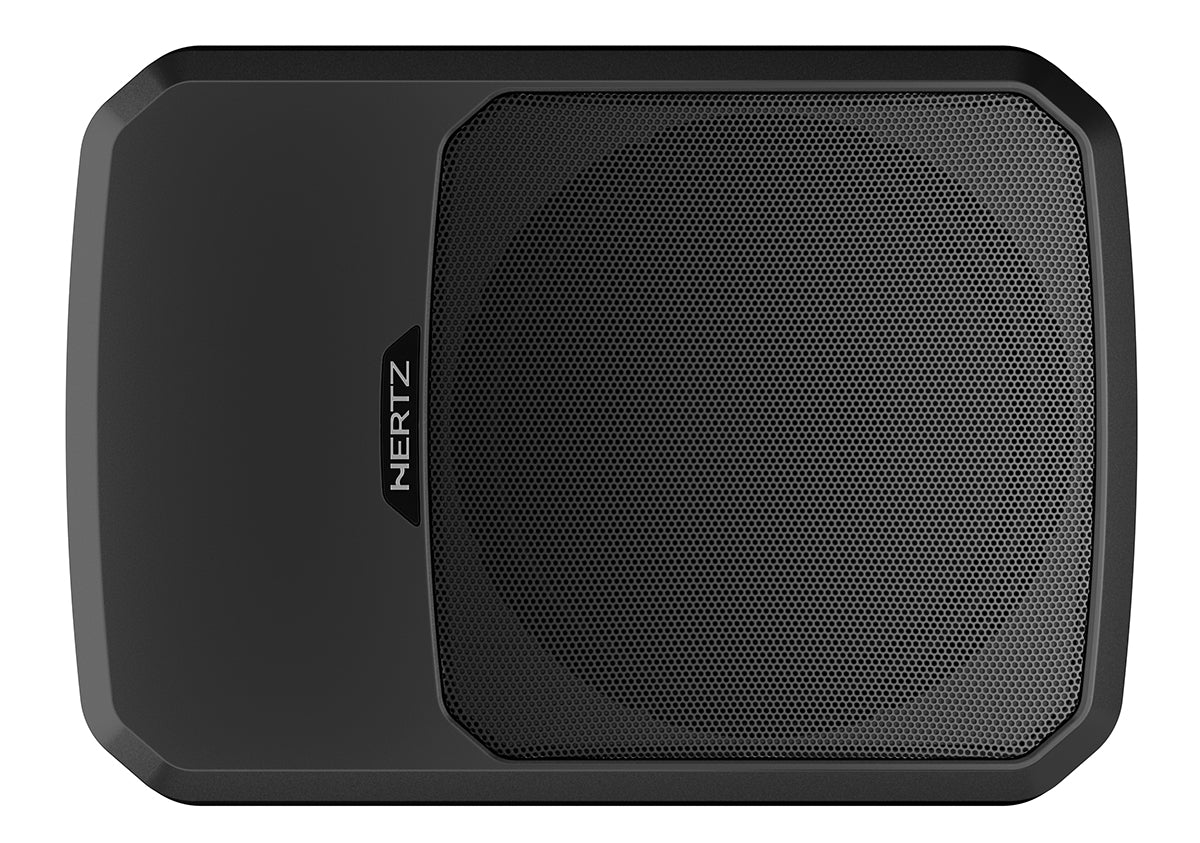

Hertz DBA 201 F, aktyvi žemų dažnių kolonėlė automobiliui, 440W

INFORMACIJA

Hertz DBA 201 F - tai plona aktyvi žemų dažnių kolonėlė su integruotu stiprintuvu, sukurta automobiliui, norintiems maksimalaus boso efekto užimant minimaliai vietos. Jos 8 colių garsiakalbis su galingu magnetu ir optimizuota korpuso konstrukcija užtikrina gilų, precizišką bosą, kad kiekviena kelionė virstų koncertu ant ratų.

 Garsiakalbio dydis: 200 mm (8 col.)
 Galia (RMS): 220 W, pikinė galia: 440 W
 Varža: 0,4 Ω
 Dažnių diapazonas: 32 – 400 Hz
 Signalo ir triukšmo santykis: 100 dBA

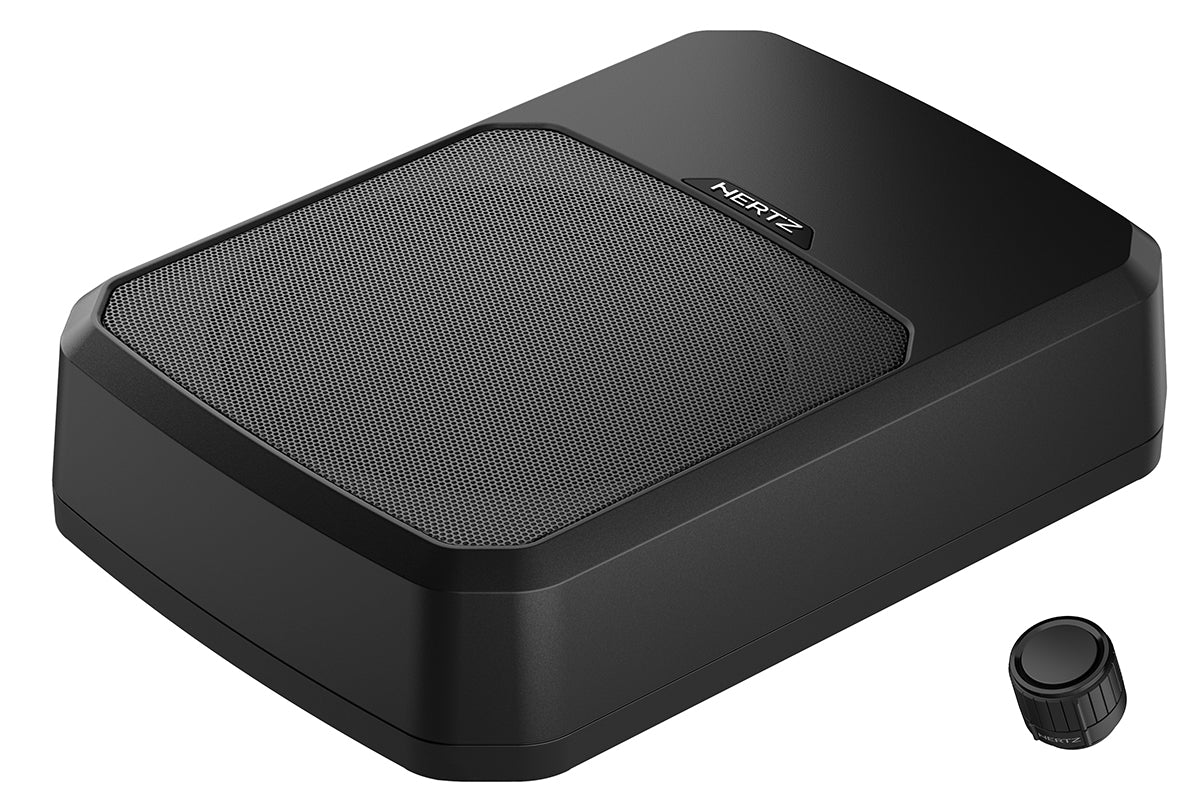

 Papildomas nuotolinis garsumo valdymas: dB 0 ÷ -15 (komplekte pridedamas HRC 01)

APRAŠYMAS

The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.

Extra full set of controls to fine-tune the in-car performance

The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 F to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 F and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

Auto turn-on and standby mode

The built-in audio sense circuit allows the DBA 201 F to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.

DBA 201 active subwoofer

Imagine cruising down the highway, feeling every beat thump through your car. That’s what the Hertz Audio DBA 201 Subwoofer Box is all about. It’s like having a concert in your car, with deep, rich bass that’ll make you never want to leave your vehicle.

And hey, installation? Piece of cake. No need to stress about complicated setups. Just pop this bad boy in your car, and you’re good to go. Trust us, your ears will thank you.

High performance in a compact stylish design

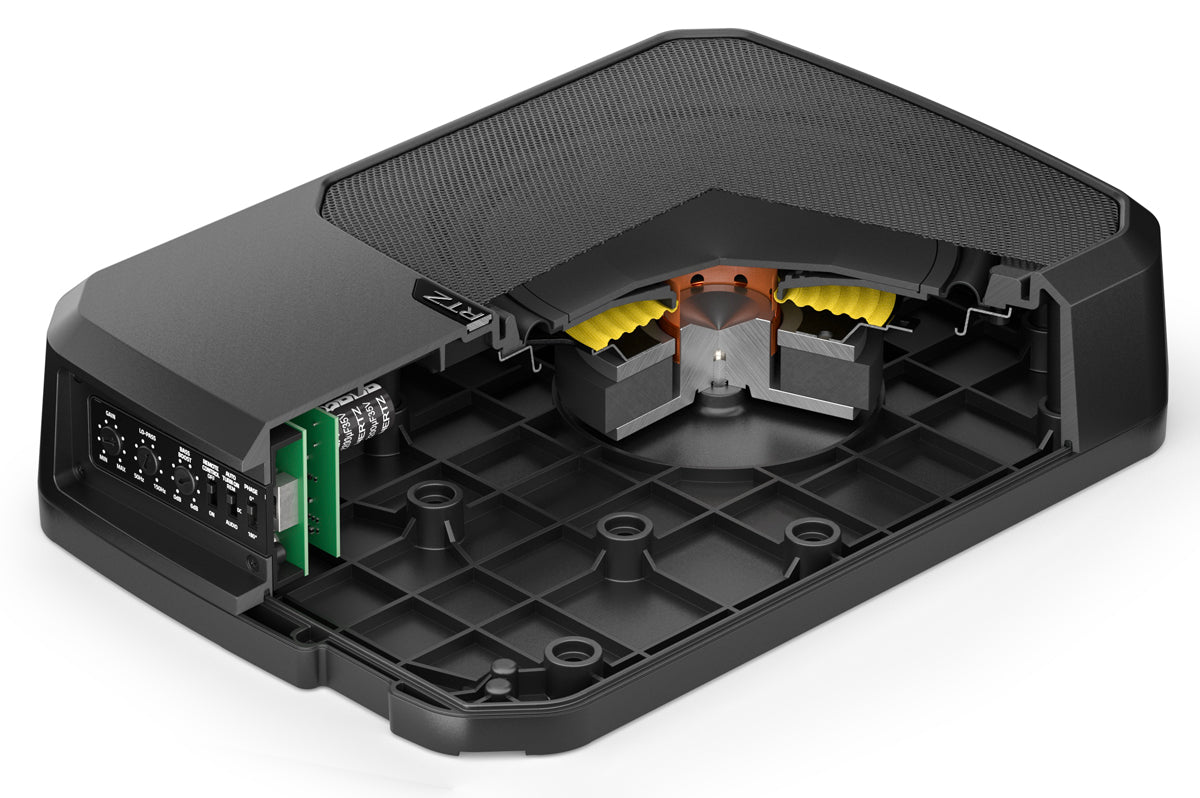

The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.

The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.

DBA 201 F Flat Active Subwoofer

Now, if you’re all about that sleek, minimalist vibe, then the Hertz Audio DBA 201 F Flat Active Subwoofer is right up your alley. This thing is slim, but don’t let its size fool you – it packs a serious punch. Plus, with its built-in amplifier, you’ll get that powerful bass without cluttering up your car with extra gear.

High performance in a super flat design

The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.

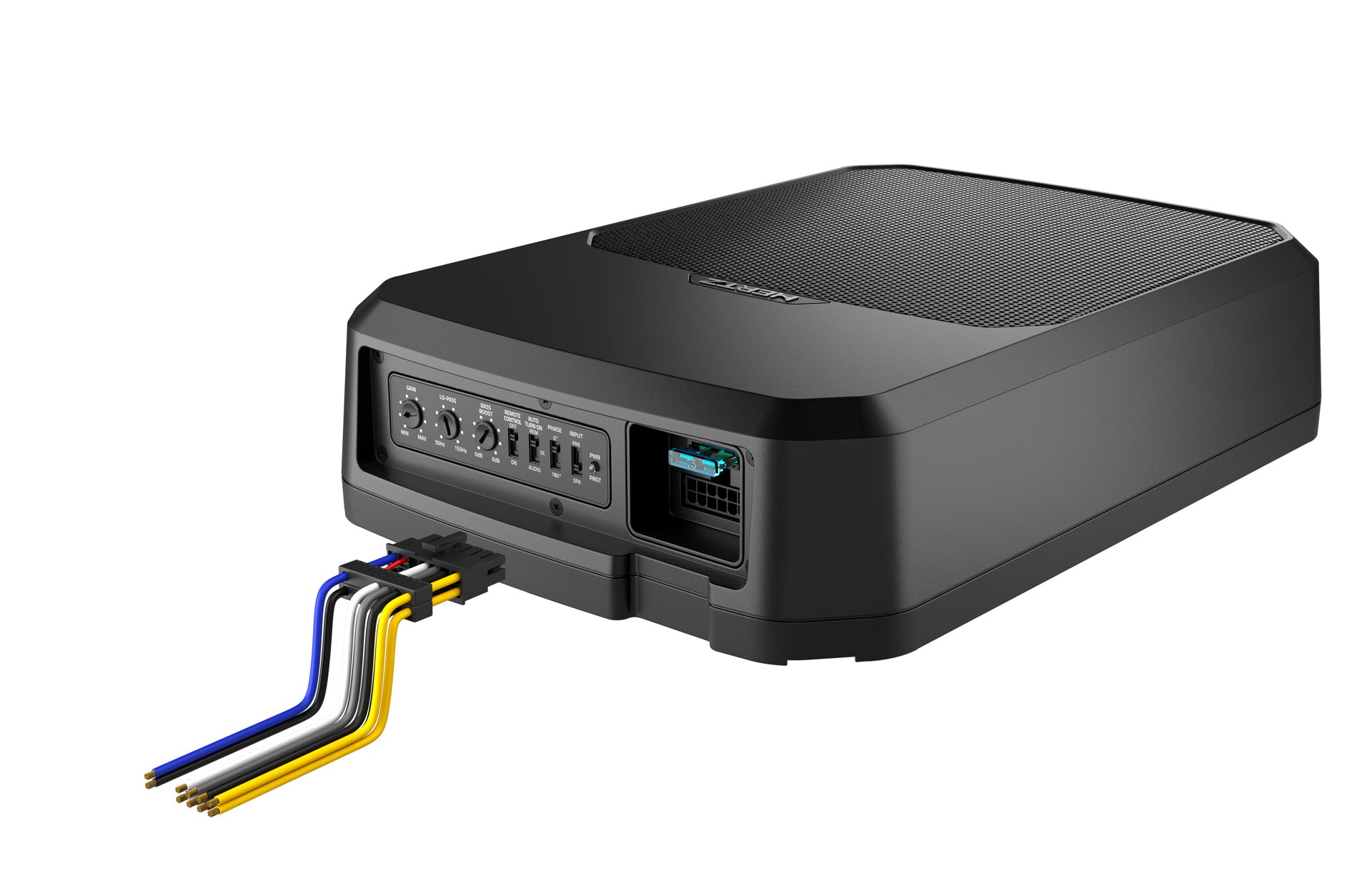

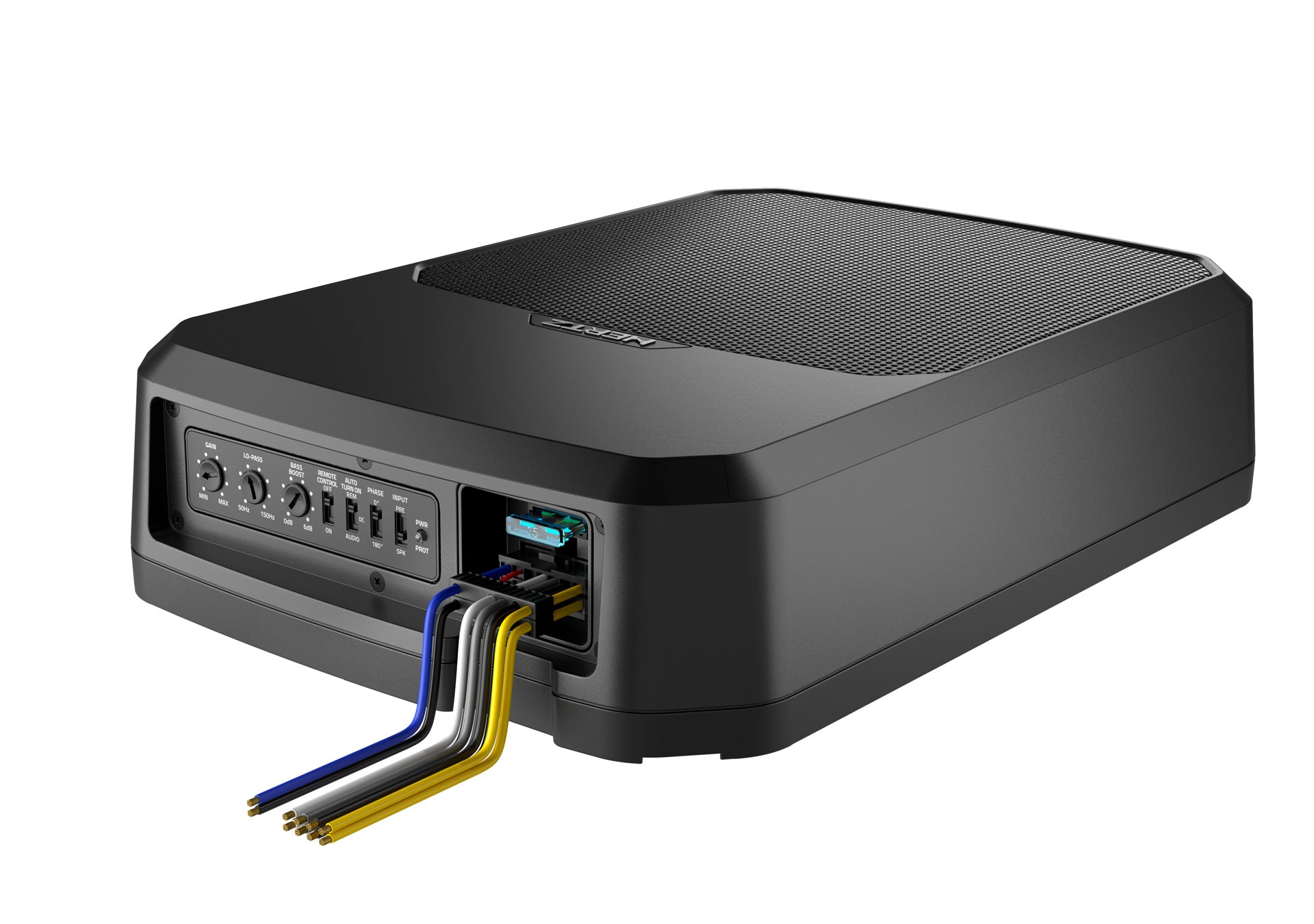

DBA 201 F and DBA 201 are designed to easily release via a Plug & Play Molex® and harness, which includes the power connection. When you need extra cargo room, you can quickly unplug and remove the box.

DBA 201 and DBA 201F share the 440 W Class D amplifier provides an unmatched performance/size ratio, drawing less current from the vehicle’s electrical system. He-Li technology (high efficiency/low impedance) is optimized for the 0.4 Ω load of the DBA 201 subwoofer drivers, and the sealed enclosure.

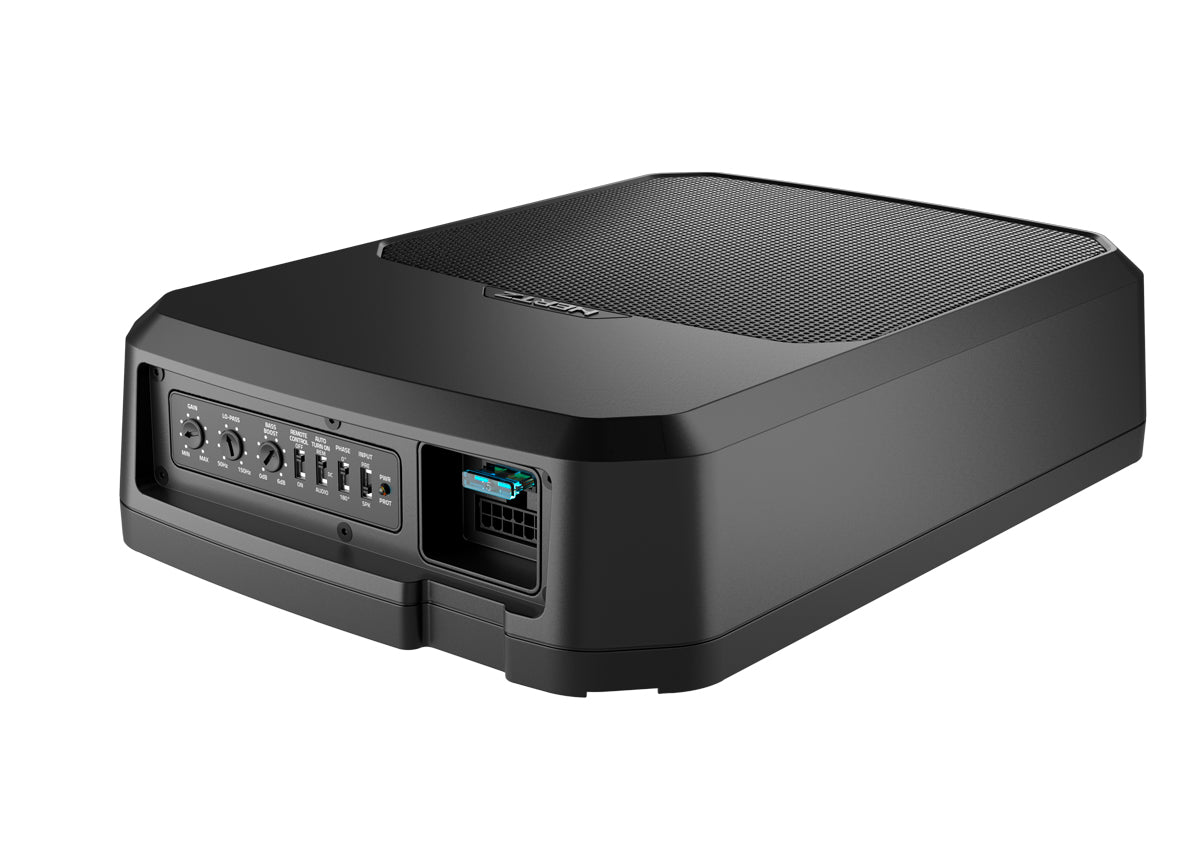

Extra full set of controls to fine-tune the in-car performance

The built-in 24 dB/Oct. low-pass crossover filter with variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass-boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protect the cone from over excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

DBA 201 and DBA 201F can handle speaker-level signals up to 30 volts (1.2V – 30 V rms) and includes USS for OEM systems and handles RCA line-level signals as well (0.2mV – 5 V rms) from aftermarket systems. Thanks to the low idling current and wide operating supply voltage (6.5V – 18V) DBA 201 F is fully EV (Electrical Vehicle) friendly.

TECHNINIAI DUOMENYS

Physical Specs

	mm	in
A	345	13.58
B	245	9.64
C	79	3.11



DOKUMENTAI

Vartotojo vadovas (EN)
