Hertz HCP 2MX, Vandens transportui skirtas garso stiprintuvas

Vandens transportui skirtas 2-jų kanalų garso stiprintuvas, kuris užtikrins kokybišką garsą Jūsų kateryje ar jachtoje.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 81.00 €
Kaina: 236.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Hertz HCP 2MX, Vandens transportui skirtas garso stiprintuvas

Vandens transportui skirtas 2-jų kanalų garso stiprintuvas, kuris užtikrins kokybišką garsą Jūsų kateryje ar jachtoje.

  • Galia: 200 W x 2 (2 Ω).
  • Kanalų rėžimas: 2 - 1.
  • Lo-Pass bei Hi-Pass filtrai.
  • THD: 0.03 %.
  • S/N dažnis: 105 dB.

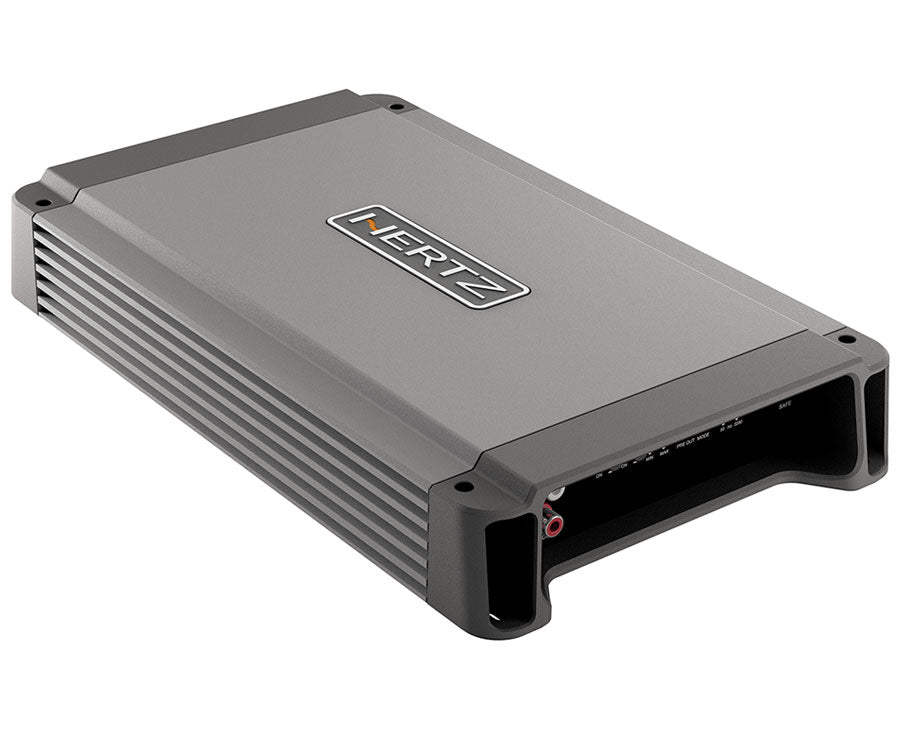

HCP 2 MX  marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier. Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results. The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. More specifically HCP 2 MX features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer.

Technologies



  • AB-CLASS OUTPUT STAGE

    Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 Ω stable output stage.
  • CORROSION PROTECTION

    Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marine grade (epoxy coated) PCB boards.
  • SALT FOG TESTED

    To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
  • WATER JET TESTED

    The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.
  •



    SPECIFIKACIJOS

    Channel mode 2 - 1
    Output Power (RMS)
    @ 14.4 VDC
    2 Ch: 120 W x 2 (4Ω)
    2 Ch: 200 W x 2 (2Ω)
    1 Ch: 400 W x 1 (4Ω)
    Filters
    Bypass
    Hi-Pass
    Lo-Pass
    Band-Pass
    Subsonic

    -
    50 ÷ 3200 Hz @ 12 dB/Oct.
    50 ÷ 3200 Hz @ 12 dB/Oct.
    -
    -
    Distortion - THD
    (100Hz @ 4Ω)
    0,03 %
    S/N Ratio
    (A weighted @ 1V)
    105 dB
    Damping factor
    (100Hz @ 4Ω)
    300
    Size W x D x H
    mm (in.)
    315 x 190 x 50 (12.40 x 7.48 x 1.97)





    INSTRUKCIJOS

    User Manual (EN).
