Hertz

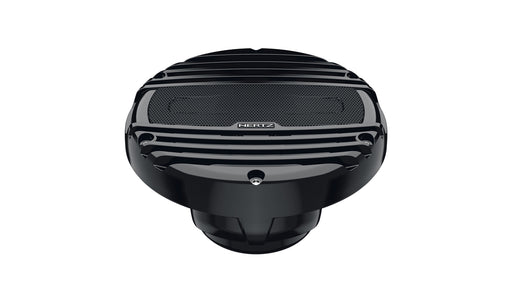

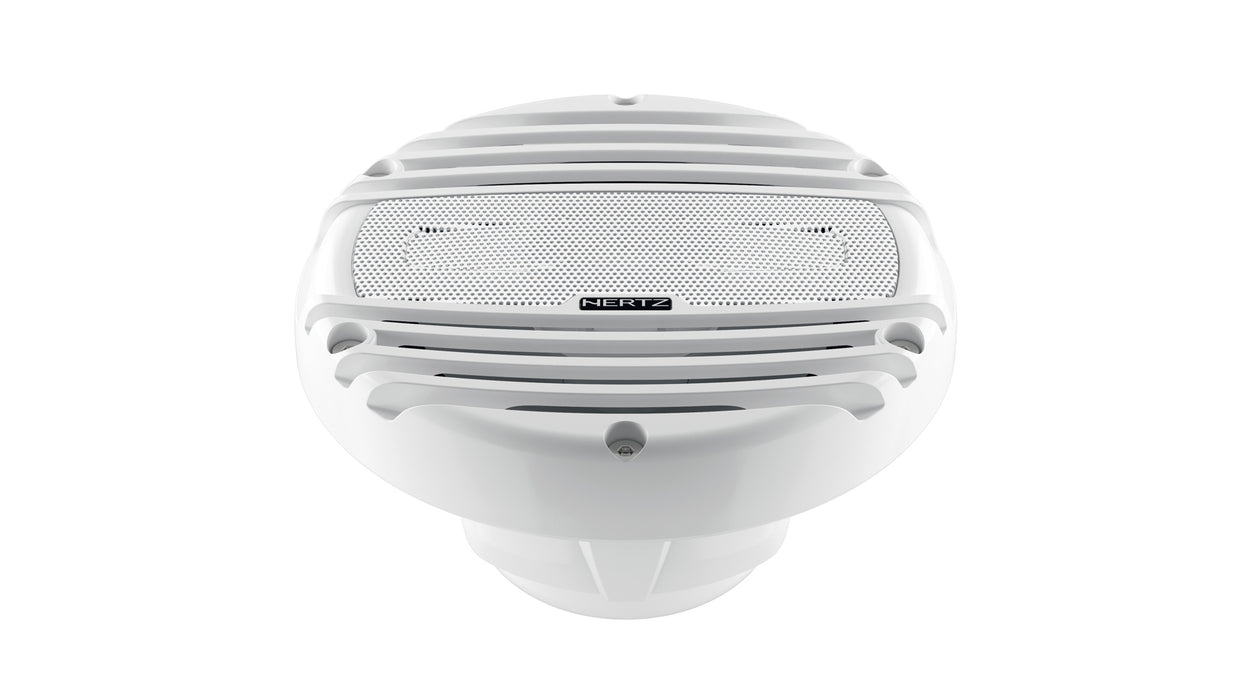

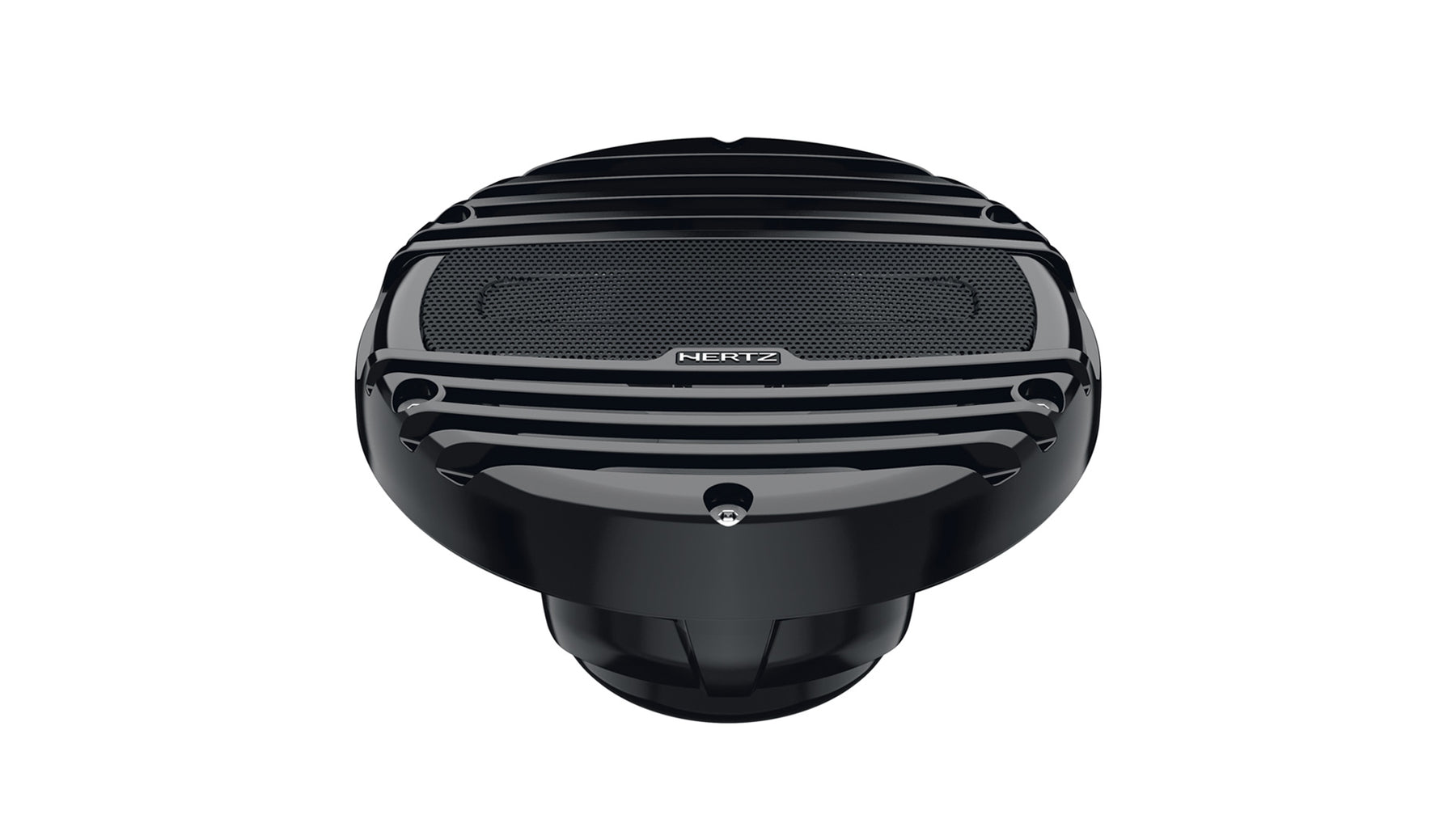

Hertz HMX 6.5 TW / TC, 6.5" Marine Hi-End koaksialiniai garsiakalbiai 150W

HMX 6.

€225.00 EUR

Hertz HMX 6.5 TW / TC, 6.5" Marine Hi-End koaksialiniai garsiakalbiai 150W - Juoda - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Pristatymas

Lietuvoje siuntas pristatome iki durų DPD kurjeriu per 1-2 darbo dienas, už 4.99€. Užsisakius virš 100€ - pristatymas nemokamas.

Siuntų pristatymas už Lietuvos ribų per 4-10 darbo dienų. Pristatymo kainos nuo 15.00€.

Prekių atsiėmimas parduotuvėje

Užsakytas prekes internetu galite atsiimti mūsų parduotuvėje adresu Armatūrininkų g. 1, Kaunas. Turėkite su savimi užsakymo nr.

Prieš atvykstant rekomenduojame pasiskambinti +370 683 90000

Darbo laikas: I-V 9:00-18:00

INFORMACIJA

.5 LD-TW aukštos kokybės jūriniai koaksialiniai garsiakalbiai su RGB šviesos diodų apšvietimo galimybe, taip pat juodos spalvos HMX 6.5 LD-TC variantas, pasižymi prie grotelių spalvos derančiu toniniu priekiniu tinkleliu.

  • Rekomend. stiprintuvo galia: 75W.
  • Dažnių juosta: 50 ÷ 25k.
  • Varža: 4 Omai.



APRAŠYMAS

HMX 6.5 TW hi-performance marine coaxial speakers, also available in the black option HMX 6.5 TC,  features a tone-on-tone stainless steel front mesh matching the grille colour. Coaxial speaker is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The  tweeter feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The UV resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
Features

1. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
2. 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
3. Sound-transparent tone-on-tone stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
4. Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
5. Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
6. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
7. Sealed built-in crossover with resettable solid-state tweeter protection circuit.
8. Gold-plated corrosion resistant terminals.

Technologies
HMX 6.5 TW / TC
IP CERTIFICATION

‘

HMX 6.5 TW / TC
WATER JET TESTED

The protection grade IP65 for speakers define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

HMX 6.5 TW / TC
UV RESISTANT

According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine products are designed to face long time exposition to UV radiations while cruising on the open sea.

HMX 6.5 TW / TC
SALT FOG TESTED

To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS



Component HI-END COAX
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 75
Power Handling - Peak W 150
Impedance Ohm 4
Depth mm (in.) 95,6 (3.76)
Tweeter diaphragm mm (in.) 36 (1.4)
Woofer Voice Coil Ø mm (in.) 25 (1)
Tweeter Voice Coil Ø mm (in.) 20 (0.8)
Frequency Response Hz 50 ÷ 25k
Woofer Magnet size D x d x h mm (in.) 78,5 x 32 x 17 (3.09 x 1.26 x 0.67)
Tweeter Magnet size D x h mm (in.) 19,7 x 3 (0.78 x 0.12)
Weight of one speaker kg (lb.) 1 (2.2)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Polypropylene with UV inhibitors
Dome PEI
Xmech mm (in.) ±6,65 (0.26)
Technical Specs
D mm 125
Re Ohm 3,5
Fs Hz 65
Le mH 0,53
Vas I 8,8
Mms g 14
Cms mm/N 0,4
BL T*m 5,2
Qts 0,7
Qes 0,75
Qms 11,5
Spl dB 89

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
