Hertz MPBX 250 S2, automobilinė žemų dažnių kolonėlė

410.00 €

Hertz MPBX 250 S2, automobilinė žemų dažnių kolonėlė yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

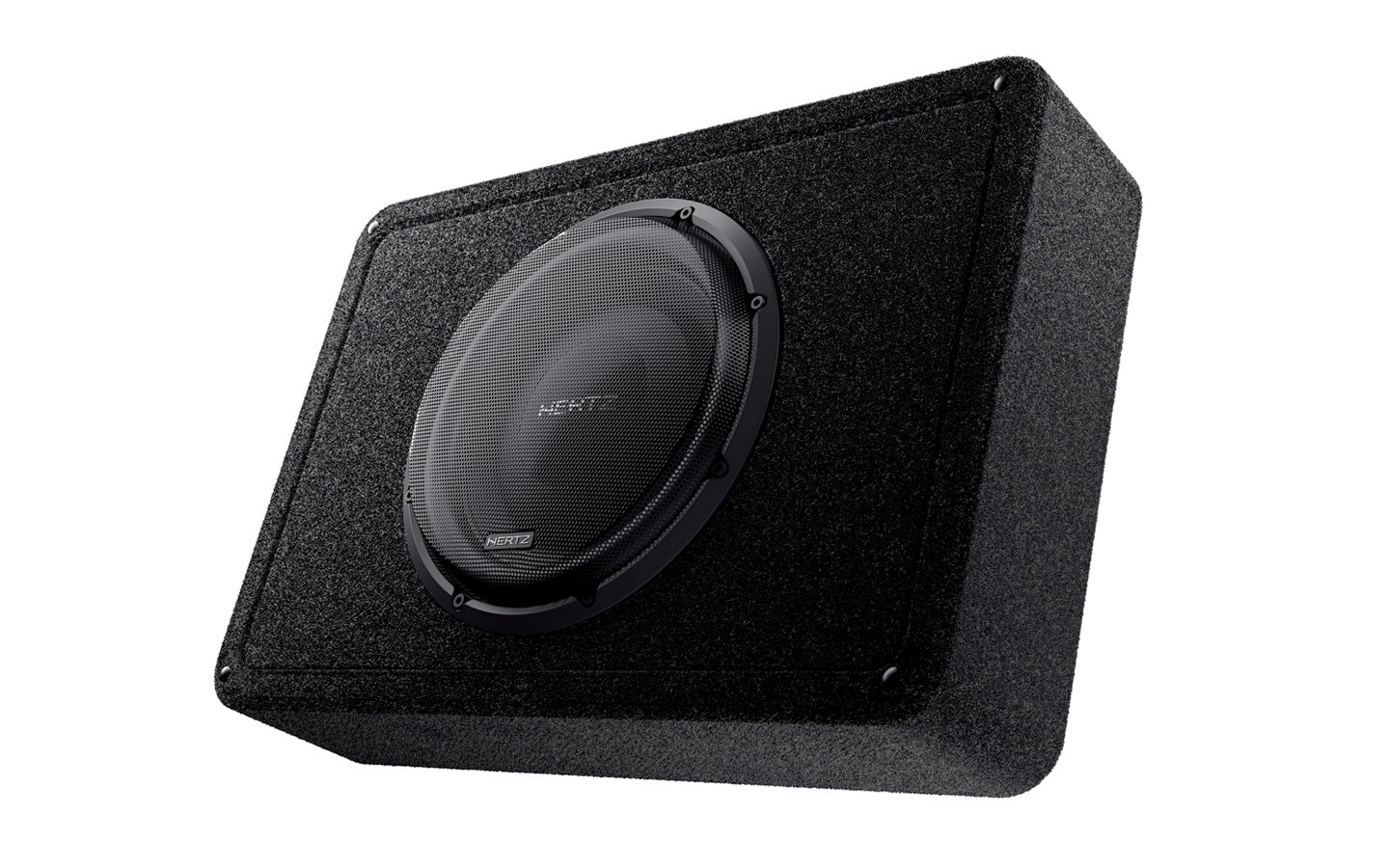

MPBX 250 S2 itin seklus sandarus korpusas yra specialiai optimizuotas taip, kad užtikrintų visas MPS 250 S2 žemųjų dažnių garsiakalbio savybes.

  • Rekomend. stiprintuvo galia: 500W.
  • Dažnių juosta: 25 - 400 Hz.
  • Varža: 2 Omai.



MPBX 250 S2 ultra-shallow sealed enclosure is specifically optimized to deliver all the MPS 250 S2 subwoofer performances. The enclosure structure features incomparable robustness thanks to 15 mm (0.59 in.) wood thickness. Internal sound-absorbing material virtually increases the box's volume and reduces acoustic resonances. Panel-to-panel internal bracing with solid corners minimizes resonances and round corners ease the placement.  2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting, through supplied feet with Hook-and-loop inserts, to increase the low-frequency extension, and Up-Firing installation to obtain more punch and definition. SSP (Sub Smart Plug) features both Plug-&-Play terminal block and traditional push terminals providing bulletproof connection and quick release.

MPBX 250 S2
  1. Ultra-shallow sealed enclosure specifically optimized to deliver all the MPS 250 S2 subwoofer performance.
  2. 15 mm (0.59 in.) wood thickness for incomparable robustness.

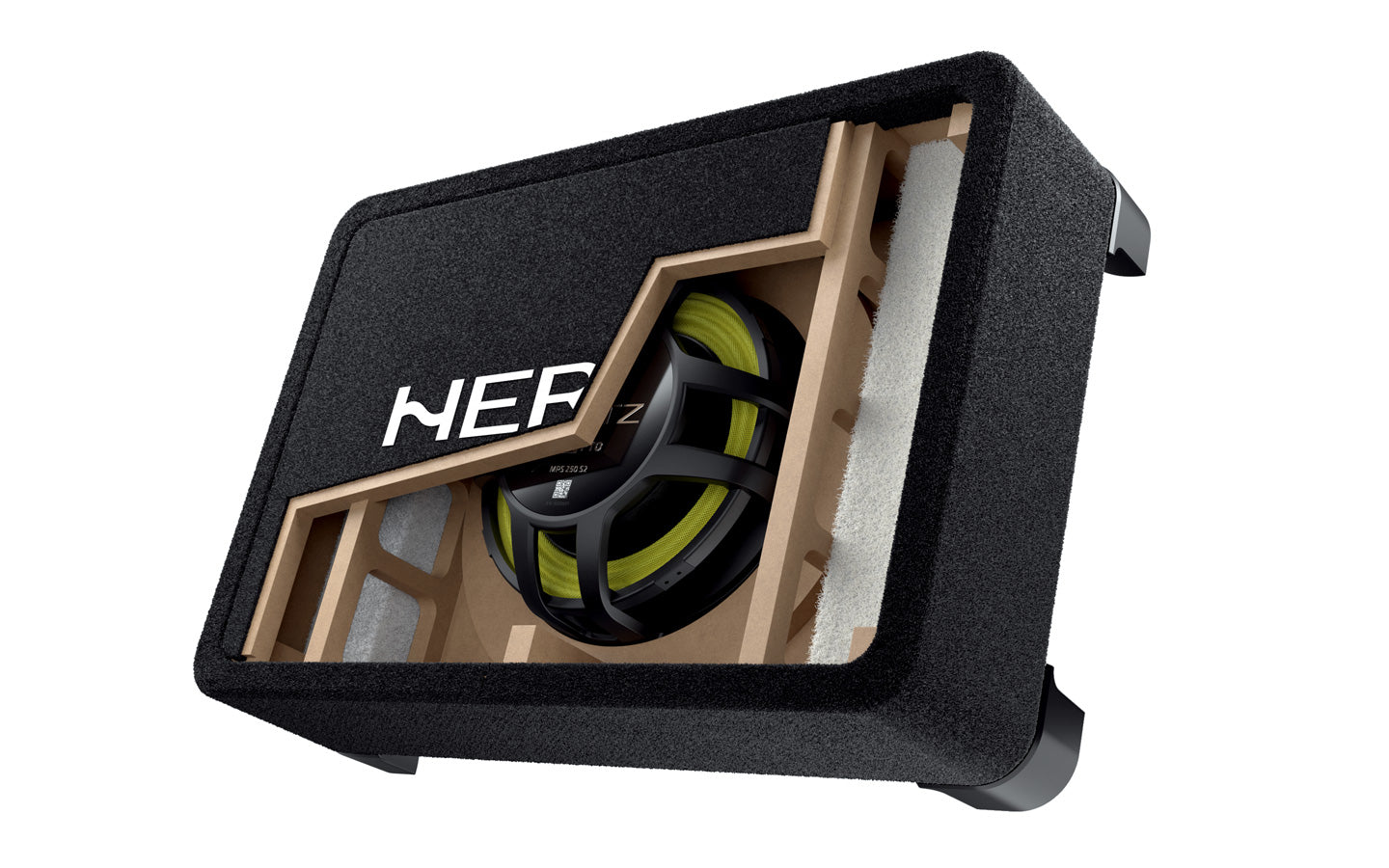

  3. Panel-to-panel internal bracing with solid corners to minimize resonances
  4. Round corners to ease the placement
  5. Internal sound-absorbing material virtually increases the box’s volume and reduces acoustic resonances.
  6.  2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting, through supplied feet with Hook-and-loop inserts, to increase the low-frequency extension, and Up-Firing install to obtain more punch and definition.
  7. SSP (Sub Smart Plug) features both Plug-&-Play terminal block and traditional push terminals providing bulletproof connection and quick release.
  8. Robust screw-less mesh grille included featuring adjustable logo position suitable for reverse install.
  9. EID: Scan, Discover, Identify.
  1. Ultra-shallow structure compatible with minimum-depth enclosures.
  2. 500W continuous power handling, 2Ω impedance.
  3. Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations.
  4. Die-cast aluminum frame­.
  5. Unrivaled mechanical excursion, +20% over traditional designs.
  6. Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity.
Technologies MPBX 250 S2 eID (Elettromedia Identification)

The exclusive technology providing the traceability of the Mille.3 products from their birth on. Once the test phase has been passed, the code linked to destination country/market is applied. When purchasing the product, by scanning the code, the user can check through the web the information about the product and can log into the registration page.

MPBX 250 S2 Air Intercooling Revolution

Hertz R&D has developed the proprietary AIR (Air Intercooling Revolution) technology, which optimizes the fluid dynamics inside the voice coil inner chamber and the magnetic group to minimize the internal compression of air and maximize cooling capacity.





SPECIFIKACIJOS

Size mm (in.) 300 (12)
Power Handling - Continuous W 500
Power Handling - Peak W 1000
Impedance Ohm 2
Depth mm (in.) 88 (3.46)
Voice Coil Type single
No Filter Component Subwoofers
Voice Coil Ø 38 (1.5)
Frequency Response Hz 25 - 400
Magnet size D x d x h mm (in.) 156 x 60 x 36 (6.14 x 2.36 x 1.42)
Weight of one component kg (lb.) 6,64 (14.64)
Magnet High density flux ferrite
Cone Polypropylene
Xmech mm (in.) 20 (0.79)
D mm 262,59
Xmax mm 16,80
Re Ohm 1,9
Fs Hz 24
Le mH 1,48
Vas I 64,9
Mms g 295
Cms mm/N 0,16
BL T*m 12,3
Qts 0,51
Qes 0,55
Qms 7,5
Spl dB 84,5
Electro-acoustic Specs

INSTRUKCIJOS

User Manual (EN).

Hertz MPBX 250 S2, automobilinė žemų dažnių kolonėlė- priekis
Hertz

Hertz MPBX 250 S2, automobilinė žemų dažnių kolonėlė

410.00 €

MPBX 250 S2 itin seklus sandarus korpusas yra specialiai optimizuotas taip, kad užtikrintų visas MPS 250 S2 žemųjų dažnių garsiakalbio savybes.



APRAŠYMAS

MPBX 250 S2 ultra-shallow sealed enclosure is specifically optimized to deliver all the MPS 250 S2 subwoofer performances. The enclosure structure features incomparable robustness thanks to 15 mm (0.59 in.) wood thickness. Internal sound-absorbing material virtually increases the box's volume and reduces acoustic resonances. Panel-to-panel internal bracing with solid corners minimizes resonances and round corners ease the placement.  2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting, through supplied feet with Hook-and-loop inserts, to increase the low-frequency extension, and Up-Firing installation to obtain more punch and definition. SSP (Sub Smart Plug) features both Plug-&-Play terminal block and traditional push terminals providing bulletproof connection and quick release.

MPBX 250 S2

Enclosure

  1. Ultra-shallow sealed enclosure specifically optimized to deliver all the MPS 250 S2 subwoofer performance.
  2. 15 mm (0.59 in.) wood thickness for incomparable robustness.
  3. Panel-to-panel internal bracing with solid corners to minimize resonances
  4. Round corners to ease the placement
  5. Internal sound-absorbing material virtually increases the box’s volume and reduces acoustic resonances.
  6.  2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting, through supplied feet with Hook-and-loop inserts, to increase the low-frequency extension, and Up-Firing install to obtain more punch and definition.
  7. SSP (Sub Smart Plug) features both Plug-&-Play terminal block and traditional push terminals providing bulletproof connection and quick release.
  8. Robust screw-less mesh grille included featuring adjustable logo position suitable for reverse install.
  9. EID: Scan, Discover, Identify.

Driver MPS 250 S2

  1. Ultra-shallow structure compatible with minimum-depth enclosures.
  2. 500W continuous power handling, 2Ω impedance.
  3. Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations.
  4. Die-cast aluminum frame­.
  5. Unrivaled mechanical excursion, +20% over traditional designs.
  6. Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity.
Technologies
MPBX 250 S2
eID (Elettromedia Identification)

The exclusive technology providing the traceability of the Mille.3 products from their birth on. Once the test phase has been passed, the code linked to destination country/market is applied. When purchasing the product, by scanning the code, the user can check through the web the information about the product and can log into the registration page.

MPBX 250 S2
Air Intercooling Revolution

Hertz R&D has developed the proprietary AIR (Air Intercooling Revolution) technology, which optimizes the fluid dynamics inside the voice coil inner chamber and the magnetic group to minimize the internal compression of air and maximize cooling capacity.





TECHNINIAI DUOMENYS

SPECIFIKACIJOS

Size mm (in.) 300 (12)
Power Handling - Continuous W 500
Power Handling - Peak W 1000
Impedance Ohm 2
Depth mm (in.) 88 (3.46)
Voice Coil Type single
No Filter Component Subwoofers
Voice Coil Ø 38 (1.5)
Frequency Response Hz 25 - 400
Magnet size D x d x h mm (in.) 156 x 60 x 36 (6.14 x 2.36 x 1.42)
Weight of one component kg (lb.) 6,64 (14.64)
Magnet High density flux ferrite
Cone Polypropylene
Xmech mm (in.) 20 (0.79)
D mm 262,59
Xmax mm 16,80
Re Ohm 1,9
Fs Hz 24
Le mH 1,48
Vas I 64,9
Mms g 295
Cms mm/N 0,16
BL T*m 12,3
Qts 0,51
Qes 0,55
Qms 7,5
Spl dB 84,5
Electro-acoustic Specs

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
