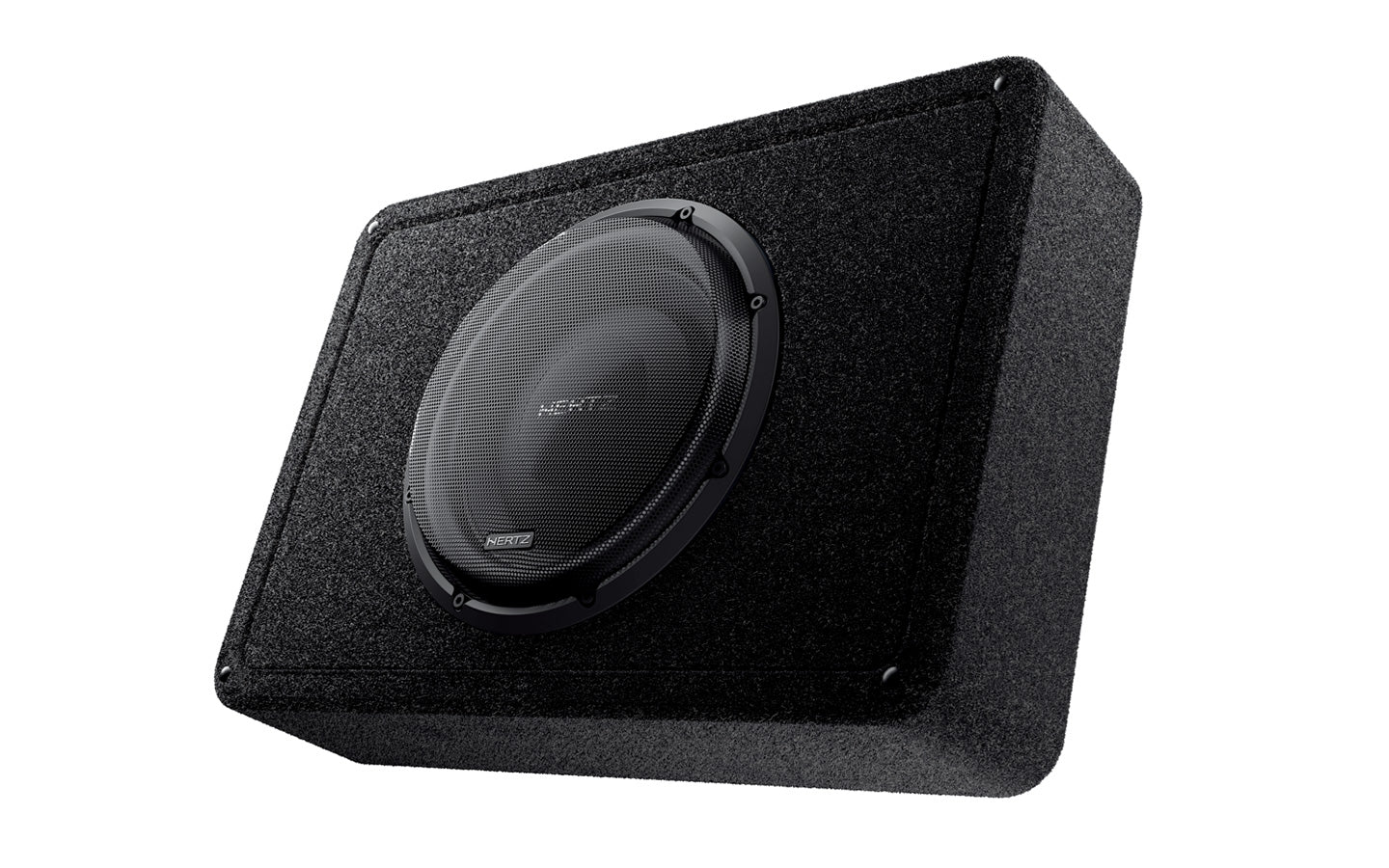

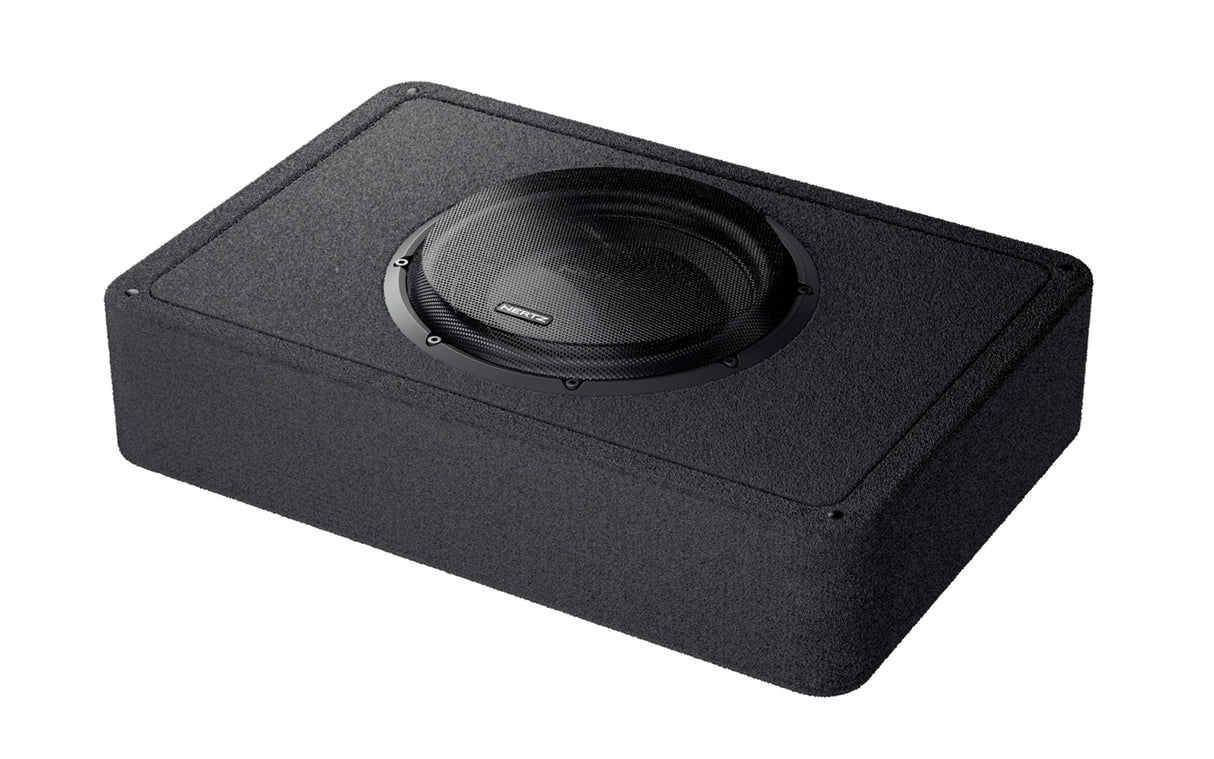

Hertz MPBX 300 S2, automobilinė žemų dažnių kolonėlė

Hertz MPBX 300 S2, automobilinė žemų dažnių kolonėlė

MPBX 300 S2 itin seklus sandarus korpusas yra specialiai optimizuotas taip, kad užtikrintų visas MPS 300 S2 žemųjų dažnių garsiakalbio savybes.

• Rekomend. stiprintuvo galia: 500W.
• Dažnių juosta: 25 - 400 Hz.
• Varža: 2 Omai.

Enclosure

1. Ultra-shallow sealed enclosure specifically optimized to deliver all the MPS 300 S2 subwoofer performance.
2. 15 mm (0.59 in.) wood thickness for incomparable robustness.

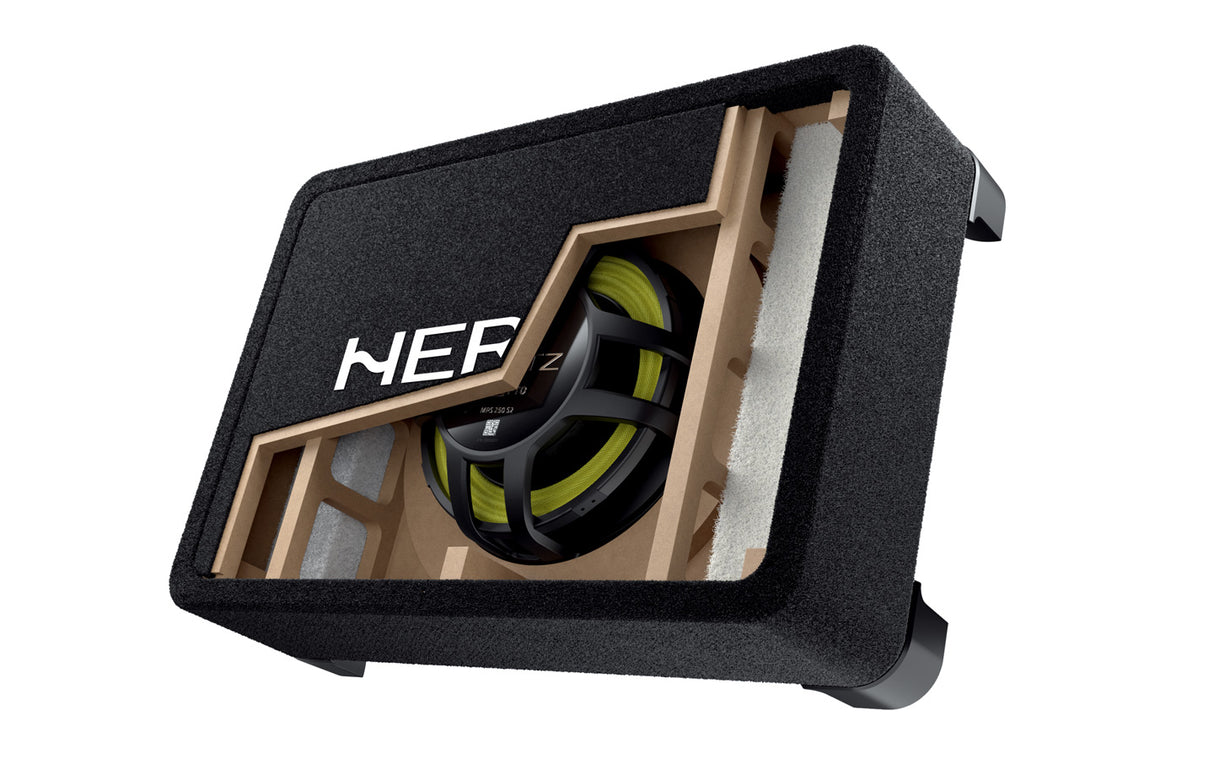

3. Panel-to-panel internal bracing with solid corners to minimize resonances
4. Round corners to ease the placement
5. Internal sound-absorbing material virtually increases the box’s volume and reduces acoustic resonances.
6.  2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting, through supplied feet with Hook-and-loop inserts, to increase the low-frequency extension, and Up-Firing install to obtain more punch and definition.
7. SSP (Sub Smart Plug) features both Plug-&-Play terminal block and traditional push terminals providing bulletproof connection and quick release.

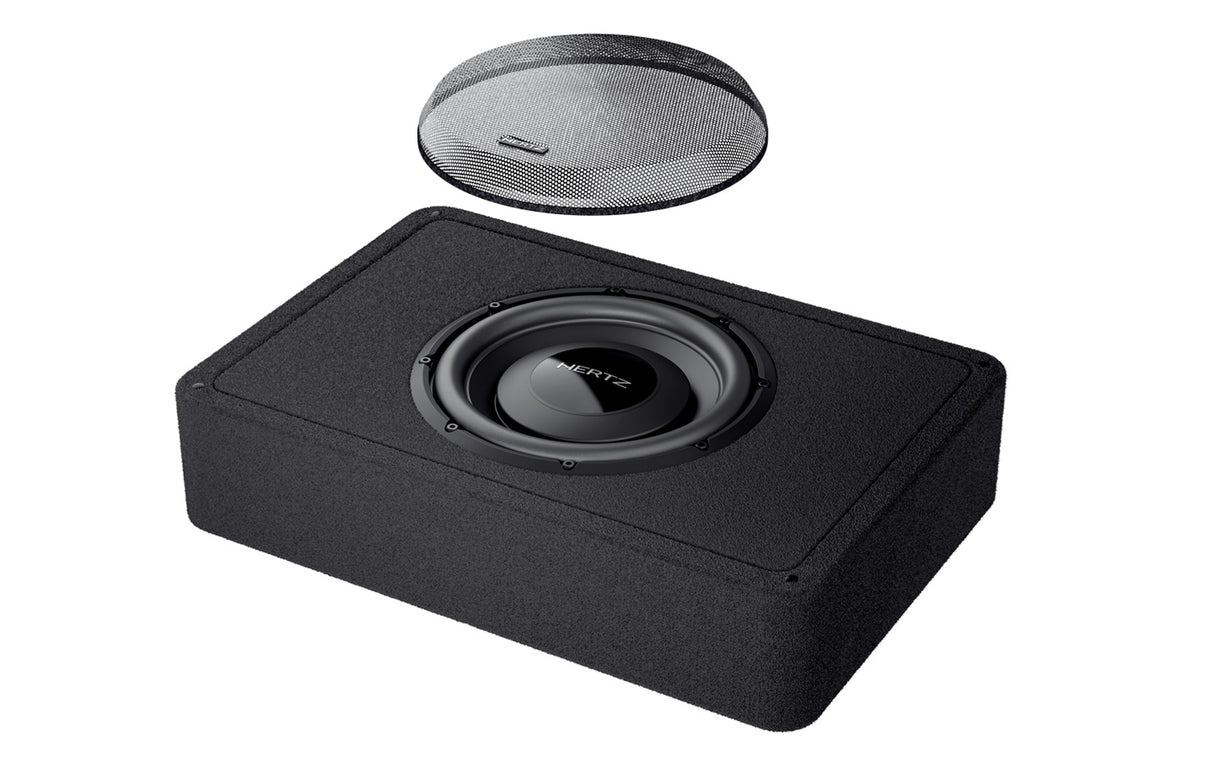

8. Robust screw-less mesh grille included featuring adjustable logo position suitable for reverse install.
9. EID: Scan, Discover, Identify.

Driver MPS 300 S2

1. Ultra-shallow structure compatible with minimum-depth enclosures.
2. 500W continuous power handling, 2Ω impedance.
3. Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations.
4. Die-cast aluminum frame­.
5. Unrivaled mechanical excursion, +20% over traditional designs.
6. Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity.

eID (Elettromedia Identification)

The exclusive technology providing the traceability of the Mille.3 products from their birth on. Once the test phase has been passed, the code linked to destination country/market is applied. When purchasing the product, by scanning the code, the user can check through the web the information about the product and can log into the registration page.

SPECIFIKACIJOS

Physical Specs

	mm	in
A	607	23.9
B	401	15.79
C	175	6.89
C1	133	5.24

INSTRUKCIJOS

User Manual (EN).
