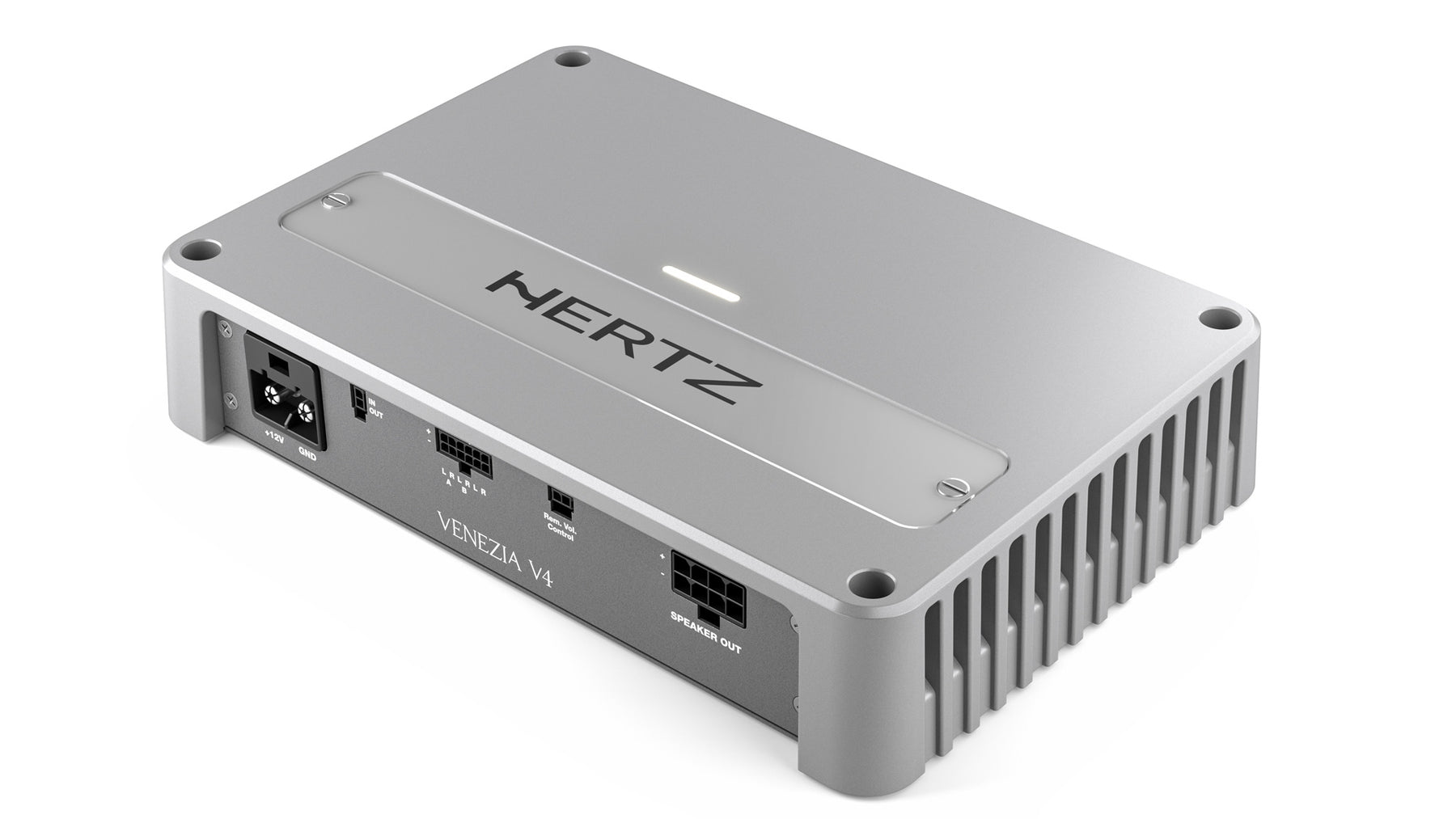

Hertz VENEZIA V4, garso stiprintuvas skirtas vandens transportui
Hertz VENEZIA V4, garso stiprintuvas skirtas vandens transportui yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.
Siuntimas ir pristatymas
Siuntimas ir pristatymas
Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.
Hertz VENEZIA V4, garso stiprintuvas skirtas vandens transportui
- INFORMACIJA
- APRAŠYMAS
- BUILT-IN CROSSOVER FILTERS
- RUGGED ALUMINUM ALLOY HEAT SINK
- PLUG AND PLAY CONNECTION
- DESIGN TO LAST
- TECHNINIAI DUOMENYS
- DOKUMENTAI
"Venezia V4" yra galingiausias visų laikų keturių kanalų "Hertz" stiprintuvas, skirtas vandens transportui
- Galia: 4 x 160W.
- ADC technologijos D- klasės stiprintuvas.
- Hi-Res garso kokybė.
- Atsparus vandeniui bei drėgmei.
- Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
- ADC (Advanced D-Class) Technology 2Ω (1Ω for mono models) stable output stage providing Hi-Res certified audio performance with superior efficiency.
- Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
- Balanced fully-differential input circuitry to reject electromagnetic disturbances.
- Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
- Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
- Short-circuit, overload, and thermal protections with auto-resetting.
- Plug&Play Input and Output connections with safe-lock.
- Proprietary Plug&Play Power Supply Connector with safe-lock.
ADC
Hertz Advanced Class D architecture maximizes efficiency and power while minimizing heat and electromagnetic radiation – without penalizing sound quality! High-powered channels with bridging capability deliver the output levels needed in the marine environment.
Hi-Res
Hi-Res certified performance, with an extended audio band up to 40 kHz.
CORROSION RESISTANT
Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.
SALT FOG TESTED
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
WATER JET TESTED
This Hertz Marine product is IPX2 certified when installed with the cables facing down.
Designed to be the new reference, the Venezia line reaches an unmatched power/size ratio thanks to Hertz ADC (Advance D-Class), maximizing efficiency that reach 85% while enhancing sound quality that obtains the Hi-Res certification by JAS. Hertz ADC high efficiency design reduces battery consumption featuring a higher power than Class-AB traditional layout. ADC provides cleaner output to speaker system, especially when driving subwoofers.
KEY FEATURES
- Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
- ADC (Advanced D-Class) Technology 2Ω(1Ω for mono models) stable output stage providing Hi-Res certified audio performance with a superior efficiency.
- Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
- Balancedfully-differential input circuitry to reject electro-magnetic disturbances.
- Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
- Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
- Short-circuit,overload and thermal protections with auto resetting.
- Plug&Play Input and Output connections with safe-lock.
- Proprietary Plug&Play Power Supply Connector with safe-lock.
Venezia amplifiers feature variable low/ high pass crossover filters, adjustable bass boost and a subsonic filter for an optimal tuning in every boat. The controls are protected by a polycarbonate panel located on the upper side, to be easily reached from above even after the product has been installed. When the system includes a processor like S8 DSP, the filter section can be totally excluded.
Venezia amplifiers heat sink has been crafted from extruded aluminum, a material unmatched for lightness, robustness and heat dissipation. The oversized fin layout maximizes the surface area for optimal heat dissipation.
The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. Not availabe for compact models.
The conformal coated PCBs provides superior protection against corrosion agents.
SPECIFIKACIJOS
General Specs| Channels | 4 - 3 - 2 |
| POWER SUPPLY | |
| Power supply voltage | 9 ÷ 16 VDC |
| ldling current (power ON/OFF): | 1.6A / 0.04 mA |
| Consumption@ 1Ω, 14.4 VDC (Max Musical Power): | 48 A |
| Remote In: | 7 ÷ 15 VDC - 1 mA |
| AMPLIFIER STAGE | |
| Distorsion - THD (100Hz @ 4Ω): | <0,06% |
| Bandwidth: | 10 ÷ 42 kHz |
| S/N Ratlo (A welghted @ 1 V): | 102 dBA |
| Damping factor (100Hz @ 4Ω) | 130 |
| Pre-ln sensitivity: | 0.2 ÷ 5 VRMS |
| Pre-ln impedance: | 10kΩ |
| Load impedance (MIN) @4Ch: @3Ch: @2Ch: |
2 Ω 2 Ω + 2 Ω + 4 Ω 4 Ω |
| Adjustable Crossovers | yes |
| OUTPUT POWER (RMS) @ 14.4 VDC, THD 1% | |
| 4Ch | 160 W x 4 (4Ω) |
| 4Ch | 290 W x 4 (2Ω) |
| 3Ch | 160 W x 2 (4Ω) + 580 W x 1 (4Ω) |
| 3Ch | 290 W x 2 (2Ω) + 580 W x 1 (4Ω) |
| 2Ch | 580 W x 2 (4Ω) |
| Total Power RMS | 1160 W |
| lnputs: | PRE IN |
| Pre Out | Full range |
| A Ch: | |
| A Ch. MONO (on/off): | Yes |
| By-pass: | Yes (Full) |
| Hi-Pass : | 50 ÷ 4k Hz @ 12dB/Oct |
| Lo-Pass: | 50 ÷ 4k Hz @ 12dB/Oct |
| B Ch: | Yes |
| B Ch. MONO (on/off): | Yes |
| By-pass: | Yes (Full) |
| Hi-Pass: | 50 ÷ 4k Hz @ 12dB/Oct |
| Lo-Pass: | 50 ÷ 4k Hz 12@ dB/Oct |
| Bass boost 50 Hz (adjust): | (0 ÷ 12) dB |
| mm | in | |
| A | 270 | 10.63 |
| B | 240 | 9.45 |
| C | 185 | 7.28 |
| D | 155 | 6.10 |
| E | 54 | 2.12 |
| Weight | kg | lb |
| 2.66 | 5.77 |
