Indiana Line DIVA 5, grindinės garso kolonėlės (įvairių spalvų)

Indiana Line Diva 5 yra tvirtai suprojektuota ir sukonstruota 2.5 juostų garso kolonėlė, įkvėpta ankstesnių serijos modelių. Tačiau Diva 5, palyginti su savo pirmtakais, turi daug patobulinimų, dėl kurių žymiai pagerėjo atkuriamo garso kokybė. Šie pakeitimai apima techninius sprendimus, naudojamus komponentus ir garsiakalbio apdailą. Naudodami porą Indiana Line Diva 5 ant grindų pastatomų garsiakalbių, galime efektyviai sustiprinti iki maždaug 25 m² ploto patalpą, tuo pačiu užtikrindami mažo iškraipymo garsą.

DIVA – TOP SERIES IN A NEW VERSION

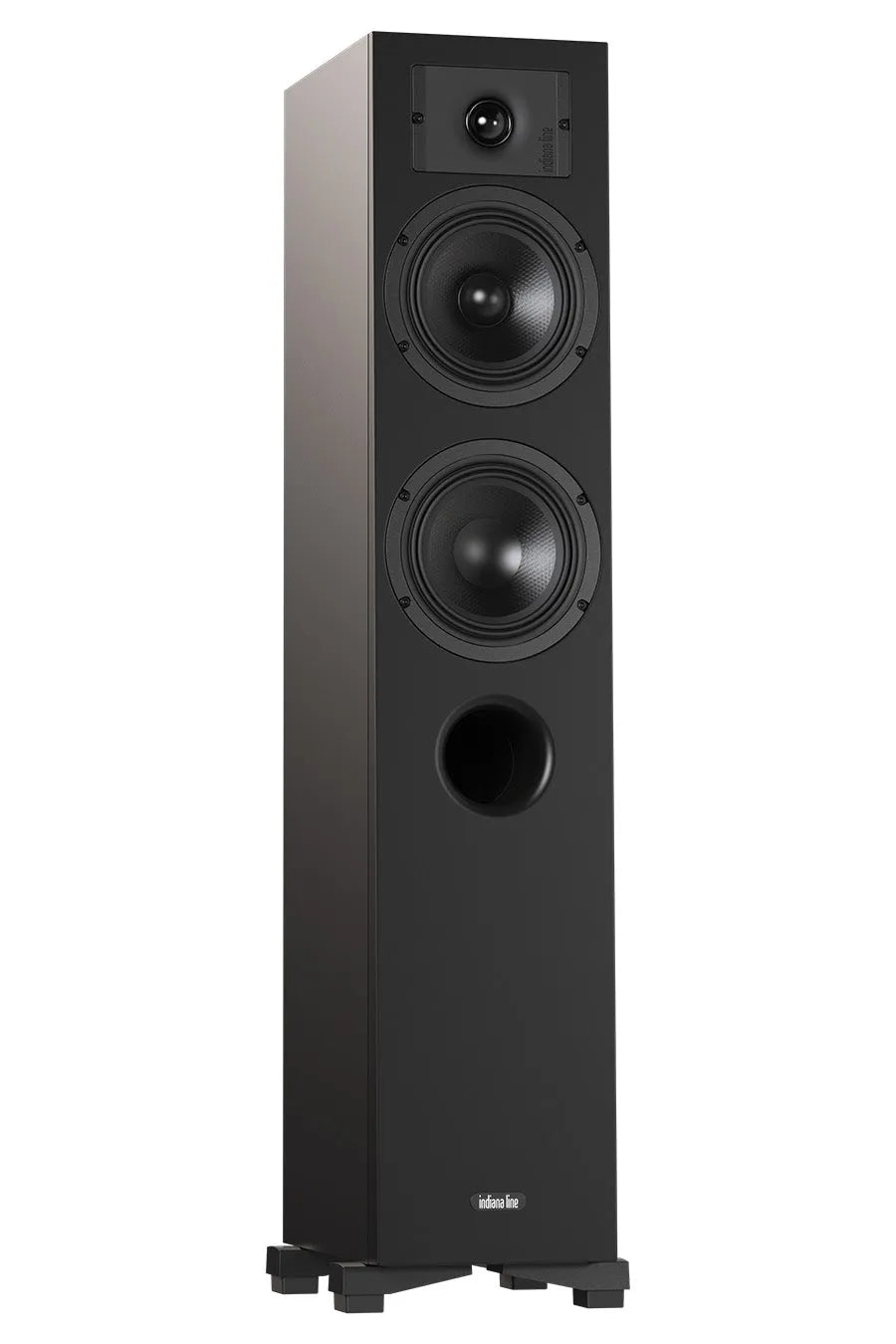

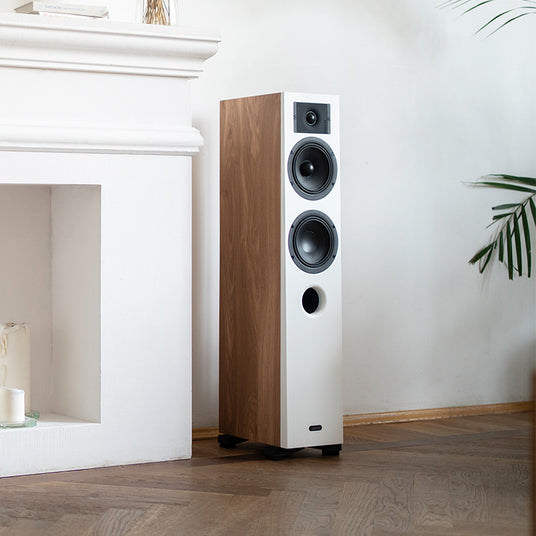

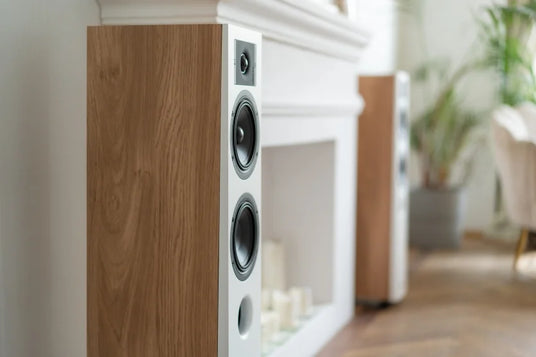

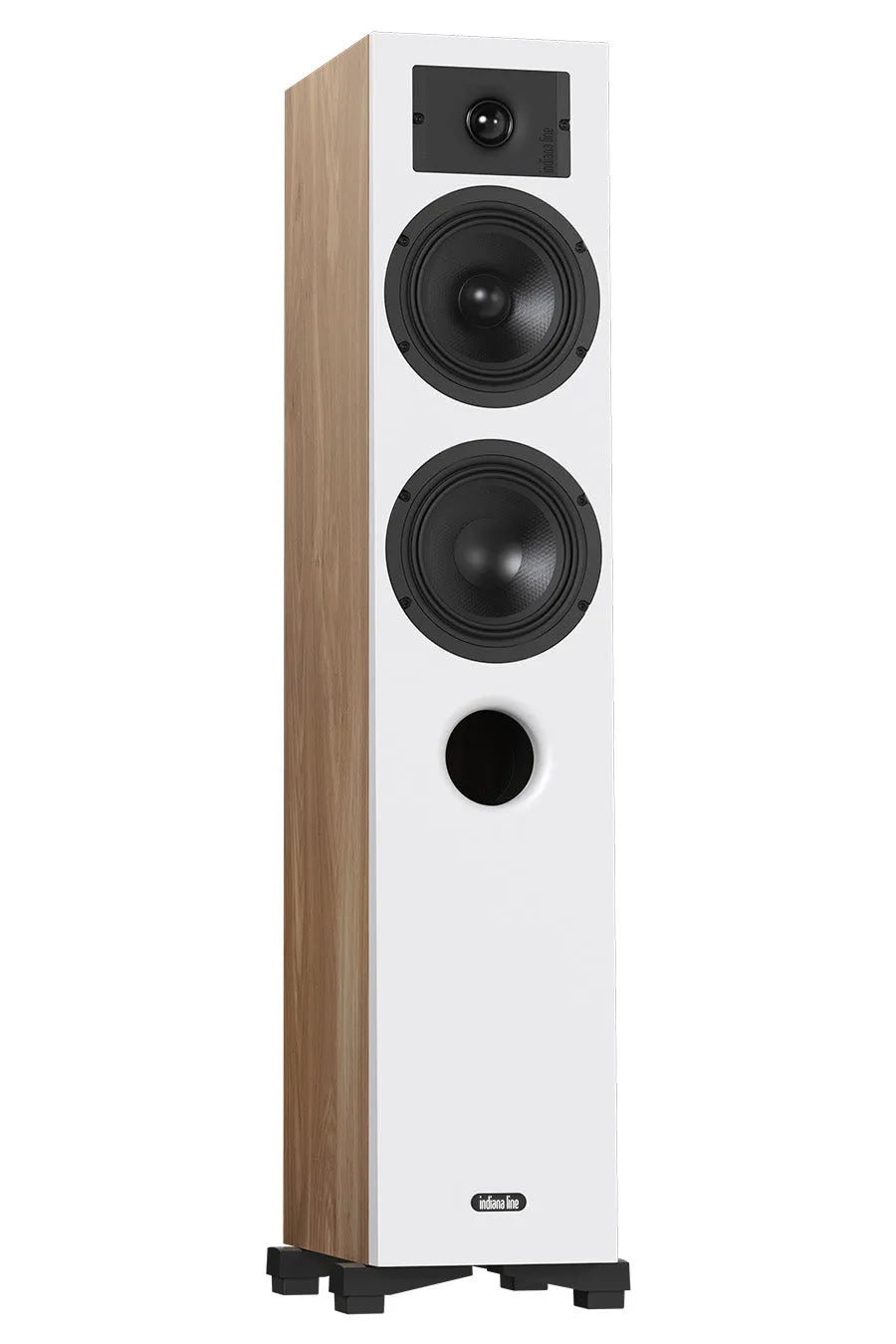

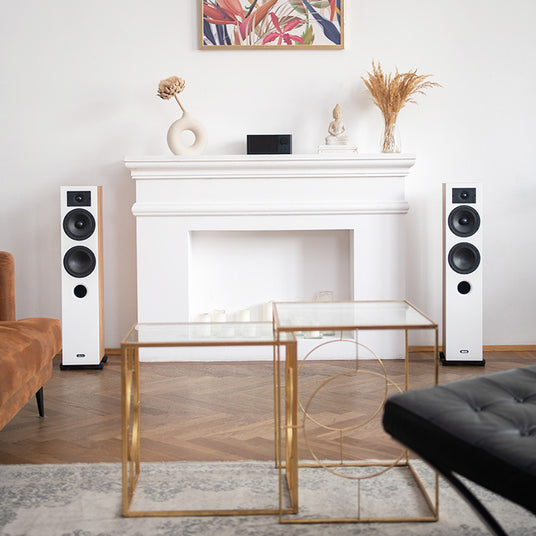

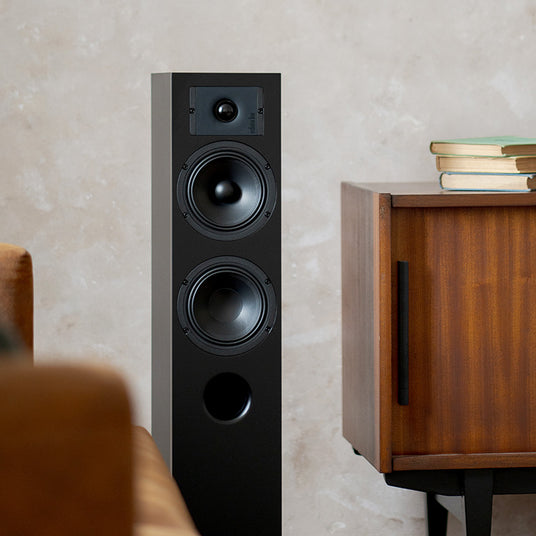

Among all the Indiana Line models, the Diva series loudspeakers hold a special place. This flagship product line perfectly combines elegant design with solid craftsmanship and excellent sound quality. The models within the new Diva series feature mechanically and acoustically stable cabinets and a stylish finish. The front panel is painted with matte lacquer (white or black, depending on the color version), while the rest of the cabinet is covered with PVC veneer. Two color variants are available: a black body with a black front or an oak body with a white front.

STYLISH CABINET WITH A TILTED FRONT

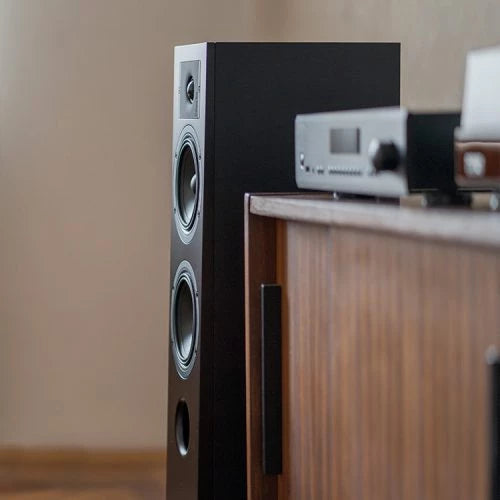

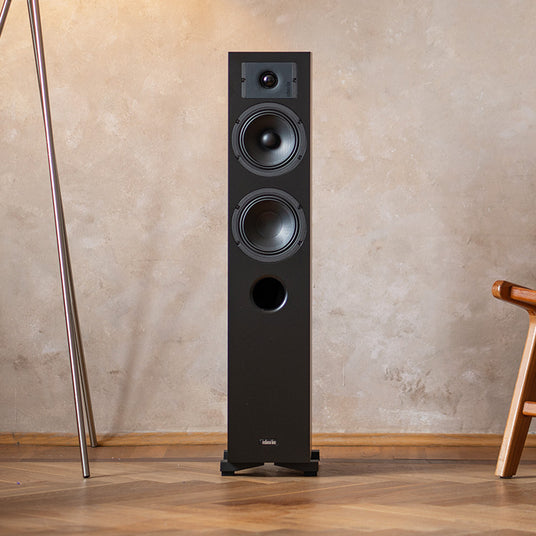

The Diva 5 column has a two-piece cabinet made of MDF. One of the parts is the 30 mm thick front panel, which increases the mechanical stability of the housing and prevents unwanted resonances, significantly improving sound clarity. The front is slightly tilted backward, with a shallower bottom and a deeper top, giving the column a noble look as it rests on solid cast aluminum legs. The attractive design of the Diva 5 is accentuated by the magnetically attached, acoustically transparent grille, which replaces the previously used plastic pins for attaching the cover, as seen in other Diva series columns.

IMPROVED ELECTROACOUSTIC TRANSDUCERS

In the Diva 5 model, several changes have been made compared to the speakers available in the previous Diva series. Notably, the speaker baskets have been redesigned with more streamlined ribbing, reducing air resistance behind the membrane and minimizing unwanted resonances. These baskets have been purpose-designed to work seamlessly with the Dual-Wave suspension, resulting in both proper function and exceptional aesthetics.

SOPHISTICATED CURV MEMBRANES

In the 2.5-way Diva 5 loudspeaker, both the woofer and mid-woofer feature Curv (polypropylene composite) membranes. This material choice in the woofer ensures more neutral and precise handling of low tones. These particular membranes are produced exclusively for Indiana Line on special order.

COMPUTER-OPTIMIZED PARAMETERS

The magnetic systems in the woofer and mid-woofer have been optimized through finite element analysis (FEA), aiming to enhance their performance across a wide range of amplitudes and frequencies. The magnetic cores of each transducer are highly saturated, reducing coil inductance and distortion, including intermodulation distortion. Furthermore, inductance is linearized, as in many previous Indiana Line models, using an Aluring demodulation ring. This element has been employed for both the low-midrange and woofer transducers, resulting in clearer and more articulate sound even at high volumes, regardless of the music genre being played.

ORIGINAL DESIGN OF THE RUBBER SURROUND

A unique feature introduced for the first time in Indiana Line loudspeakers is the Dual-Wave surround, present in both the woofer and midwoofer drivers of the Diva 5 model. This precisely designed upper suspension extends the linear operation range of the loudspeaker, reducing distortion, especially in the low bass registers, and improving midrange articulation. This has a positive impact, particularly on the sound of percussion, string, and acoustic instrumentsThe Dual-Wave solution also reduces irregularities in frequency response due to diaphragm edge resonance, without the need for additional lacquering. The visually attractive design of the Dual-Wave transducers resembles professional stereo equipment with so-called accordion suspension.

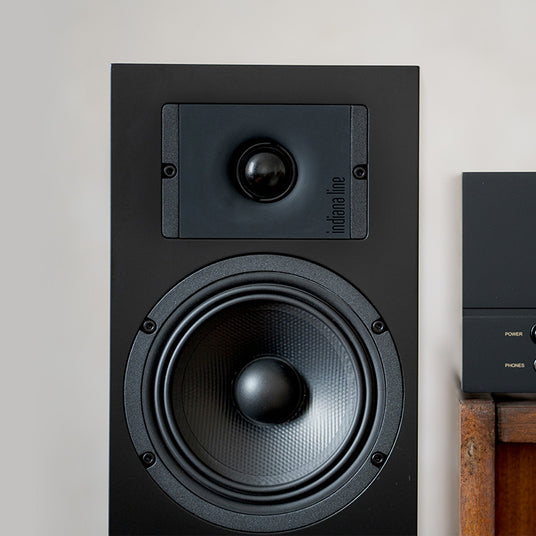

PRECISION SILK-DOME TWEETER

Another new feature in the Indiana Line loudspeakers, compared to those currently available on the market, is the tweeter design. It incorporates a unique radial damping chamber in the form of a ring surrounding the coil, in contrast to the commonly used volume behind the dome. This design ensures natural high-frequency sound and helps avoid unwanted resonances often associated with conventional designs. The tweeter faceplate in the Diva 5 has also undergone significant changes, being cast from aluminum and featuring a optimally shaped rubber surface. These changes contribute to widening the soundstage and filling the room more effectively with high frequencies.

COMPUTER-OPTIMIZED CROSSOVER

The crossover used in the Diva 5 model has been redesigned and optimized using computer simulations. The circuit topology, the number of components, and their parameters have been precisely matched to the loudspeaker cabinet and transducers, resulting in a balanced frequency response, low distortion, reduced power losses, and sound quality that has been validated through extensive listening tests. The specially designed crossover circuit enables the Diva 5 to work seamlessly with virtually any amplifier.

AIR COILS AND FOIL CAPACITORS

The tweeter filter system exclusively utilizes air coils and foil capacitors, eliminating the potential distortions often associated with electrolytic capacitors or ferrite core coils. In cases where core coils are used in the crossover, they feature a laminated high-silicon iron core to minimize iron core-related distortion.
