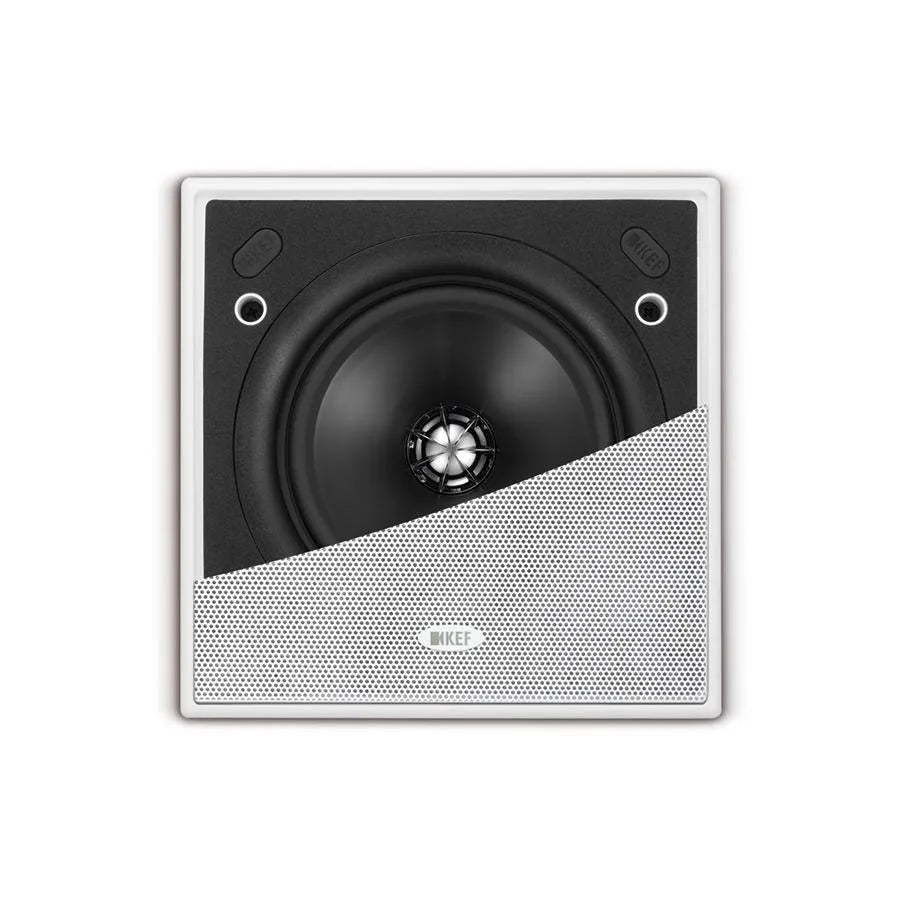

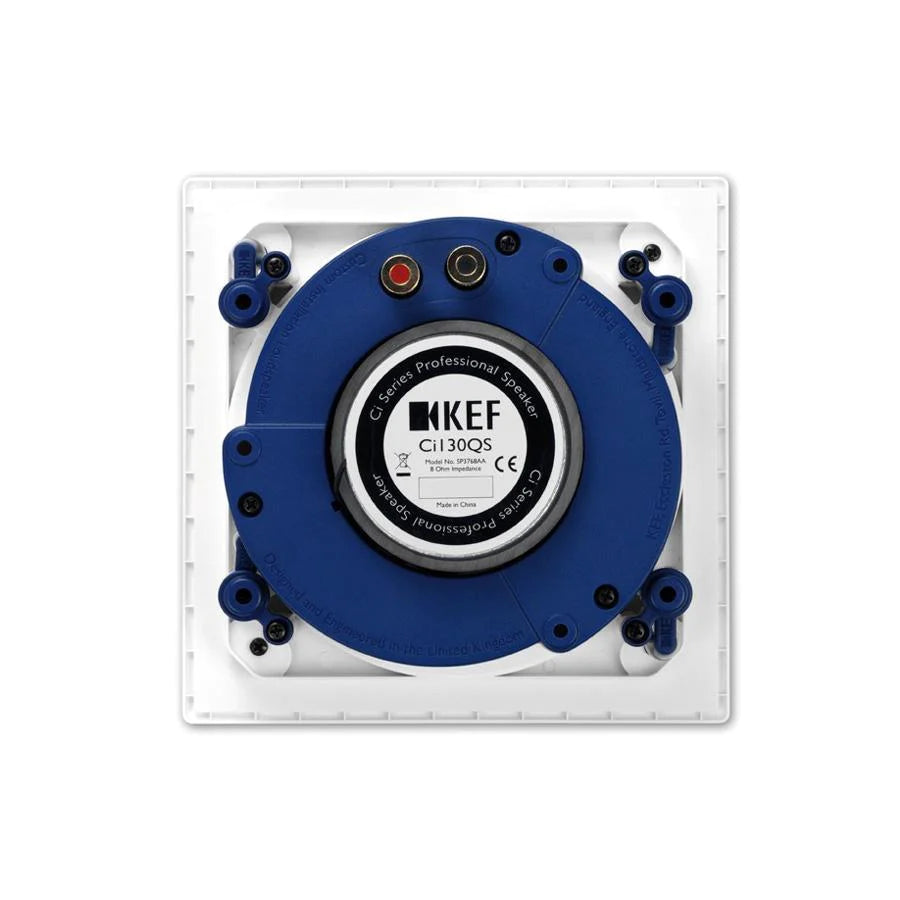

KEF Ci130QS, architektūrinis garsiakalbis (montavimo gylis: 77.9mm)
Stilingas Ci130QS plonas rėmelis ir siauras apvadas leidžia nepriekaištingai integruotis į sieną ar lubas..
- Rekomend. stiprintuvo galia: 10 - 100 W.
- Dažnių juosta: 45Hz - 34kHz (±6dB) open backed.
- Jautrumas: 87dB (2.83V/ 1m).
- Varža: 8 omai.
Ci130.2CS
Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room.
Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the Ci-C Series fits unobtrusively into your home.
SPECIFIKACIJOS
Nomimal Impedance
8 Ohm
Sensitivity
87dB (2.83V/ 1m)
Crossover Frequencies
3.8kHz
Frequency Response
45Hz - 34kHz (±6dB) open backed
Drive Units
LF: 130mm (5.25in.)
HF: 19mm (0.75in.) Uni-Q
Recommended Amplifier Power
10 - 100W
Product External Dimension (H X W X D)
184 x 184 x 84 mm (7.24 x 7.24 x 3.26 in.)
Cut-Out Dimensions (H X W)
158 x 158 mm (6.22 x 6.22 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 24mm (0.95 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
77.9mm (3.07in.)
Optional Rough In Frame
RIF130S
Optional Rear Enclosure
RNC130S
