KEF Ci130QSfl, architektūrinis garsiakalbis (montavimo gylis: 101mm)

450.00 €

KEF Ci130QSfl, architektūrinis garsiakalbis (montavimo gylis: 101mm) - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

KEF Ci130QSfl - įleistinis berėmis architektūrinis garsiakalbis, skirtas aukštos kokybės garsui ir paprastam montavimui. Suprojektuota tiek naujoms statyboms, tiek modernizavimui, "Ci130QSfl" tvirtinama lygiai su siena arba lubomis, todėl idealiai tinka švarių linijų ir minimalistinių bruožų patalpoms.

  • Rekomend. stiprintuvo galia: 50 - 350 W.
  • Dažnių juosta: 43 - 28kHz.
  • Jautrumas: 89dB.
  • Varža: 4 omai.



Ci130QSfl

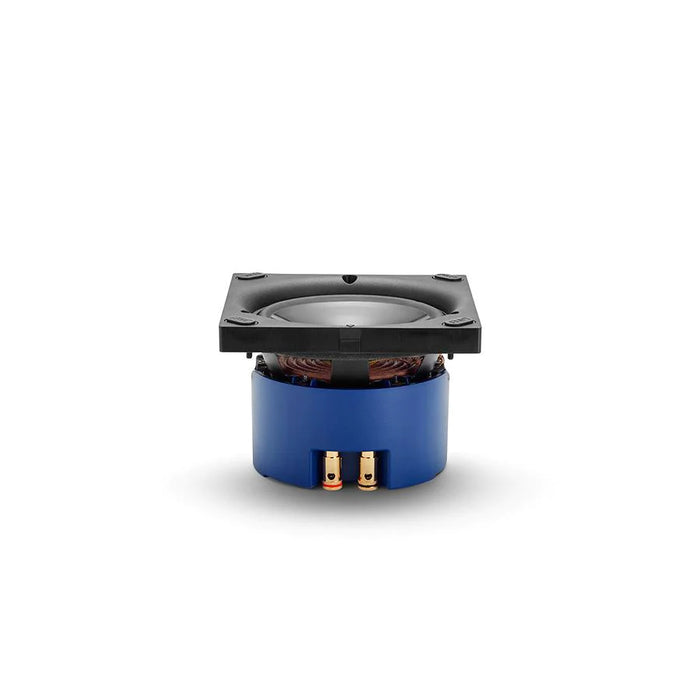

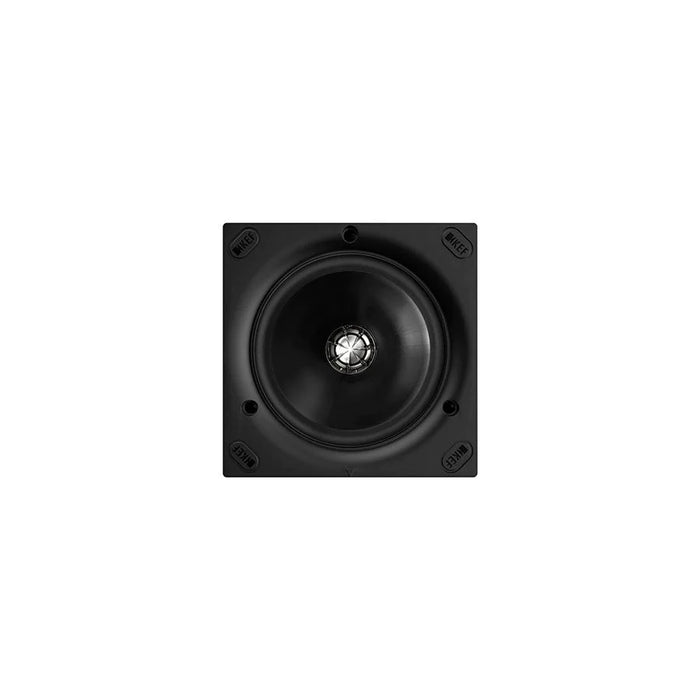

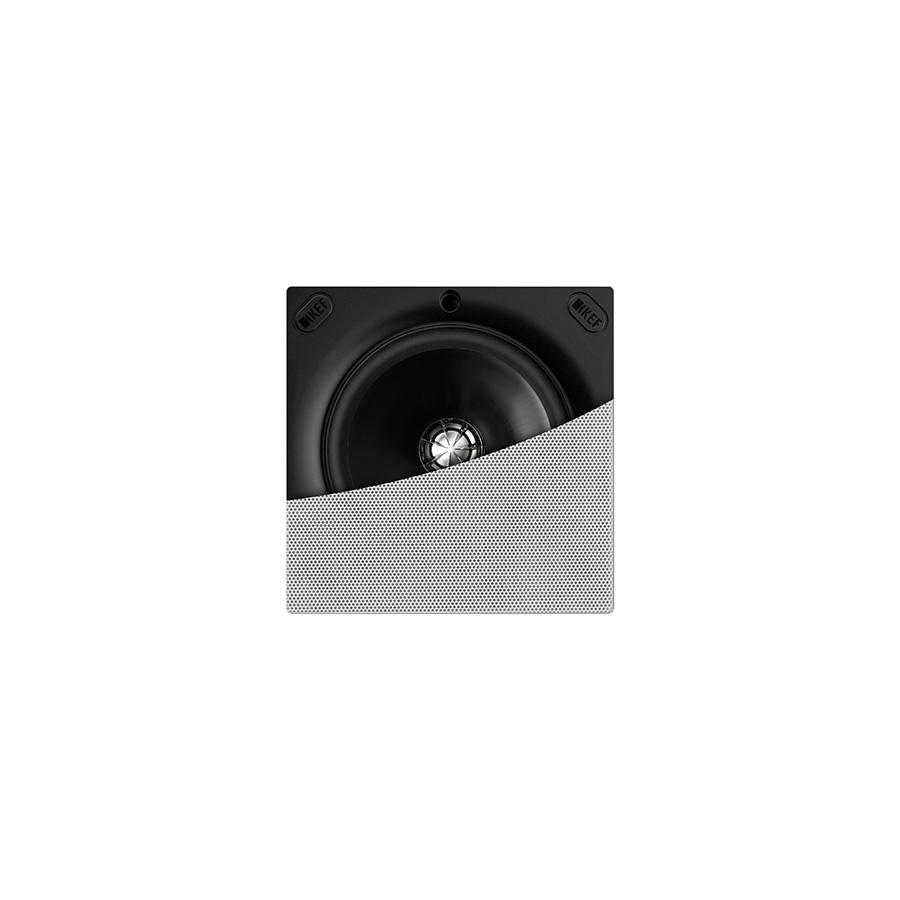

Part of the Ci-Q Series, Ci130QSfl is built around KEF’s signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QSfl is a square loudspeaker, while the Ci130QRfl features identical drivers in a round format.
Select a property

Intuitive Installation

Ci130QSfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QSfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.


SPECIFIKACIJOS

Nominal Impedance 8 Ohms Sensitivity 87dB (2.83V/ 1m) Frequency Response (±6DB)
Open-Backed
45Hz - 34kHz
Frequency Range (-10DB) 38Hz-30kHz Nominal Coverage 130 MAX SPL (DB) 103 Crossover Frequency 3.8kHz Drive Units LF: 130mm (5.25in.) Uni-Q
HF: 19mm (0.75in.)
Recommended Amplifier Power 10-100W
Recommended High-Pass Filter (HZ) 50Hz Product External Dimensions 200.5 x 200.5 x 103.6 mm
(7.9 x 7.9 x 4.08 in.)
Cut-Out Dimensions 158 x 158 mm
(6.22 x 6.22 in.)
Mounting Thickness  Ceiling Thickness (Maximum): 31mm (1.220in.)
Ceiling Thickness (Minimum): 8mm (0.315in.)
Net Weight 1.6kg (3.53Ibs.) Mounting Depth From Surface 101mm (3.98in.) Optional Rough In Frame NA Optional Rear Enclosure NA Ideal Rear Volume(L) 15
Minimum Rear Volume(L) 10 Safety And Regulatory Compliance NA

INSTRUKCIJOS

User Manual (EN).







KEF Ci130QSfl, architektūrinis garsiakalbis
KEF

KEF Ci130QSfl, architektūrinis garsiakalbis (montavimo gylis: 101mm)

450.00 €

KEF Ci130QSfl - įleistinis berėmis architektūrinis garsiakalbis, skirtas aukštos kokybės garsui ir paprastam montavimui. Suprojektuota tiek naujoms statyboms, tiek modernizavimui, "Ci130QSfl" tvirtinama lygiai su siena arba lubomis, todėl idealiai tinka švarių linijų ir minimalistinių bruožų patalpoms.



APRAŠYMAS

Ci130QSfl

Part of the Ci-Q Series, Ci130QSfl is built around KEF’s signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QSfl is a square loudspeaker, while the Ci130QRfl features identical drivers in a round format.
Select a property

Intuitive Installation

Ci130QSfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QSfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.


TECHNINIAI DUOMENYS

SPECIFIKACIJOS

Nominal Impedance
8 Ohms
Sensitivity
87dB (2.83V/ 1m)
Frequency Response (±6DB)
Open-Backed
45Hz - 34kHz
Frequency Range (-10DB)
38Hz-30kHz
Nominal Coverage
130
MAX SPL (DB)
103
Crossover Frequency
3.8kHz
Drive Units
LF: 130mm (5.25in.) Uni-Q
HF: 19mm (0.75in.)
Recommended Amplifier Power
10-100W
Recommended High-Pass Filter (HZ)
50Hz
Product External Dimensions
200.5 x 200.5 x 103.6 mm
(7.9 x 7.9 x 4.08 in.)
Cut-Out Dimensions
158 x 158 mm
(6.22 x 6.22 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 31mm (1.220in.)
Ceiling Thickness (Minimum): 8mm (0.315in.)
Net Weight
1.6kg (3.53Ibs.)
Mounting Depth From Surface
101mm (3.98in.)
Optional Rough In Frame
NA
Optional Rear Enclosure
NA
Ideal Rear Volume(L)
15
Minimum Rear Volume(L)
10
Safety And Regulatory Compliance
NA

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
