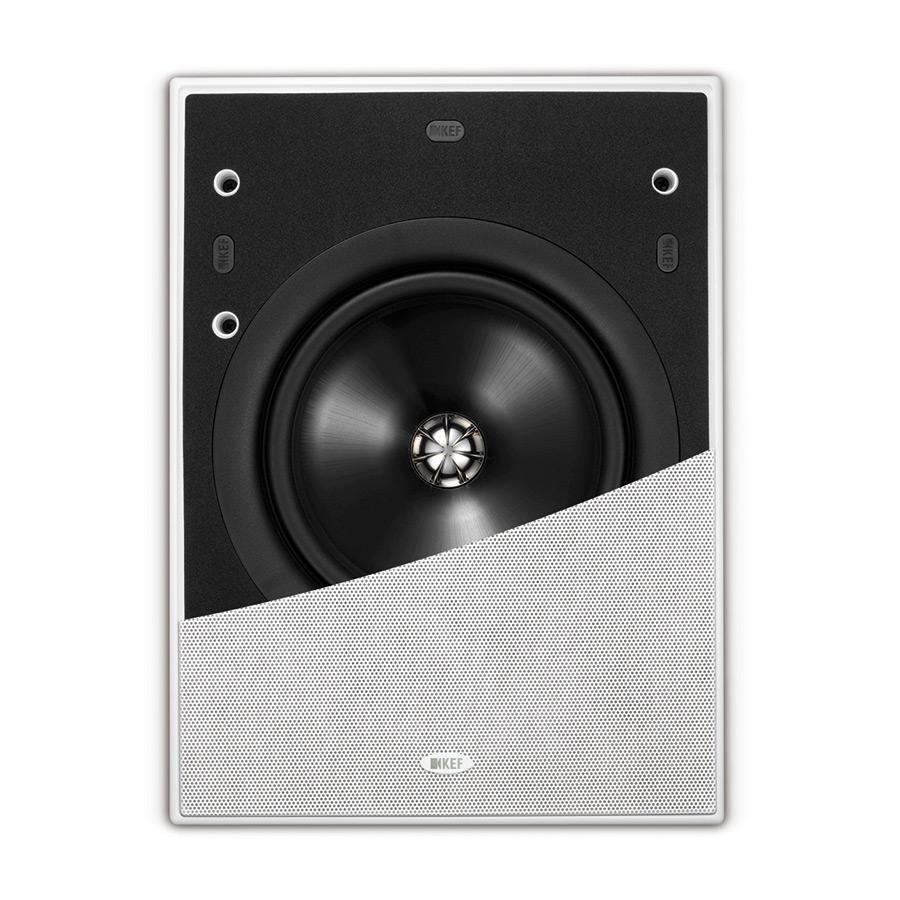

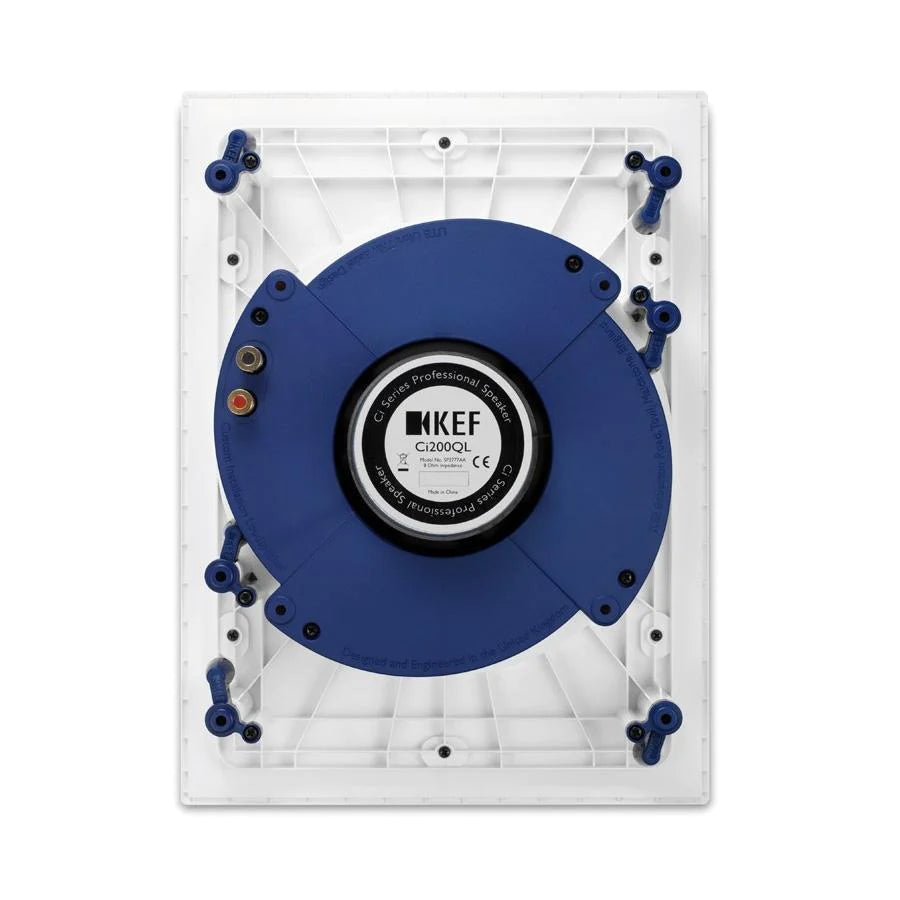

KEF Ci200QL, architektūrainis garasiakalbis (montavimo gylis: 99.8mm)
Stilingas "Ci200QL" plonas rėmelis ir siauras apvadas leidžia nepriekaištingai integruoti į sieną ar lubas.
- Rekomend. stiprintuvo galia: 10-150W.
- Dažnių juosta: 35Hz - 34kHz (±6dB) open backed.
- Jautrumas: 90dB (2.83V/ 1m).
- Varža: 8 omai.
Ci200QL
Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci-Q Series range gives you tremendous freedom to position the speakers where you please.
SPECIFIKACIJOS
Nomimal Impedance
8 Ohm
Sensitivity
90dB (2.83V/ 1m)
Crossover Frequencies
2.5kHz
Frequency Response
35Hz - 34kHz (±6dB) open backed
Drive Units
LF: 200mm (8in.)
HF: 25mm (1in.) Uni-Q
Recommended Amplifier Power
10-150W
Product External Dimension (H X W X D)
369 x 273 x 106 mm (14.53 x 10.75 x 4.27 in.)
Cut-Out Dimensions (H X W)
334 x 238 mm (13.15 x 9.37 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 37mm (1.46 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
99.8mm (3.93in.)
Optional Rough In Frame
RIF200L
Optional Rear Enclosure
RNC200L
Net Weight
2.6kg (5.77lbs.)
Unit Measurement
Piece
