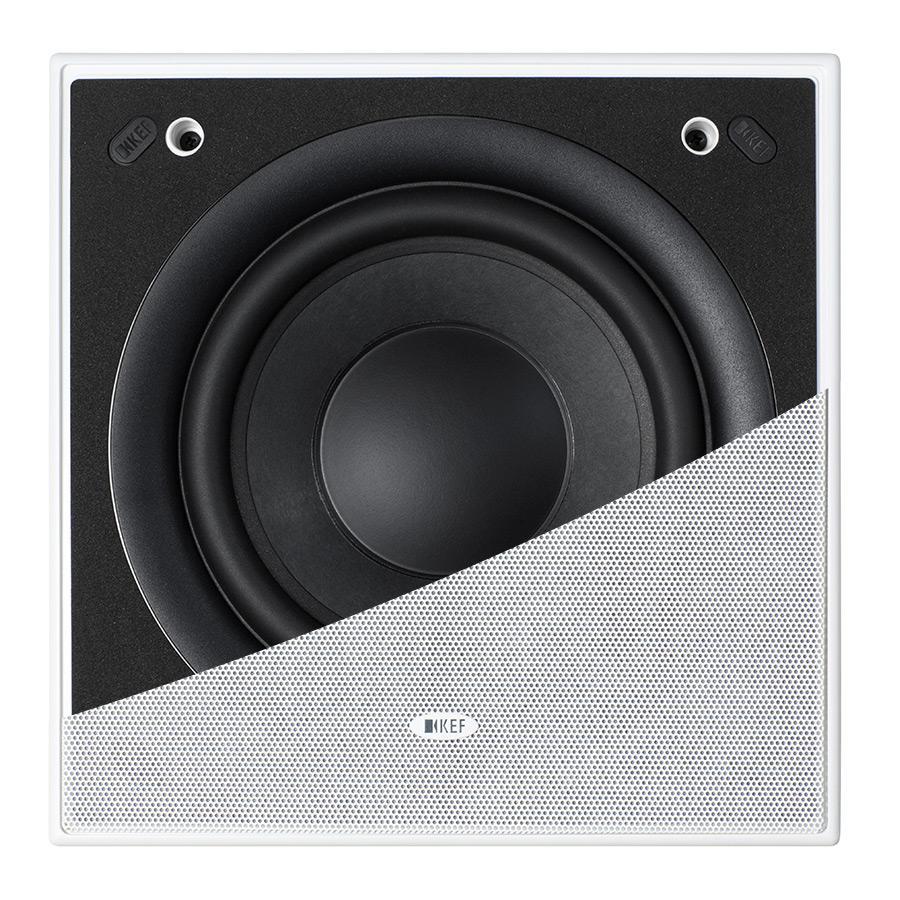

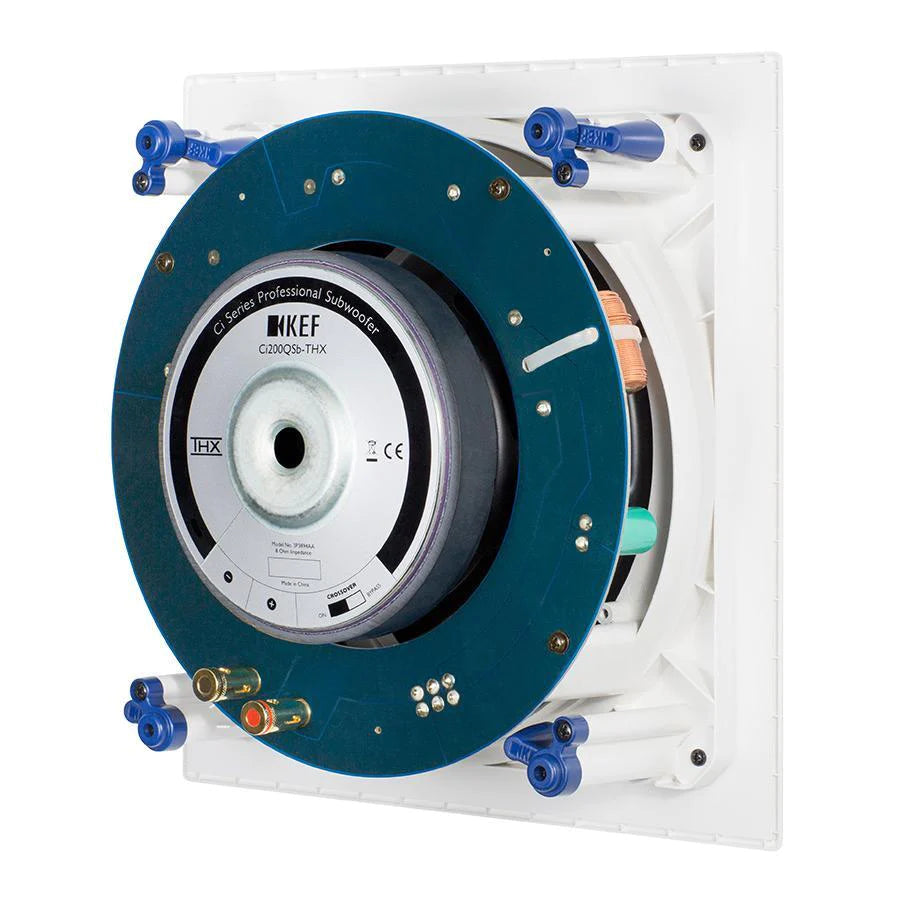

KEF Ci200QSB-THX, architektūrainis žemų dažnių garasiakalbis (montavimo gylis: 101.6mm)

419.00 €

KEF Ci200QSB-THX, architektūrainis žemų dažnių garasiakalbis (montavimo gylis: 101.6mm) yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.


Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

THX sertifikuotas iki "Ultra" ir "Select" lygmens, įspūdingas sieninis žemų dažnių garsiakalbis "Ci200QSb-THX" užtikrina gilius žemus dažnius ir teatro garso išvesties galimybes.

  • Rekomend. stiprintuvo galia: 10-150W - Passive Mode (Crossover "ON").
  • Dažnių juosta: 18Hz-140Hz - Active Mode (KASA500).
  • Jautrumas: 85dB - Passive Mode (Crossover "ON").



Ci200QSb-THX

THX Certified to the level of Ultra and Select, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality. With a powerful high-output 200mm (8in.) sub-bass driver, the Ci200QSb-THX can be used in passive mode to supplement the LF output of KEF’s in-wall or in-ceiling speakers. In Active mode, when 2 pairs of the Ci200QSb-THX subwoofer are powered by 2 KEF KASA500 System Amplifiers the performance meets THX Certified Select specification. When 4 pairs of the Ci200QSb-THX are powered by 2 KEF KASA500 System Amplifiers the performance meets THX Certified Ultra specification.


SPECIFIKACIJOS

Nominal Impedance 6 Ohm - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Sensitivity 85dB - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Crossover Frequencies 100Hz - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Frequency Response 40Hz-100Hz - Passive Mode (Crossover "ON")
18Hz-140Hz - Active Mode (KASA500)
Drive Units LF: 200mm (8 in.) Recommended Amplifier Power 10-150W - Passive Mode (Crossover "ON")
KASA500 - Active Mode (KASA500)
Product External Dimension (H X W X D) Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.) Cut-Out Dimensions (H X W) 238 x 238 mm (9.37 x 9.37 in.) Mounting Thickness Ceiling Thickness (Maximum): 40mm (1.58 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface 101.6mm (4 in.)
Optional Rough In Frame RIF200S Net Weight 3.3kg (7.28 lbs) Unit Measurement Piece

INSTRUKCIJOS

User Manual (EN).







KEF Ci200QSB-THX, architektūrainis garasiakalbis (montavimo gylis: 101.6mm)
KEF

KEF Ci200QSB-THX, architektūrainis žemų dažnių garasiakalbis (montavimo gylis: 101.6mm)

419.00 €

THX sertifikuotas iki "Ultra" ir "Select" lygmens, įspūdingas sieninis žemų dažnių garsiakalbis "Ci200QSb-THX" užtikrina gilius žemus dažnius ir teatro garso išvesties galimybes.



APRAŠYMAS

Ci200QSb-THX

THX Certified to the level of Ultra and Select, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality. With a powerful high-output 200mm (8in.) sub-bass driver, the Ci200QSb-THX can be used in passive mode to supplement the LF output of KEF’s in-wall or in-ceiling speakers. In Active mode, when 2 pairs of the Ci200QSb-THX subwoofer are powered by 2 KEF KASA500 System Amplifiers the performance meets THX Certified Select specification. When 4 pairs of the Ci200QSb-THX are powered by 2 KEF KASA500 System Amplifiers the performance meets THX Certified Ultra specification.


TECHNINIAI DUOMENYS

SPECIFIKACIJOS

Nominal Impedance
6 Ohm - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Sensitivity
85dB - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Crossover Frequencies
100Hz - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Frequency Response
40Hz-100Hz - Passive Mode (Crossover "ON")
18Hz-140Hz - Active Mode (KASA500)
Drive Units
LF: 200mm (8 in.)
Recommended Amplifier Power
10-150W - Passive Mode (Crossover "ON")
KASA500 - Active Mode (KASA500)
Product External Dimension (H X W X D)
Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.)
Cut-Out Dimensions (H X W)
238 x 238 mm (9.37 x 9.37 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 40mm (1.58 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
101.6mm (4 in.)
Optional Rough In Frame
RIF200S
Net Weight
3.3kg (7.28 lbs)
Unit Measurement
Piece

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).







Žiūrėti produktą

THX sertifikuotas iki "Ultra" ir "Select" lygmens, įspūdingas sieninis žemų dažnių garsiakalbis "Ci200QSb-THX" užtikrina gilius žemus dažnius ir teatro garso išvesties galimybes.

  • Rekomend. stiprintuvo galia: 10-150W - Passive Mode (Crossover "ON").
  • Dažnių juosta: 18Hz-140Hz - Active Mode (KASA500).
  • Jautrumas: 85dB - Passive Mode (Crossover "ON").



Ci200QSb-THX

THX Certified to the level of Ultra and Select, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality. With a powerful high-output 200mm (8in.) sub-bass driver, the Ci200QSb-THX can be used in passive mode to supplement the LF output of KEF’s in-wall or in-ceiling speakers. In Active mode, when 2 pairs of the Ci200QSb-THX subwoofer are powered by 2 KEF KASA500 System Amplifiers the performance meets THX Certified Select specification. When 4 pairs of the Ci200QSb-THX are powered by 2 KEF KASA500 System Amplifiers the performance meets THX Certified Ultra specification.


SPECIFIKACIJOS

Nominal Impedance 6 Ohm - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Sensitivity 85dB - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Crossover Frequencies 100Hz - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Frequency Response 40Hz-100Hz - Passive Mode (Crossover "ON")
18Hz-140Hz - Active Mode (KASA500)
Drive Units LF: 200mm (8 in.) Recommended Amplifier Power 10-150W - Passive Mode (Crossover "ON")
KASA500 - Active Mode (KASA500)
Product External Dimension (H X W X D) Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.) Cut-Out Dimensions (H X W) 238 x 238 mm (9.37 x 9.37 in.) Mounting Thickness Ceiling Thickness (Maximum): 40mm (1.58 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface 101.6mm (4 in.)
Optional Rough In Frame RIF200S Net Weight 3.3kg (7.28 lbs) Unit Measurement Piece

INSTRUKCIJOS

User Manual (EN).
