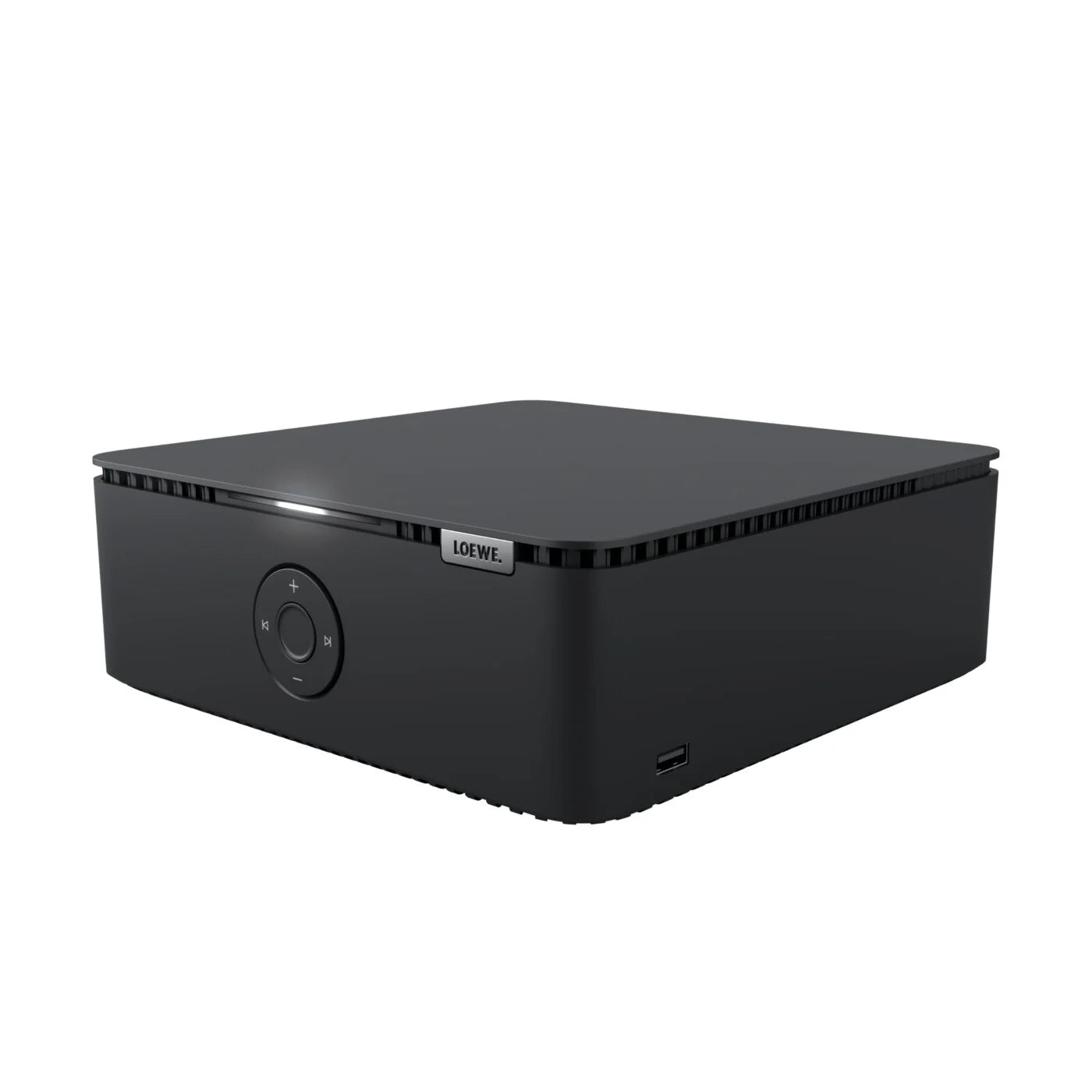

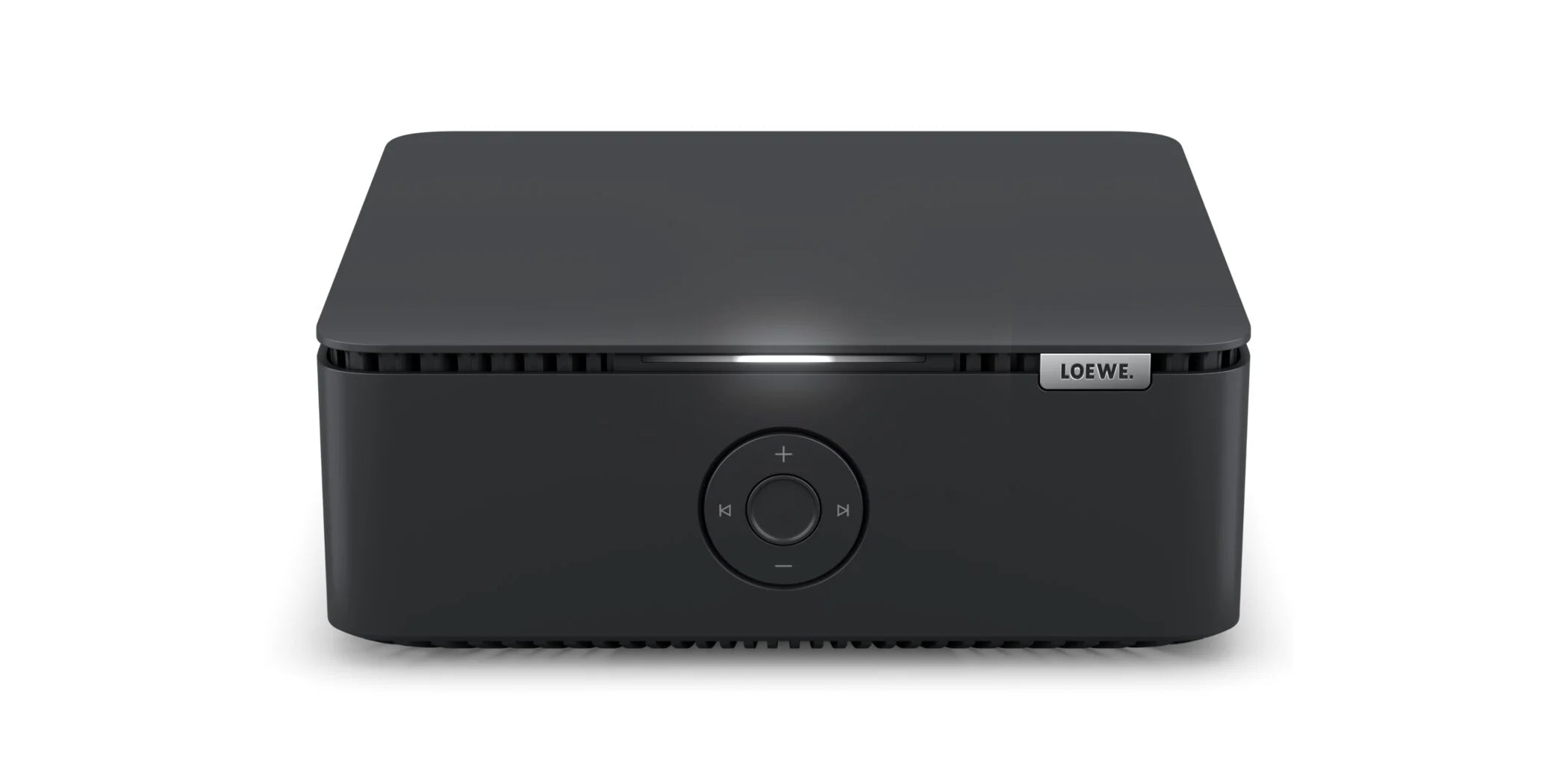

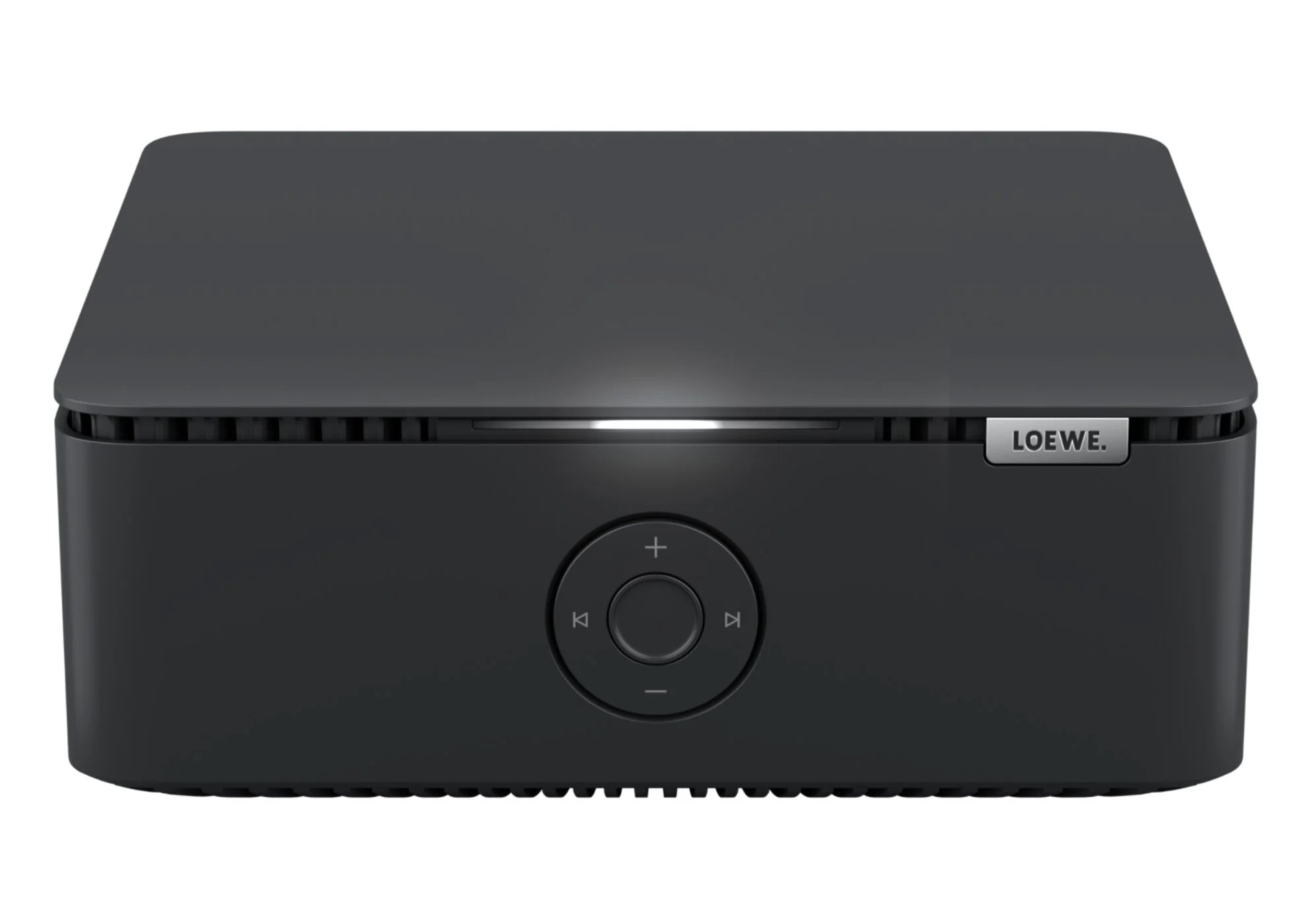

Loewe MULTI.ROOM AMP, 2-ių kanalų stereo stiprintuvas

INFORMACIJA

Loewe MULTI.ROOM AMP - kompaktiškas ir galingas išmanus stereo stiprintuvas, leidžiantis esamas pasyvias ar aktyvias kolonėles integruoti į modernią kelių kambarių garso sistemą. Jis siūlo iki 1200 W muzikinės galios, Hi-Res Audio atkūrimą ir Apple AirPlay, Google Cast, DTS Play-Fi, Spotify Connect bei Bluetooth.

Kanalai: 2.0 stereo
Stiprintuvas: D klasės
Galia @ 8 Ω: 300 W RMS / 600 W
Galia @ 4 Ω: 600 W RMS / 1200 W
Minimali kolonėlių varža: 4 Ω
Dažnių diapazonas: 20 Hz–20 kHz
THD: <0,05 %
Signalo / triukšmo santykis: >100 dB

APRAŠYMAS

Powerful stereo amplifier. The Loewe multi.room amp makes your existing speakers more intelligent. It gives your passive and active hi-fi speakers a total music output of 1,200 watts at 4 ohms. The Loewe multi.room amp distributes your favorite audio content via Apple AirPlay, Google Cast, DTS Play-Fi, Spotify Connect and Bluetooth.

Developed in Germany
Technical excellence meets functional design

Powerful Sound
With a power amplifier output stage of up to 1,200 watts for overwhelming sound

Versatile and compatible
Easily connect TVs, speakers and Loewe products with each other

Award-winning design
Awarded multiple international design prizes

Compact size. Fitting everywhere.

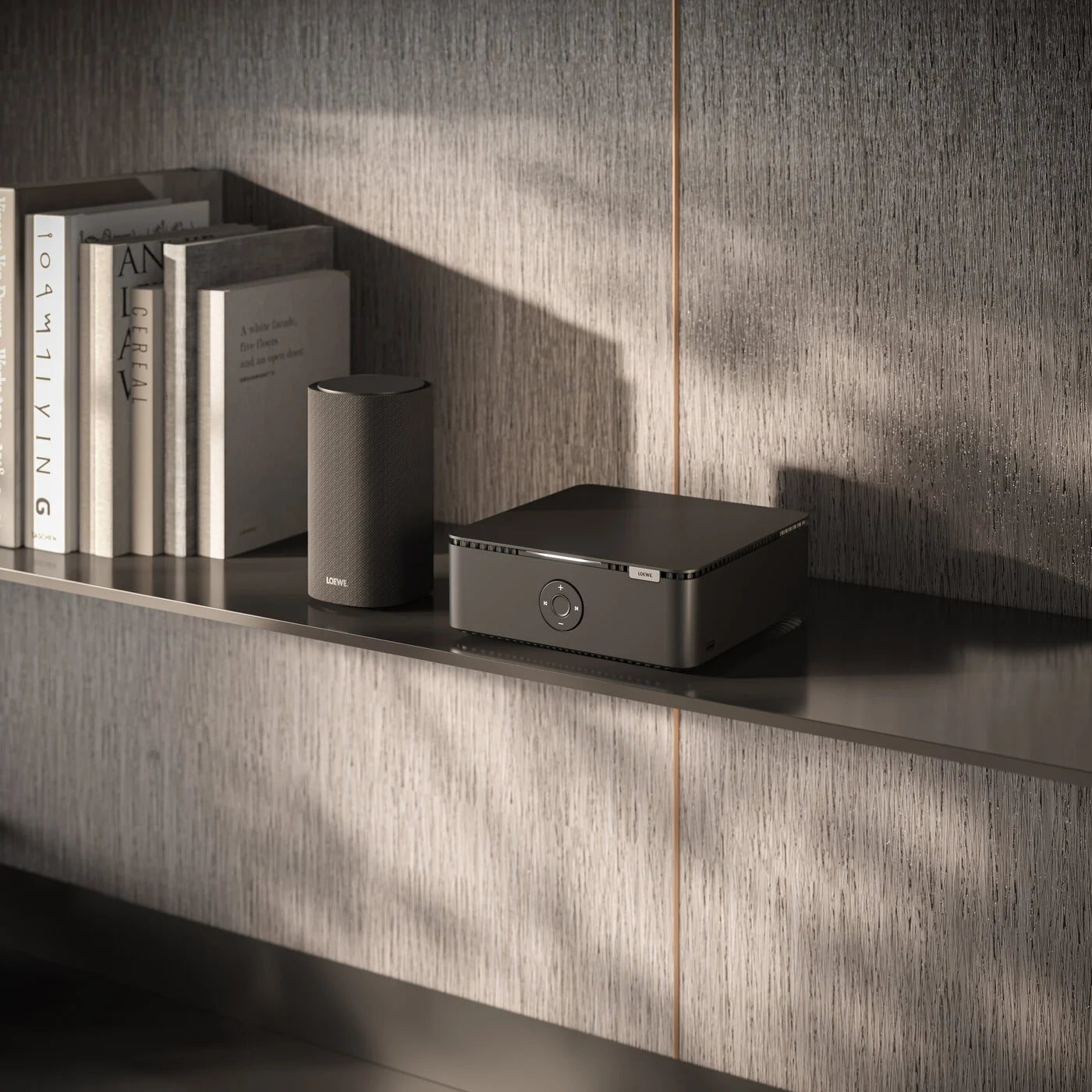

Maximize your space with the sleek and compact design, measuring only 22 x 8 x 22 cm. Our amplifier is tailored to fit seamlessly into any location, whether it's on display in your home or hidden away discreetly.

Multiple use cases. For music enthusiast and professionals.

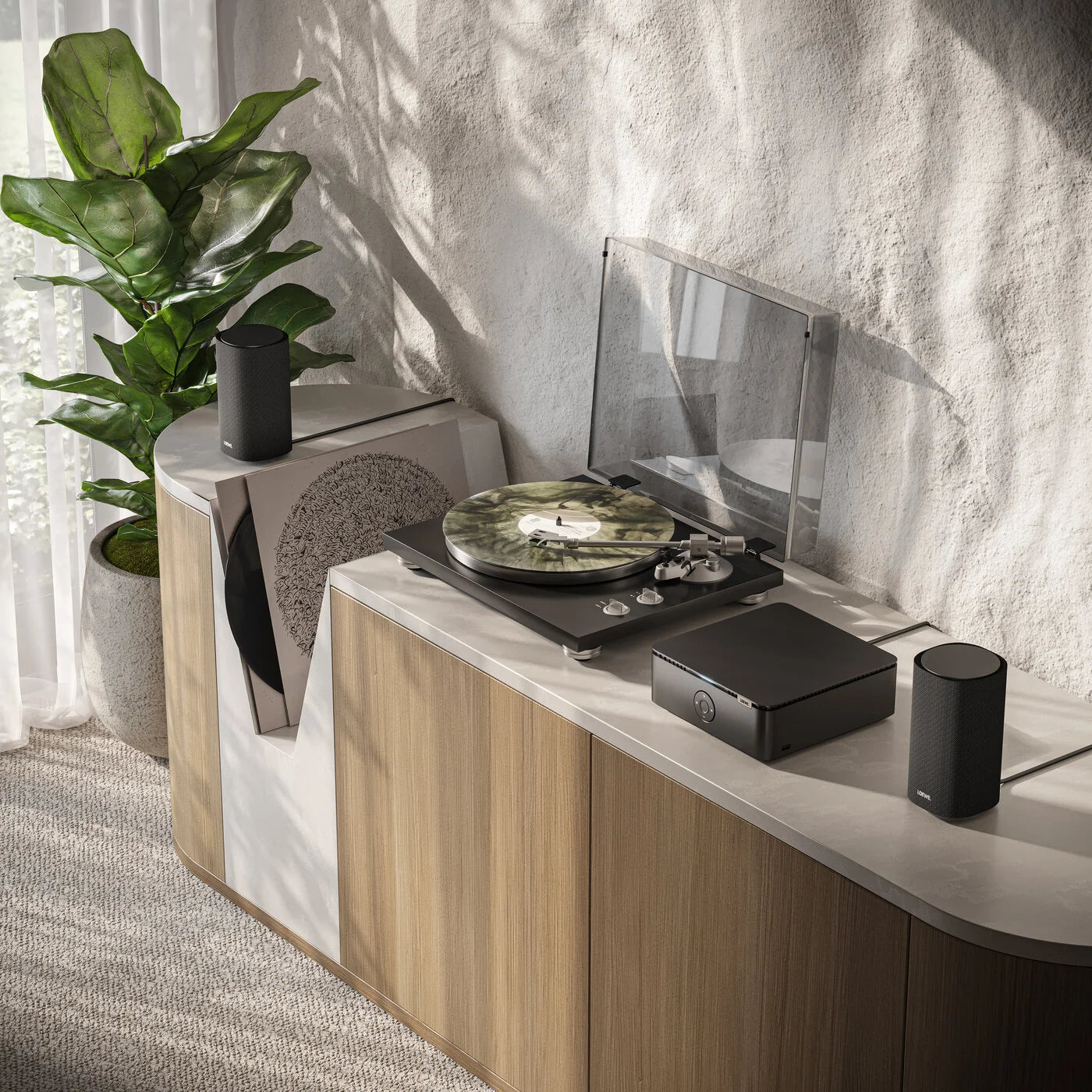

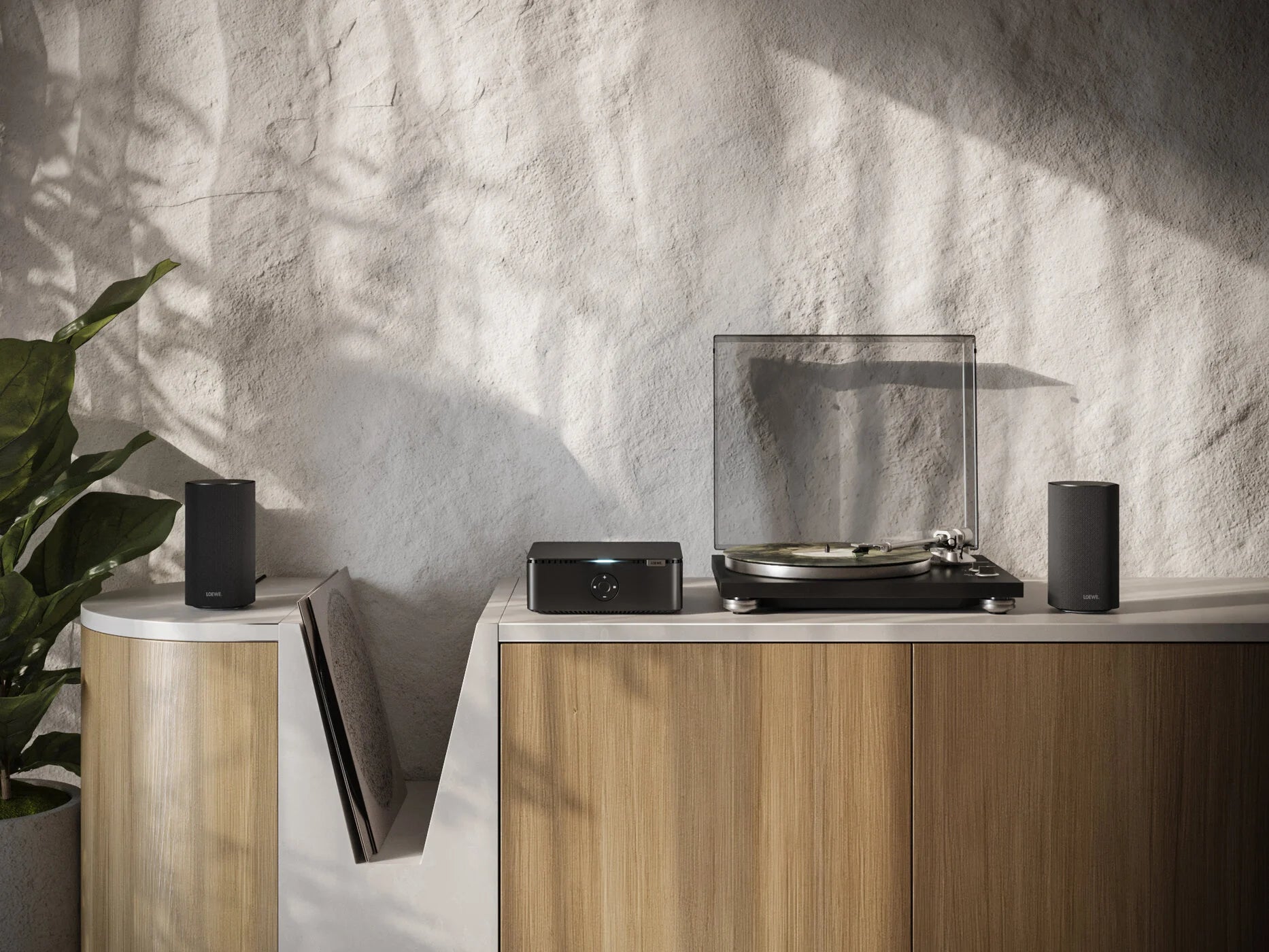

Discover the high-performance capabilities: whether you're a Hi-Res audio enthusiast in need of a powerful streaming hub, a vinyl lover seeking a classic stereo-system, or a restaurant owner looking for top-notch audio installation. It´s your versatile multi-purpose smart amplifier.

Powerful sound. With up to 1.200 watts.
Embark on an extraordinary audio journey with our powerhouse, delivering up to 1,200 watts of high-fidelity total music power, crafted with state-of-the-art technology.

Expandable ecosystem. With Loewe klang mr products.

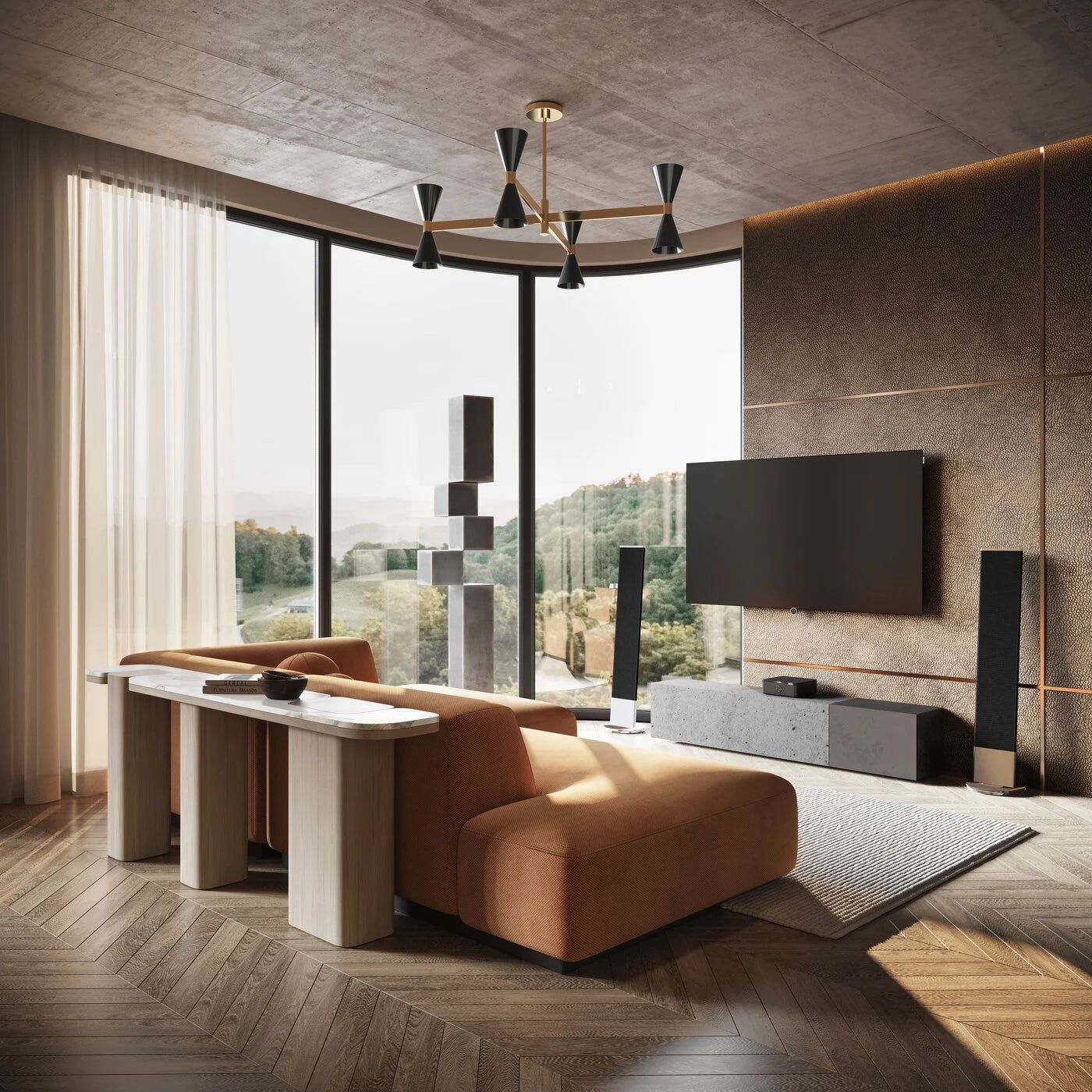

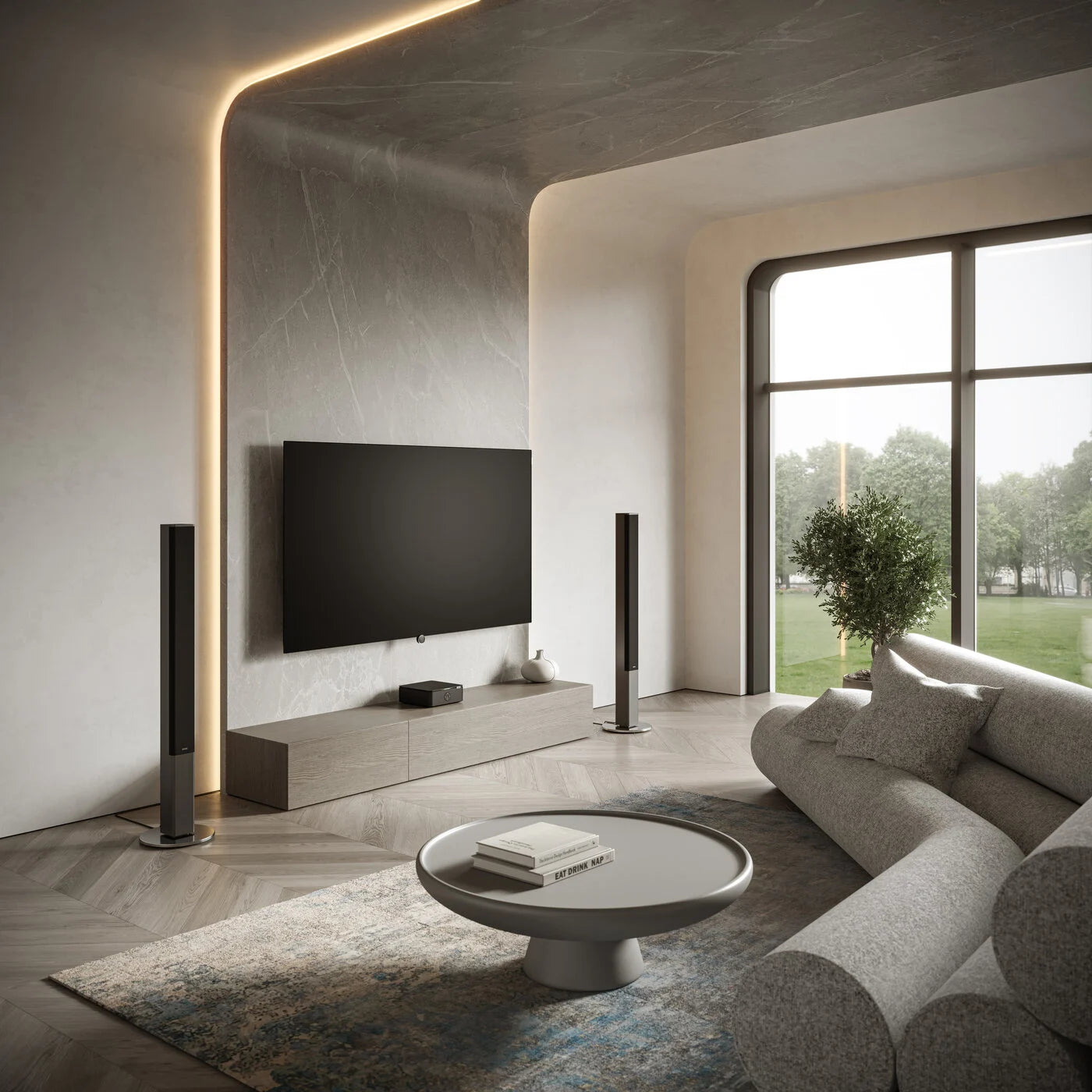

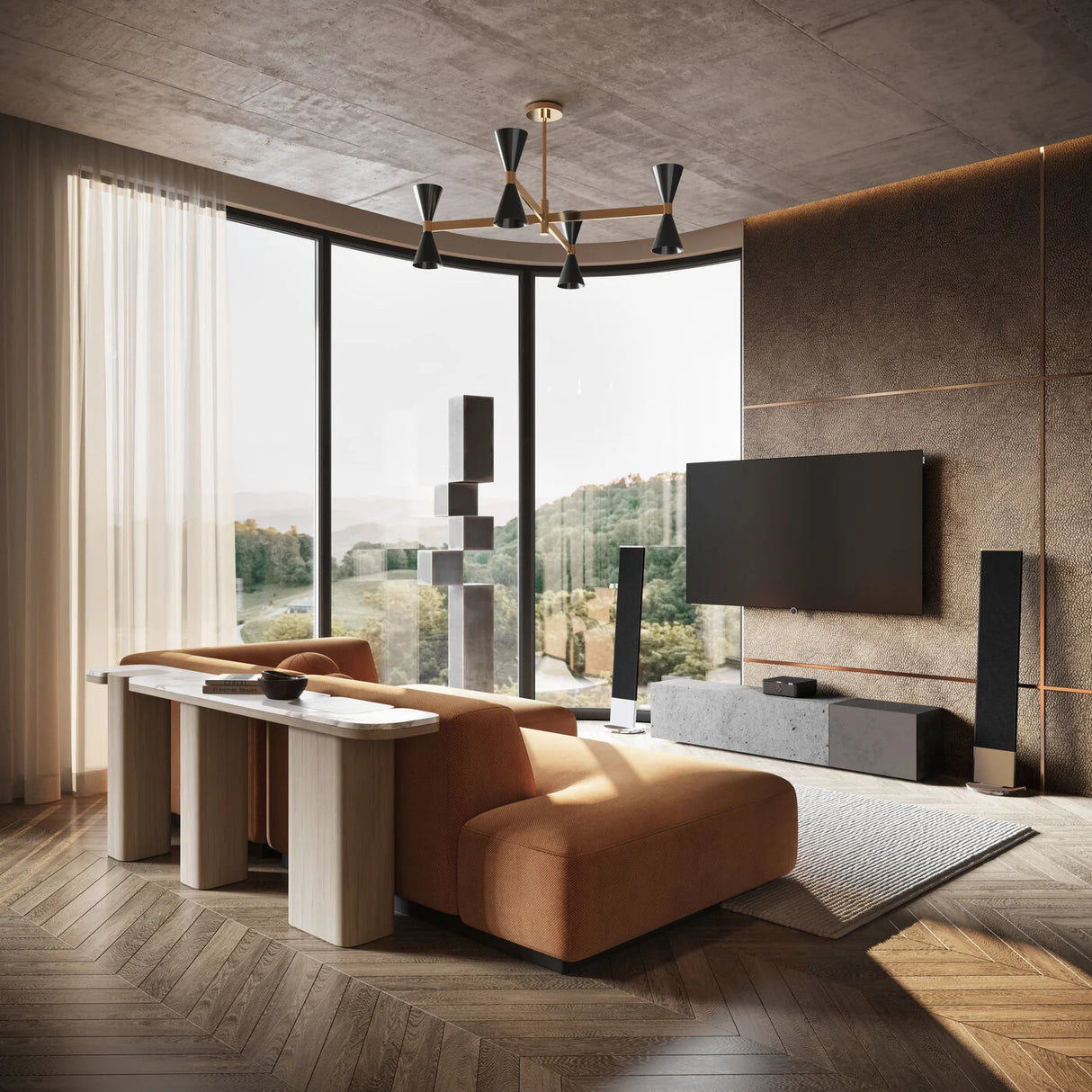

Seamless integration: ensuring compatibility with a wide range of existing TV sets and speakers, as well as all modular components within the Loewe multi.room and home.cinema system. Elevate your audio experience to extraordinary heights with effortless, harmonious integration.

Award-winning design. With clear distinction.
An award-winning, minimalist design – where every detail is refined to perfection. Our mono-cubic design, with its well engineered heat guidance, embodies a level of sophistication that speaks for itself.

Professional features. For B2B project installations.
Experience professional-grade features meticulously designed for B2B project installations, boasting rack mounting and custom installer tuning as standard: From network cable daisy-chain to mono-mode, from versatile rack to seamless wall installation, and fine-tuning scripting.

TECHNINIAI DUOMENYS

Audio (acoustic)
Channel configuration (speaker layout)
2-channel crossover
2.0 (stereo)
i(var. level, var. frequency)
Audio (electric)
Frequency range (Hz) @ ±1 dB
Class-D amp
Power (watts sine / music)
Total harmonic distortion @ 1 watt /10 watts
Dynamic range / Signal to noise ratio (dB)
Damping factor of power stage (dB)
Scalable output power / limiter / custom tuning
Bass and treble control / loudness
Balance / gain adjustment (dB)
Mono mix function
Protection circuit: heat / current / voltage / short cut
Dolby Audio / Digital / Digital Plus / Volume / Atmos / Atmos Music
DTS HD / DTS:X
20-20.000
i(min. speaker impedance 4Ω)
300 / 600 @ 8Ω, 600 / 1.200 @ 4Ω
< 0,05 / < 0,05
24 bit / > 100
> 50
i/i/i
i(remote) / h
i/i(subwoofer)
i
i/i/i/i
via klang bar mr
via klang bar mr
Operation
Display technology
Screen resolution (pixels)
Screen diagonal (cm / inch)
Smart apps (all: Android + iOS)
Voice control by Alexa skills
Software update (via USB / Internet)
White LED + Color LED (dimmable)
LED line
6,5 / 2,5
DTS Play-Fi, my Loewe app
i
i/i(DTS Play-Fi)
Media and receiption
USB music player
Bluetooth music player
Internet radio
DTS Play-Fi / Hi-Res Audio
Spotify Connect / Google Cast / Apple AirPlay
Roon tested
Multiroom audio support
Multichannel home cinema support
i
i
i(via DTS Play-Fi app)
i/i
i/i/ i
i
i
i(front / rear surround)

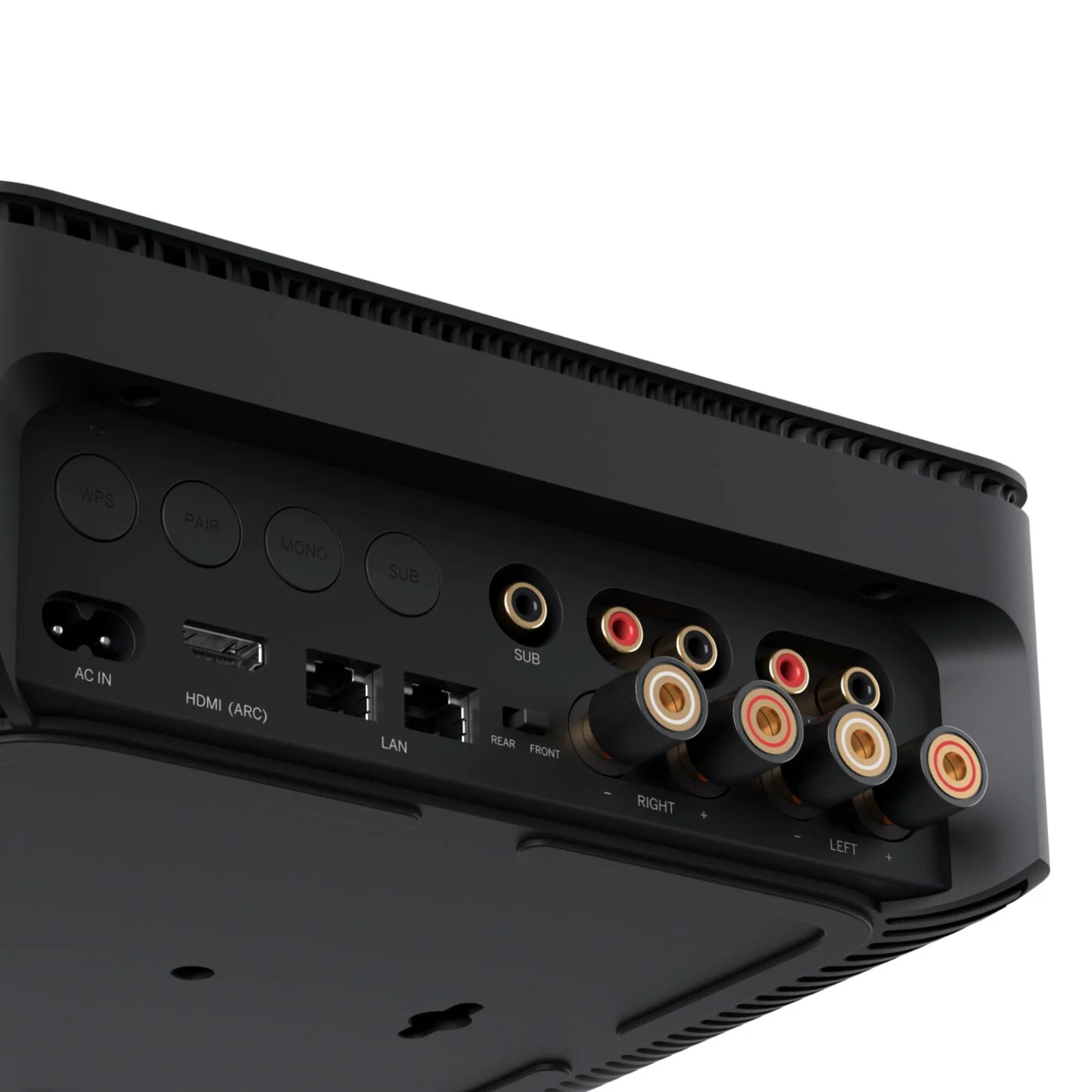

Connectivity and Interfaces
HDMI
HDCP 2.2 / HDMI-CEC / ARC / eARC
USB
Bluetooth
WLAN (Wi-Fi) integrated
LAN network connection
Wireless Digital Audiolink (second generation)
AV receiver analog pre-amp cinch out 5.1 / 3.1 / 2.1 / 2.0
Analogue audio cinch in / out (stereo)
Speaker terminals / banana plugs (stereo)
Wall mount
i (PCM audio only)
h /i/i/ h
1 x USB 2.0 (MP3 only)
i
i
2 x RJ45 (daisy chain)
i
h / h /i/i(gold plated)
i/i(gold plated)
i/i(gold plated)
i(integrated)
Network and formats
WLAN (Wi-Fi) standard
WLAN (Wi-Fi) power (max. mW)
WLAN (Wi-Fi) encryption
WLAN (Wi-Fi) encryption WPA
Bluetooth standard
Bluetooth power (max. mW)
Bluetooth frequency range
Bluetooth protocols
Supported audio formats
Supported video formats
IEEE 802.11a/b/g/n/ac
<100mW @2400-2485 MHz
<200mW @5150-5250 MHz
<100mW @5250-5350 MHz
<100mW @5470-5725 MHz
< 25mW @5725-5875 MHz (SRD)
WEP 64, 128 Bit (ASCII, HEX)
WPA PSK, WPA2 AES, WPS
5.0
<10
2,4 GHz
A2DP SNK, AVRCP
PCM, MP3, M4A, AAC, FLAC, WAC, AIFF, Hi-Res AUDIO
h
Energy and environment
Mains voltages AC
Power consumption eco standby mode (watts)
Power consumption network standby mode (watts)
Power consumption multiroom sleep mode (watts)
Ambient temperature while in operation
Relative humidity (non-condensing)
220-240V, 50/60 Hz
0,5
h
5
5-40° C
20-90%
Dimensions
Mains voltages AC
Power consumption standby / network standby (watts)
2,2
21,7 x 7,9 x 21,7
Scope of Delivery
Remote control (incl. batteries)
Manual / power cord
Others
Loewe remote mr (2x CR2032)
i/i
HDMI cable, Quick start guide
Optional accessories
Selection of recommended setup solutions and audio systems klang bar5 mr, klang bar3 mr, klang mr5, klang mr3, klang mr1

DOKUMENTAI

Duomenų lapas (EN)
