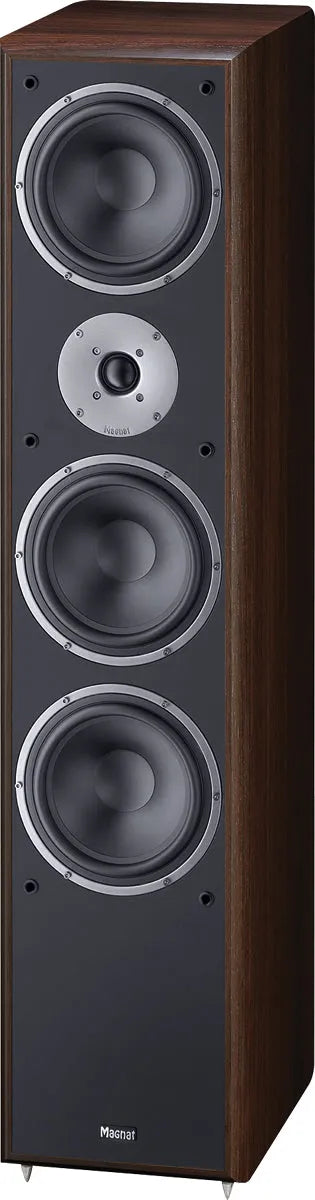

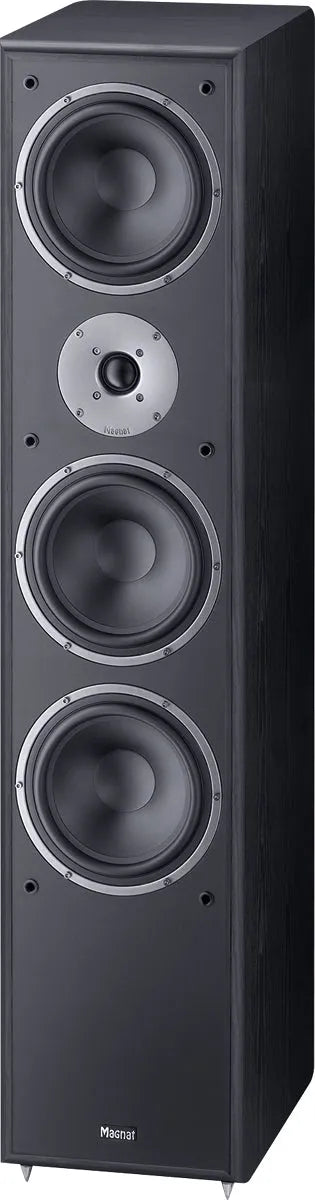

Magnat Monitor Supreme 2002, grindinė garso kolonėlė (įvairių spalvų)

Monitor Supreme 2002 buvo sukonstruotas pagal 3 krypčių bosinio reflekso principą - tvirtaS MDF korpusas su vizualiai nukreiptu deflektoriumi sukuria aukštos kokybės garsą.

• Galia: 450 W.
• Dažnių juosta: 18 – 40000 Hz.
• Varža: 4-8 Omai.
• 3-jų juostų kolonėlė.

APRAŠYMAS

The body of the largest floorstanding speaker in the series has been manufactured from solid MDF panels and is extremely resistant to any kind of intrinsic resonance. As is the case for all other models, the baffle of the Monitor Supreme 2002 has been visually offset from the rest of the housing and is a feature that defines the design of this Magnat speaker.

The speaker, which is available in two high quality wood finishes, is equipped with two 200 mm bass drivers and one 170 mm midrange driver, which offer a particularly high level of dynamics in the bass segment and good precision over the entire frequency range. The coated 25 mm fabric dome with its newly developed tweeter flange also ensures significantly enhanced dispersion properties.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

FREQUENCY RESPONSE

• 19 – 40000 Hz

PRINCIPLE

• 3 way bass reflex

EQUIPMENT

• 2 x 170 mm woofer

• 170 mm midrange

• 25 mm tweeter

POWER HANDLING (RMS/MAX.)

• 190 / 380 Watts

IMPEDANCE

• 4 – 8 Ohms

CROSSOVER FREQUENCIES

• 500 Hz, 3300 Hz

RECOMMENDED AMPLIFIER OUTPUT

• 30 - 380 Watts

SENSITIVITY (2.8V/1M)

• 92 dB

WEIGHT

• 17 kg

DIMENSIONS (WXHXD)

• 215 x 990 x 313 mm

Naudotojo instrukcija / User manual.
