McIntosh CS200, 3-jų juostų į lubas montuojama garso kolonėlė

INFORMACIJA

McIntosh CS200 - 3-jų juostų įmontuojama lubinė kolonėlė, skirta viso namo garso sistemoms ir aplinkinio garso sistemoms namų kino salėms. Puikiai tinka su MI128 ir MI254  stiprintuvais, užtikrinant nepriekaištingą garso kokybę.

Nominali varža: 6 omai
Galingumo diapazonas: 15–250 W
Dažnių diapazonas: 48 Hz – 22 kHz.
Jautrumas (2,8 V/1 m): 89 dB.
Matmenys: 27,94 cm x 27,94 cm x 12,7 cm
Svoris: 2,49 kg

APRAŠYMAS

The CS200 In-Ceiling Loudspeaker is a perfect choice to use in custom whole home distributed audio installations when paired with our MI128 or MI254 distribution amplifiers. It is voice matched to our WS500 and WS300 in-wall speakers, making for a cohesive sound experience where a combination of the CS200 and wall speakers are used. It's also a great surround sound speaker to use in dedicated home theaters with any of our A/V processors and multi-channel amplifiers.

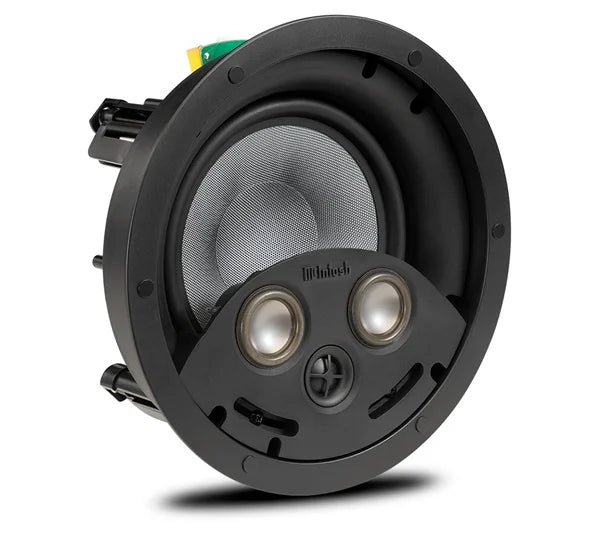

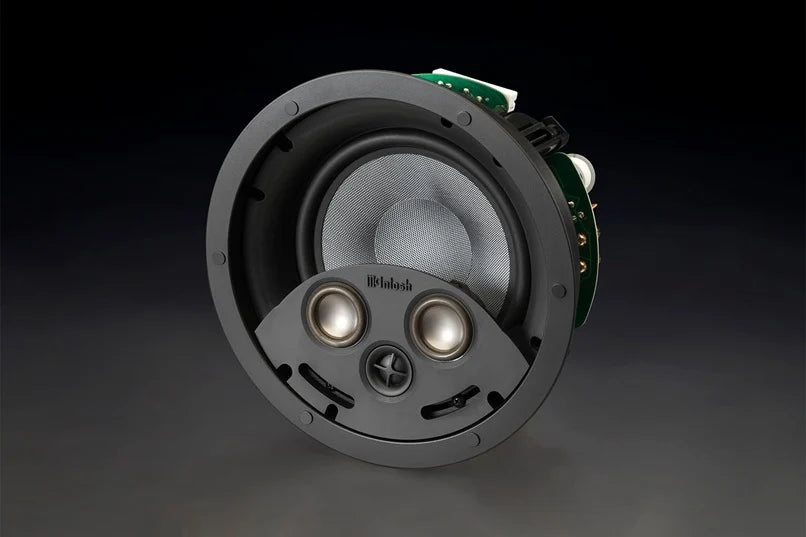

This 3-way in-ceiling speaker features an 8" woven glass fiber woofer, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The midranges and tweeter are housed in a rotating array so the already incredible sonic performance of each speaker can be maximized in each individual space. The midranges and tweeter are the same drivers used in our XR50 and XR100 home audio speakers, meaning you'll receive the same high level performance from the CS200 as from our home audio speakers.

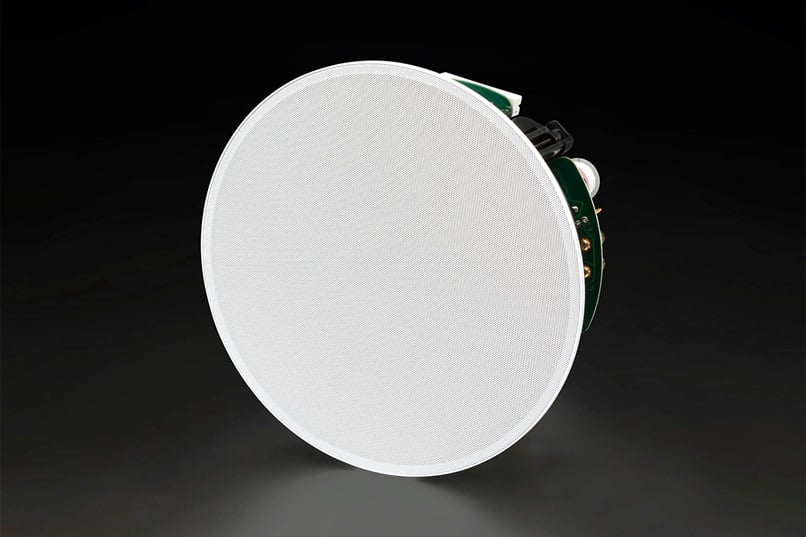

The grille magnetically attaches for easy removal. The grille is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. An optional rough-in kit (#RK200) is available if needed.

TECHNINIAI DUOMENYS

Electronic Specifications
Impedance Nominal
6 Ohms
Power Rating
15 to 250 Watts
Frequency Response
48Hz to 22kHz
Sound Pressure Level, 2.8V/1m
89dB
Crossover
1,100Hz, 3,000Hz
Driver Specifications
Number of Woofers
1
Woofer Size
8"
Woofer Type
Woven Glass Fiber
Number of Midranges
2
Midrange Size
2"
Midrange Type
Inverted Titanium Dome
Number of Tweeters
1
Tweeter Size
3/4"
Tweeter Type
Titanium Dome
General Specifications
System Type
3-Way In-Ceiling
Grille
Magnetic metal mesh
Available Finishes
Black chassis with white paintable grille
Weights & Dimensions
Unit Dimensions (W x H x D)
11" (27.94cm) x 11" (27.94cm) diameter x 5" (12.7cm) tall
Unit Weight
5.5 lbs (2.49 kg)
Shipping Weight
7 lbs (3.18 kg)

DOKUMENTAI

Vartotojo vadovas (EN)
