McIntosh MS500, tinklo grotuvas

McIntosh MS50 - tai išskirtinis muzikos srautinio perdavimo įrenginys, sukurtas sujungti visą Jūsų skaitmeninę muziką į vieną aukščiausios kokybės sistemą. Dėl integruotos 500 GB SSD laikmenos, tyliai veikiančios architektūros ir galimybės jungtis prie populiariausių muzikos platformų, McIntosh MS50 užtikrina nepriekaištingą garso kokybę bei patogų valdymą. Subtilus dizainas su juodo stiklo priekiniu skydeliu ir apšviestu McIntosh logotipu harmoningai dera bet kuriame interjere.

Dažnių diapazonas: 2Hz – 22,000Hz
Signalo ir triukšmo santykis: 102dB
Visas harmoninis iškraipymas (THD): 0.005%
Palaiko: „Pandora®“, „Rhapsody®“, „SiriusXM®“, „Spotify®“, „TIDAL“ ir „TuneIn“.

The sophisticated yet simple to use MS500 Music Streamer seamlessly integrates both your internet based streaming music and locally stored digital music into one comprehensive device. It allows your digital library to be enjoyed with McIntosh’s legendary audio standards – including uncompressed, lossless files with up to 24-bit/192kHz resolution.

With all its onboard storage and external connection capabilities, the MS500 can easily serve as a central hub for all your digital music. The high-speed network port connects you to leading streaming services¹ such as Deezer, Murfie, Pandora^®, Rhapsody^®, SiriusXM^®, Slacker, Spotify^®, TIDAL and TuneIn (services subject to change). Interfaces to these services are built in to the MS500 – putting all your streaming music at your fingertips. Internet radio stations can also be added as presets. Three USB ports allow for external mass storage or flash drives to be connected.

The MS500 runs ultra-quiet thanks to two key features. First, local music and the operating system are stored on a durable 500GB solid state drive (SSD) that has no moving parts to create noise; second, a fanless processor combined with improved ventilation means noisy cooling fans are not needed. The combination of these two things results in there being no noise to interfere with your music listening.

The MS500 can automatically synchronize the content stored on your networked computers so it is readily accessible and playable. All your content can be backed up to the Amazon Cloud Drive, Apple iCloud or Google Drive. This also allows for your music to be synchronized across multiple homes or locations when an MS500 is installed in each location. New music purchases from any of these cloud services can be automatically added to your library for easy playback.

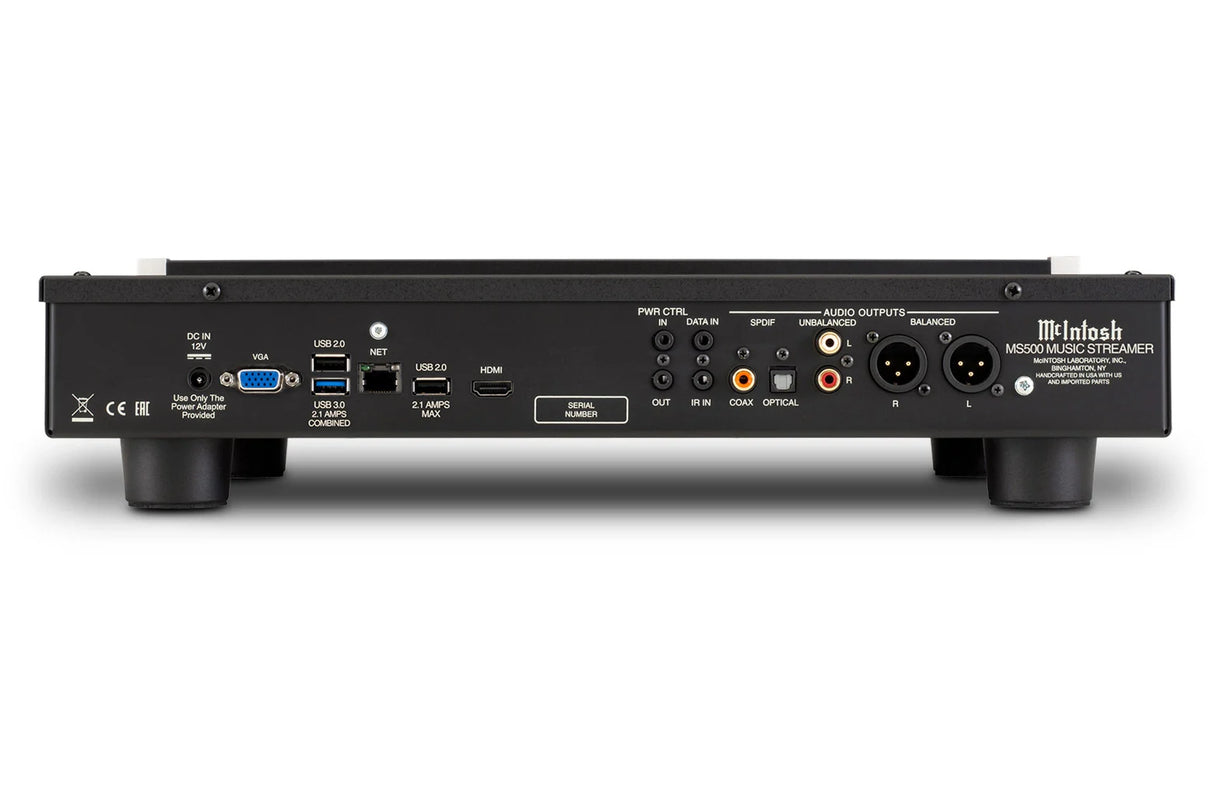

A set of balanced and unbalanced analog outputs plus two digital outputs connect the MS500 to your preamplifier, integrated amplifier or other audio components. The MS500’s high quality digital to analog convertor (DAC) is isolated from the motherboard, ensuring your music is reproduced with extreme precision and elegance when using either of the analog outputs. Any one of the USB ports can also be used to connect an external component with a built-in DAC – including select McIntosh products;² utilizing this external DAC, one additional independent audio zone can be created.

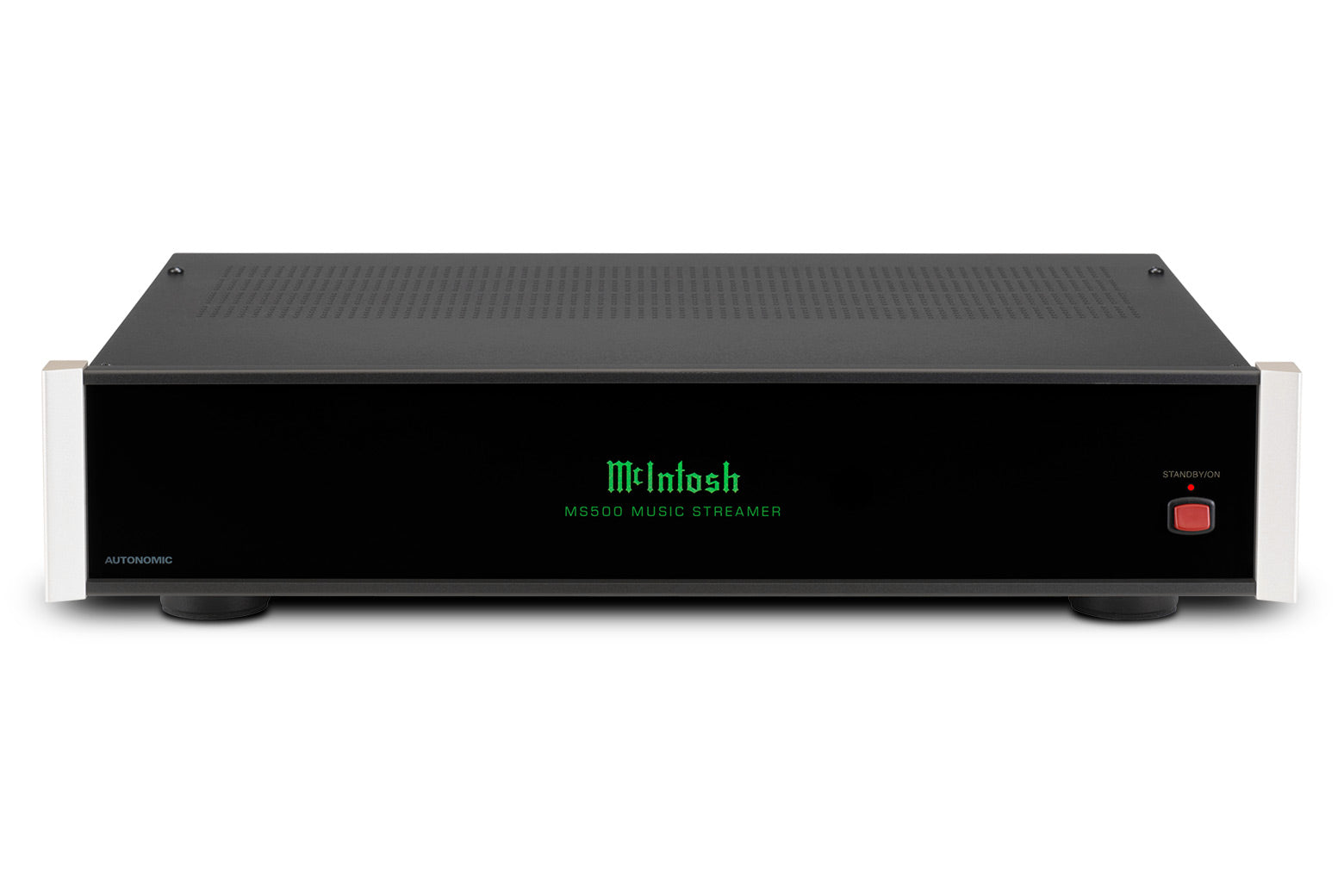

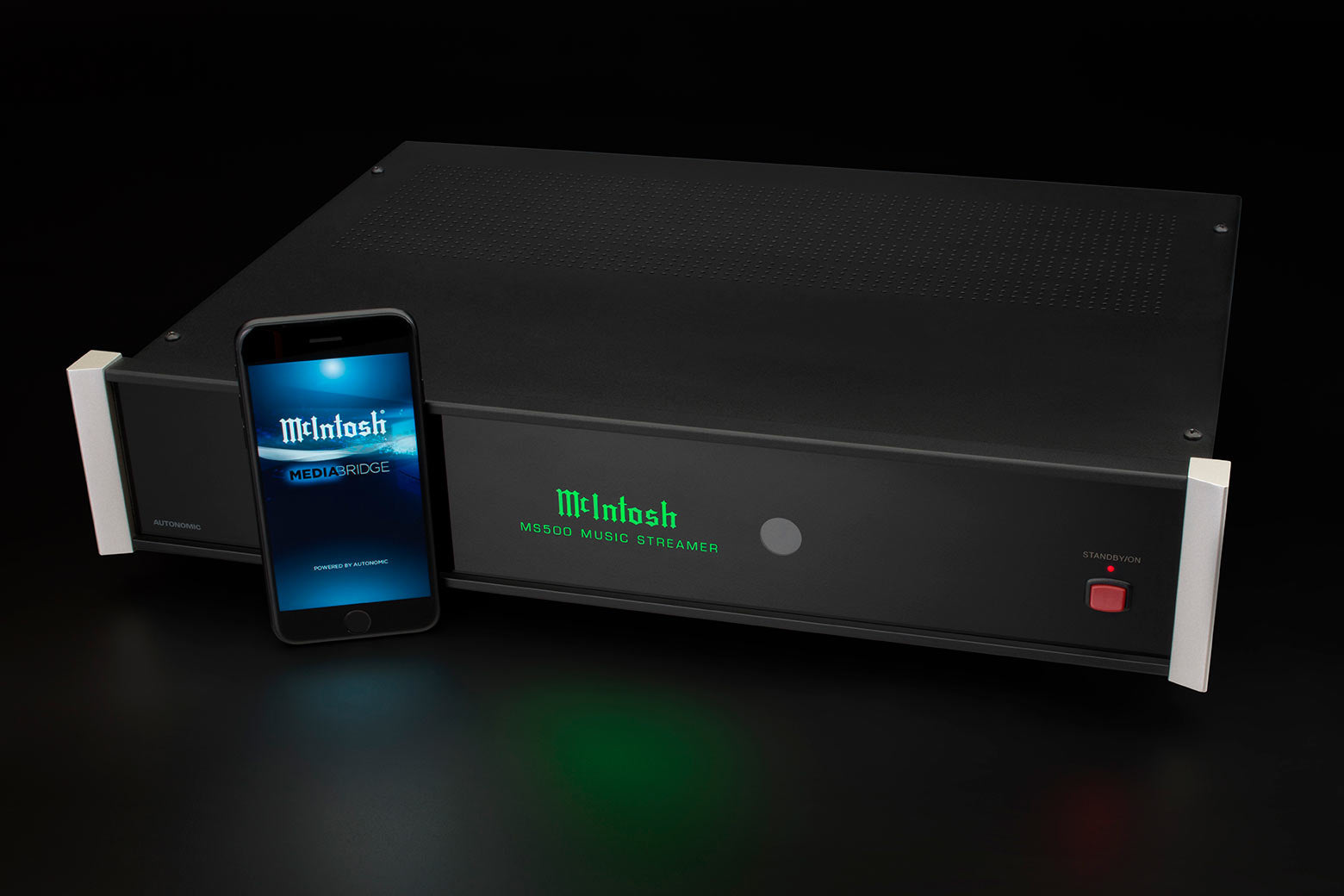

The MS500 utilizes a Linux based operating system that brings stability and is extremely responsive to user inputs. It is operated via the included remote control, a web browser or with free apps for iPhone, iPad or Android devices. The unit is compatible with many popular home automation systems allowing for easy integration into your existing setup. The timeless black glass front panel, illuminated logo and aluminum end caps make the MS500 a welcome addition to any audio system and room decor. Contact your local dealer to learn more.

UPDATE: MS500 and the end of Adobe Flash
The web browser user interface for the MS500 utilizes Adobe Flash. As of December 31, 2020, Adobe is no longer supporting Flash Player and they will block Flash content from running in Flash Player beginning January 12, 2021. To allow MS500 users to continue using the MS500's web interface, we have worked with our partners at Autonomic to produce a new interface for the MS500 that does not rely on Flash. To minimize any disruptions in users accessing their MS500 via the web interface, we are releasing the current working version on January 11, 2021. This will be followed by a later version that includes the familiar McIntosh MediaBridge branding. To access the new interface, the latest firmware must be installed on your MS500. To install the new firmware:

1. Using a computer connected to the same network as the MS500, launch an internet web browser.
2. In the "URL-Address line" type in the IP Address Number of your MS500 and add "/config" to end of the address (for example: 192.1.168.130/config).
3. Select the Firmware Tab.
4. Select Update in the firmware Update Window.

Adobe ending support for Flash does not affect the free MediaBridge control app that is available for iPhone, iPad or Android devices, or the handheld remote control that is included with the MS500.

Electronic Specifications
Total Harmonic Distortion
0.005%
Frequency Response
2Hz to 22,000Hz
Maximum Volts Out (Balanced / Unbalanced)
4/2 V RMS
Signal To Noise Ratio
102dB
Output Impedance
600 ohms Unbalanced and Balanced
Dynamic Range
96dB
Connectivity
Balanced Input
0
Balanced Output
1
Unbalanced Input
0
Unbalanced Output
1
Digital Coaxial Input
0
Digital Coaxial Output
1
Digital Optical Input
0
Digital Optical Output
1
Digital USB Input
3 (2 USB 2.0 / 1 USB 3.0)
Digital USB Audio Output
3 (only 1 can be used at a time)
Network Connection
1 (10/100/1000)
DVI Output
0
HDMI Output
1 (for GUI only)
VGA Output
1 (for GUI only)
eSata Input
0
Digital Audio Specifications
Digital Input Format
N/A
Digital Input Sample Rate
N/A
Digital Output Format
SPDIF (PCM)
Digital Output Sample Rate
Up to 24-Bit/192kHz
Control
Power Control Input
1
Power Control Output
1
Rear Panel Data Input
1
Rear Panel IR Sensor Input
1
Weights & Dimensions
Unit Dimensions (W x H x D)
17.5" (44.45cm) x 3-7/8" (9.8cm) x 16" (40.64cm)
Unit Weight
13.5 lbs (6.1kg)
Shipping Weight
28 lbs (12.7kg)

Vartotojo vadovas (EN)
