Monitor Audio C3L-A, į lubas montuojama garso kolonėlė

INFORMACIJA

Monitor Audio C3L-A - yra didelio dydžio trijų juostų įmontuojama lubinė kolonėlė iš „Creator Series“ linijos. „A“ reiškia „Angle“ – modelis turi kampu pasuktą IDC II garsiakalbių sistemą, kuri sufokusuoja vidutinių ir aukštų dažnių garsą tiesiai į klausymo zoną, pagerindama aiškumą ir detalumą. Dėl šios technologijos Monitor Audio C3L-A puikiai tinka namų kino teatrams ar daugiakanalėms garso sistemoms, ypač jei įmontuoti sieninius garsiakalbius nėra galimybės.

 Trijų juostų dizainas – tikslus ir detalus garsas
 25° kampu pasuktas IDC II vidutinių ir aukštų dažnių garsiakalbių modulis – geresnis garso fokusavimas į klausymo zoną
 1" (25 mm) IDC II aukštų dažnių garsiakalbis su UD Waveguide II technologija
 4" (102 mm) IDC II vidutinių dažnių garsiakalbis – aiškūs vidutiniai dažniai
 9" (229 mm) RDT III žemų dažnių garsiakalbis – gilus ir kontroliuojamas bosas
 Patentuota Quik-Link jungtis – greitas ir patogus laidų prijungimas
 Tri-Grip II montavimo sistema – lengvas ir saugus įrengimas
 Išpjovos diametras: 248 mm
 Galimybė naudoti kvadratines groteles

APRAŠYMAS

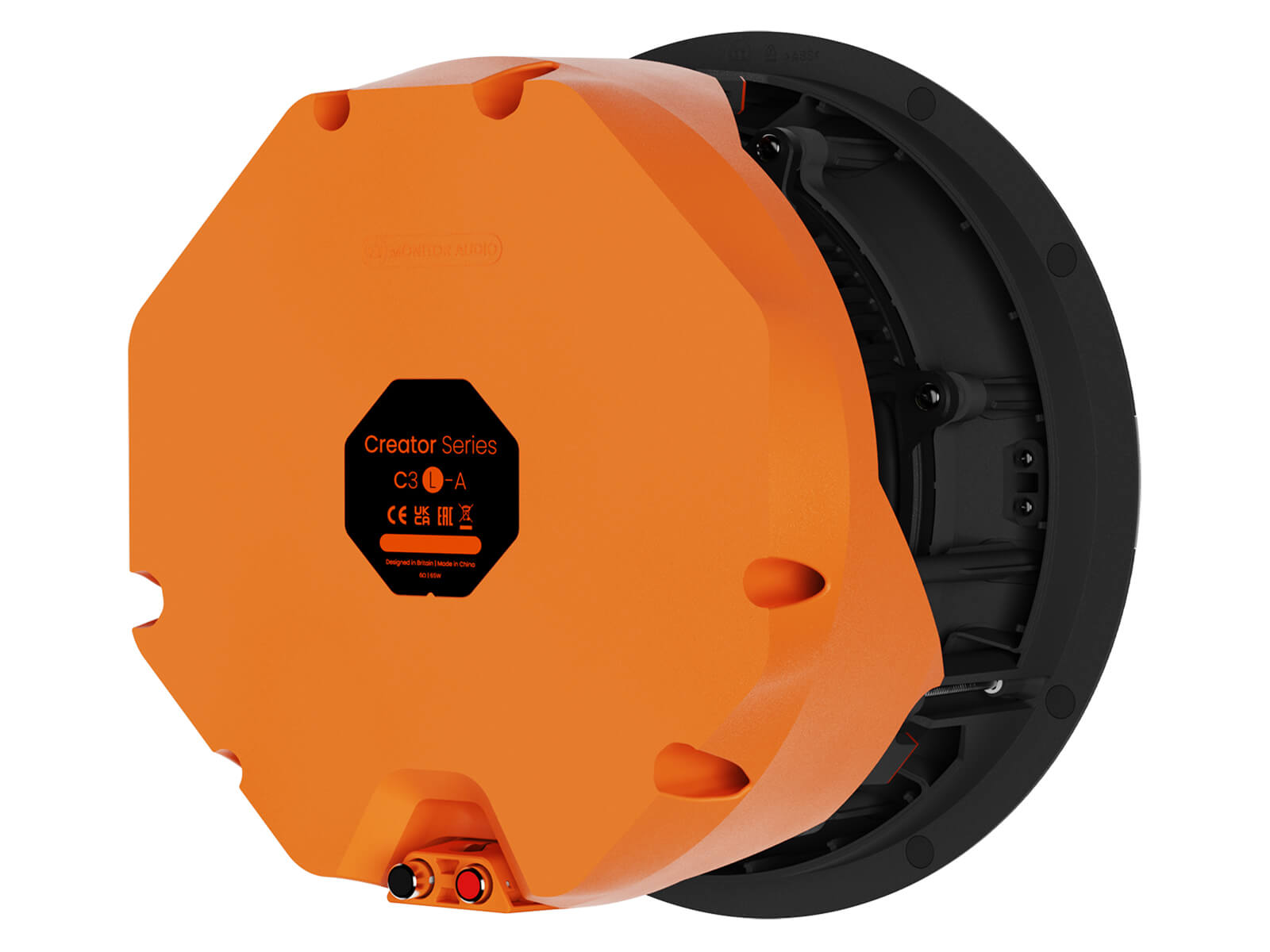

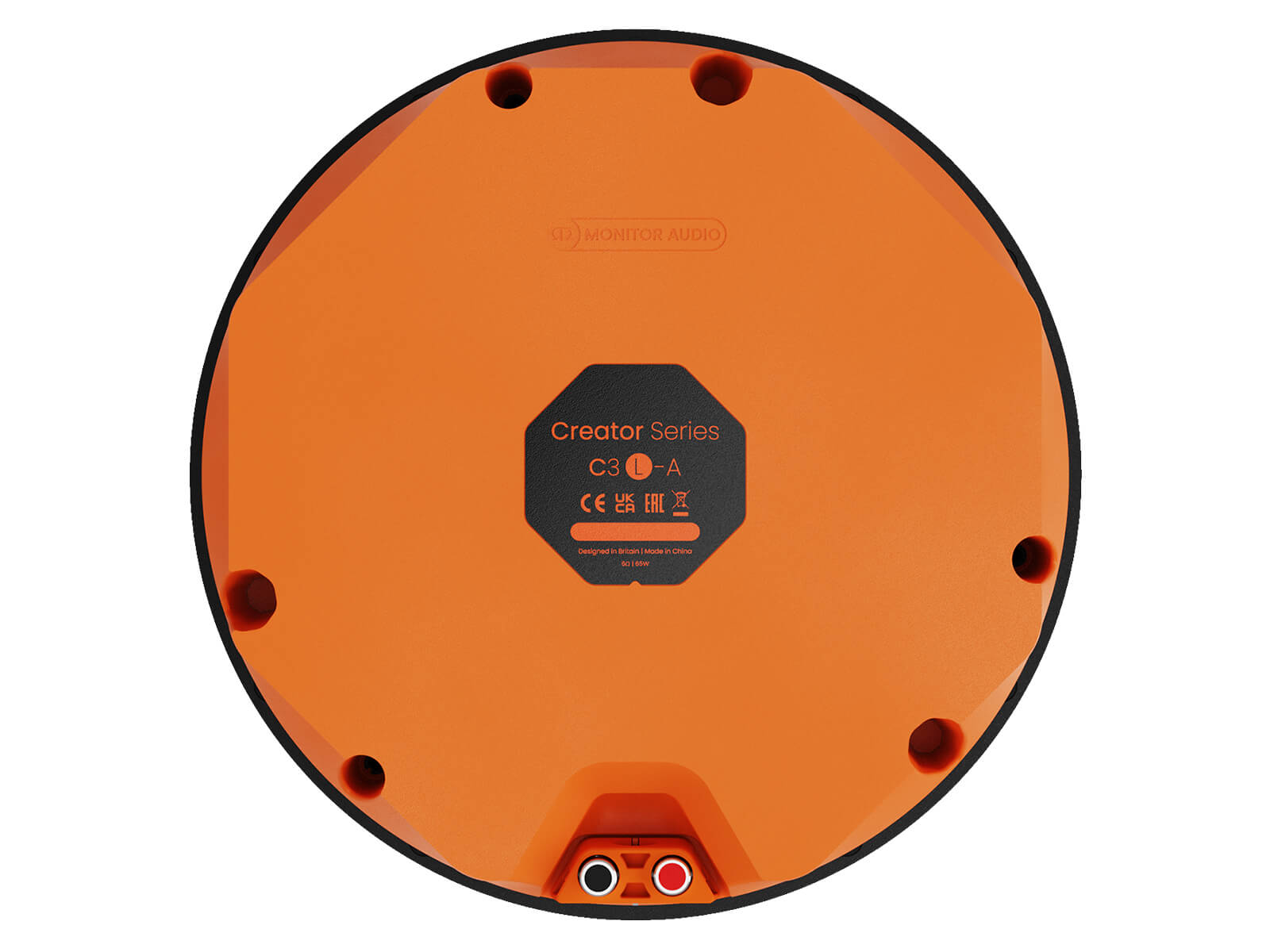

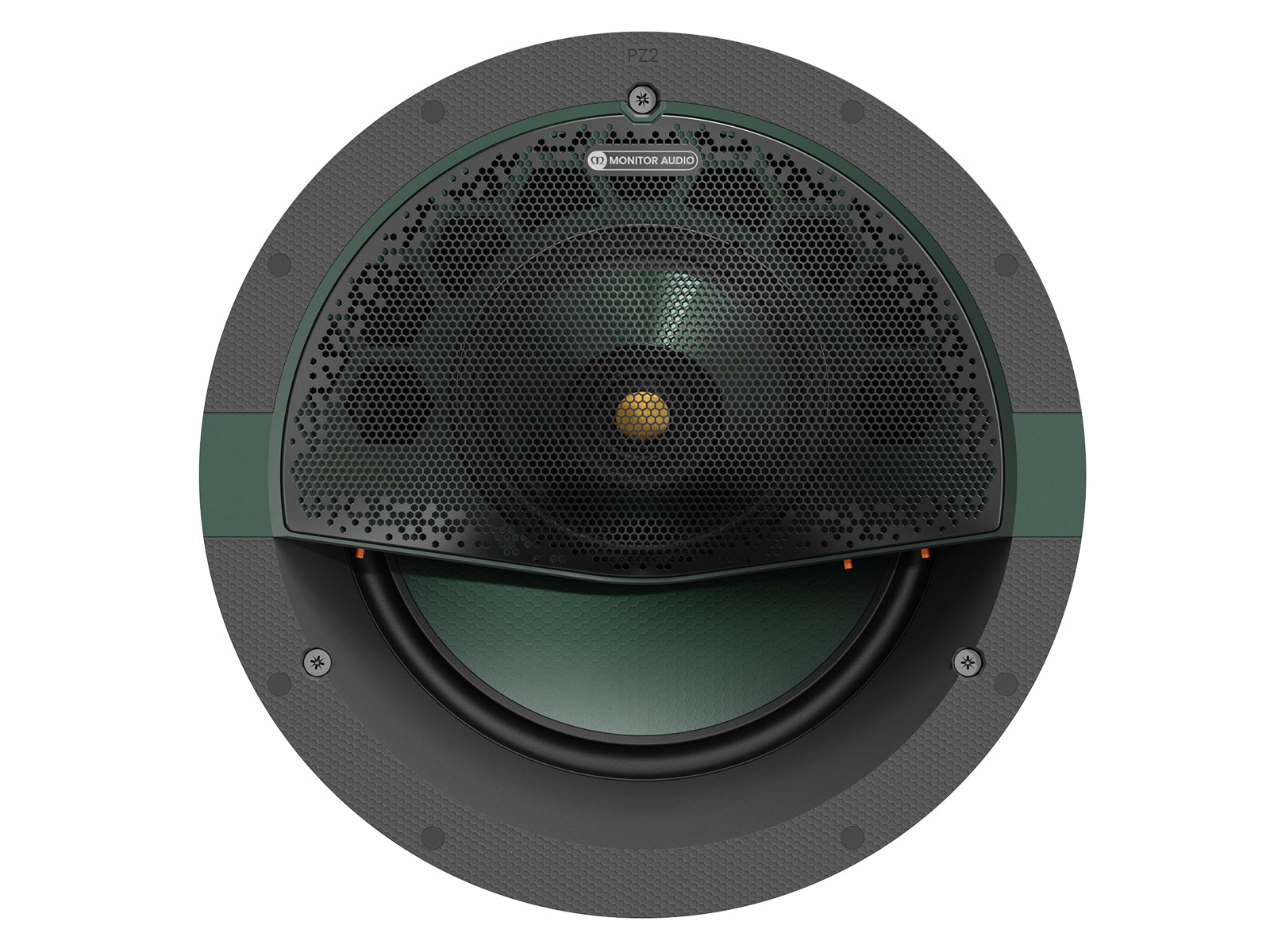

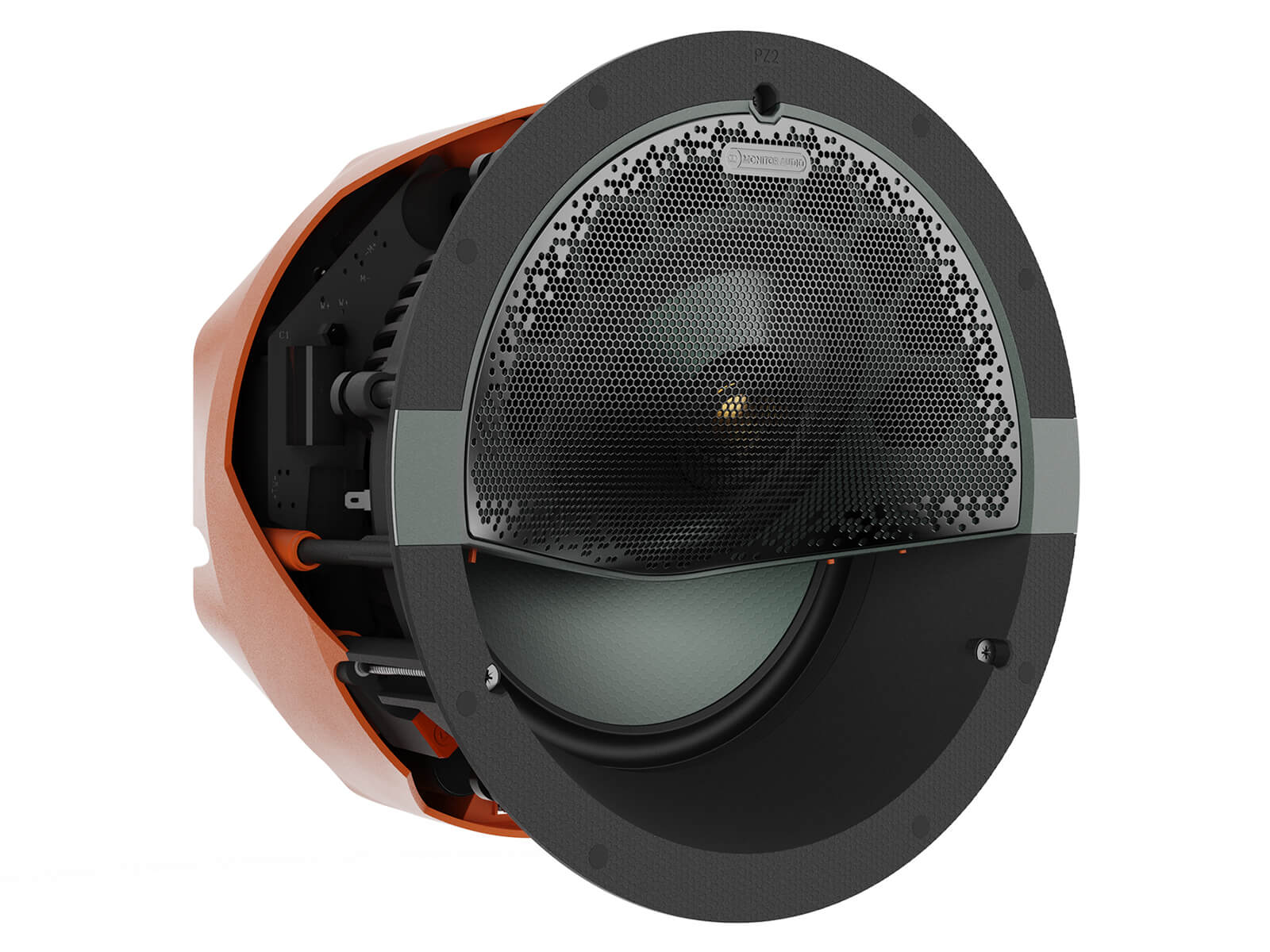

This large Tier 3 in-ceiling loudspeaker is a three-way model with an angled IDC II driver array that focuses sound mid-range and high-frequency sound into the listening area for improved clarity. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

C3L-A is a new and invaluable addition to the Creator Series. ‘A’ stands for ‘Angle’, and the speaker consists of a fixed-angle IDC II that delivers a ‘spotlight’ effect that focusses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.

The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker – where In-wall speakers aren’t possible.

Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range is highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.

It has a cut-out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Optional square grille can be used with this model.

Key Features
Ideal for installations where high-performance acoustics are desired
Angled IDC II projects sound into the room for pin-point accuracy
Three-way design
Mid-frequency ‘mid-pod array’
1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
1 x 9" (229 mm) RDT III bass driver
1 x 4" (102 mm) IDC II mid-range driver
Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
Tri-Grip II for easy and secure fitment

TECHNINIAI DUOMENYS

System Format
3–Way
Channels
1
Frequency Response, Installed (-6dB)
45 Hz – 35 kHz​
Nominal Impedance
6 ohm
Minimum Impedance (20Hz to 20kHz)
4.6 Ohm @ 2 kHz
Sensitivity (2.83Vrms@1m, Installed)
89 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
119 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
150 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
60 – 225 W
Drive Unit Complement
1 x 9" (229 mm) RDT III bass driver
1 x 4" (102 mm) IDC II midrange driver
1 x 1" (25 mm) IDC II tweeter
Crossover Frequency
LF/MF: 700 Hz
MF/HF: 3 kHz
Mounting Depth
157 mm (63/16")
Cut-Out Hole Diameter
248 mm (93/4")
External Dimensions (Including Grille (H x W x D))
278 x 278 x 161​ mm (1015/16 x 1015/16 x 65/16")
Weight (each)
5.6 kg (12 lb 5 oz)
Pre-Construction Bracket
CL-B
Cabinet Finish
Matte black & Orange​ & Green
Sold As
Single Unit
Corner Switch
On/Off
HF Switch
- /0/ +
MF Switch
- /0/ +
